Microscope, Analyth LCD, BRESSER

Main info

Product has been archived

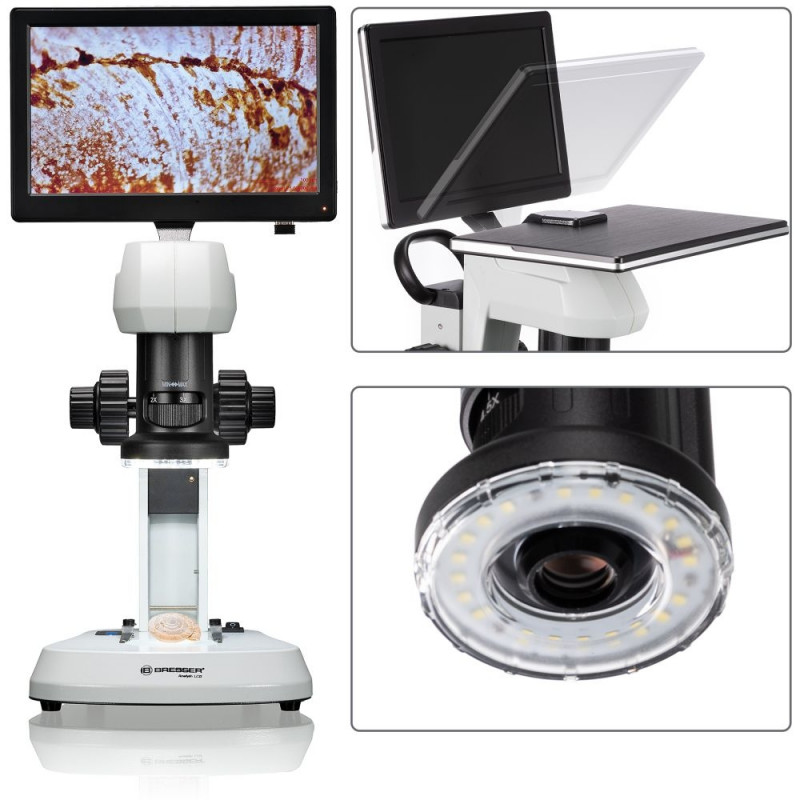

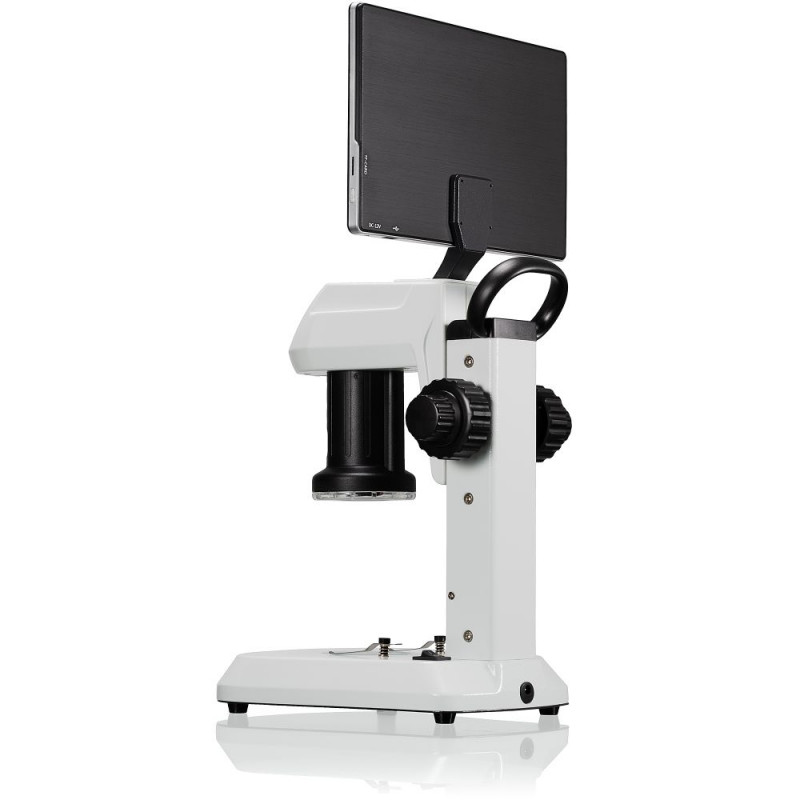

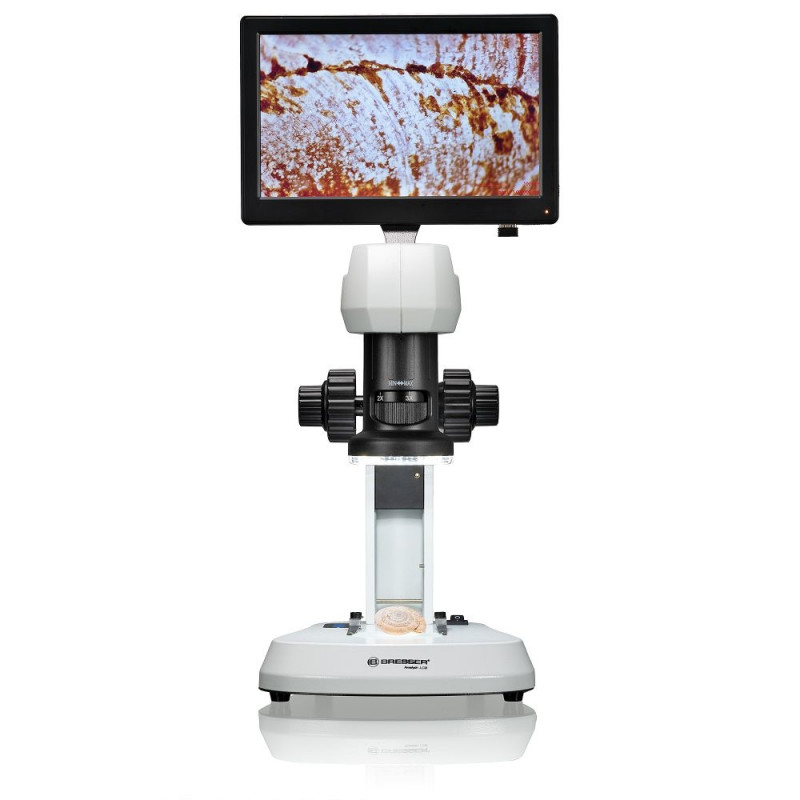

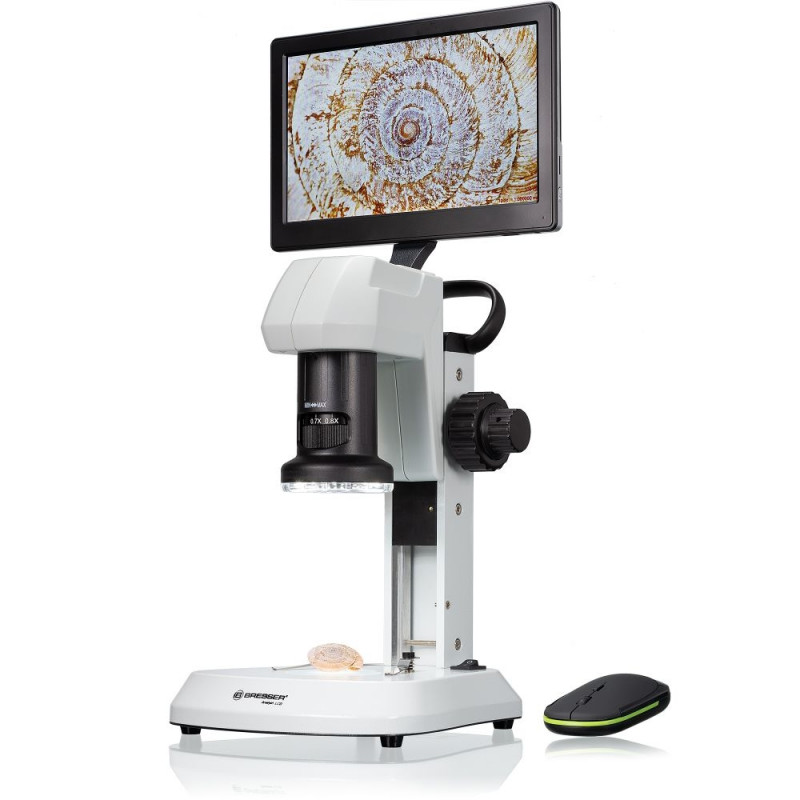

The Analyth LCD microscope is particularly suitable for observations in incident-light. With its zoom optics, the incident-light microscope enables fast and optimal magnification for quality control of fine structures and small objects.


The screen with a 22.5 cm diagonal ensures comfortable observation of the sample. The simple and user-friendly operation makes the digital microscope particularly suitable for daily use in the workshop or studio. Measurements, quality control of surfaces or examination of components and raw materials become easy with the workshop microscope. Insects, plants and minerals are also impressively displayed.


With its incident light ring illumination with 21 LEDs, the workshop microscope gives uniform, shadow-free illumination of the object.

The observation of transparent objects is made possible with the integrated transmitted-light illumination. Both illumination options can be set separately in 5 brightness levels each and ensure optimal illumination of the slide.


At high magnifications, coarse and fine focusing ensure precise sharpening.


Analyses become simple and efficient with the workshop microscope, even for inexperienced users. Photos and videos can be simply saved to an SD card. With an USB-mouse controlling the slides can be done via on-screen menu.

No Computer is required to use the digital microscope.


Measurements can also be taken with an optional calibration slide (e.g. art. no. 5916720).


TECHNICAL DETAILS:

Stepless zoom (0,7x - 4,5x)

Field of view at lowest magnification 17.5mm x 10.0mm

Field of view at highest magnification 4.7mm x 2.5mm

Magnification on the integrated screen: approx. 8.2x to approx. 52.7x

Coarse and fine focusing

Bright ring illumination with 21 LEDs for incident light without shadows

Transmitted light for transparent slides, separately switchable and dimmable


SONY IMX335 SENSOR:

Camera with advanced Sony IMX335 image sensor, sensor size 1/2.8"

enables a resolution of 5 megapixels

The pixel size is 2.0µm

Display resolution: 1024x600px


SCOPE OF DELIVERY:

Digital microscope with integrated zoom lens and screen

Built-in LED illumination (incident light and transmitted light)

Contrast disk and transmitted light disk

Instruction manual

USB mouse

Dust cover

Micro SD card (16 GB)

Power supply EU 12V 2A


Ehituse tüüp Digital
Keskendumine Stepless zoom (0,7x - 4,5x) / Coarse and fine focusing
Suurendusvahemik Magnification on the integrated screen: approx. 8.2x to approx. 52.7x
Pea Digital display
Valgustuse asukoht dual
Kaasas katsekomplekt No
Kott/kõva ümbris/kott komplektis dust cover
Korpuse materjal Metal/plastic
Lava tüüp Stage plate
Toiteallikas Power supply EU 12V 2A
Kasutaja tase experienced users, professionals
Saadetise kaal, kg 2.76
Garantii, aastat 2
Valgustus LED
Illumination location Combined
Kasutajakogemus Professional
Valgusallikas LED
Mikroskoobi kasutamine Industry
Uurimismeetod Bright Field
Mikroskoobi tüüp Digital
*Can be put into parcel-machine Истина

Dimensions and weights

Gross weight
2.9 kg
Package width
30 cm
Package height
42.5 cm
Package length
41 cm

Product codes

EAN
4007922071305
