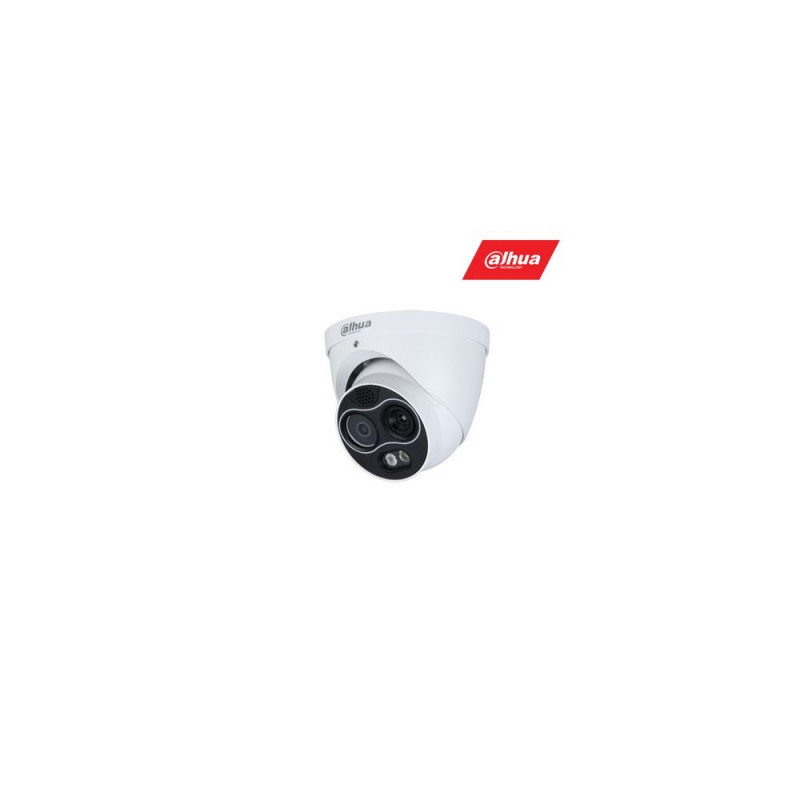

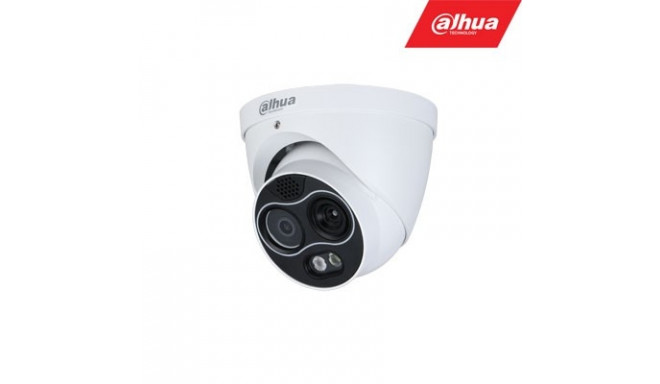

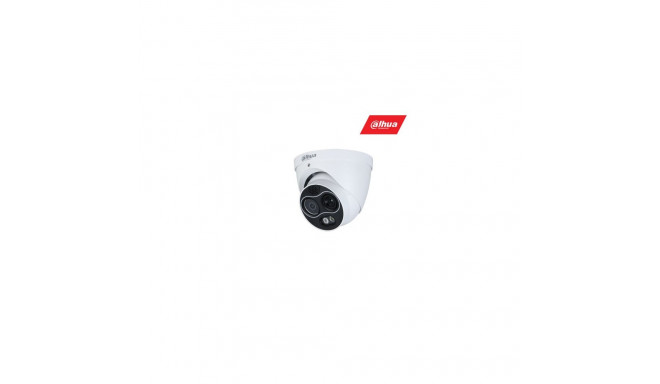

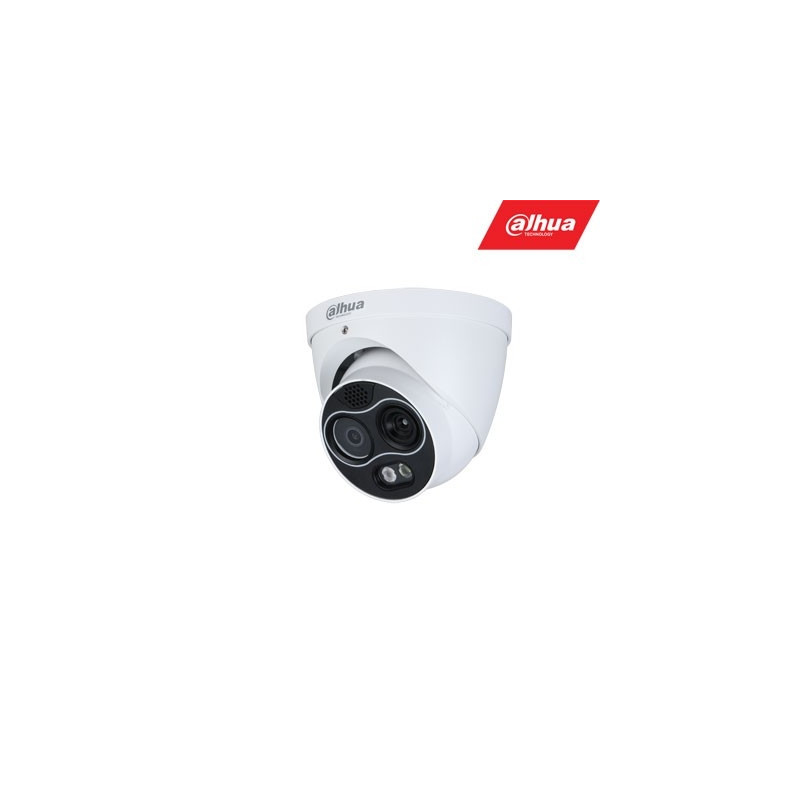

Thermal Camera TPC-DF1241

929 €

Monthly payment starting from 31,66 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Features:  • Uncooled VOx thermal sensor technology. • Athermalized lens (thermal camera), focus-free. • 1/2.7'' 4Megapixel progressive scan CMOS. • Support ROI, motion detection, color palettes. • Smoking and call behaviour detection. • Suppo

Warning: Last items in stock!

Add to cart

Delivery in 4-7 working days

Free delivery

14 14 days return policy when purchasing online

Features:  • Uncooled VOx thermal sensor technology. • Athermalized lens (thermal camera), focus-free. • 1/2.7'' 4Megapixel progressive scan CMOS. • Support ROI, motion detection, color palettes. • Smoking and call behaviour detection. • Support fire detection & alarm. • Built-in 1/1 alarm in/out. • Micro SD memory, IP67, PoE. • Smart linkage with strobe light & audio. • Dual image fusion (visible and thermal images).  Technical Specifications:  Thermal • Detector Type Vanadium Oxide Uncooled FPA. • Max. Resolution 256 × 192. • Pixel Pitch 12 µm. • Spectral Range 8 µm–14 µm. • Thermal Sensitivity (NETD) < 50 mK (@f/1.0,25Hz,300K). • Focal Length 2 mm. • Field of View H: 87.8°, V: 63.8°. • Close Focus Distance 0.3 m (1.64 ft). • Aperture F1.0. • Digital Detail. • Enhancement (DDE) Yes. • Digital Zoom 16 ×. • AGC Auto; Manual. • Noise Reduction 2D NR; 3D NR. • Image Flip 90°; 180°; 270°. • Color Palettes 18 (Whitehot/Blackhot/Ironrow/Icefire/Fusion/Rainbow/ Globow/Iconbow1/Iconbow2, etc.) Fusion Mode 3 (Warm color; cool color; Ironred). Visible • Image Sensor 1/2.7'' CMOS. • Max. Resolution 2336 × 1752. • Pixel 4MP. • Electronic Shutter Speed 1/30000 s–1 s. • Min. Illumination Color: 0.05 Lux Black & white: 0.005 Lux 0 Lux (IR on). • IR Illumination Distance = 30 m (98.43 ft). • IR Illuminator On/Off. • Control Auto; Manual. • Focal Length 2 mm • Aperture F2.2 • Field of View H: 94° V: 72° D: 116°. • Focus Control Fixed. • Close Focus Distance 0.3 m. • Day/Night Auto (ICR); Color and B/W. • BLC Yes. • WDR DWDR. • HLC Yes. • White Balance Auto/Manual/Indoor/Outdoor/Tracking/Street lamp/ Natural. • AGC Auto; Manual. • Noise Reduction 2D NR; 3D NR. • S/N Ratio = 55 dB. • Region of Interest (RoI) Yes. • Image Flip 90°; 180°; 270°. • Exposure Compensation Yes. Intelligence • General Intelligence Tripwire, Intrusion. • Advanced Intelligence: Fire Detection & Alarm, Cold & Hot Spot Trace, Human & Vehicle Classification, Smoking Detection, Call Detection. Video and Audio • Video Compression H.265/H.264M/H.264H/H.264B/MJEPG Resolution • Thermal: Main Stream: 1280 × 960 (1.3M)/XVGA (1024 × 768)/VGA (640 × 480)/256 × 192, 1280 × 960 by default Sub Stream: VGA (640 × 480)/256 × 192, 256 × 192 by default. • Visual: Main Stream: 2336 × 1752/1080P (1920 × 1080)/720P (1280 × 720)/D1 (704 × 576), 2336 × 1752 by default Sub Stream: 720P (1280 × 720)/D1 (704 × 576)/CIF (352 × 288), 352 × 288 by default. Frame Rate • Thermal: 50Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default 60Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default. • Visual: 50Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default 60Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default. • Audio Compression G.711a; G.711mu; PCM. Network • Protocol: HTTPS; HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP. • Edge Storage Micro SD card (256 G). • Interoperability ONVIF; CGI. • Browser: IE: IE8 and the later, and explorer with IE core Google: 42 and the earlier Firefox: 42 and the earlier. • User/Host 10. • Security: Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access. Certification • CE: EN55032:2015; EN61000-3-2:2014. • FCC:CFR 47 FCC Part15 subpart B; ANSI C63.4-2014. Port • Network 1 10M/100M Ethernet port (RJ-45). • Audio Input 1. • Audio Output 1. • Alarm Input 1. • Alarm Output 1. • RS-485 1 pair. Power • Power Supply 12V±20% DC/PoE. • Power Consumption Basic: <8W (LED off). • Max: <14W (LED on, heater on). Environment • Operating Temperature –30°C to +60°C (–22°F to +140°F). • Storage Temperature –30°C to +70°C (–22°F to ?158°F). • Operating Humidity = 95%. • Protection IP67, anti-surge 6KV, anti-elctrostatic 6KV (touched by objects), anti-elctrostatic 8KV (air). Structure • Product Dimensions 122 mm × 122 mm × 112 mm (4.8" × 4.8" × 4.41"). • Packaging Dimensions 155 mm × 155 mm × 135 mm (6.10" × 6.10" × 5.31"). • Net Weight = 0.85 kg (1.87 lb). • Gross Weight = 1 kg (2.20 lb). Accessories • PFB203W. • PFA130-E. • PFA106. • PFB220C.

Extended warranties and insurance:

  • Additional warranty + insurance (2 + 1 year) - 159,99 €
  • Additional warranty (2 years) - 99,99 €
  • Insurance (1 year) - 199,99 €
  • Insurance (2 years) - 269,99 €

Choose a suitable extended warranty and insurance in checkout..

Product codes

EAN
6939554923302
