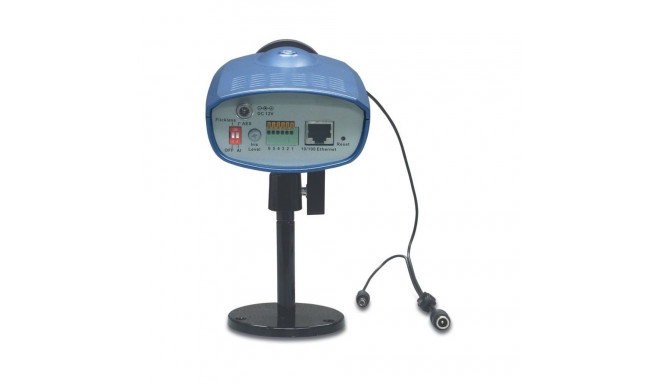

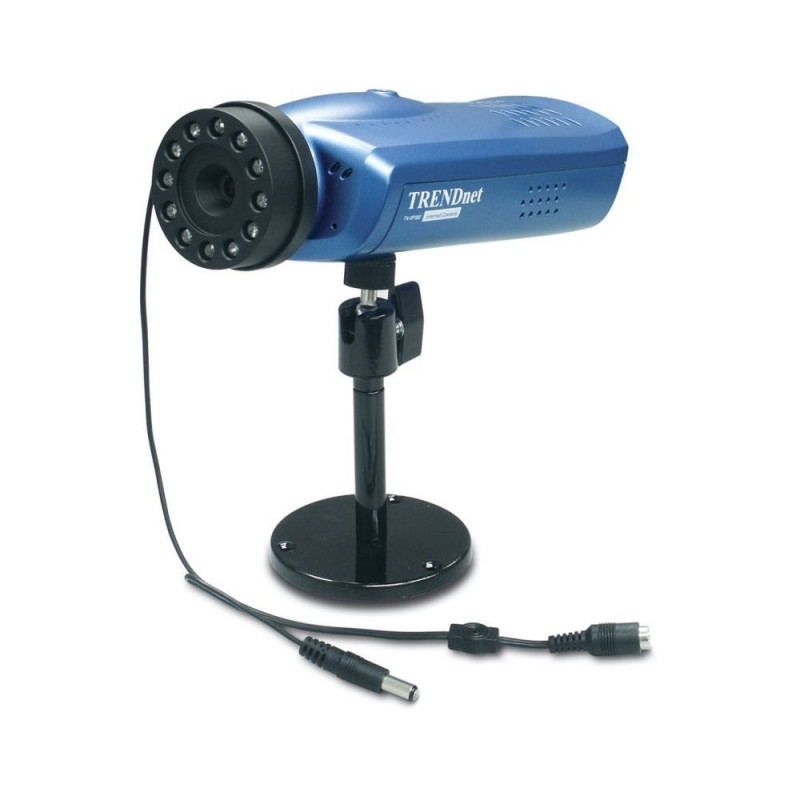

TRENDnet Day/night camera server

24,99 €

Main info

Sensor: Sharp 1/4” type CCD Resolution : 512 x 480(NTSC), 512 x 576(PAL) Lens: Built-in f 6.0mm F1.8 IR Lens (CS-Mount Standard, Replaceable) Audio MIC Input Internal MIC (mono) S/N ratio: More than 60dB Frequency: 50 ~ 16000Hz Speed 24Kbps bit
Add to cart

Delivery in 7-10 working days

Delivery starting at 0 €

14 14 days return policy when purchasing online

Sensor: Sharp 1/4” type CCD Resolution : 512 x 480(NTSC), 512 x 576(PAL) Lens: Built-in f 6.0mm F1.8 IR Lens (CS-Mount Standard, Replaceable) Audio MIC Input Internal MIC (mono) S/N ratio: More than 60dB Frequency: 50 ~ 16000Hz Speed 24Kbps bit Rate 8K Sampling Rate Video Frame Rate: 30fps@CIF(NTSC), 25fps@CIF(PAL) Compression: MPEG4 short header mode compression Resolution: CIF(350x240NTSC, 352x288PAL) QCIF(176x120NTSC, 176x144PAL) Up/Down Reversal: Yes Left/Right Reversal: Yes Bit Rate Selection: 8 Levels Quality Selection: 5 Levels Max Frame Rate Selection: 9 Levels Brightness Control: Yes Contrast Control: Yes Flicker Reduction: Yes Saturation Control: Yes Hue Control: Yes Gain/Exposure/White Balanced Control: Automatic Iris Level: Adjustable VR for Iris Control Adjustment Motion Detection: Yes Lux IR on : 0 lux ; IR Off: 1 lux System CPU: Philips Trimedia PNX1300 VLIW DSP RAM/Flash ROM: 16Mbytes/2Mbytes OS: Linux I/O & Control Generic Input: 1 set, 2 pin (photo coupler, 12V DC 50mA max) Generic Output: 1 set, 2 pin (relay, 24V DC 1A/125V AC 0.5A) RS-485: 2 pin (Half Duplex) Requirements Memory Size 128M (256 Recommended) Pentium III, 450 MHz or above VGA card resolution: 800 x 600 or above Physical Environment Dimensions: 195x90x50 mm (7.7x3.5x2 inches) Weight: 270 grams (9.5 oz) Stand Height: 120 mm (4.7 inches) Power: 12V DC, 1.5A External Adapter Consumption: 7 watt ( 580mA x 12V), max Temperature: Operating: 5°C ~ 40°C (41°F ~ 104°F) Storage: -25°C ~ 50°C (-13°F ~ 122°F) Humidity: 5% ~ 95% non-condensing LED: Power: Blue Link/Active: Red Humidity 5% ~ 95% Non-Condensing Certifications: FCC. CE, VCCI Class B Communication Protocols LAN: 10/100Mbps Ethernet, Auto-Sensing Protocol: HTTP, SMTP, FTP, Telnet, NTP, Software Requirements Browser: IE 5.0 or above Application: IPView SP Software OS: Windows 98SE, ME, NT4, 2000,XP
nsor Sharp 1/4” type CCD
solution CIF(350x240NTSC, 352x288PAL)
ns Built-in f 6.0mm F1.8 IR Lens (CS-Mount Standard, Replaceable)
ame Rate 30fps@CIF(NTSC), 25fps@CIF(PAL)
mpression MPEG4 short header mode compression
/Down Reversal Yes
ft/Right Reversal Yes
t Rate Selection 8 Levels
ality Selection 5 Levels
x Frame Rate Selection 9 Levels
ightness Control Yes
ntrast Control Yes
icker Reduction Yes
turation Control Yes
e Control Yes
in/Exposure/White Balanced Control Automatic
is Level Adjustable VR for Iris Control Adjustment
tion Detection Yes
U Philips Trimedia PNX1300 VLIW DSP
M/Flash ROM 16Mbytes/2Mbytes
neric Input 1 set, 2 pin (photo coupler, 12V DC 50mA max)
neric Output 1 set, 2 pin (relay, 24V DC 1A/125V AC 0.5A)
-485 2 pin (Half Duplex)
ntium III, 450 MHz or above VGA card resolution 800 x 600 or above
mensions 195x90x50 mm (7.7x3.5x2 inches)
ight 270 grams (9.5 oz)
and Height 120 mm (4.7 inches)
wer 12V DC, 1.5A External Adapter
nsumption 7 watt ( 580mA x 12V), max
orage -25°C ~ 50°C (-13°F ~ 122°F)
midity 5% ~ 95% non-condensing
nk/Active Red
rtifications FCC. CE, VCCI Class B
N 10/100Mbps Ethernet, Auto-Sensing
otocol HTTP, SMTP, FTP, Telnet, NTP,
owser IE 5.0 or above
plication IPView SP Software

Dimensions and weights

Gross weight
0.9 kg

Product codes

EAN
710931303087
Manufacturer code
710931303087
