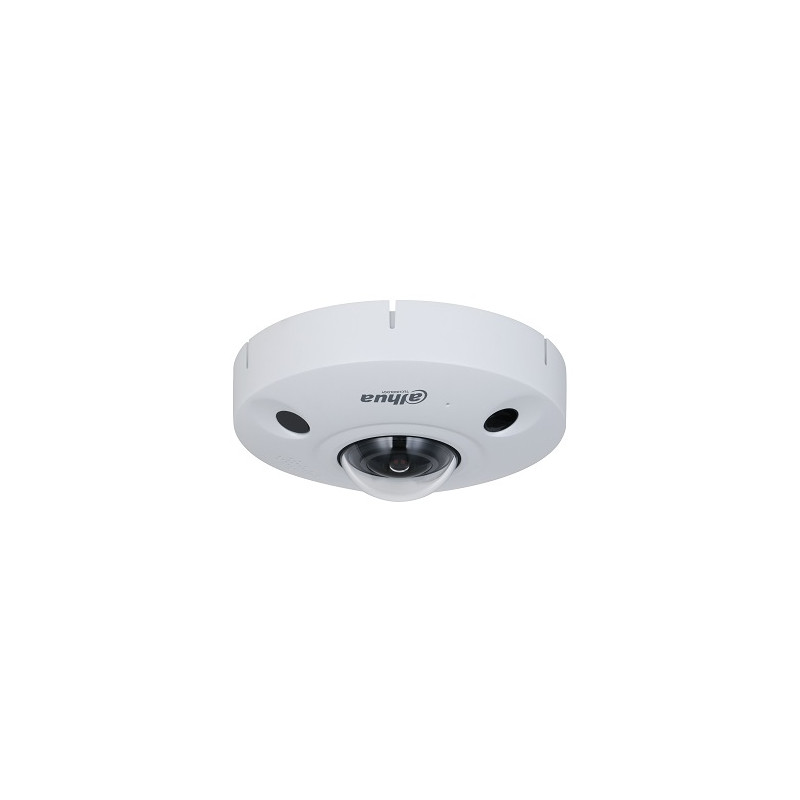

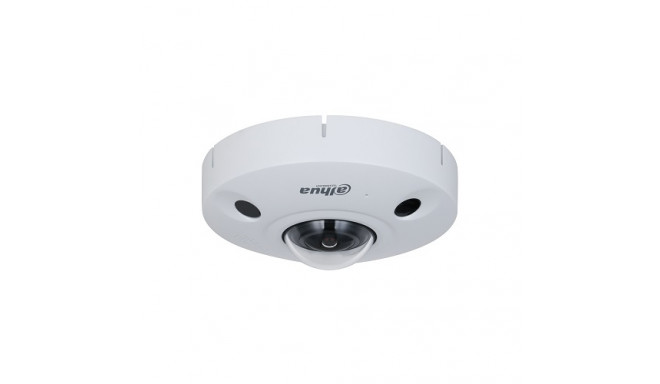

FishEye 4K IP 8MP, EBW8842-AS-IVC

1 299 €

Monthly payment starting from 44,27 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Camera Image Sensor 1/1.7" CMOS Max. Resolution 3280 (H) × 2480 (V) ROM 2 GB RAM 4 GB Scanning System Progressive Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s Min. Illumination 0.01 Lux@F2.0 (Color, 30 IRE) 0.001 Lux@F2.0 (

Warning: Last items in stock!

Add to cart

Delivery in 4-7 working days

Free delivery

14 14 days return policy when purchasing online

Camera
Image Sensor 1/1.7" CMOS
Max. Resolution 3280 (H) × 2480 (V)
ROM 2 GB
RAM 4 GB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.01 Lux@F2.0 (Color, 30 IRE) 0.001 Lux@F2.0 (B/W, 30 IRE) 0 Lux (Illuminator on)
S/N Ratio > 56 dB
Illumination Distance 10 m (32.81 ft) (IR)
Illuminator On/Off Control Auto/Manual
Illuminator Number 3 (IR LED)
Lens
Lens Type Fixed-focal
Lens Mount M12
Focal Length 1.29 mm
Max. Aperture F2.2
Field of View Horizontal: 185°; Vertical: 180°
Iris Control Fixed
Close Focus Distance 0.2 m (0.66 ft)
DORI Distance Detect Observe Recognize Identify
27.9 m (91.54 ft) 11.2 m (36.75 ft) 5.6 m (18.37 ft) 2.8 m (9.19 ft)
Smart Event
Heat Map Yes
Professional, intelligent
IVS (Perimeter Protection) Intrusion; tripwire
People Counting Supports 4 rules to count the number of people entering, exiting, and staying separately. It will trigger alarm linkage when the number of people who entering, exiting or staying exceeds the threshold. It can display and export reports based on year, month, day, week, day or custom time. Supports 4 rules to count the number of people in area and will trigger alarm linkage when the average strand time or people number in the area exceeds the threshold. It can display and export reports based on year, month, day, week, day or custom time.
Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video Compression H.265; H.264; H.264H; MJPEG (Only supported by the sub stream)
Smart Codec Smart H.265+; Smart H.264+
Video Frame Rate Main stream: 3280 × 2480@(1–25/30 fps) sub stream: 704 × 576@(1–25/30 fps) third stream: 1280 × 960@(1–25/30 fps) Fisheye mode: 1O (3280 × 2480) 1P (4096 × 1024) 2P (2432 × 2432) 1R (1216 × 1216) 2R (2432 × 2432) 4R (2432 × 2432) 1O + 3R (2432 × 2432) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability 3 streams
Resolution 3280 × 2480; 2880 × 2160; (3M) 2048 × 1536; 1.3M (1280 × 960); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H264: 8 kbps–16384 kbps H265: 3 kbps–13891 kbps
Day/Night Auto(ICR)/Color/B/W
BLC Yes
HLC Yes
WDR DWDR
White Balance Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control Auto
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Defog Yes
Privacy Masking 4 areas
Audio
Built-in MIC Yes
Audio Compression PCM; G.711A; G.711Mu; G.726; G.723
Alarm
Alarm Event No SD card; SD card full; SD card durability warning; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; people counting in area; stay detection; people counting; security exception
Network
Network Port RJ-45 (10/100/1000 Base-T)
SDK and API Yes
Cyber Security Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Network Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P (Only supported by general version)
User/Host 20
Storage FTP; SFTP; Micro SD card (support max. 256 G); NAS
Browser IE: IE11, IE10 Chrome: 48.0.2564.116 Firefox: 48.0.2 Edge: 42.17134.1.0
Management Software Smart PSS; DSS; DMSS
Certification
Certifications CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU CE-RED: Radio Equipment Directive 2014/53/EU FCC: 47 CFR FCC Part 15, Subpart B FCC ID: FCC PART 15C UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Port
Audio Input 1 channel (RCA port)
Audio Output 1 channel (RCA port)
Alarm Input 2 channel in: 5mA 3V–5V DC
Alarm Output 2 channels out: 1,000mA 30V DC/500mA 50V DC
Power
Power Supply 12V DC/POE+ (802.3at)
Power Consumption Basic: 6.5 W (12V DC); 6.1 W (PoE) Max. (ICR + IR intensity): 13 W (12V DC); 13.9 W (PoE) Heating: 3 W (12V DC); 3 W (PoE)
Environment
Operating Temperature –40 °C to +55 °C (–40 °F to +131 °F)
Operating Humidity ?95%
Storage Temperature –30 °C to +70 °C (–22 °F to +158 °F)
Protection IP67; IK10
Structure
Casing Metal
Product Dimensions 59.8 mm × ?149.8 mm (2.35" × ?5.90")
Net Weight 0.79 kg (1.74 lb)
Gross Weight 1.21 kg (2.67 lb)

Extended warranties and insurance:

  • Additional warranty + insurance (2 + 1 year) - 219,99 €
  • Additional warranty (2 years) - 129,99 €
  • Insurance (1 year) - 229,99 €
  • Insurance (2 years) - 349,99 €

Choose a suitable extended warranty and insurance in checkout..

Product codes

EAN
6923172507655
