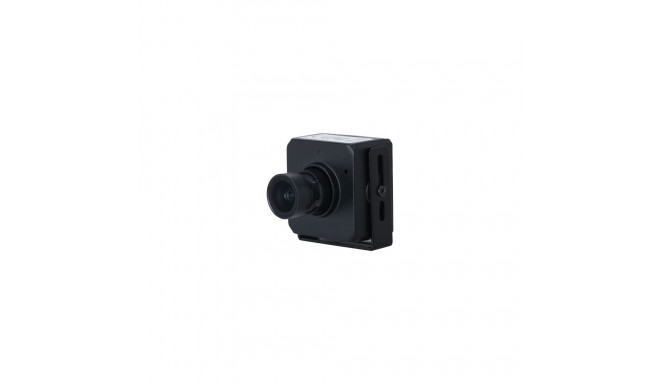

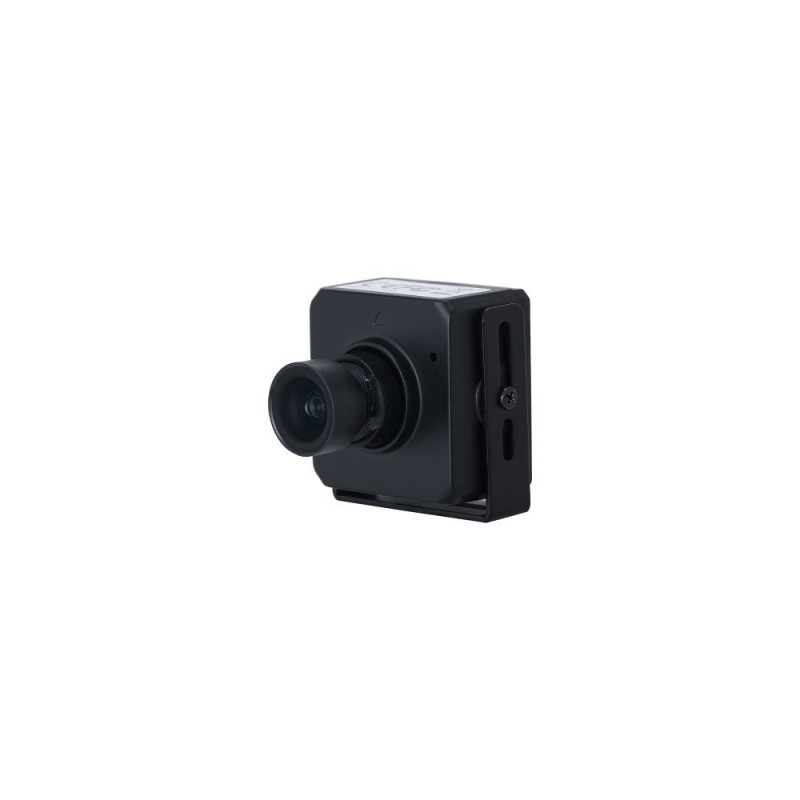

Pinhole Network Camera HUM4231SP-L5-S3

146,99 €

Monthly payment starting from 5,01 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Camera Image Sensor 1/3" CMOS Max. Resolution 1920 (H) × 1080 (V) ROM 128 MB RAM 128 MB Scanning System Progressive Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s Min. Illumination 0.01 lux@F1.6 (Color, 30 IRE) 0.001 lux@F1.6
Add to cart

Delivery in 4-7 working days

Free delivery

14 14 days return policy when purchasing online

Camera
Image Sensor 1/3" CMOS
Max. Resolution 1920 (H) × 1080 (V)
ROM 128 MB
RAM 128 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.01 lux@F1.6 (Color, 30 IRE)
0.001 lux@F1.6 (B/W, 30 IRE)
S/N Ratio >56 dB
Lens
Lens Type Fixed-focal
Lens Mount M12
Focal Length 2.8 mm
Max. Aperture F1.6
Field of View L5-2.8 mm: Horizontal: 95°; Vertical: 52°; Diagonal: 114°
Iris Control Fixed
Close Focus Distance L5-2.8 mm: 1.1 m (3.61 ft)
DORI Distance Lens Detect Observe Recognize Identify
2.8 mm 63.6 m
(208.66 ft)		 25.4 m
(83.33 ft)		 12.7 m
(41.67 ft)		 6.4 m
(23.00 ft)



Smart Event
IVS Intrusion; tripwire
Video
Video Compression H.265; H.264; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec Smart H.265+; Smart H.264+
Video Frame Rate Main stream:1920 × 1080 @(1–25/30 fps )
sub stream: 704 × 576 @ (1–25 fps)/704 × 480 @(1–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability 2 streams
Resolution 1080p (1920 × 1080); 1.3M (1920 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF(352 ×288/352 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 3 kbps–6144 kbps
H.265: 3 kbps–6144 kbps
Day/Night Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
White Balance Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control Auto; manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 1080P resolution and lower)
Mirror Yes
Privacy Masking 4 areas
Audio
Built-in MIC Yes
Audio Compression G.711a; G.711Mu; PCM; G.726
Alarm
Alarm Event Network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; security exception
Network
Network Port RJ-45 (10/100 Base-T)
SDK and API Yes
Cyber Security Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade
Network Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour
Interoperability ONVIF (Profile S/Profile T); CGI; P2P; Milestone
User/Host 20 (Total bandwidth: 48 M)
Storage FTP; SFTP; NAS
Browser IE
Chrome
Firefox
Management Software Smart PSS; DSS; DMSS
Mobile Client iOS; Android
Certification
Certifications CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
FCC:47 CFR FCC Part 15, Subpart B
Port
Audio Input 1 channel (RCA port)
Audio Output 1 channel (RCA port)
Power
Power Supply 12 VDC
Power Consumption Basic: 1.2 W (12 VDC)
Max. (H.265 + intelligence on + WDR): 1.56 W (12 VDC)
Environment
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity ?95%
Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Structure
Casing Metal
Product Dimensions 31.0 mm × 31.0 mm × 37.1 mm (1.22" × 1.22" × 1.46") (L × W × H)
Net Weight 81 g (0.18 lb)
Gross Weight 138 g (0.30 lb)
