CONTROL PANEL GRADE 3/INTEGRA64 PLUS SATEL

Main info

Product has been archived

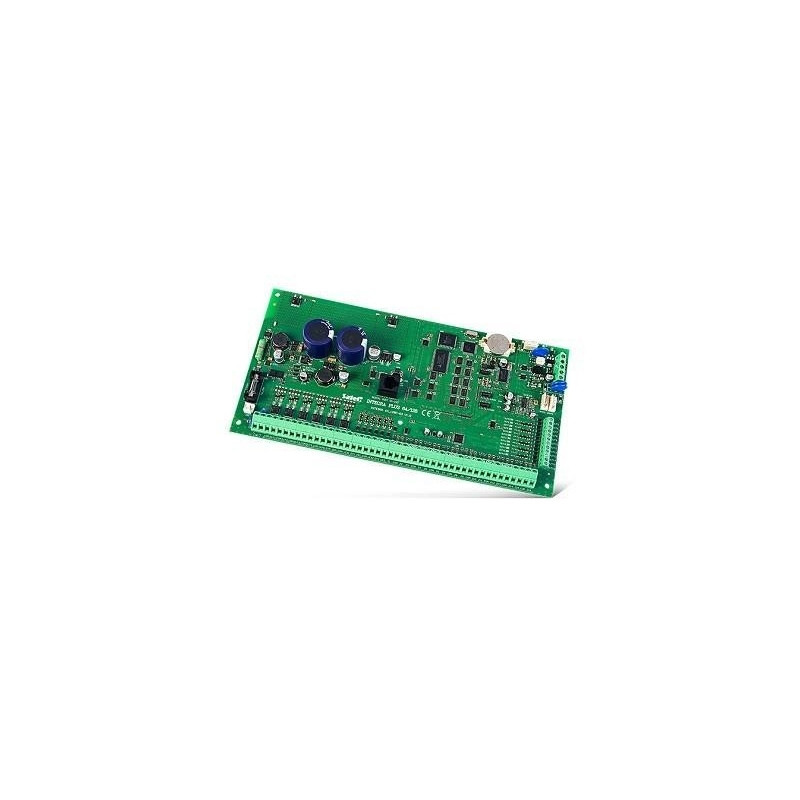

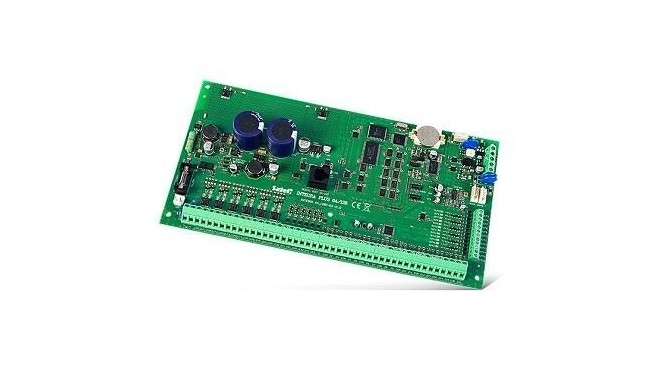

EN50131 Grade 3 compliant alarm control panel main board, with 16 up to 64 zones and outputs



  • full compliance with EN50131 series of standards for Grade 3 equipment

  • built-in advanced 2A+2A power supply with extended autodiagnostics

  • up to 64zones with programmable EOL value and support for 3 EOL configuration (only mainboard zones)

  • USB port for programming via PC

  • up to 32 partitions, 8 tenants

  • up to 64fully programmable outputs

  • dedicated buses for communication with keypads and expansion modules

  • system operation via LCD keypads, partition keypads, remote control keyfobs or proximity cards

  • remote system operation with PC, smartphone or voice-guided telephone menu

  • 64 independent timers for automatic control

  • access control and home automation features

  • non-volatile event log with 6143entries, with on-line printing support

  • support for 192+8+1 user codes

  • firmware upgrades via PC



Infot ka tootja kodulehelt.
Max. number of outputs 64
Max. number of zones 64
Dimensions 264 x 134 mm
Units per Shipping Box 1
Unit Calculated Volume cubm
Product Net Weight kg
Unit Calculated Weight 1 kg

Dimensions and weights

Gross weight
0.51 kg
Package width
15 cm
Package height
6 cm
Package length
29.5 cm

Product codes

EAN
5905033330368
Manufacturer code
INTEGRA64PLUS
