Home page » Electronics»Security systems»Security cameras»IP network camera 4MP HFW5449T1-ASE-D2 2.8mm

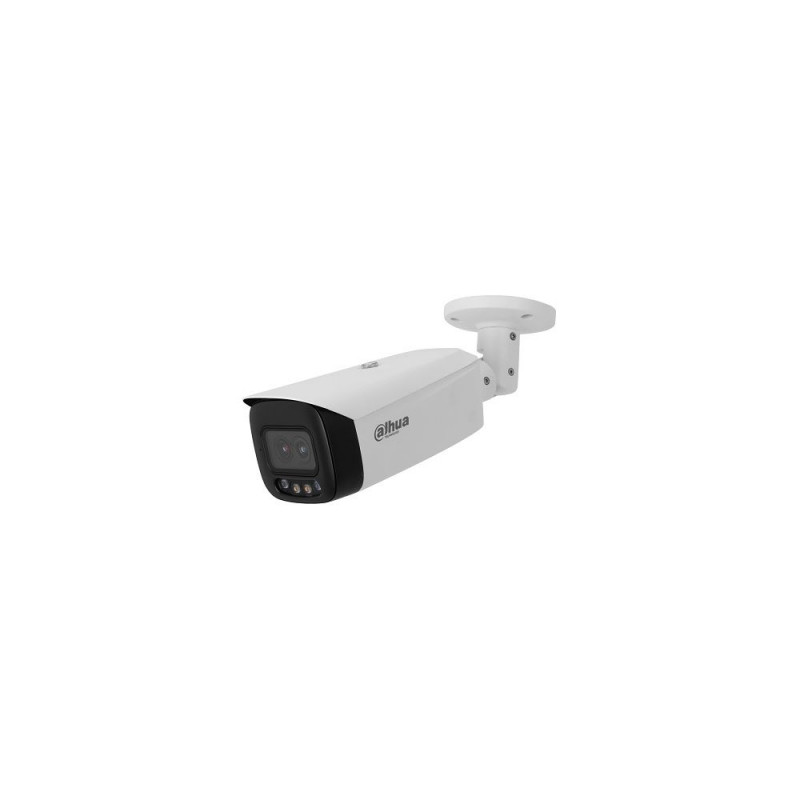

IP network camera 4MP HFW5449T1-ASE-D2 2.8mm

649 €

Monthly payment starting from 22,12 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Camera Image Sensor 1/1.8" + 1/1.8" CMOS Max. Resolution 2688 (H) × 1520 (V) ROM 128 MB RAM 1 GB Scanning System Progressive Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s Min. Illumination 0.0002
Add to cart

Delivery in 4-7 working days

Free delivery

14 14 days return policy when purchasing online

Camera

Image Sensor

1/1.8" + 1/1.8" CMOS

Max. Resolution

2688 (H) × 1520 (V)

ROM

128 MB

RAM

1 GB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.0002 lux @F1.0

S/N Ratio

>56 dB

Illumination Distance

50 m (164.04 ft)

Illuminator On/Off Control

Auto; manual

Illuminator Number

4 (IR light); 2 (warm light)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Lens Mount

M16

Focal Length

2.8 mm

Max. Aperture

F1.0

Field of View

2.8 mm: Horizontal: 97°; Vertical: 48°; Diagonal: 115°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 4 m (13.1 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

58.2 m (190.94 ft)

23.3 m (76.44 ft)

11.6 m (38.06 ft)

5.8 m

(19.03 ft)

Smart event

IVS

Abandoned object; missing object

Heat Map

Yes

Professional, intelligent

IVS (Perimeter Protection)

Tripwire; intrusion; fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection; people gathering; parking detection

SMD 3.0

Less false alarm, longer detection distance

Face Detection

Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 face attributes (gender, age, glasses, expressions, mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face, one-inch photo or custom; 3 snapshot strategies (real-time snapshot, optimization snapshot and quality first); face angle filter; optimization time setting

People Counting

Support the counting of enter number, leave number and pass number, and displaying and outputting yearly/monthly/daily reports.

Support the counting of number in area, and 4 rules configuration. Count number of people or stay time and link alarm.

Support queue management, and 4 rules configuration. Count number of people or stay time and link alarm.

Intelligent Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

AI Coding

AI H.265; AI H.264

Video Frame Rate

Main stream: 2688 × 1520@(1–25/30 fps)
Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
Third stream: 1920 × 1080@(1–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

3 streams

Resolution

4M (2688 × 1520); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps–8192 kbps
H.265: 19 kbps–8192 kbps

Day/Night

Color/B/W

BLC

Yes

HLC

Yes

WDR

DWDR

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto; manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes

Audio Compression

PCM; G.711a; G.711Mu; G.726; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; face detection; people counting in area; stay detection; people counting; people number error detection; security exception; defocus detection; people number alarm; queue time alarm

Network

Network Port

RJ-45 (10/100 Enhancement Base-T)

SDK and API

Yes

Cyber Security

Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; Multicast; DDNS

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P

Storage

FTP; SFTP; Micro SD card (support max. 256 G); NAS

Browser

IE: IE8, IE9, IE11
Chrome
Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Client

iOS; Android

Certification

Certifications

CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Port

Audio Input

1 channel (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

1 channel in: 5 mA 3 V–5 VDC

Alarm Output

1 channel out: 300 mA 12 VDC

Power

Power Supply

12 VDC (±30%); PoE (802.3af); ePoE

Power Consumption

Basic: 3.4 W (12 VDC); 4.5 W (PoE)
Max. (H.265+IR and Warm light on): 9.9 W (12 VDC); 11.8 W (PoE)

Environment

Operating Temperature

–40 °C to +60 °C (-40 °F to +140 °F)

Operating Humidity

? 95%

Storage Temperature

–40 °C to +60 °C (-40 °F to +140 °F)

Protection

IP67

Structure

Casing

Metal

Product Dimensions

288.4 mm × 94.4 mm × 84.7 mm (11.35" × 3.72" × 3.33") (L × W × H)

Net Weight

1.0 kg (2.20 lb)

Gross Weight

1.23 kg (2.71 lb)

Extended warranties and insurance:

  • Additional warranty + insurance (2 + 1 year) - 129,99 €
  • Additional warranty (2 years) - 79,99 €
  • Insurance (1 year) - 119,99 €
  • Insurance (2 years) - 189,99 €

Choose a suitable extended warranty and insurance in checkout..

Product codes

EAN
6923172540294
