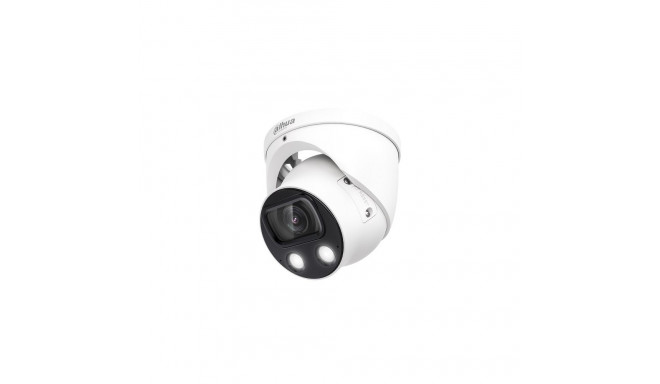

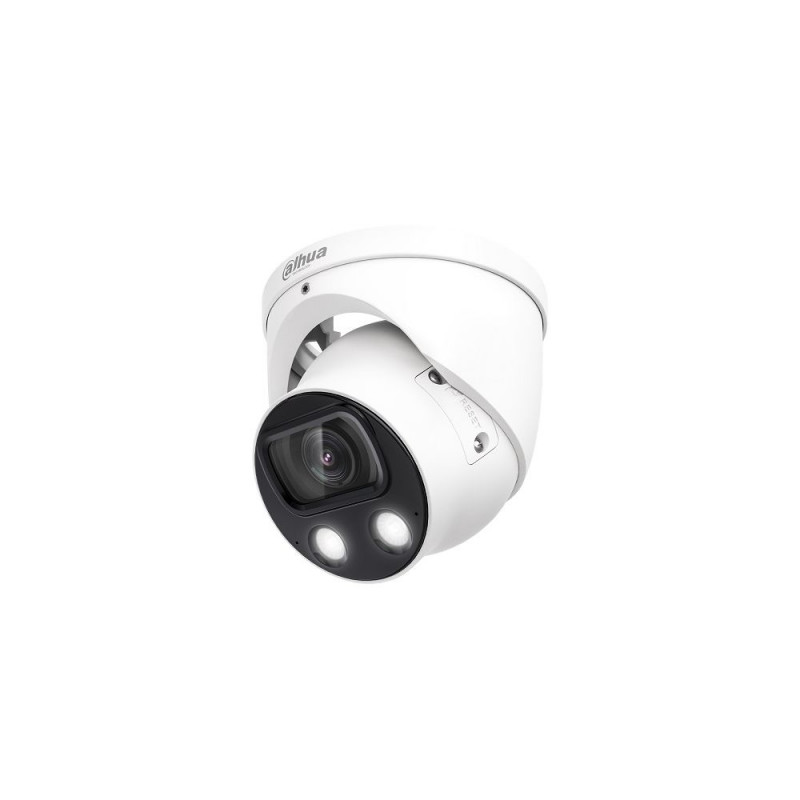

IP Network Camera 8MPHDW5849H-ASE-LED 2.8mm

609 €

Monthly payment starting from 20,76 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Dome IP camera AI 8MP STARLIGHT 8 megapixels, Full-color 1/1.2" inch CMOS sensor, with illumination up to 50m; (3840× 2160)@ 1~25fps, fixed lens: 2.8mm viewing angle 102°, H.265/H.264, BLC / HLC, WDR(140dB), ROI, IVS, SMD 3.0; with integrated double microphone, Micro SD up to 512GB; 3D-NR: noise reduction technology, PoE, IP67 moisture resistant, 3-axis adjustment; ePoE, supports Milestone, ONVIF, CGI standards, WizMind. Model: DH-IPC-HDW5849H-ASE-LED-S2, 2.8mm.
Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online

Short description:

Dome IP camera AI 8MP STARLIGHT 8 megapixels, Full-color 1/1.2" inch CMOS sensor, with illumination up to 50m; (3840× 2160)@ 1~25fps, fixed lens: 2.8mm viewing angle 102°, H.265/H.264, BLC / HLC, WDR(140dB), ROI, IVS, SMD 3.0; with integrated double microphone, Micro SD up to 512GB; 3D-NR: noise reduction technology, PoE, IP67 moisture resistant, 3-axis adjustment; ePoE, supports Milestone, ONVIF, CGI standards, WizMind. Model: DH-IPC-HDW5849H-ASE-LED-S2, 2.8mm.

Brief technical characteristics:

• 8 megapixel Full-color STARLIGHT Day/Night IP camera with LED lighting up to 50m and integrated double microphone.
• AI SSA Scene Self-Adaptation (Scene Self-Adaptation).
• Smart Object Detection - smart finding of abandoned objects.
• AcuPick - Uses deep learning algorithms to perform precise searches on live and recorded video.
• IVS functions: line crossing, perimeter intrusion, image change, disappearing object capture, appearing object capture, face capture.
• 1/1.2” inch 8 megapixel CMOS sensor.
• 2.8mm fixed lens (viewing angle of lens about 102°).
• Video compression H.265+/ H.265/ H.264+/ H.264/ H.264H/ H.264B/ MJPEG.
• Built-in dual microphone.
• Audio compression: PCM; G.711a; G.711Mu; G.726; G.723.
• Scanning system: progressive.
• ROM 256MB, RAM 2GB.
• Remote control and live monitoring via Ethernet (WEB): IE11 or later, Chrome 45+, Firefox 46+.
• Free software for camera control (SmartPSS Lite; DSS; DMSS), video viewing and archiving using a computer network or the Internet.
• A free program that allows the user to monitor and view recordings from cameras from different objects, the program allows the image to be saved to the computer.
• Free application for monitoring via mobile phone or PDA (iOS, Android) suitable for phones: SYMBIAN, IPHONE, WINDOWS MOBILE, BLACKBERY, ANDROID, IPAD, GALAXY TAB, etc.
• The IP camera can be used with third-party software.
• Number of effective pixels (3840×2160).
• Video resolution options available: 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/ 2592 × 1944); 4M (2688 × 1520); 3.6M (2560×1440); 3M (2048 × 1536); 2M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280×720); D1 (704×576/704×480); VGA (640x480); CIF (352×288/352×240).
• Compression rate: main stream: (3840× 2160)@(1~25fps); additional stream: D1@(1~25fps), additional third stream: 1080P@(1~25fps).
• Bitrate: H.264: 32 kbps - 16384 kbps, H.265: 32 kbps - 16384 kbps.
• Y/N: switches from color operation to black and white at a certain light intensity - mechanical Day/Night function.
• Min. illumination: 0.0005Lux/ F1.0.
• 2 pcs. LED (warm light).
• Illumination distance 50m.
• 3D-NR: noise reduction technology.
• Corridor mode (rotation 0°/90°/180°/270°).
• ROI function (4 zones).
• S/N ratio >56dB.
• Electronic Shutter: Auto/Manual, 1/3s~1/100000s.
• White light balance: Auto/Manual, BLC / HLC / WDR 140dB.
• 10/100 Mb/s network socket (Ethernet RJ-45).
• Network protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P, ONVIF (Profile S/Profile G/Profile T); CGI.
• Recording: FTP; SFTP or NAS servers.
• Micro SD card up to 512GB.
• Alarm input: 1 channel (5mA 3V-5V DC).
• Alarm output: 1 channel (300mA 12V DC).
• Audio input: 1 channel RCA.
• Audio output: 1 channel RCA.
• Unlimited number of users (possibility to grant different rights to each user).
• Maximum simultaneous user connection: 20 (80M traffic).
• Internal memory: SD memory port max. 512 GB.
• Privacy zones: 4.
• 3-axis mechanism for camera adjustment: Pan: 0°~360°; Tilt: 0°~78°; Rotaton: 0°~360°.
• Operating temperature: - 40°C~+60°C, <95% RH.
• Moisture resistant IP67.
• Power supply: DC 12V / PoE(802.3af) / ePoE.
• Power consumption: basic 3.6W (12V DC), 5W (PoE), maximum 7.9W (12V DC), 9.6W (PoE).
• Dimensions: 122mm×119.7mm.
• Weight: 740 g.


Compatible mounts:
PFA157.
PFA109.
PFB220C.
PFA130-E.
PFB205W-E.


Width 119.7 mm
Height 122 mm
Product Weight 740 g
Length 200 mm
