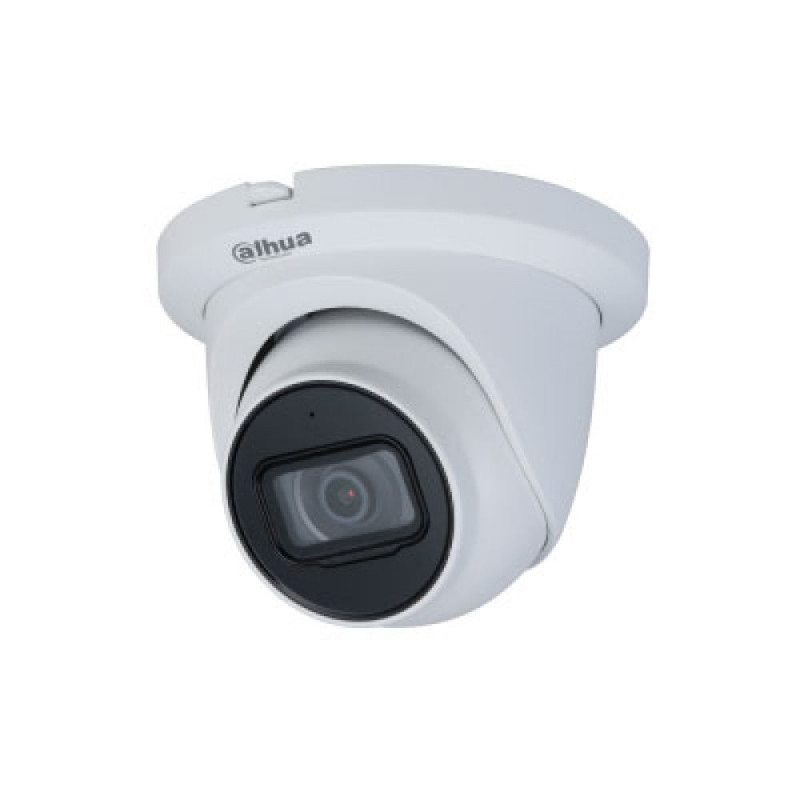

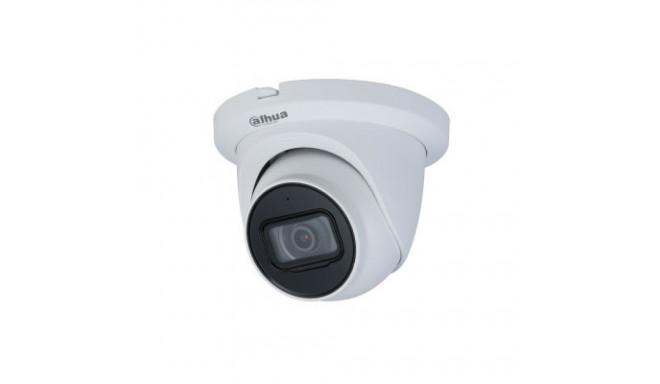

IP network camera Full HD HDW2231T-AS 3.6

FREE SHIPPING
WITHIN ESTONIA!

160,99 €

Monthly payment starting from 5,49 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Dome IP camera 2 megapixels with integrated microphone, Day/Night with IR illumination up to 30m., 1/2.8” inch 2 Megapixel STARLIGHT CMOS sensor, 1080P(1920×1080) 1~25fps, HISILICON DSP processor, Lens: 3.6mm viewing angle 88°, BLC / HLC / DWDR, 3D-NR: Noise reduction technology, corridor mode, built-in SD memory port Max 256GB, H.265, WDR 120 dB, IVS, PoE, IP67 moisture-proof, PoE, supports ONVIF Profile, S&G , API standard, model; DH-HDW2231TMP-AS-S2 3.6mm.

Warning: Last items in stock!

Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online

IP camera dome. 2MP STARLIGT, IR illumination up to 30m, 1/2.8” 3.6mm 88°, WDR, IVS, IP67, H.265,

Short description:

Dome IP camera 2 megapixels with integrated microphone, Day/Night with IR illumination up to 30m., 1/2.8” inch 2 Megapixel STARLIGHT CMOS sensor, 1080P(1920×1080) 1~25fps, HISILICON DSP processor, Lens: 3.6mm viewing angle 88°, BLC / HLC / DWDR, 3D-NR: Noise reduction technology, corridor mode, built-in SD memory port Max 256GB, H.265, WDR 120 dB, IVS, PoE, IP67 moisture-proof, PoE, supports ONVIF Profile, S&G , API standard, model; DH-HDW2231TMP-AS-S2 3.6mm.

Brief technical characteristics:

• 2.0 megapixel Day/Night dome IP camera with IR illumination.
• IVS functions: crossing the line, penetrating the perimeter.
• 1/2.8” inch 2 MP STARLIGHT CMOS sensor.
• Effective pixels PAL: 1920(H) x1080(V).
• 3.6mm fixed lens (viewing angle of the lens is about 88°).
• High performance HISILICON DSP processor.
• Integrated microphone.
• Audio compression: G.711a; G.711Mu; G.726; PCM.
• Video compression H.265; H.264; H.264B; MJPEG (Sub Stream).
• Operating system LINUX.
• Remote control and live monitoring via Ethernet (WEB): IE, Chrome, Firefox.
• Free software for camera control (DSS/PSS/SMART PSS), video viewing and archiving via computer network or Internet.
• A free program that allows the user to monitor and view recordings from cameras from different objects, the program allows the image to be saved to the computer.
• Free program for monitoring through a mobile phone or through a handheld computer (DMSS mobile phone surveillance software) is suitable for phones: SYMBIAN, IPHONE, WINDOWS MOBILE, WINDOWS PHONE 8, KINDLE FIRE, BLACKBERY, ANDROID, IPAD, GALAXY TAB, etc..
• The IP camera can be used with software from other companies (VMS Partners): ALNET SYSTEMS, AXXON, DiGiFORT, Exacq Technologies, GeoVision, Lenel, milestone, NETvision, NUUO, OnSSI, QNAP, Surveon, UNISIGHT, Aimetis, Cathexis solutions, GEUTEBRUCK, CANON, KSENOS, Kentima Solutions AB, Softguard Tech, Innodep Inc., LuxRiot A&H Software House, Inc., Video Insight, Mirasys Ltd., SEEnergy Corp., Synology, Wavestore and others....
• Video resolution options available: 1080P(1920×1080) / 1.3M(1280×960) / 720P(1280×720) / D1(704×576/704×480) / VGA(640×480) /CIF(352× 288/352×240).
• Compression rate: main stream: 1080P(1~25fps) sub stream: D1/CIF(1~25fps).
• Bitrate: H.264: 32 Kbps - 6144 Kbps; H.265: 12 Kbps to 6144 Kbps.
• Y/N: switches from color operation to black and white at a certain light intensity - mechanical Day/Night function.
• Min. illumination: 0.002 Lux @F1.6.
• 2 pcs. 3rd generation high power IR LEDs.
• Illumination distance 30m.
• 3D-NR: noise reduction technology.
• S/N ratio >56dB.
• Electronic Shutter: Auto/Manual, 1/3s - 1/100000s.
• White balance: Auto/Manual, BLC/HLC/WDR 120dB.
• Video format: PAL.
• Corridor mode.
• 10/100 Mb/s network socket (Ethernet RJ-45).
• Network Protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Boujour, ONVIF(Profile S/Profile G/Profile T); CGI; P2P; Milestone.
• Recording: Dahua Cloud, FTP, SFTP or NAS servers.
• Remote control: Monitoring, EPTZ zoom, system settings, File download, Preview, software update.
• Unlimited number of users (possibility to grant different rights to each user).
• Maximum simultaneous user login: 20 (48M).
• Internal memory: SD memory port Max 256GB.
• 3-axis mechanism for camera adjustment (Pan: 0°~360° Tilt: 0°~78° Rotation: 0°~360°).
• Operating temperature: -40°C~+60°C, 95% RH.
• Moisture resistant IP67.
• Power supply: DC 12V, PoE (802.3af).
• Consumption: 1.8W (12V DC); 2.4W (PoE); Max. 5.5W (12V DC); 6.1W (PoE).
• Power: 6.5W.
• Dimensions: 99.1 mm × 121.9 mm.
• Weight: 0.48 kg.

Compatible mounts: trong>
• PFA13G.
• PFA137.
• PFB205W.
• PFA152-E.


Width 121.9 mm
Product Weight 480 g
Height 99.1 mm
Length 200 mm

Extended warranties and insurance:

  • Additional warranty (2 years) - 29,99 €
  • Additional warranty + insurance (2 + 1 year) - 39,99 €
  • Insurance (1 year) - 29,99 €
  • Insurance (2 years) - 49,99 €

Choose a suitable extended warranty and insurance in checkout..

Dimensions and weights

Gross weight
0.425 kg
Package width
9 cm
Package height
9 cm
Package length
9 cm

Product codes

EAN
6939554981715
