Home page » Electronics»Security systems»Security cameras»IP network camera 5MP HDBW3541FP-AS 2.8mm Black

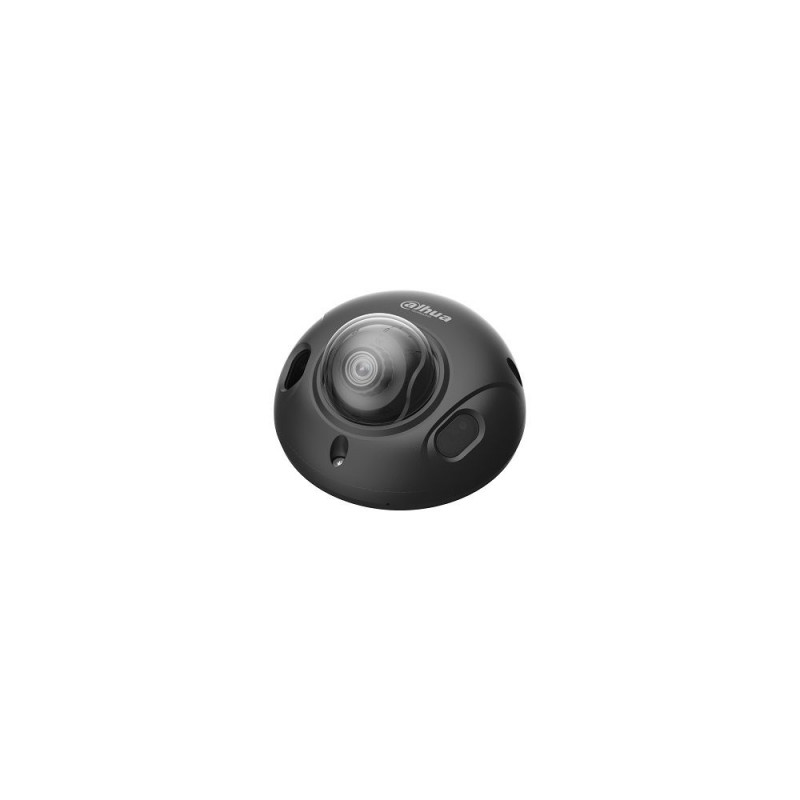

IP network camera 5MP HDBW3541FP-AS 2.8mm Black

239,99 €

Monthly payment starting from 8,18 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

IP camera AI dome 5MP with built-in microphone, IR illumination up to 30m, day/night, 1/2.7” inch 4MP STARLIGHT CMOS sensor, 5MP(2960 × 1668)@ 1~20fps, supports 4MP (2688 × 1520)@1~ 25 fps. H.265+/H.265/H.264+/H.264, Lens: 2.8mm F1.4 View Angle 111°, BLC / HLC /WDR, 3D-NR: Noise Reduction Technology, Corridor Mode, IK10 Shockproof , integrated SD memory port max 256GB, WDR(120dB), IVS, ROI, PoE, IP67 moisture resistant, SMD 4.0, AI SSA; supports ONVIF(Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec standard. Model: IPC-HDBW3541F-AS-S2 2.8mm, color black.

Warning: Last items in stock!

Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online

IP camera dome. 5MP STARLIGHT AI, IR light. up to 30m, 1/2.7” 2.8mm 111°, SMD, IVS, IP67, H.265, IK1

Short description:

IP camera AI dome 5MP with built-in microphone, IR illumination up to 30m, day/night, 1/2.7” inch 4MP STARLIGHT CMOS sensor, 5MP(2960 × 1668)@ 1~20fps, supports 4MP (2688 × 1520)@1~ 25 fps. H.265+/H.265/H.264+/H.264, Lens: 2.8mm F1.4 View Angle 111°, BLC / HLC /WDR, 3D-NR: Noise Reduction Technology, Corridor Mode, IK10 Shockproof , integrated SD memory port max 256GB, WDR(120dB), IVS, ROI, PoE, IP67 moisture resistant, SMD 4.0, AI SSA; supports ONVIF(Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec standard. Model: IPC-HDBW3541F-AS-S2 2.8mm, color black.

Brief technical characteristics:

• 5 megapixel STARLIGHT Day/Night dome IP camera with IR illumination.
• IVS functions: crossing the line, penetrating the perimeter.
• AI: Human recognition function, face detection, car recognition function, perimeter protection (Smart Motion Detection (SMD4.0 version).
• 1/2.7” inch 4MP STARLIGHT CMOS sensor.
• Effective pixels PAL: 2960 (H) × 1668 (V).
• 2.8mm fixed lens (viewing angle of the lens is about 111°.
• Video compression H.265; H.264; H.264H; H.264B; MJPEG.
• Operating system LINUX.
• Integrated microphone.
• Audio compression: G.711a; G.711Mu; PCM; G.726; G.723.
• Remote control and live monitoring via Ethernet (WEB): IE11, Chrome Firefox.
• Free software for camera control (DSS/SMART PSS), video viewing and archiving using a computer network or the Internet.
• A free program that allows the user to monitor and view recordings from cameras from different objects, the program allows the image to be saved to the computer.
• The free program for monitoring via a mobile phone or via a handheld computer (DMSS mobile phone surveillance software) is suitable for phones: IPHONE, WINDOWS MOBILE, WINDOWS PHONE 8, ANDROID, IPAD, GALAXY TAB, etc.
• The IP camera can be used with software from other companies (VMS Partners): ALNET SYSTEMS, AXXON, DiGiFORT, Exacq Technologies, Genetech, GeoVision, Lenel, milestone, NETvision, NUUO, OnSSI, QNAP, Surveon, UNISIGHT, Aimetis, Cathexis solutions, GEUTEBRUCK, CANON, KSENOS, Kentima Solutions AB, Softguard Tech, Innodep Inc., LuxRiot A&H Software House, Inc., Video Insight, Mirasys Ltd., SEEnergy Corp., Synology, Wavestore and others...
• Video resolution options available: 5M (2880 × 1620/2960 × 1668); 4M (2688 × 1520); 3.6M (2560×1440); 3M (2048×1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280×720); D1 (704×576/704×480); CIF (352×288/352×240); VGA (640×480).
• Compression Rate: Main stream: 5M(2880 × 1620)@ (1-20) fps / (2960 × 1668) @ (1-20) fps / 4M(2688 × 1520)@(1-25) fps, sub-stream : (704 × 576)@(1-25) fps / (704 × 480)@(1-25) fps, additional third stream: (1920 × 1080)@(1-25 fps).
• Bitrate: H.264: 3 Kbps - 8192 Kbps, H.265: 3 Kbps - 8192 Kbps.
• Y/N: switches from color operation to black and white at certain light intensity - mechanical Day/Night function (Auto(ICR)/Color/B/W).
• Min. illumination: 0.005 Lux@F1.4 (Color, 30IRE); 0.0005 Lux@F1.4 (B/W, 30IRE).
• 2 pcs. IR LEDs (IR LEDs).
• Illumination distance 30m.
• 3D-NR: noise reduction technology.
• S/N ratio >56dB.
• Scanning system: progressive.
• Electronic shutter release: Auto/Manual, Auto/Manual, 1/3s–1/100000s.
• White balance: Auto/Manual, AWB / AGC / BLC / HLC/ true WDR 120dB.
• Video format: PAL.
• Image rotation (Flip) 0°/90°/180°/270°.
• 10/100 Mb/s network socket (Ethernet RJ-45).
• Protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP, ONVIF(Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec.
• Remote control: Monitoring, EPTZ zoom, system settings, File download, Preview, software update.
• Unlimited number of users (possibility to give each user different rights).
• Maximum user login at one time: 20 (64M total traffic).
• Internal memory: SD memory port max. 256GB.
• Privacy zones: 4.
• Alarm input: 1 channel (5mA 3V-5V DC).
• Alarm output: 1 channel (300mA 12V DC).
• Audio input: 1 channel RCA.
• Audio output: 1 channel RCA.
• 3-axis mechanism for camera adjustment (Pan: 0°–355°; Tilt: -20°–70°; Rotation: 0°–355°).
• Recording: Recording: Dahua Cloud, FTP, SFTP or NAS servers.
• Operating temperature: -40°C~+60°C, <95% RH.
• Impact resistant IK10.
• Moisture resistant IP67.
• Power supply: DC12V, PoE (802.3af).
• Energy consumption: 3.8W (12V DC); 4.6 (PoE); max 5.9W (12V DC); 7.2W (PoE).
• Dimensions: 64.8 mm × 111 mm.
• Weight: 423 g.

compatible mounts:
PFA136.
PFA109.
PFB205W-E.
PFA152-E.
PFB220C.


Width 111 mm
Height 64.8 mm
Length 150 mm
Product Weight 423 g

Extended warranties and insurance:

  • Additional warranty + insurance (2 + 1 year) - 59,99 €
  • Additional warranty (2 years) - 39,99 €
  • Insurance (1 year) - 39,99 €
  • Insurance (2 years) - 69,99 €

Choose a suitable extended warranty and insurance in checkout..

Dimensions and weights

Gross weight
0.8 kg
Package width
11 cm
Package height
9 cm
Package length
11 cm

Product codes

EAN
4775342531906
