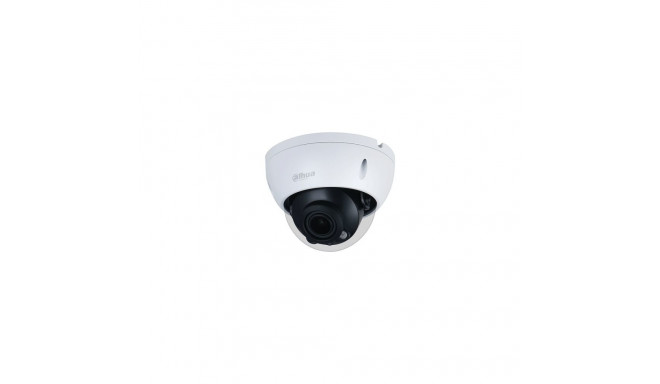

IP network camera 5MP HDBW2541RP-ZS

Addional discount of 7%
will be applied in shopping cart
(min. 5€ purchase)
290,99 €

Monthly payment starting from 9,92 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Dome IP camera 5MP with IR LED lighting up to 40 meters. 1/2.7” inch 5MP STARLIGHT CMOS sensor max. resolution 5MP(2592×1944) 1~20fps, but also supports 4MP(2688×1520) resolution 1~25fps. Video compression H.265/H.264/H.264H/H.264B/Smart H.265+/ Smart H.264+. 2.7~13.5mm/F1.5 adjustable motorized lens (lens viewing angle 100°~30°). BLC / HLC / WDR (120dB), 3D-NR, ROI, PoE, SMD Plus; SD memory port max. 256GB. IP67 waterproof (for outdoor use), IK10 shockproof. 3 axis mechanism. Supports ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone, Genetec standard. Model: DH-IPC-HDBW2541R-ZS.
Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online

Dome IP camera 5MP 20fps, LXIR up to 40m, 2.7~13.5mm. auto obj., WDR, 3DNR, PoE, IP67, H.265

Short description:

Dome IP camera 5MP with IR LED lighting up to 40 meters. 1/2.7” inch 5MP STARLIGHT CMOS sensor max. resolution 5MP(2592×1944) 1~20fps, but also supports 4MP(2688×1520) resolution 1~25fps. Video compression H.265/H.264/H.264H/H.264B/Smart H.265+/ Smart H.264+. 2.7~13.5mm/F1.5 adjustable motorized lens (lens viewing angle 100°~30°). BLC / HLC / WDR (120dB), 3D-NR, ROI, PoE, SMD Plus; SD memory port max. 256GB. IP67 waterproof (for outdoor use), IK10 shockproof. 3 axis mechanism. Supports ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone, Genetec standard. Model: DH-IPC-HDBW2541R-ZS.

Brief technical characteristics:

• IVS functions: crossing the line, penetrating the perimeter.
• 1/2.7" inch 5MP STARLIGHT CMOS sensor.
• Effective pixels: 2592 (H) ×1944 (V).
• 2.7~13.5mm/F1.5 adjustable motorized lens (lens viewing angle 100°~30°), automatic focus.
• Video compression: H.265H, H.265, H.264B, H.264, MJPEG, Smart H.265+, Smart H.264+.
• No audio input.
• Operating system LINUX.
• Remote control and live monitoring via Ethernet (WEB): IE, Chrome, Firefox.
• Free software for camera control (SMART PSS / DSS), video viewing and archiving using a computer network or the Internet.
• A free program that allows the user to monitor and view recordings of cameras from different objects, the program allows the image to be saved to the computer.
• Free program for monitoring via a mobile phone or via a handheld computer (DMSS mobile phone surveillance software) suitable for phones: SYMBIAN, IPHONE, WINDOWS PHONE, BLACKBERY, ANDROID, ANDROID PAD, IPAD, etc.
• The IP camera can be used with software from other companies (VMS Partners): ALNET SYSTEMS, AXXON, DiGiFORT, Exacq Technologies, Genetech, GeoVision, Lenel, Milestone, NETvision, NUUO, OnSSI, QNAP, Surveon, UNISIGHT, Aimetis, Cathexis solutions, GEUTEBRUCK, CANON, KSENOS, Kentima Solutions AB, Softguard Tech, Innodep Inc., LuxRiot A&H Software House, Inc., Video Insight, Mirasys Ltd., SEEnergy Corp., Synology, Wavestore and others.
• Video resolution options available: 5M (2592 × 1944); 4MP(2688×1520); 3M(2304 × 1296); 1080p (1920 × 1080); 1.3M(1280 × 960); 720p(1280×720); D1(704×576/704×480); VGA(640×480); CIF(352×288/352×240).
• Compression Rate: Main Stream: 5M(2592 × 1944)@(1-20 fps) / 4MP(2688 × 1520)@(1-25 fps), Sub Stream: (704 × 576)@(1-25 fps) / (704 × 480)@(1-30 fps).
• Bit Rate: H.264: 3 kbps - 8192 kbps H.265: 3 kbps - 8192 kbps.
• 2 pcs. IR LEDs, illumination up to 40m.
• Y/N: switches from color operation to black and white at certain light intensity, IRC CUT filter (mechanical Day/Night filter).
• 3D-DNA: noise reduction technology.
• Min. illumination: 0.005 Lux @ F1.5.
• Signal - noise level (S/N ratio): 56dB.
• Electronic Shutter: Auto/Manual, 1/3s - 1/100000s.
• White balance: Auto/ Manual/ Natural/ Street light/ Outdoor, BLC / HLC / WDR(120dB).
• Digital rotation (Flip) 0°/90°/180°/270°.
• 10/100 Mb/s network socket (Ethernet RJ-45).
• Network protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone, Genetec.
• Recording: to FTP, SFTP, NAS servers.
• Remote control: Monitoring, digital zoom, system settings, file download, preview, software update.
• Unlimited number of users (possibility to grant different rights to each user).
• Maximum simultaneous user login: 20 (total traffic 64M).
• Privacy (image masking) zones: 4.
• 3-axis mechanism for camera adjustment (can be mounted on the wall and on the ceiling); Pan: 0°~355°; Tilt: 0°~75°; Rotation: 0°~355°.
• Internal memory: SD memory port max. 256GB .
• Operating temperature: -30°C~+60°C, humidity <95%.
• Moisture resistant IP67; impact resistant IK10.
• Power supply: DC 12V, PoE (802.3af).
• Consumption: 3.1W (12V DC), 4.0W (PoE); max 6.9W (12V DC), 8.1W (PoE).
• Dimensions: 88.9 mm × 122 mm.
• Metal body.
• Weight: 492g.

Compatible mounts:
• PFA137.
• PFA109.
• PFB203W.
• PFB200C.
• PFA152-E.
• PFB220C.


Width 122 mm
Height 88.9 mm
Length 150 mm
Product Weight 492 g
