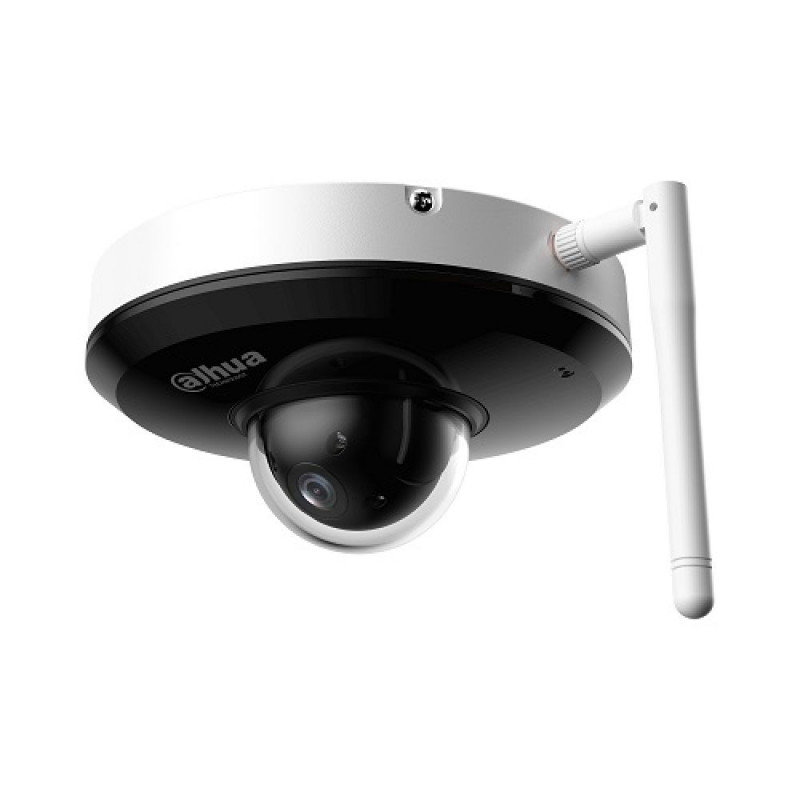

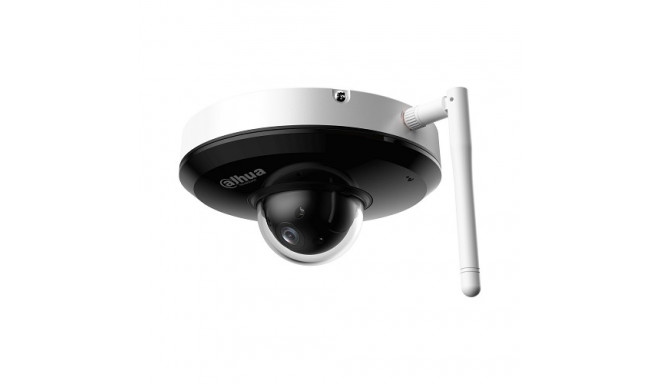

Mini 2 Megapixel HD Network PTZ Dome Camera

369 €

Monthly payment starting from 12,58 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

IP controlled dome camera; Wi-Fi; 4MP(2560 × 1440)@ 1~25fps, STARLIGHT; 1/2.8" inch CMOS sensor; IR lighting up to 20m; built-in microphone. BLC/HLC/DWDR; IVS, 3D NR, SMD3.0. Min. illumination: Color: 0.005Lux@F1.8; 0.0005Lux@F1.8 B/W; 0Lux IR. Video compression H.265+/ H.264. SD memory port max. 512 GB. Zoom: x4 Optical, x16 Digital. Moisture resistant IP66 (for outdoor use); impact resistant IK08, TVS 6000V lightning protection. Supports CGI, SDK, ONVIF (Profile S&G&T) standards. WizSense; model: SD1A404DB-GNY-W.

Warning: Last items in stock!

Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online

Mini IP controlled camera 4MP 1/2.8 inch with IR up to 20m, 2.8mm~12mm, IK08, IP66, WiFi

Short description:

IP controlled dome camera; Wi-Fi; 4MP(2560 × 1440)@ 1~25fps, STARLIGHT; 1/2.8" inch CMOS sensor; IR lighting up to 20m; built-in microphone. BLC/HLC/DWDR; IVS, 3D NR, SMD3.0. Min. illumination: Color: 0.005Lux@F1.8; 0.0005Lux@F1.8 B/W; 0Lux IR. Video compression H.265+/ H.264. SD memory port max. 512 GB. Zoom: x4 Optical, x16 Digital. Moisture resistant IP66 (for outdoor use); impact resistant IK08, TVS 6000V lightning protection. Supports CGI, SDK, ONVIF (Profile S&G&T) standards. WizSense; model: SD1A404DB-GNY-W.

Brief technical characteristics:

• IVS functions: line crossing, perimeter intrusion, image change, missing object capture.
• Smart Motion Detection (SMD3.0), Human tracking function, face detection, people counting function, perimeter protection.
• 1/2.8" 4MP CMOS sensor.
• Zoom: x4 Optical, x16 Digital.
• Video compression: H.264H; H.264B; Smart H.265+; H.264; H.265; MJPEG (Sub Stream); Smart H.264+.
• Audio compression: PCM; G.711A; G.711MU; G.726; MPEG2-Layer2; G.722.1.
• ROM 256GB, RAM 512GB.
• Scanning system: Progressive.
• Remote control and live monitoring via Ethernet (WEB): IE 9+, Chrome 41+, Firefox 50+, Safari 10+.
• Supported applications: DMSS, DSS Pro.
• A free program that allows the user to monitor and view recordings of cameras from different objects, the program allows the image to be recorded on the computer.
• Free application for monitoring via mobile phone or PDA (iOS, Android) suitable for phones: SYMBIAN, IPHONE, WINDOWS MOBILE, BLACKBERY, ANDROID, IPAD, GALAXY TAB, etc.
• The IP camera can be used with third-party software.
• Number of effective pixels: 2560 (H) × 1440 (V).
• Video resolution options available: 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280×720); D1 (704×576/704×480); VGA (640×480); CIF (352×288/352×240).
• Compression rate: main stream: 4M/ 3M/ 1080p/ 1.3M/ 720p @(1~25/fps), second stream: D1/ VGA/ CIF @(1~25fps), third stream 720p@(1~25fps) .
• Bitrate: H.264: 96 Kbps - 14848 Kbps; H.265: 38 Kbps to 8960 Kbps.
• Support for multiple streams at the same time: 3 streams.
• Pan: 0°-355°, Tilt 5°-90°.
• Viewing angle: H: 96.9°-31.6°; W: 51.4°-17.8°; D: 116.2°-36.4°.
• Focal length: 2.8 mm -12 mm, F1.8-F2.7.
• Manual control speed: Pan: 0.1°/s–70°/s; Tilt: 0.1°/s–30°/s.
• Preset (label) speed: Pan: 0.1°/s–80°/s; Tilt: 0.1°/s–40°/s.
• Preset: 300 Preset (Label, camera settings).
• Rounds 8.
• Focus: Auto/manual, semi-auto.
• Y/N: Switches from color operation to black and white at a certain light intensity.
• Min. illumination: 0.005Lux@F1.8; 0.0005Lux@F1.8 B/W; 0Lux IR.
• 3 pcs. IR LEDs.
• Illumination distance 20m.
• Electronic Shutter: Auto/Manual, 1/1s~1/30,000s.
• White balance: Auto/Manual, tracking, indoor, outdoor, natural light, street light, etc.
• (EIS- Electronic Image Stabilization) electronic image stabilization.
• Defog function: electronic.
• S/N ratio >55dB.
• BLC / HLC / WDR 120dB.
• NR (2D/3D): noise reduction technology.
• Motion detection function for presets.
• Integrated Wi-Fi (802.11b/g/n/AX); 2.4GHz; 229Mbps.
• 10/100 Mb/s network socket (Ethernet RJ-45).
• Network protocols: FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; Qos; RTSP; ARP; ONVIF (Profile S & Profile G & Profile T); CGI; SDK.
• Remote control: monitoring, PTZ control (DH-SD), system settings, file download, preview, software update.
• Maximum simultaneous user login: 20 (total traffic 64M).
• Recording: to FTP, SFTP or NAS servers.
• Audio input 1 channel.
• Audio output 1 channel. > • Moisture resistant IP67.
• Internal memory: micro SD port max. 512 GB.
• Operating temperature: -30°C ~60°C.
• Humidity: <95%.
• Power supply: DC 12 V/ 2A (±10%).
• Power: basic 4W, max. 13W.
• Dimensions: 65.4 mm x 128 mm.
• Weight: 500g.

Compatible mounts:
• PFA120.
• PFB305W.
• PFB220C.
• PFA150.
• PFA140.
• PFA151.
• PFA107.


Width 128 mm
Height 65.4 mm
Product Weight 500 g
Length 150 mm

Extended warranties and insurance:

  • Additional warranty + insurance (2 + 1 year) - 69,99 €
  • Additional warranty (2 years) - 49,99 €
  • Insurance (1 year) - 59,99 €
  • Insurance (2 years) - 99,99 €

Choose a suitable extended warranty and insurance in checkout..

Dimensions and weights

Gross weight
0.8 kg
Package width
12 cm
Package height
12 cm
Package length
15 cm

Product codes

EAN
6923172590374
