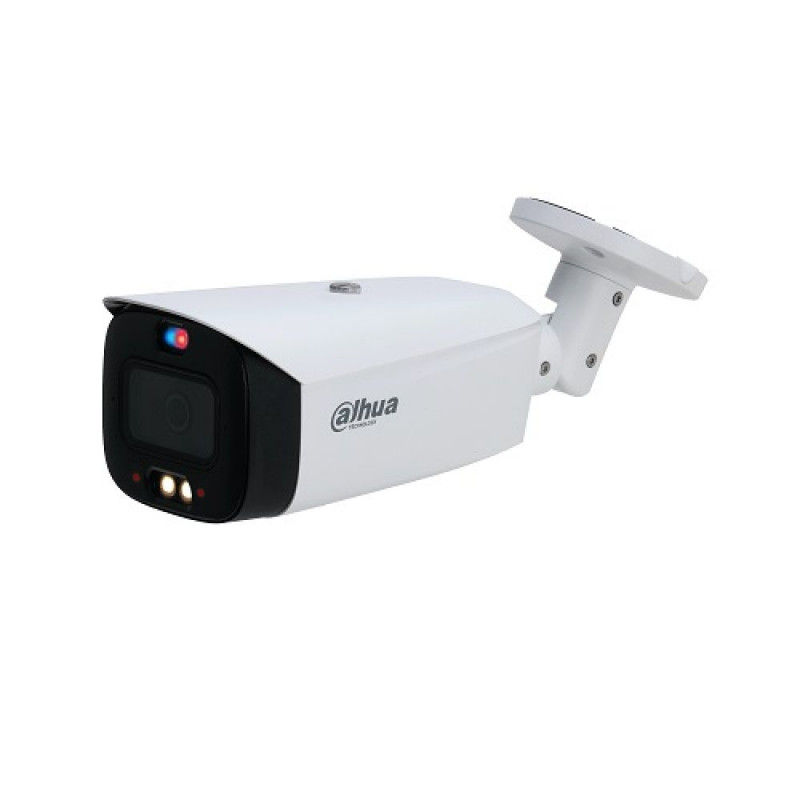

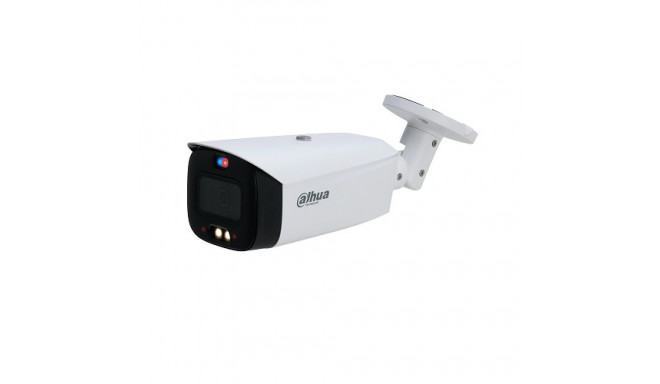

IP network camera 4MP HFW3449T1-AS-PV-S3 2.8mm

389 €

Monthly payment starting from 13,26 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

IP camera FULL-COLOR 4MP WizSense with built-in microphone, active deterrence with red/blue flashing light and sound alarm. 1/2.7” inch FULL-COLOR CMOS sensor. Double IR + LED lighting up to 30m. 4MP (2688×1520) 1~25fps. Fixed lens: 2.8mm F1.0 viewing angle 101°. H.265+/H.265/H.264. BLC, HLC, WDR 120dB, ROI, IVS, AI, SSA, SMD 3.0, PoE, corridor mode. 3D-DNA: noise reduction technology. SD memory port Max 256GB. IP67 moisture resistant suitable for outdoor and indoor conditions. 3 axis adjustment. Supports ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; P2P standard. Model: DH-IPC-HFW3449T1-AS-PV-S3 2.8mm.
Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online

IP camera HFW3449T1-AS-PV-S3 4MP

Short description:

IP camera FULL-COLOR 4MP WizSense with built-in microphone, active deterrence with red/blue flashing light and sound alarm. 1/2.7” inch FULL-COLOR CMOS sensor. Double IR + LED lighting up to 30m. 4MP (2688×1520) 1~25fps. Fixed lens: 2.8mm F1.0 viewing angle 101°. H.265+/H.265/H.264. BLC, HLC, WDR 120dB, ROI, IVS, AI, SSA, SMD 3.0, PoE, corridor mode. 3D-DNA: noise reduction technology. SD memory port Max 256GB. IP67 moisture resistant suitable for outdoor and indoor conditions. 3 axis adjustment. Supports ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; P2P standard. Model: DH-IPC-HFW3449T1-AS-PV-S3 2.8mm.

Brief technical characteristics:

• 4MP FULL-COLOR IP camera with IR+LED lighting and integrated microphone.
• IVS functions: crossing the line, penetrating the perimeter.
• AI: Human recognition function, face detection, car recognition function, perimeter protection (Smart Motion Detection (SMD Plus).
• 1/2.7” inch 4MP FULL-COLOR CMOS sensor.
• 2.8mm fixed lens F1.0 (viewing angle of lens about 101°); detection from 66m, tracking 26.4m, recognition 13.2m, identification 6.6m.
• Integrated microphone.
• Audio compression: PCM; G.711a; G.711Mu; G.726; G.723.
• Video compression: H.265; H.264; H.264H; H.264B; MJPEG; Smart H.265+/ Smart H.264+.
• Operating system LINUX.
• Scanning system: Progressive.
• 2x IR LED lighting up to 30m and 2x warm color LED up to 30m.
• Remote control and live monitoring via Ethernet (WEB): IE (IE 8/9/11), Chrome, Firefox.
• Free software for camera control (SMART PSS), video viewing and archiving using a computer network or the Internet.
• A free program that allows the user to monitor and view recordings of cameras from different objects, the program allows the image to be saved to the computer.
• Free software for monitoring via a mobile phone or via a handheld computer (DSS, DMSS mobile phone surveillance software) is suitable for phones: IPHONE, ANDROID, IPAD, GALAXY TAB, etc.
• The IP camera can be used with software from other companies (VMS Partners): ALNET SYSTEMS, AXXON, DiGiFORT, Exacq Technologies, Genetech, GeoVision, Lenel, milestone, NETvision, NUUO, OnSSI, QNAP, Surveon, UNISIGHT, Aimetis, Cathexis solutions, GEUTEBRUCK, CANON, KSENOS, Kentima Solutions AB, Softguard Tech, Innodep Inc., LuxRiot A&H Software House, Inc., Video Insight, Mirasys Ltd., SEEnergy Corp., Synology, Wavestore and others...
• Number of effective pixels: 2688 (H) × 1520 (V).
• Video resolution options available: 4M (2688 × 1520); 4M (2560×1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280×720); D1 (704×576/704×480); CIF (354×288/354×240).
• Compression Rate: Main stream: 2688 × 1520 @1-25 fps. Additional Stream: 704 × 576 @1-25 fps/704 × 480 @ 1-25 fps; Optional Third Stream: 1920×1080 @1-25 fps.
• Bitrate: H.264: 3 kbps - 20480 kbps, H.265: 3 kbps - 20480 kbps.
• Min. illumination: 0.003 Lux @ F1.0 - Color, 30 IRE; 0.0003 Lux @ F1.0 -B/W, 30 IRE.
• 3D-DNA: noise reduction technology.
• Corridor mode (flip 0°/90°/180°/270°), 90°/270° with 2688x1520 resolution.
• ROI function.
• S/N ratio >56dB.
• Electronic Shutter: Auto/Manual, 1/3s - 1/100,000s.
• White balance: Auto/Manual, BLC / HLC / 3D NR/ WDR 120dB.
• Video format: PAL.
• 10/100 Mb/s network socket (Ethernet -RJ45).
• Network protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP, ONVIF (Profile S/Profile G/Profile T); CGI; Milestone, P2P.
• Recording: FTP, SFTP or NAS servers.
• Remote control: Monitoring, EPTZ digital zoom, system settings, File download, Preview, software update.
• Unlimited number of users (possibility to grant different rights to each user).
• Maximum user login at one time: 20.
• Internal memory: micro SD memory port max. 256GB.
• Privacy zones: 8.
• Alarm input: 1 channel (5mA 3V-5V DC).
• Alarm output: 1 channel (300mA 12V DC).
• Audio input: 1 channel RCA.
• Audio output: 1 channel RCA.
• Linking of alarms with light and sound effects is supported; red and blue light flashing alarm, 11 installed sounds.
• Operating temperature: -40°C~+60°C, 95% RH.
• 3-axis mechanism for camera adjustment (Pan:0°~360°; Tilt:0°~90°; Rotation:0°~360°).
• Moisture resistant IP67 suitable for outdoor and indoor conditions.
• Power supply: DC12V / PoE (802.3af).
• Power consumption: 2.4W (12V DC) / 3.1W (PoE), Max. power consumption: 7.9W (12V DC); 9.7W (PoE)
• Dimensions: 288.4 mm × 94.4 mm × 84.7 mm.
• Weight: 1.0 kg.


 Compatible mounts:
PFA152-E.
PFA130-E.
PFA135.


Width 94.4 mm
Height 288.4 mm
Length 84.7 mm
Product Weight 1000 g
