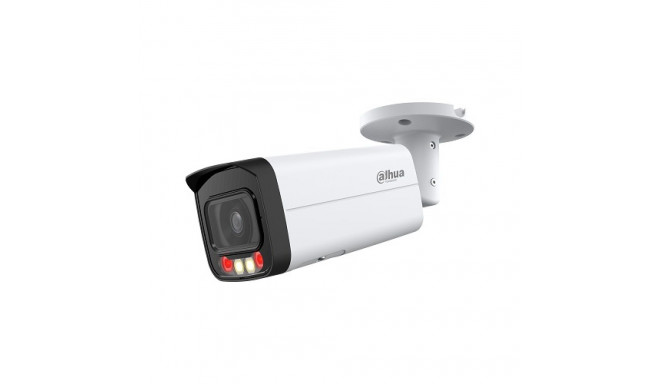

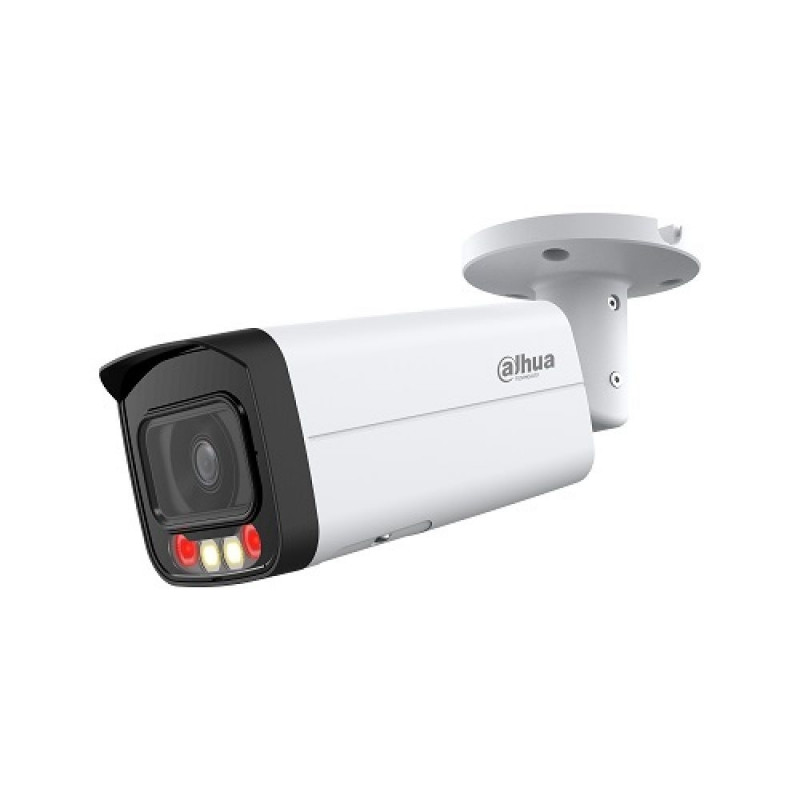

IP Network Camera 5MP HFW2549T-AS-IL 3.6mm

Main info

IP camera AI cylindrical 5MP with integrated microphone, 1/2.7" inch, FULL-COLOR CMOS sensor, IR illumination up to 60m, LED illumination up to 50m, 5MP(2960 × 1668) 1~20fps, but also supports 2688×1520 resolution 1~ 25fps, fixed lens: 3.6mm F1.6 viewing angle 92°, H.265+/ H.265/ H.264, BLC / HLC / HDR / WDR 120dB, ROI, IVS, corridor mode, SMD Plus; 3D NR: noise reduction technology, SD memory port max. 256GB, PoE, IP67 waterproof suitable for outdoor and indoor conditions, 3-axis adjustment, PoE, supports ONVIF (Profile S/Profile T/Profile G); CGI; P2P standard, model: DH-IPC-HFW2549T-AS-IL, 3.6mm.

Product has been archived

IP camera HFW2549T-AS-IL. 5MP FULL-COLOR. IR+LED

Short description:

IP camera AI cylindrical 5MP with integrated microphone, 1/2.7" inch, FULL-COLOR CMOS sensor, IR illumination up to 60m, LED illumination up to 50m, 5MP(2960 × 1668) 1~20fps, but also supports 2688×1520 resolution 1~ 25fps, fixed lens: 3.6mm F1.6 viewing angle 92°, H.265+/ H.265/ H.264, BLC / HLC / HDR / WDR 120dB, ROI, IVS, corridor mode, SMD Plus; 3D NR: noise reduction technology, SD memory port max. 256GB, PoE, IP67 waterproof suitable for outdoor and indoor conditions, 3-axis adjustment, PoE, supports ONVIF (Profile S/Profile T/Profile G); CGI; P2P standard, model: DH-IPC-HFW2549T-AS-IL, 3.6mm.

Brief technical characteristics:

• 5MP FULL-COLOR / STARLIGHT cylindrical IP AI camera with double illumination (IR+warm LED) and integrated microphone.
• IVS functions: crossing the line, penetrating the perimeter.
• 1/2.7” inch 5MP FULL-COLOR CMOS sensor.
• 3.6mm fixed lens F1.6 (viewing angle of lens about 92°).
• Integrated microphone.
• Audio compression: G.711a; G.711Mu; G.726; PCM.
• Video compression H.265; H.264; H.264H; H.264B; MJPEG; Smart H.265+/ Smart H.264+.
• Operating system LINUX.
• Scanning system: Progressive.
• IR lighting up to 60m, LED lighting up to 50m.
• 2 pcs. AND + 2 pcs. warm light LED.
• Remote control and live monitoring via Ethernet (WEB): IE, Chrome, Firefox.
• Free software for camera control (DSS, DMSS, SmartPSS Lite), video viewing and archiving using a computer network or the Internet.
• A free program that allows the user to monitor and view recordings of cameras from different objects, the program allows the image to be recorded on the computer.
• Free software for monitoring via a mobile phone or a handheld computer (DSS mobile phone surveillance software) is suitable for phones: IPHONE, ANDROID, IPAD, GALAXY TAB, etc.
• The IP camera can be used with software from other companies (VMS Partners): ALNET SYSTEMS, AXXON, DiGiFORT, Exacq Technologies, Genetech, GeoVision, Lenel, milestone, NETvision, NUUO, OnSSI, QNAP, Surveon, UNISIGHT, Aimetis, Cathexis solutions, GEUTEBRUCK, CANON, KSENOS, Kentima Solutions AB, Softguard Tech, Innodep Inc., LuxRiot A&H Software House, Inc., Video Insight, Mirasys Ltd., SEEnergy Corp., Synology, Wavestore and others.
• Number of effective pixels: 2960 (H) × 1668 (V).
• Video resolution options available: 5M (2960 × 1668); 4M (2880 × 1620 / 2688 × 1520); 3M (2048 × 1536 / 2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280×720); D1 (704×576/704×480); VGA (640×480); CIF (352×288/352×240).
• Compression Rate: Mainstream: 5MP(2960×1668) @1fps-20fps; (2688×1520) @1 fps - 25 fps; additional stream: (704 × 576)@1 fps - 25 fps; (704×480)@1 fps - 25 fps.
• Bitrate: H.264: 32 kbps - 8192 kbps H.265: 12 kbps - 8192 kbps.
• Min. illumination: 0.007 Lux@F1.6.
• 3D NR: noise reduction technology.
• Corridor mode (flip 0°/90°/180°/270°).
• ROI function.
• S/N ratio >56dB.
• Electronic Shutter: Auto/Manual, 1/3s - 1/100,000s.
• White balance: Auto/Manual, BLC / HLC / HDR/ WDR 120dB.
• Video format: PAL.
• 10/100 Mb/s network socket (Ethernet RJ-45).
• Network protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P; ONVIF (Profile S/Profile T/Profile G); CGI.
• Recording: FTP or SFTP servers.
• Remote control: monitoring, digital zoom, system settings, file download, preview, software update.
• Unlimited number of users (possibility to grant different rights to each user).
• Maximum user login at the same time: 6 (total traffic 36M).
• Internal memory: SD memory port max. 256GB.
• Privacy zones: 4.
• Alarm input: 1 channel (5mA 3V-5V DC).
• Alarm output: 1 channel (300mA 12V DC).
• Audio input: 1 channel RCA.
• Audio output: 1 channel ale RCA.
• Operating temperature: -40°C~+60°C, <95% RH.
• 3-axis mechanism for camera adjustment (Pan:0°~360°; Tilt:0°~90°; Rotation:0°~360°).
• Moisture resistant IP67 suitable for outdoor and indoor conditions.
• Power supply: DC 12V, PoE (802.3af).
• Consumption: 2.3W (12V DC), 3W (PoE); max 6.7W (12V DC), 7.9W (PoE).
• Dimensions: 238.5 mm × 90.7 mm × 90.7 mm.
• Weight: 720 g.


Compatible mounts:
• PFA134.
• PFA130-E.
• PFA152-E.


Width 90.7 mm
Height 238.5 mm
Length 90.7 mm
Product Weight 720 g

Dimensions and weights

Gross weight
0.6 kg
Package width
12 cm
Package height
15 cm
Package length
25 cm

Product codes

EAN
6923172589569
