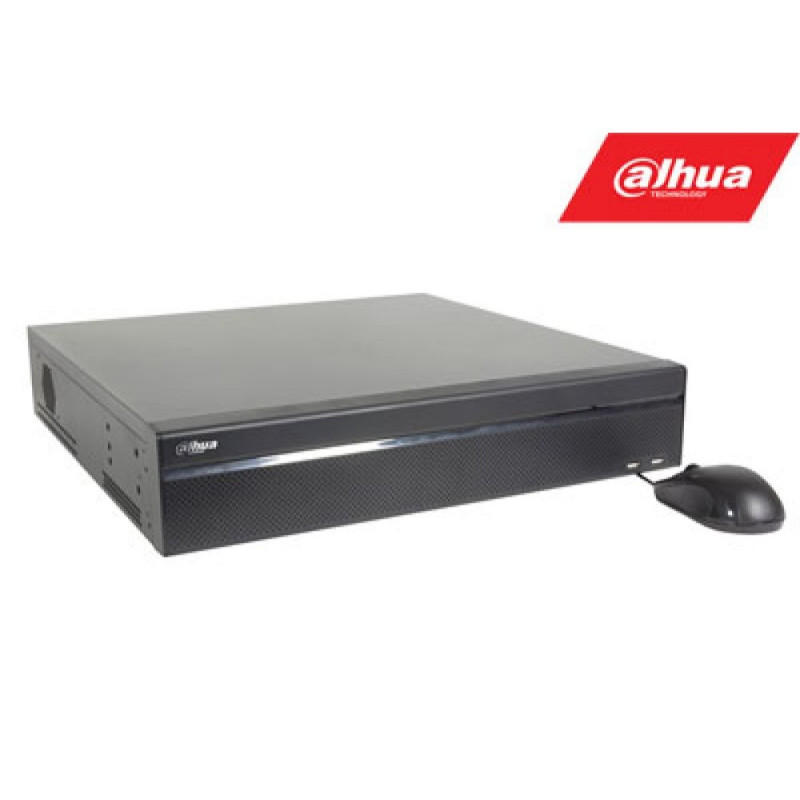

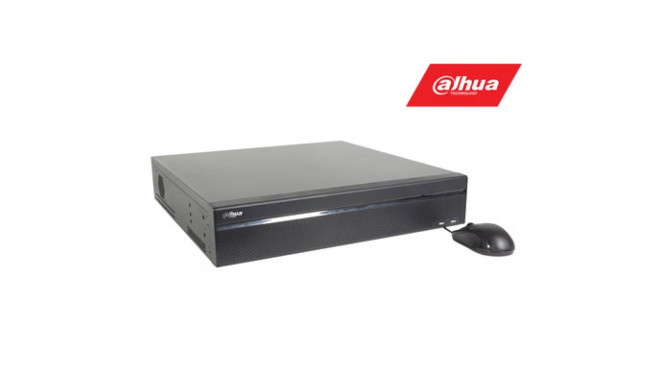

IP Network recorder 16 ch NVR5816-16P-4KS2

Addional discount of 12%
will be applied in shopping cart
(min. 10€ purchase)
1 399 €

Monthly payment starting from 47,68 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

16-channel 4K IP video recorder, available recording resolution: 12Mp, 8Mp, 6Mp, 5Mp, 3Mp, 1080P, 1.3Mp, 720P, the number of frames is not limited, the maximum data rate is up to 320Mbps, integrated PoE hub - 16 PoE interfaces, pentaplex, H.265/H.264/MJPEG, 8HDD, 1 LAN, 1 HDMI(up to 3840×2160), SATA lll, RS-485 connection, IVS functions, (to connect controlled cameras), Fisheye Dewarp function, ONVIF2.4, model ; DH-NVR5816-16P-4KS2.

Warning: Last items in stock!

Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online

Short description:

16-channel 4K IP video recorder, available recording resolution: 12Mp, 8Mp, 6Mp, 5Mp, 3Mp, 1080P, 1.3Mp, 720P, the number of frames is not limited, the maximum data rate is up to 320Mbps, integrated PoE hub - 16 PoE interfaces, pentaplex, H.265/H.264/MJPEG, 8HDD, 1 LAN, 1 HDMI(up to 3840×2160), SATA lll, RS-485 connection, IVS functions, (to connect controlled cameras), Fisheye Dewarp function, ONVIF2.4, model ; DH-NVR5816-16P-4KS2.

Brief technical characteristics:

• Digital 16-channel 4K IP recorder 12Mp 320Mbps, Integrated PoE hub.
• Fisheye Dewarp feature.
• POS, ANR, systems.
• IVS functions: crossing the line, entering the perimeter, changing the image, capturing the missing object, capturing the appearing object (works with cameras that have the IVS function).
• Convenient graphical user interface controlled by mouse, remote control or buttons on the device Software Linux GUI system.
• Integrated PoE hub - 16 PoE interfaces (25W for each camera) (IEEE802.3af/at standard) possibility to connect the power supply of 16 cameras.
• High quality ARM Cortex A17 Quad Core processor.
• H.265/H.264/MJPEG/MPEG4 Video Compression Technology.
• Pentaplex- the following operations are performed simultaneously: recording, live image display, recording review, recording copying, device control, remote access via network.
• Remote control and direct monitoring via Ethernet (WEB): IE, chrome, firefox, safari;
• Free software for device management (DSS/PSS/SMART PSS), video viewing and archiving via computer network or Internet.
• A free program that allows the user to monitor and view recordings from up to 144 cameras from different objects;
• Free program for monitoring via mobile phone or handheld, tablet computer (DMSS mobile phone surveillance software) suitable for phones: SYMBIAN, IPHONE, WINDOWS MOBILE, WINDOWS PHONE 8, KINDLE FIRE, BLACKBERY, ANDROID, IPAD, GALAXY TAB, etc.
• Resolution: 12M(4000×3000), 8M(3840×2160), 6M(3032x2008), 5M(2560×1920), 3M(2048×1536), 1080P(1920×1080), 720P(1280×720) , D1(704×576), CIF(352×288).
• The number of frames is not limited, all 8 channels. 12Mp, 8Mp, 6Mp, 5Mp, 3Mp, 1080P, 1.3Mp, 720P at 25kps.
• Bit Rate: Incoming traffic 320Mbps, for each channel from 16kbps~20Mbps.
• Image quality CBR, VBR level 1 ~ 6.
• Motion stream function - that is: when motion is triggered, writes at maximum resolution (e.g. max. frames per second), when there is no motion, writes at normal resolution (minimum frames per second) - this saves data flow and space.
• Max IP camera inputs 16.
• Automatic search for IP cameras.
• Supported IP cameras: Dahua, Arecont Vision, AXIS, Canon, Dynacolor, Panasonic, Brickom, Vivotek, Honeywell, Sunell, CP PLUS, CNB, Tyco, Pelco, Surveon, Shany, PELCO, BOSH, SAMSUNG, SANYO, SONY, ONVIF2 .4.
• HDMI connection: 3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768.
• 1 HDMI input screen split: 1/4/8/9/16.
• 2 HDMI input screen split: 1/4/8/9/16.
• VGA connector: 1920×1080, 1280×1024, 1280×720, 1024×768.
• Microphone input: 1 channel, microphone output 1 channel (for two-way conversation).
• Split screen: 1/4/8/9/16.
• Record playback channels: 1/4/9/16.
• Hard disk: Max 8 SATA disks.
• Maximum capacity of one HDD: 10TB max 80TB.
• E-SATA connector (possibility of connecting external hard disk storage up to 16TB).
• HDD management: HDD group, HDD sleep technology, Raid 0/1/5/6/10/50/60.
• USB connector: 4 pcs. (1 USB2.0, 1 USB3.0).
• Record copying: USB 2.0 / USB HDD / USB CD / LAN / built-SATA / network.
• RS-485 connection (for connecting controlled cameras).
• RS-232 connection (for keyboard connection or computer connection).
• 10/100/1000 Mb/s network socket 1 pc. (Ethernet -RJ45) for connecting to the Internet.
• Network protocols: HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP camera search (supports Dahua IP cameras, DVR , CIS and others...).
• P2P iCloud technology (IE): No need for static IP address, no need to open ports.
• 3G/WiFi module support.
• Remote alarm warning: E-mail (send photo), FTP server.
• P/T/Z control Compatible with most dome cameras and P/T/Z devices (PELCOD, PELCOP,SAMSUNG,PHILIPS,SONY,VIDEOND,EPTZ,etc..).
• Motion detection: with programmable areas and sensitivity for each channel.
• Motion detection: 396(22×18) detection zones, 4 possible regions with different sensitivity levels, sensitivity from 0 to 100, noise threshold from 0 to 100.
• Control options: LAN, remote control, front device control panel, computer mouse.
• Recording interval: 1 ~ 120 min. (default: 60 min.), Pre-record: 1 ~ 30 seconds, Post-record: 10 ~ 300 seconds.
• Recording modes: Manual, Default (Regular (Continuous), MD (Video detection: Motion detection, Camera blank, Video loss), Alarm), Stop.
• Record search: by date/time or events (motion detection, alarm).
• Programmable recording schedule (time/date, motion detection, continuous, according to schedule).
• Trigger notification: Recording, PTZ movement, tour, alarm, E-mail, FTP, Video Push, Buzzer and Message.
• Playback functions: play, pause, stop, rewind, fast forward, slow forward, next file forward, repeat, previous camera, archive selection, Digital Zoom: infinite.
• Smart preview search feature.
• OSD: Camera name, time, video loss, motion detection, recording.
• SNAPHOT: This function takes a snapshot when an alarm occurs.
• Hidden camera option, camera lock option.
• Color, brightness and contrast settings for each IP camera.
• Other functions: Pre- and post-alarm recording, camera name setting.
• Unlimited number of users (possibility to grant different rights to each user)
• Maximum user login at one time: 128.
• Time synchronization: automatic.
• Automatic summer/winter time adjustment.
• System recovery after power failure.
• The possibility to update IP camera software (firmware) via NVR.
• Alarm inputs: 16.
• Alarm inputs: 6.
• Power supply: AC 100~240V, 50/60 Hz.
• Energy consumption 17.5W.
• Humidity 10~90%RH.
• Operating temperature: -10°C ~ +55°C.
• Weight: 7KG. without a hard drive.
• Dimensions: 2U, 440mm×450.1mm×95mm.


Width 440 mm
Height 50 mm
Length 300 mm
Product Weight 2500 g

Dimensions and weights

Gross weight
5.1 kg
Package width
37.5 cm
Package height
9.5 cm
Package length
44 cm

Product codes

EAN
4775342512028
