Reolink TrackMix Series W760 - 4K Outdoor Camera, Dual View, Auto-Zoom Tracking, 2.4/5Ghz Wi-Fi, Col

Main info

Product has been archived

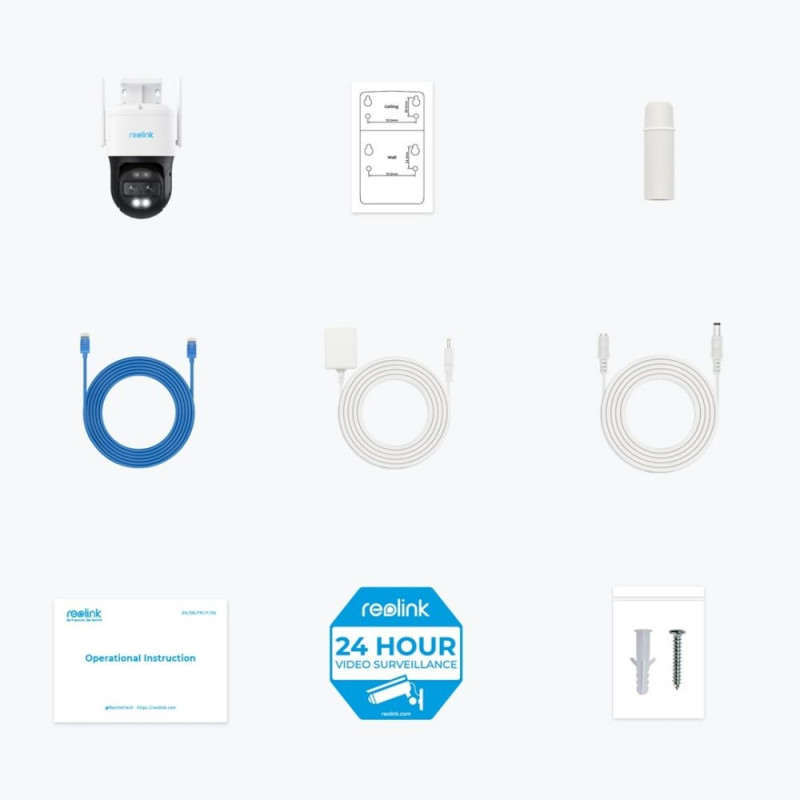

Packaging content 1* Trackmix Series W760 1* Mounting Template 1* Waterproof Lid 1* Power Adapter 1* 1m Network Cable 1* 4.5m Power Extension Cable 1* Surveillance Sticker 1* Quick Start Guide 1* Pack of Screws
Camera tilt control Yes
Infra-red wavelength 850 nm
Camera pan control Yes
Lens viewing angle, vertical 21 - 60°
Human and vehicle targets classification Yes
Lens viewing angle, horizontal 38 - 104°
User access level Administrator, User
Tilt angle range 0 - 90°
DC-in jack Yes
Connectivity technology Wireless
Antenna type External
Built-in HDD No
Video motion detection Yes
Product colour White
Zoom capability Yes
DC output current 1 A
DC output voltage 12
Supported network protocols HTTP, HTTPS, SSL, TCP/IP, UDP, UPNP, RTSP,RTMP, SMTP, ONVIF, NTP, DHCP, DNS, DDNS, P2P
Video recording Yes
Virtual assistant Google Assistant
Sensor type CMOS
Auto-tracking Yes
Pan range 0 - 355°
Video streaming Yes
Number of users 20 user(s)
Bluetooth No
Infrared (IR) cut-off filter Yes
Supported video modes 2160p
Placement supported Outdoor
Pan speed 90 °/sec
Number of lenses 1
Day/night mode Yes
Maximum aperture number 1.6
Built-in speaker(s) Yes
Live view Yes
Screws included Yes
Night vision Yes
Total megapixels 8 MP
Optical sensor size 25.4 / 3 mm (1 / 3")
Mounting type Wall
Number of illumination LEDs 2
Maximum memory card size 256 GB
Frame rate 25 fps
Fixed focal length 2.8 mm
Tilt speed 1.5 °/sec
Operating temperature (T-T) -10 - 55 °C
Ethernet LAN (RJ-45) ports 1
Manual Yes
Operating relative humidity (H-H) 10 - 90%
Ethernet interface type Fast Ethernet
Depth 228 mm
Height 129 mm
Windows operating systems supported Yes
Compatible memory cards MicroSD (TransFlash)
Ethernet LAN Yes
Weight 1.21 kg
LED type IR/White
Antennas quantity 2
Audio system 2-way
International Protection (IP) code IP65
Number of cameras 1
Card reader integrated Yes
Night vision distance 30 m
Mounting kit Yes
Supported graphics resolutions 3840 x 2160
Width 147 mm
Wi-Fi Yes
Form factor Turret
Reset button Yes
Maximum resolution 3840 x 2160 pixels
Bit rate 128Kbps - 8192Kbps
Type IP security camera
Mac operating systems supported Yes
Built-in microphone Yes
Power source type DC
Warranty 24 (G)
Mobile operating systems supported Android
Video formats supported H.264
Wi-Fi standards 802.11b
Video compression formats H.264
Security algorithms WPA2-PSK
Networking standards IEEE 802.11a

Dimensions and weights

Package width
274 cm
Package height
206 cm
Package length
204 cm

Product codes

EAN
6975253982189
Manufacturer code
W760
