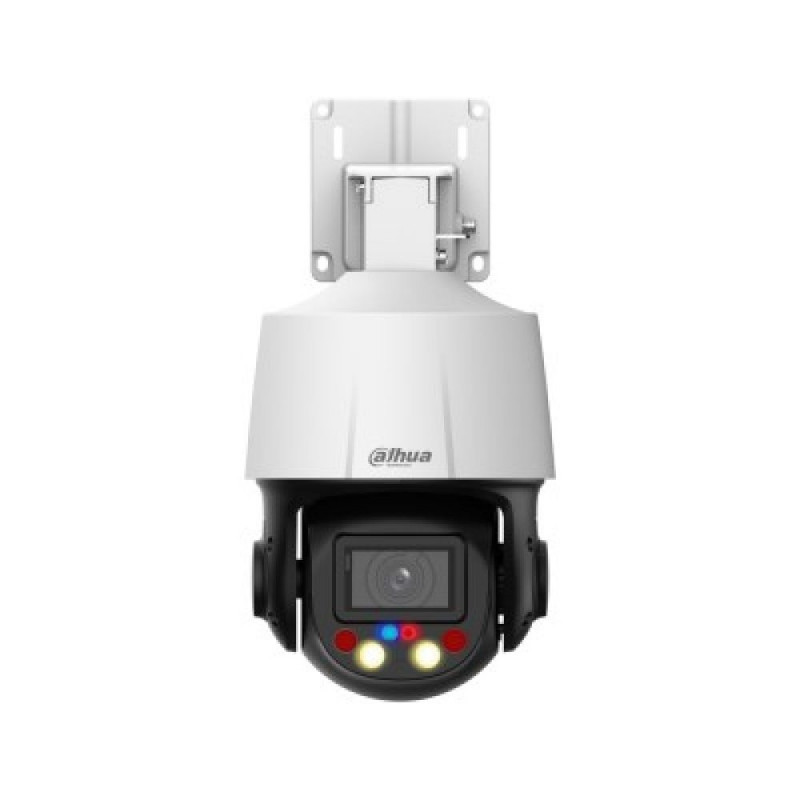

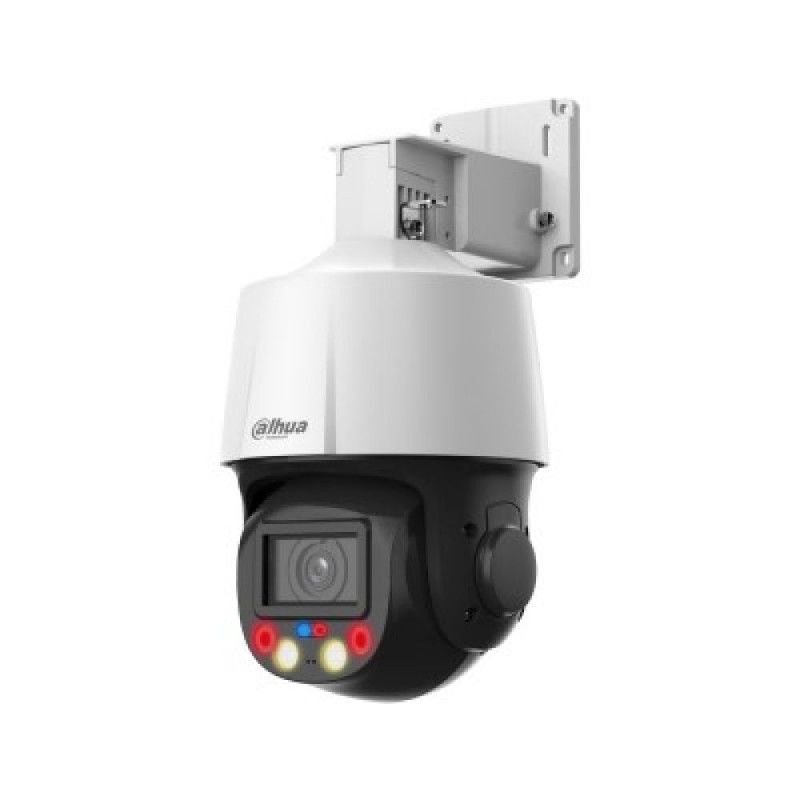

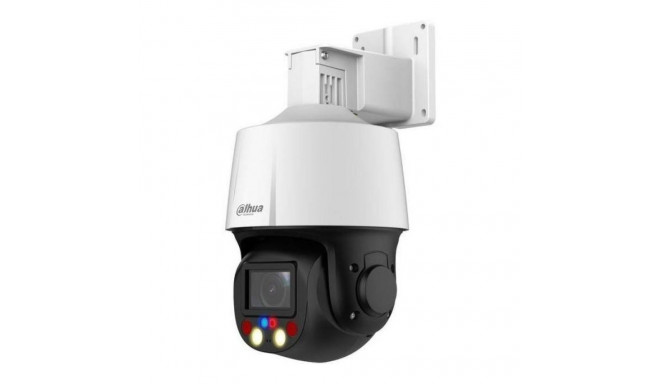

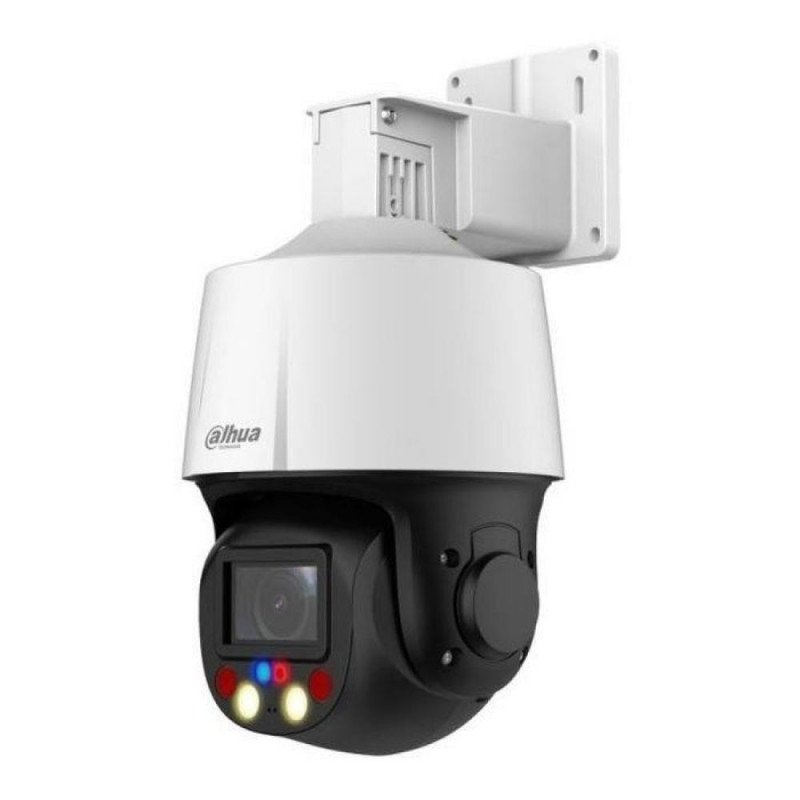

Dahua Technology WizSense SD3E405DB-GNY-A-PV1 Turret IP security camera Indoor & outdoor 2560 x 1440

Main info

Product has been archived


Certification CE: EN55032/EN55024/EN50130-4 FCC: Part15 B, ANSI C63.4-2014
Pan range 0 - 355°
Compatible memory cards MicroSD (TransFlash)
Frame rate 30 fps
Detect distance 270 m
Tilt preset speed 27.1 °/sec
Total megapixels 4 MP
PTZ control Yes
Zoom capability Yes
Night vision distance 50 m
Gain control type Auto/Manual
Maximum aperture number 3
Maximum memory card size 512 GB
Observe distance 106.6 m
Width 140 mm
Auto focus Yes
Minimum aperture number 1.6
Recognize distance 54 m
Management software DMSS;DSS Pro
Preset points Yes
International Protection (IP) code IP66
RAM capacity 512 MB
Number of lenses 1
Digital zoom 16x
Optical zoom 5x
Number of cameras 1
Sensor type CMOS
Ethernet LAN Yes
Height 236.1 mm
Video streaming Yes
Optical sensor size 25.4 / 2.8 mm (1 / 2.8")
Bit rate control Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Video motion detection Yes
Camera shutter speed 1/1 - 1/30000 s
Region of Interest (ROI) encoding Yes
Number of illumination LEDs 6
Alarm input channels 1
Number of users 20 user(s)
Focal length range 2.7 - 13.5 mm
Built-in HDD No
Minimum illumination 0.0005 lx
Back Light Compensation (BLC) Yes
ROM capacity 128 MB
Signal-to-Noise Ratio (SNR) 55 dB
Tilt speed 25.8 °/sec
Depth 142.6 mm
Pan speed 36 °/sec
Night vision Yes
Noise reduction technology 2D noise reduction, 3D noise reduction
Progressive scan Yes
Closest focusing distance 1.5 m
Alarm output channels 1
Placement supported Indoor & outdoor
Auto-tracking Yes
Identify distance 27 m
Wi-Fi No
Active tampering alarm Yes
Noise reduction Yes
DC output voltage 12
Image stabilizer Yes
Pan preset speed 35.7 °/sec
Highlight Compensation (HLC) Yes
Focus Motorized/Manual
Wide Dynamic Range (WDR) Yes
Mounting type Ceiling/wall
Bluetooth No
Card reader integrated Yes
Weight 1.5 kg
Maximum resolution 2560 x 1440 pixels
Package weight 2.1 kg
Operating relative humidity (H-H) 0 - 95%
Power consumption (max) 15 W
Tilt angle range -15 - 90°
Power consumption (typical) 4.5 W
Operating temperature (T-T) -30 - 60 °C
Form factor Turret
Product colour White
Ethernet LAN (RJ-45) ports 1
Type IP security camera
Power source type DC, PoE
Connectivity technology Wired
Warranty 24 (F)
Audio output channels 1.0 channels
Audio input channels 1.0 channels
Intelligent Video Surveillance (IVS) system features Vehicle detection
Voice codecs G.711Mu
Streaming method Multicast
Mobile operating systems supported Android
Supported graphics resolutions 1280 x 960
White balance Natural
Video compression formats H.264+
Warnings Ensure that the product is properly installed and protected against falling.

Dimensions and weights

Package width
188 cm
Package height
292 cm
Package length
254 cm

Product codes

EAN
6923172548184
Manufacturer code
SD3E405DB-GNY-A-PV1
