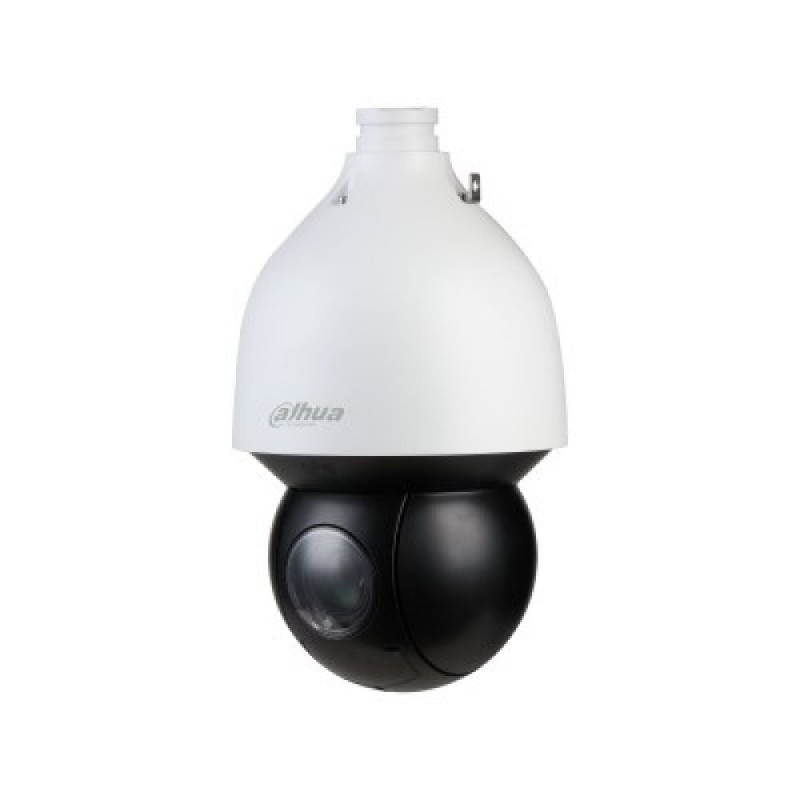

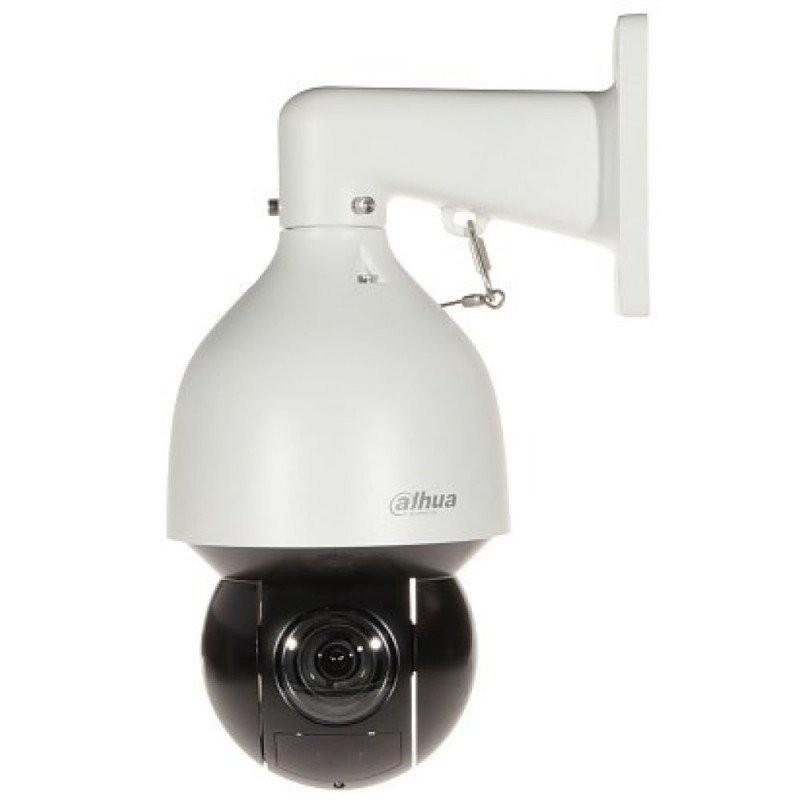

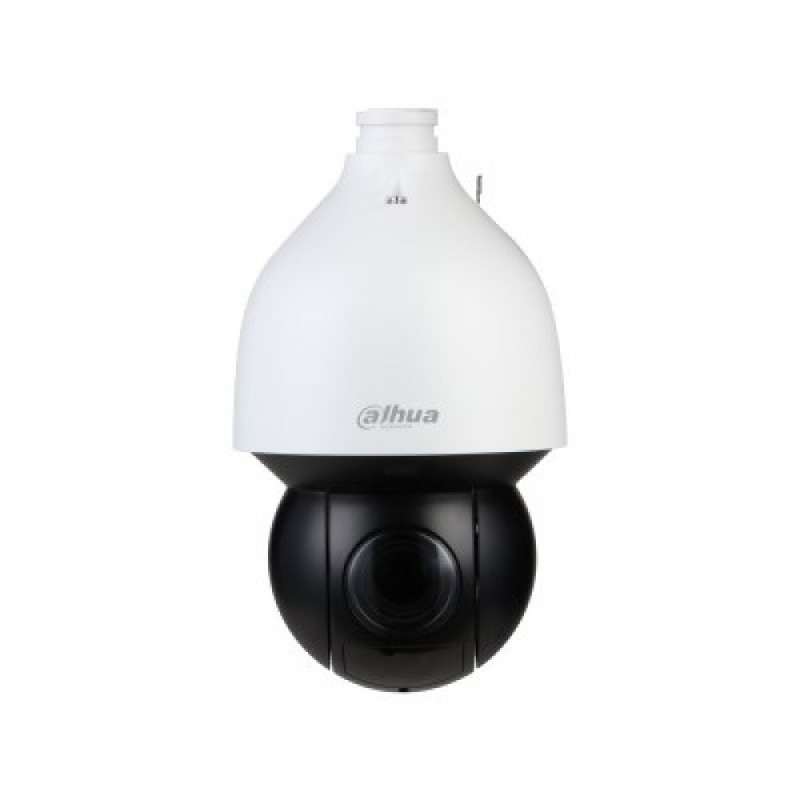

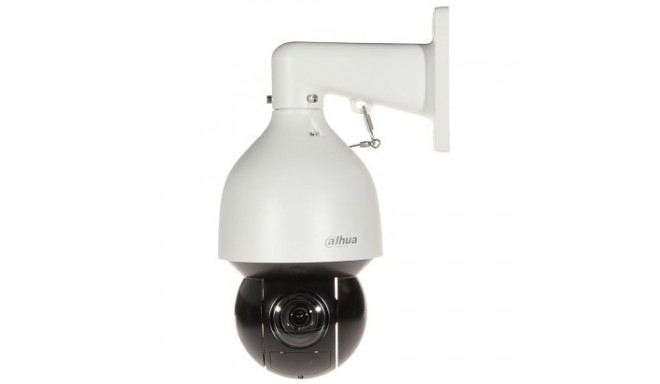

DAHUA SD5A432GB-HNR IP CAMERA

Main info

Product has been archived


Certification CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4-2014 UL: UL60950-1+CAN/CSA C22.2, No.60950-1
Lens viewing angle, vertical 31.9–1.3
Minimum aperture number 1.6
Number of cameras 1
International Protection (IP) code IP67
Lens viewing angle, horizontal 58.5–2.8
Lens viewing angle, diagonal 67.5–3.2
Operating relative humidity (H-H) 0 - 95%
Zoom capability Yes
Tilt manual speed 0.1 - 200 °/sec
LED type IR
Power consumption (typical) 13 W
Optical zoom 32x
IK code IK10
Bluetooth No
Maximum resolution 2560 x 1440 pixels
Digital zoom 16x
Diameter 19 cm
Tilt angle range 15 - 90°
Wi-Fi No
Internal memory 1000 MB
Pan preset speed 400 °/sec
Ethernet LAN Yes
Web-based management Yes
Ethernet LAN (RJ-45) ports 1
Operating temperature (T-T) -40 - 70 °C
Headphone outputs 1
Form factor Turret
Built-in HDD No
Type IP security camera
Weight 4.7 kg
Power consumption (max) 22 W
Focal length range 4.8–154
Minimum illumination 0.0005 lx
Noise reduction Yes
Connectivity technology Wired
Power source type DC, PoE
Compatible memory cards MicroSD (TransFlash)
Back Light Compensation (BLC) Yes
Package weight 8 kg
Height 332 mm
PTZ modes 5 Pattern
Night vision distance 150 m
Number of illumination LEDs 4
PTZ control Yes
Pan manual speed 0.1 - 300 °/sec
Total megapixels 4 MP
Digital Wide Dynamic Range (DWDR) Yes
Optical sensor size 25.4 / 2.8 mm (1 / 2.8")
Tilt preset speed 300 °/sec
Pan range 0 - 360°
Maximum memory card size 512 GB
ROM capacity 4000 MB
Number of lenses 1
Recognize distance 425 m
DC output voltage 24
DC output current 2.5 A
Maximum aperture number 4
Auto-tracking Yes
Placement supported Indoor & outdoor
Noise reduction technology 2D noise reduction, 3D noise reduction
Night vision Yes
Identify distance 212 m
Closest focusing distance 0.8 m
Auto focus Yes
Mounting type Ceiling
Focus Manual
Detect distance 2124 m
Sensor type CMOS
Observe distance 839 m
Web browser Yes
Warranty 36 (F)
Warnings Ensure that the product is properly installed and protected against falling.
White balance Sodium lamp
Supported graphics resolutions 352 x 288
Product colour White
Video compression formats H.264+
Audio formats supported G.711

Dimensions and weights

Package width
270 cm
Package height
520 cm
Package length
270 cm

Product codes

EAN
6923172540867
Manufacturer code
DH-SD5A432GB-HNR
