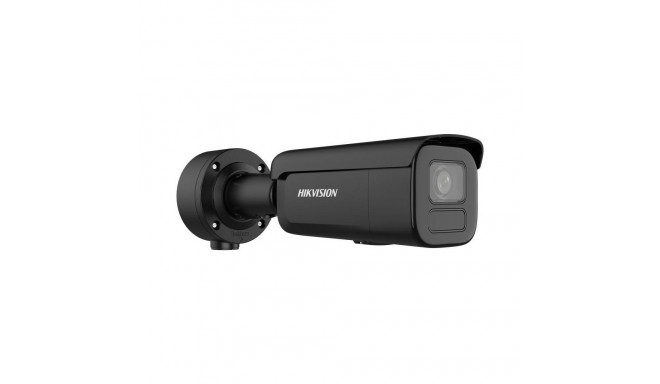

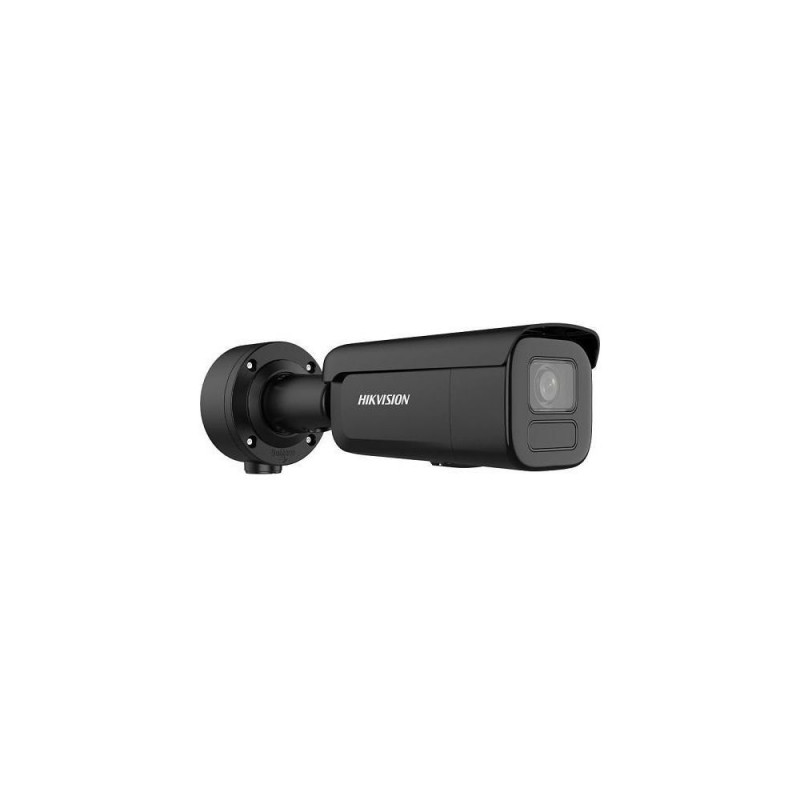

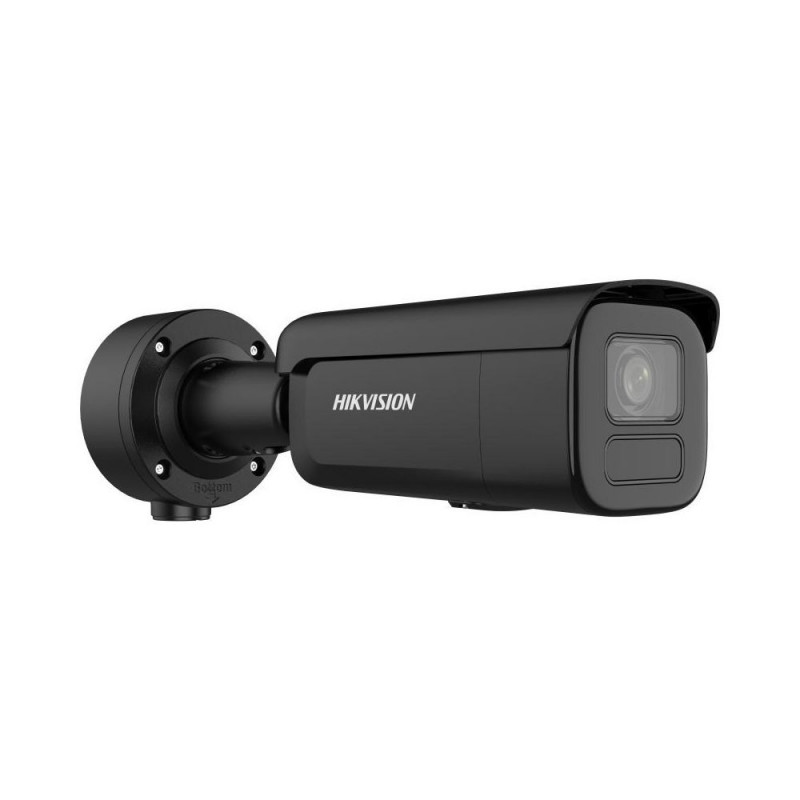

HIKVISION IP CAMERA DS-2CD2686G2HT-IZS(2.8-12)/eF/BLK

489 €

Monthly payment starting from 16,67 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online


I/O ports 1x line in, 1x line out
Active tampering alarm Yes
Client interoperability iVMS-4200, Hik-Connect, Hik-Central
Night vision Yes
Terminal block port Yes
Mirror Yes
Password reset via email Yes
Maximum memory card size 512 GB
Lens viewing angle, diagonal 137.4 - 47.3°
Video recording Yes
Heartbeat Yes
Sensor type CMOS
DC output voltage 12
Minimum illumination 0 lx
Camera shutter speed 1/3 - 1/100000 s
Bit rate range 8 - 320 Kbit/s
Power consumption (Power over Ethernet (PoE)) 18 W
Number of sensors 1
Placement supported Outdoor
Pixel counter Yes
Focal length range 2.8 - 12 mm
IP address filtering Yes
Highlight Compensation (HLC) Yes
Wi-Fi No
Number of cameras 1
Back Light Compensation (BLC) Yes
Height 95.7 mm
Detect distance (tele) 216 m
Audio input channels 1.0 channels
International Protection (IP) code IP67
Recognize distance (wide) 17 m
Compatible memory cards MicroSD (TransFlash)
Night vision distance 60 m
Bit rate control Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Day/night mode Yes
Built-in HDD No
LED type IR
Housing material Metal
Dynamic range 120 dB
Progressive scan Yes
Video streaming Yes
HTTPS encryption Yes
Mounting type Ceiling/wall
Number of users 32 user(s)
Signal-to-Noise Ratio (SNR) 52 dB
Human and vehicle targets classification Yes
Password protection Yes
Noise reduction Yes
Video motion detection Yes
Privacy masking Yes
Alert notification type E-mail
Languages support Multi
Infra-red wavelength 850 nm
Wide Dynamic Range (WDR) Yes
IK code IK10
Total megapixels 8 MP
Observe distance (wide) 35 m
Observe distance (tele) 86 m
Number of simultaneous live view channels 6 channels
Detect distance (wide) 87 m
Alarm input channels 1
Ethernet LAN Yes
Angle of rotation 360°
Pan range 0 - 355°
Identify distance (wide) 9 m
Recognize distance (tele) 43 m
Number of lenses 1
Alarm output channels 1
Optical sensor size 25.4 / 1.8 mm (1 / 1.8")
Region of Interest (ROI) encoding Yes
Live view Yes
User access level Administrator, Operator, User
Behavior analysis Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection
DC output current 1.21 A
Identify distance (tele) 22 m
Bit rate 32 Kbps - 16 Mbps
Infrared (IR) cut-off filter Yes
Maximum aperture number 1.2
Noise reduction technology 3D noise reduction
Sample rates 8 - 48 kHz
Ethernet interface type Fast Ethernet
Lens viewing angle, horizontal 112.3 - 41.2°
Number of languages 33
Lens viewing angle, vertical 58.1 - 23.1°
Privacy protection Yes
Alarm input/output Yes
Digital watermark Yes
Frame rate 30 fps
Digest authentication Yes
Automatic Network Replenishment (ANR) Yes
Network access storage (NAS) Yes
Number of Privacy masking areas 4
Audit log Yes
Length 298 mm
Package depth 190 mm
Ethernet LAN (RJ-45) ports 1
Operating relative humidity (H-H) 0 - 95%
Storage temperature (T-T) -30 - 60 °C
Weight 1.48 kg
Reset button Yes
Package height 180 mm
Audio output channels 1.0 channels
Type IP security camera
Storage relative humidity (H-H) 0 - 95%
Connectivity technology Wired
Package width 385 mm
Product colour Black
Package weight 2.32 kg
Power consumption (max) 14.5 W
Tilt angle range 0 - 90°
Operating temperature (T-T) -30 - 60 °C
Web-based management Yes
Bluetooth No
Power source type DC, PoE
Form factor Bullet
Networking standards IEEE 802.3af
Maximum resolution 3840 x 2160 pixels
Width 97.9 mm
Card reader integrated Yes
Quality of Service (QoS) support Yes
Warranty 36 (F)
Intelligent Video Surveillance (IVS) system features Scene change
Audio formats supported G.711
Protection features Dust resistant
Video compression formats M-JPEG
Compliance certificates CE
Image quality adjustment Contrast
Warnings Ensure that the product is properly installed and protected against falling.
Security algorithms EAP-MD5
Supported graphics resolutions 3200 x 1800

Extended warranties and insurance:

  • Additional warranty + insurance (2 + 1 year) - 89,99 €
  • Additional warranty (2 years) - 59,99 €
  • Insurance (1 year) - 69,99 €
  • Insurance (2 years) - 129,99 €

Choose a suitable extended warranty and insurance in checkout..

Camera

Horizontal swivel
360°

Dimensions and weights

Package width
390 cm
Package height
187 cm
Package length
192 cm

Product codes

EAN
6942160436609
Manufacturer code
51162
