Home page » Electronics»Security systems»Door entry systems»Hikvision DS-K1T502DBWX(STD) Basic access control reader Black, Grey

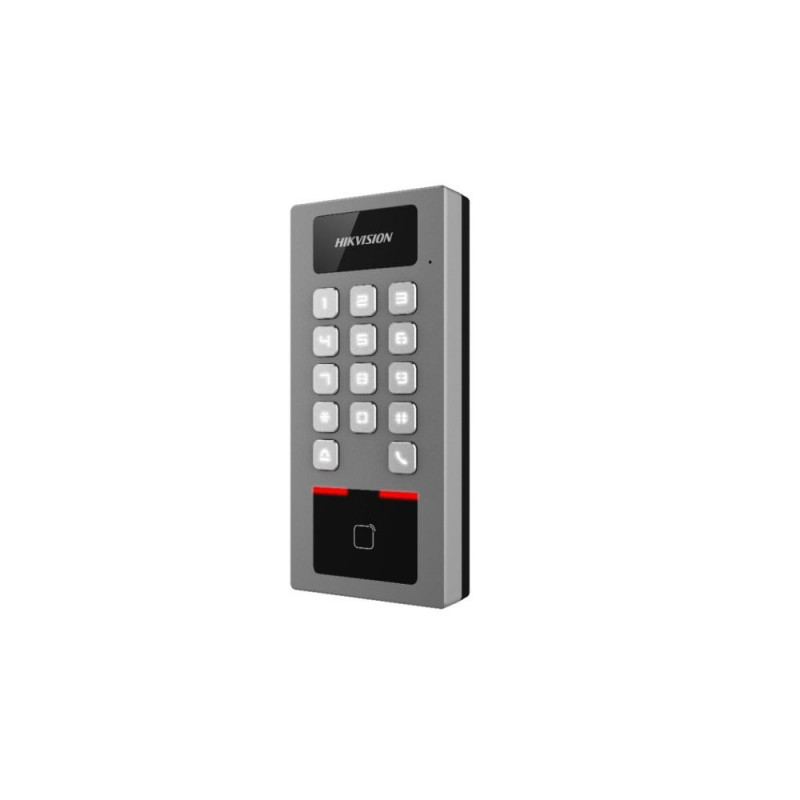

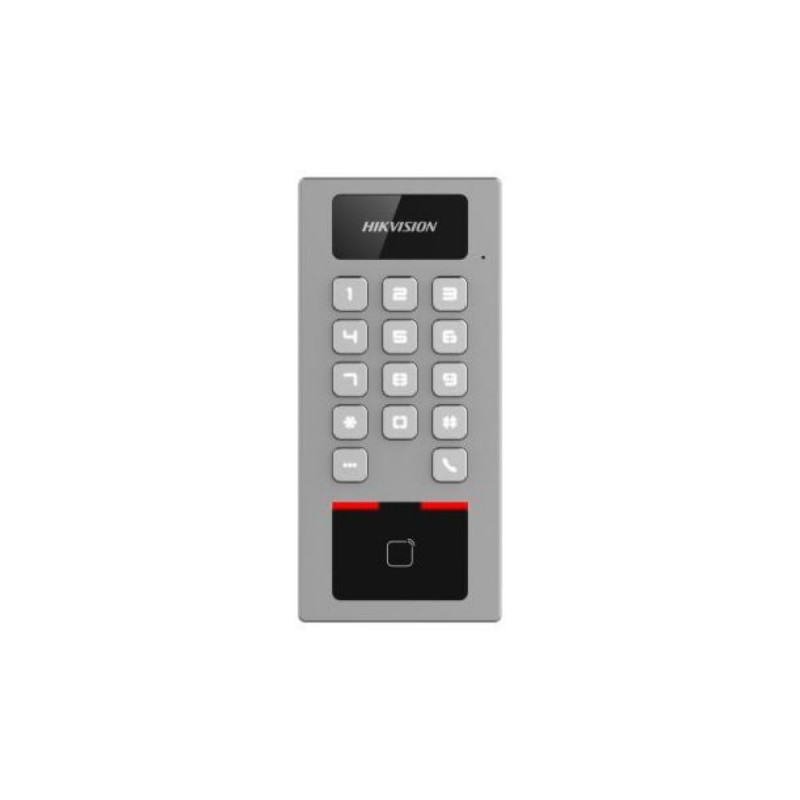

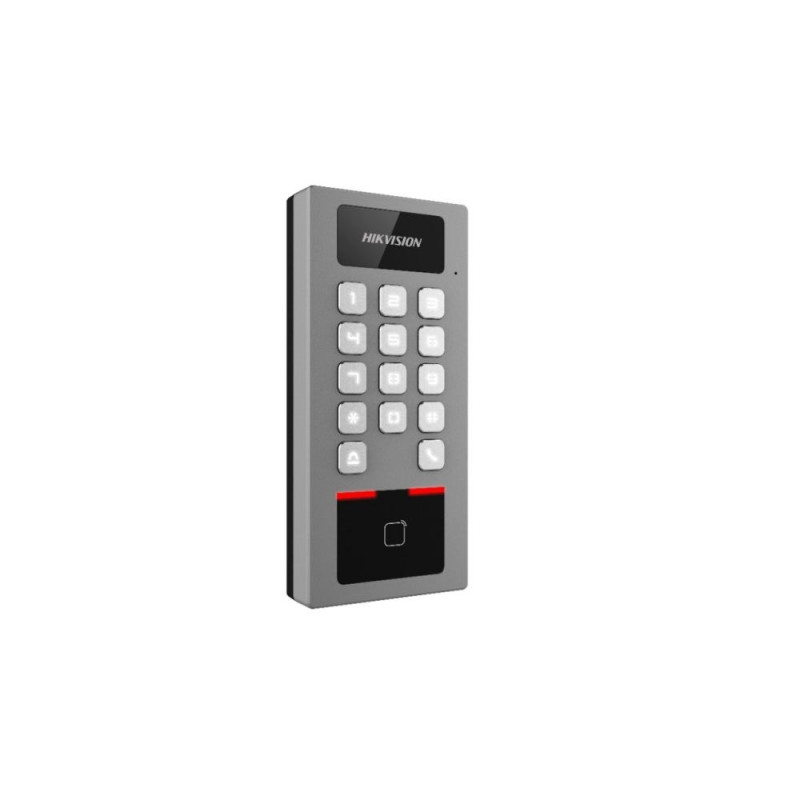

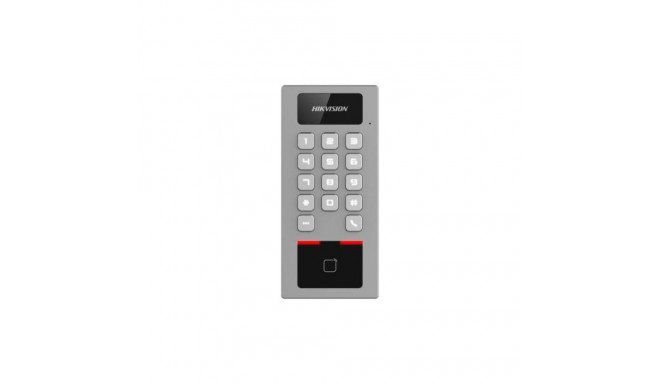

Hikvision DS-K1T502DBWX(STD) Basic access control reader Black, Grey

Main info

Product has been archived


Warranty 24 (G)
Bluetooth Yes
IK code IK09
Alarm input/output Yes
Built-in display No
Memory card slot Yes
Power consumption (max) 12 W
Wi-Fi Yes
Type Basic access control reader
International Protection (IP) code IP65
DC current (max) 1 A
Wiegand interface Yes
Height 177 mm
Compatible memory cards SD
Exit button Yes
Fingerprint reader No
Lock control Yes
Depth 26.1 mm
Width 81 mm
Languages support Multi
Alarm input channels 1
RS-485 ports 1
Contactless working distance 3 cm
Alarm output channels 1
Linux operating systems supported Yes
Access chip/card reader Yes
Front camera No
Cards capacity 100000 cards
Ethernet LAN (RJ-45) ports 1
Operating temperature (T-T) -40 - 70 °C
DC voltage range 12 - 24 V
Door contact input 1
Authentication card type Mifare Classic 1K, DESfire
Tamper Yes
Log capacity 300000
Authentication type Password
Ethernet LAN data rates 10
Product colour Grey

Dimensions and weights

Package width
250 cm
Package height
210 cm
Package length
95 cm

Product codes

EAN
6931847103880
Manufacturer code
37145
