Home page » Electronics»Security systems»Security cameras»DS-2CD2146G2H-ISU(2.8mm)(BLACK) Camera

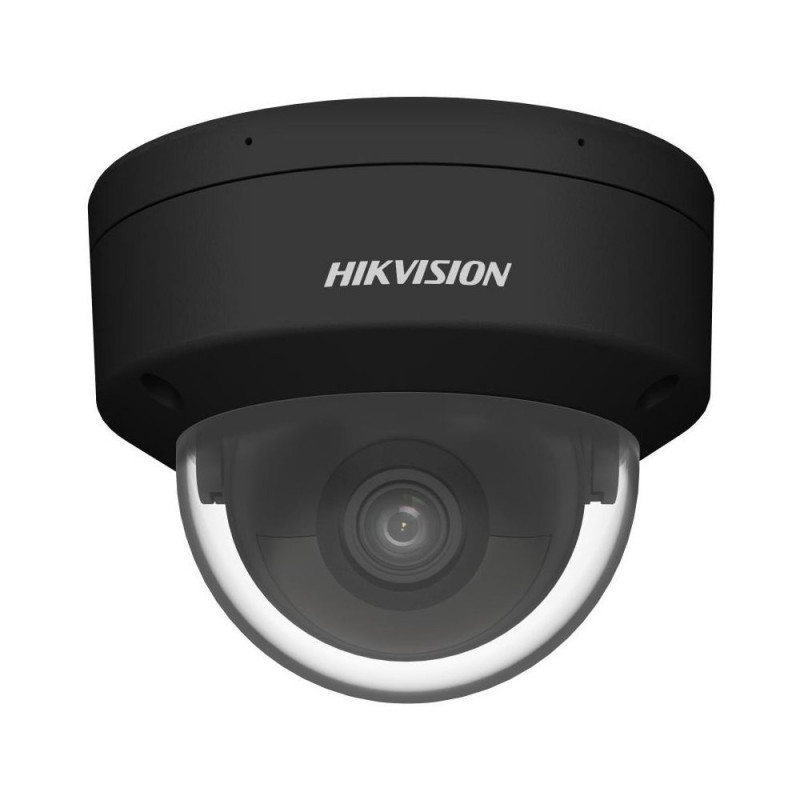

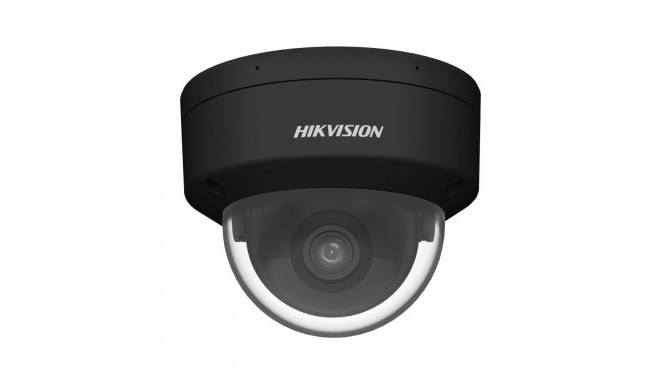

DS-2CD2146G2H-ISU(2.8mm)(BLACK) Camera

FREE SHIPPING
WITHIN ESTONIA!

265,99 €

Monthly payment starting from 9,07 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Power source type DC, PoE Weight 550 g
Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online


Power source type DC, PoE
Weight 550 g
Reset button Yes
Product colour Black
Built-in microphone Yes
Tilt angle range 0 - 75°
Audio output channels 1.0 channels
Maximum resolution 2688 x 1520 pixels
Connectivity technology Wired
Bluetooth No
Web-based management Yes
Ethernet LAN (RJ-45) ports 1
Placement supported Outdoor
Number of Privacy masking areas 4
Package weight 800 g
Operating temperature (T-T) -30 - 60 °C
Night vision distance 30 m
Height 97.6 mm
Noise reduction technology 3D noise reduction
Recognize distance 12 m
Noise reduction Yes
Network access storage (NAS) Yes
Lens mount interface M12
Card reader integrated Yes
Audit log Yes
Storage temperature (T-T) -30 - 60 °C
Wide Dynamic Range (WDR) Yes
Observe distance 25 m
Region of Interest (ROI) encoding Yes
Number of cameras 1
Intelligent Video Surveillance (IVS) system features Face detection
Optical sensor size 25.4 / 3 mm (1 / 3")
Automatic Network Replenishment (ANR) Yes
Languages support Multi
Package width 150 mm
Video motion detection Yes
Privacy masking Yes
LED type IR
Infrared (IR) cut-off filter Yes
Frame rate 30 fps
Fixed focal length 2.8 mm
Flash log Yes
Quality of Service (QoS) support Yes
Package depth 150 mm
Detect distance 63 m
DC output current 0.6 A
Maximum aperture number 1
Package height 141 mm
Browser supported IE 10, IE 11, Chrome 57.0+, Firefox 52.0+
Night vision Yes
Terminal block port Yes
Number of users 32 user(s)
Storage relative humidity (H-H) 0 - 95%
Housing material Aluminium
Diameter 12.2 cm
Mounting type Ceiling/wall
Sensor type CMOS
Pan range 0 - 355°
Number of languages 33
Form factor Bullet
Progressive scan Yes
Identify distance 6 m
Audio input channels 1.0 channels
IK code IK10
Live view Yes
Mirror Yes
Infra-red wavelength 850 nm
Total megapixels 4 MP
Built-in HDD No
Angle of rotation 355°
Day/night mode Yes
Bit rate control Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Camera shutter speed 1/3 - 1/100000 s
IP address filtering Yes
DC output voltage 12
Minimum illumination 0 lx
Alarm input/output Yes
Active tampering alarm Yes
Power consumption (Power over Ethernet (PoE)) 8.5 W
Power consumption (max) 7.2 W
Alarm input channels 1
Back Light Compensation (BLC) Yes
Bit rate 32 Kbps - 8192 Kbps
Alarm output channels 1
Video streaming Yes
Client interoperability iVMS-4200, Hik-Connect, Hik-Central
Wi-Fi No
Maximum memory card size 512 GB
Number of lenses 1
Signal-to-Noise Ratio (SNR) 52 dB
Password protection Yes
Heartbeat Yes
Ethernet interface type Fast Ethernet
Behavior analysis Intrusion detection, Line crossing detection
Privacy protection Yes
Operating relative humidity (H-H) 0 - 95%
International Protection (IP) code IP67
HTTPS encryption Yes
Ethernet LAN Yes
Number of sensors 1
Highlight Compensation (HLC) Yes
Type IP security camera
Dynamic range 130 dB
Digest authentication Yes
Number of simultaneous live view channels 6 channels
Lens viewing angle, diagonal 119.7°
Lens viewing angle, vertical 54.7°
Human and vehicle targets classification Yes
Lens viewing angle, horizontal 100.2°
Bit rate range 8 - 320 Kbit/s
Pixel counter Yes
Sample rates 8 - 48 kHz
User access level Administrator, Operator, User
Password reset via email Yes
Warranty 24 (F)
Networking standards IEEE 802.1x
Supported graphics resolutions 640 x 360
Security algorithms TLS
Compatible memory cards MicroSDXC
Image quality adjustment Brightness
Audio formats supported G.711 μ-law
Video compression formats H.265+
Protection features Water resistant
Compliance certificates UL
Warnings Ensure that the product is properly installed and protected against falling.

Extended warranties and insurance:

  • Additional warranty + insurance (2 + 1 year) - 59,99 €
  • Additional warranty (2 years) - 39,99 €
  • Insurance (1 year) - 39,99 €
  • Insurance (2 years) - 69,99 €

Choose a suitable extended warranty and insurance in checkout..

Camera

Horizontal swivel
355°

Dimensions and weights

Package width
150 cm
Package height
150 cm
Package length
142 cm

Product codes

EAN
6942160436487
Manufacturer code
311325040
