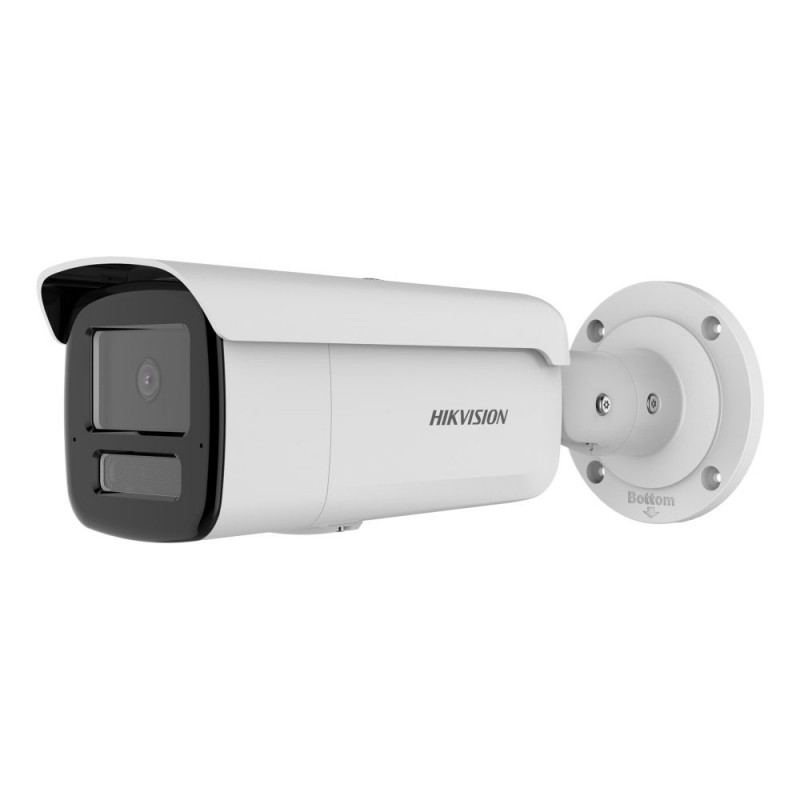

Hikvision DS-2CD2T63G2-2LI(4MM) security camera IP security camera

Main info

Product has been archived


Type IP security camera
Certification FCC (47 CFR 15, B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: 6, 2016); KC (KN 32: 2015, KN 35: 2015)
DC output current 0.66 A
Maximum aperture number 1.6
Video streaming Yes
Day/night mode Yes
Height 88.7 mm
Product colour White
Number of users 32 user(s)
Observe distance 45 m
Bluetooth No
Total megapixels 6 MP
IK code IK10
Ethernet interface type Fast Ethernet
Recognize distance 23 m
Maximum memory card size 512 GB
Signal-to-Noise Ratio (SNR) 52 dB
Built-in light Yes
Identify distance 11 m
Sensor type CMOS
Power source type DC, PoE
Reset button Yes
Package width 386 mm
Width 93.1 mm
Weight 1.15 kg
Built-in HDD No
HTTPS encryption Yes
Number of cameras 1
Connectivity technology Wired
DC output voltage 12
Placement supported Outdoor
Storage temperature (T-T) -30 - 60 °C
Detect distance 115 m
Ethernet LAN Yes
Angle of rotation 360°
Card reader integrated Yes
Minimum illumination 0 lx
Fixed focal length 4 mm
Mounting type Ceiling/wall
Web browser Yes
Noise reduction Yes
Housing material Metal
Web-based management Yes
Browser supported IE 10, IE 11, Chrome 57.0+, Firefox 52.0+
Power consumption (max) 8 W
Frame rate 30 fps
Night vision Yes
Bit rate 32 Kbps - 16 Mbps
Pan range 0 - 360°
Gain control type Auto
Optical sensor size 25.4 / 2.4 mm (1 / 2.4")
Package weight 1.64 kg
IP address filtering Yes
Video motion detection Yes
Length 286.7 mm
Quality of Service (QoS) support Yes
LED type IR/White
Form factor Bullet
Progressive scan Yes
Maximum resolution 3200 x 1800 pixels
Protection features Waterproof
Wide Dynamic Range (WDR) Yes
Tilt angle range 0 - 90°
Region of Interest (ROI) encoding Yes
Noise reduction technology 3D noise reduction
Storage relative humidity (H-H) 0 - 95%
Camera shutter speed 1/3 - 1/100000 s
Number of Privacy masking areas 8
Night vision distance 60 m
Bit rate control Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
International Protection (IP) code IP67
Client interoperability iVMS-4200, Hik-Connect, Hik-Central
Audit log Yes
Package depth 156 mm
Highlight Compensation (HLC) Yes
Operating temperature (T-T) -30 - 60 °C
Automatic Network Replenishment (ANR) Yes
Ethernet LAN (RJ-45) ports 1
Back Light Compensation (BLC) Yes
Wi-Fi No
Operating relative humidity (H-H) 0 - 95%
Network access storage (NAS) Yes
Package height 155 mm
Flash log Yes
Lens viewing angle, diagonal 96°
Privacy protection Yes
Number of sensors 1
Infrared (IR) cut-off filter Yes
Number of languages 33
Video recording Yes
Heartbeat Yes
Power consumption (Power over Ethernet (PoE)) 9.5 W
Infra-red wavelength 850 nm
User access level Administrator, Operator, User
Password protection Yes
Privacy masking Yes
Languages support Multi
Lens viewing angle, vertical 38°
Mirror Yes
Digest authentication Yes
Active tampering alarm Yes
Number of simultaneous live view channels 6 channels
Number of lenses 1
Behavior analysis Line crossing detection
Lens viewing angle, horizontal 78°
Password reset via email Yes
Pixel counter Yes
Human and vehicle targets classification Yes
Live view Yes
Dynamic range 120 dB
Warranty 24 (F)
Compliance certificates Federal Communications Commission (FCC)
Warnings Ensure that the product is properly installed and protected against falling.
Supported graphics resolutions 640 x 360
Security algorithms TLS
Networking standards IEEE 802.1x
Compatible memory cards MicroSDHC
Video compression formats H.264+

Camera

Horizontal swivel
360°

Dimensions and weights

Package width
156 cm
Package height
158 cm
Package length
390 cm

Product codes

EAN
6942160462950
Manufacturer code
311326151
