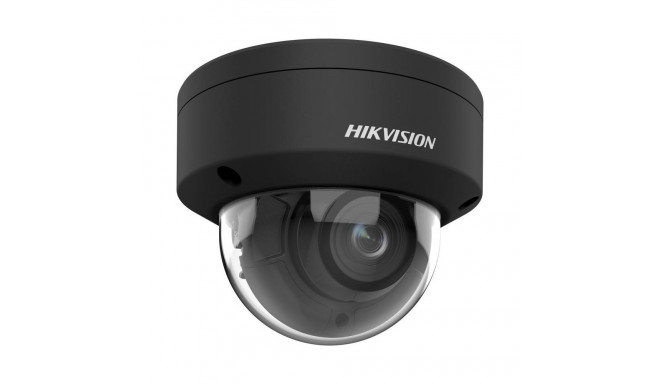

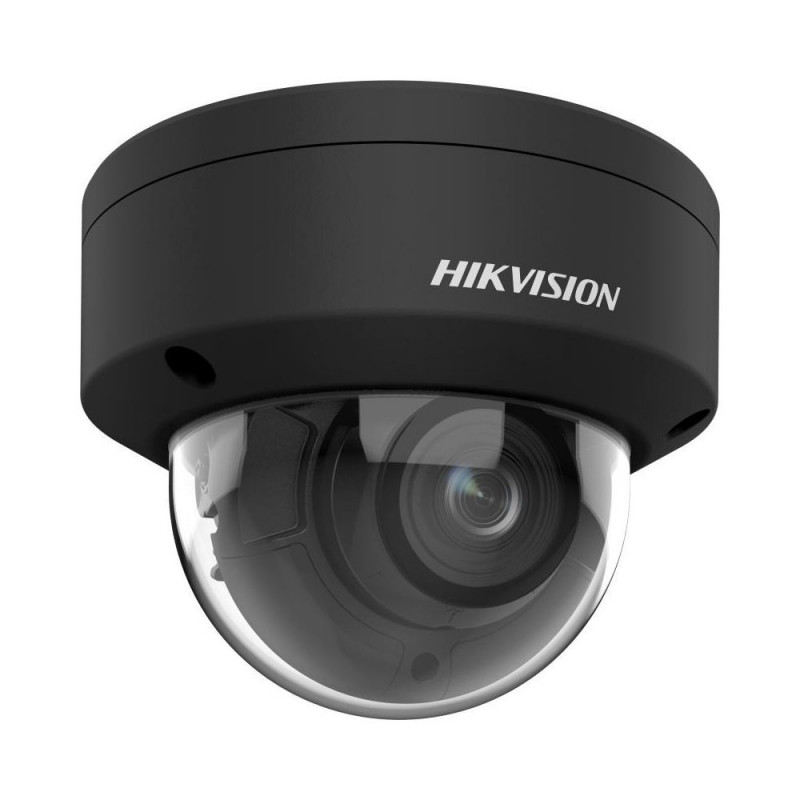

DS-2CD2786G2HT-IZS(2.8-12mm)(BLACK)

Addional discount of 11%
will be applied in shopping cart
(min. 10€ purchase)
469 €

Monthly payment starting from 15,99 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online


Warranty 24 (F)
I/O ports 1x line in, 1x line out
Ethernet LAN (RJ-45) ports 1
Back Light Compensation (BLC) Yes
Operating relative humidity (H-H) 0 - 95%
Detect distance (wide) 87 m
Frame rate 30 fps
Minimum illumination 0 lx
Reset button Yes
Day/night mode Yes
Identify distance (wide) 9 m
Type IP security camera
Storage relative humidity (H-H) 0 - 95%
Privacy protection Yes
Password reset via email Yes
Maximum memory card size 512 GB
Quality of Service (QoS) support Yes
Audit log Yes
Wide Dynamic Range (WDR) Yes
Observe distance (tele) 86 m
Ethernet LAN Yes
Angle of rotation 360°
Storage temperature (T-T) -30 - 60 °C
Lens viewing angle, diagonal 137.4 - 47.3°
Signal-to-Noise Ratio (SNR) 52 dB
International Protection (IP) code IP67
Product colour Black
Package height 230 mm
Video motion detection Yes
Privacy masking Yes
Number of simultaneous live view channels 6 channels
Mounting type Ceiling/wall
Number of users 32 user(s)
Height 112 mm
Power consumption (Power over Ethernet (PoE)) 12.9 W
Maximum aperture number 1.2
Optical sensor size 25.4 / 1.8 mm (1 / 1.8")
Region of Interest (ROI) encoding Yes
Live view Yes
Infrared (IR) cut-off filter Yes
Noise reduction Yes
Digital watermark Yes
Recognize distance (tele) 43 m
Number of lenses 1
Number of cameras 1
Video recording Yes
Heartbeat Yes
LED type IR
Operating temperature (T-T) -30 - 60 °C
Recognize distance (wide) 17 m
Identify distance (tele) 22 m
Web-based management Yes
Bluetooth No
Card reader integrated Yes
IP address filtering Yes
Number of sensors 1
Power consumption (max) 10.8 W
Focal length range 2.8 - 12 mm
Human and vehicle targets classification Yes
Alarm input channels 1
Ethernet interface type Fast Ethernet
DC output voltage 12
Sensor type CMOS
Video streaming Yes
Weight 840 g
Built-in HDD No
Progressive scan Yes
Camera shutter speed 1/3 - 1/100000 s
Bit rate range 8 - 320 Kbit/s
Automatic Network Replenishment (ANR) Yes
Pan range 0 - 355°
Number of languages 33
IK code IK10
Connectivity technology Wired
Package width 203 mm
Languages support Multi
Lens viewing angle, vertical 58.1 - 23.1°
Mirror Yes
Total megapixels 4 MP
Networking standards IEEE 802.3af
Highlight Compensation (HLC) Yes
Lens viewing angle, horizontal 112.3 - 41.2°
Bit rate control Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Housing material Metal
Dynamic range 120 dB
Observe distance (wide) 35 m
Placement supported Outdoor
Bit rate 32 Kbps - 16 Mbps
Digest authentication Yes
Active tampering alarm Yes
Behavior analysis Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection
Wi-Fi No
DC output current 0.9 A
Sample rates 8 - 48 kHz
Maximum resolution 3840 x 2160 pixels
HTTPS encryption Yes
Alarm input/output Yes
Night vision distance 40 m
Night vision Yes
Terminal block port Yes
Client interoperability iVMS-4200, Hik-Connect, Hik-Central
Network access storage (NAS) Yes
Power source type DC, PoE
Alarm output channels 1
Detect distance (tele) 216 m
Pixel counter Yes
Noise reduction technology 3D noise reduction
Form factor Dome
User access level Administrator, Operator, User
Tilt angle range 0 - 90°
Password protection Yes
Infra-red wavelength 850 nm
Package depth 203 mm
Diameter 14.1 cm
Number of Privacy masking areas 4
Audio output channels 1.0 channels
Package weight 1.45 kg
Audio input channels 1.0 channels
Warnings Ensure that the product is properly installed and protected against falling.
Compatible memory cards MicroSD (TransFlash)
Compliance certificates Low Voltage Directive (LVD)
Image quality adjustment Brightness
Video compression formats M-JPEG
Audio formats supported G.726
Supported graphics resolutions 640 x 360
Intelligent Video Surveillance (IVS) system features Face detection
Protection features Vandal proof
Security algorithms EAP-MD5

Extended warranties and insurance:

  • Additional warranty + insurance (2 + 1 year) - 89,99 €
  • Additional warranty (2 years) - 59,99 €
  • Insurance (1 year) - 69,99 €
  • Insurance (2 years) - 129,99 €

Choose a suitable extended warranty and insurance in checkout..

Camera

Horizontal swivel
360°

Dimensions and weights

Package width
145 cm
Package height
260 cm
Package length
90 cm

Product codes

EAN
6942160436623
Manufacturer code
311325270
