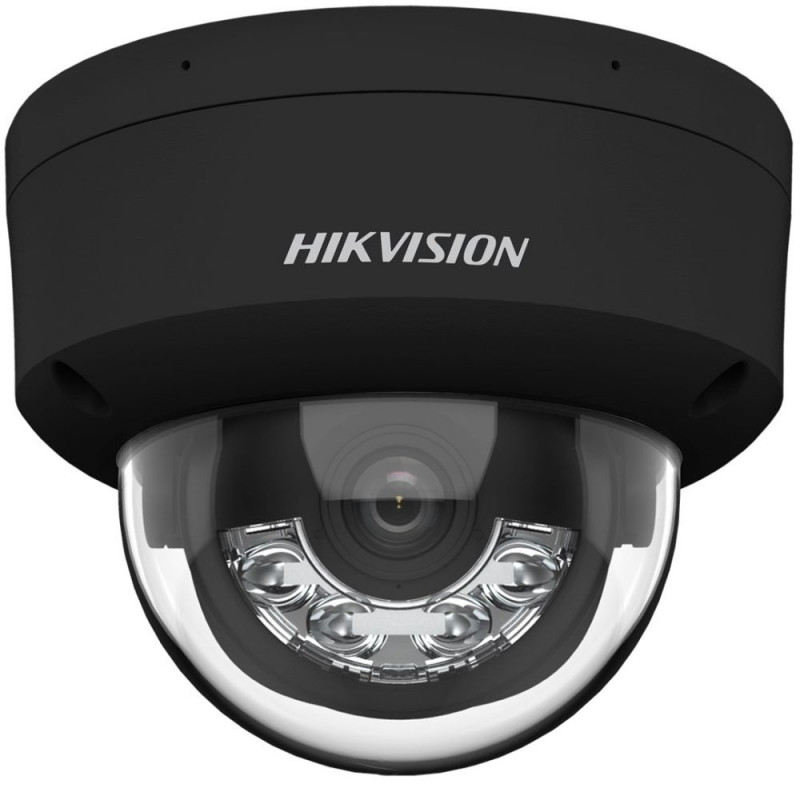

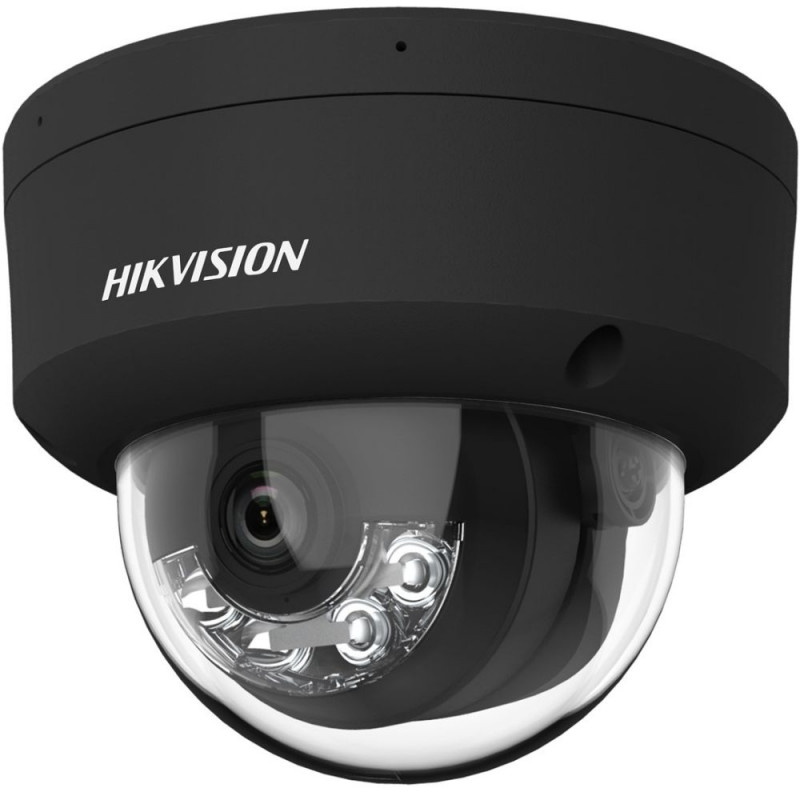

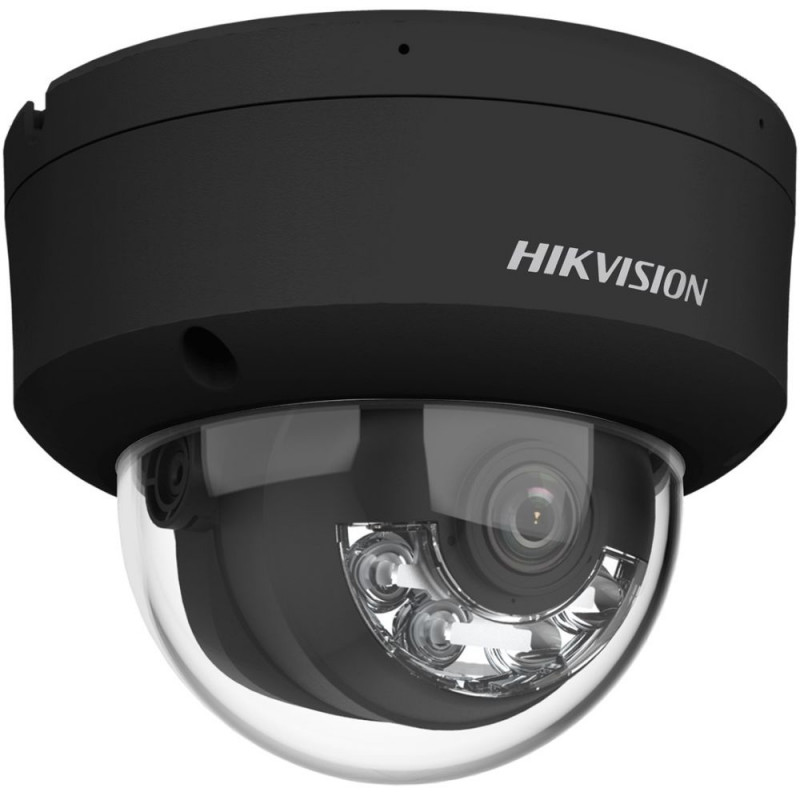

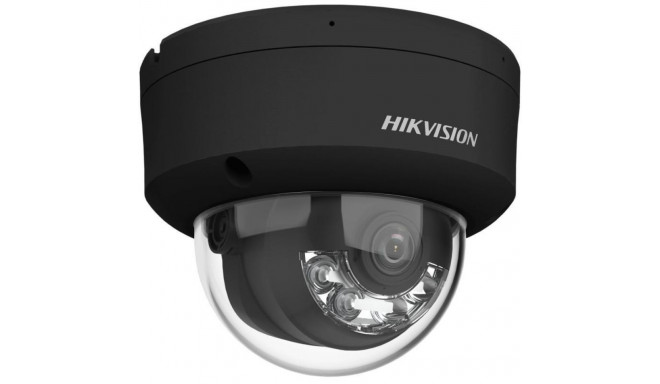

Hikvision DS-2CD2143G2-LIS2U(2.8MM)(BLACK) security camera Dome IP security camera Indoor & outdoor

Main info

Product has been archived


Warranty 24 (G)
Networking standards IEEE 802.3af
Heartbeat Yes
Optical sensor size 25.4 / 2.9 mm (1 / 2.9")
Number of users 32 user(s)
Maximum memory card size 512 GB
Ethernet LAN Yes
Ethernet interface type Fast Ethernet
Active tampering alarm Yes
Total megapixels 4 MP
Power consumption (max) 7.2 W
Alarm input channels 1
Mirror Yes
Bit rate 32 Kbps - 8 Mbps
IK code IK10
Connectivity technology Wired
Identify distance 6 m
Maximum aperture number 1.6
Recognize distance 12 m
Wi-Fi No
Maximum resolution 1920 x 1080 pixels
Diameter 12.2 cm
Video motion detection Yes
Ethernet LAN (RJ-45) ports 1
Back Light Compensation (BLC) Yes
Region of Interest (ROI) encoding Yes
Live view Yes
Web browser Yes
Bit rate control Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Weight 600 g
Observe distance 25 m
International Protection (IP) code IP67
Gain control type Auto
Alarm input/output Yes
Package depth 150 mm
Bit rate range 32 - 320 Kbit/s
Frame rate 30 fps
Fixed focal length 2.8 mm
Wide Dynamic Range (WDR) Yes
Package weight 830 g
Product colour Black
Number of lenses 1
Mounting type Ceiling/wall
Highlight Compensation (HLC) Yes
Built-in microphone Yes
Night vision Yes
Number of sensors 1
Camera shutter speed 1/3 - 1/100000 s
Operating temperature (T-T) -30 - 60 °C
Dynamic range 120 dB
HTTPS encryption Yes
Video streaming Yes
Minimum illumination 0 lx
Bluetooth No
Tilt angle range 0 - 75°
IP address filtering Yes
Day/night mode Yes
Reset button Yes
Package width 150 mm
Storage temperature (T-T) -30 - 60 °C
Power consumption (Power over Ethernet (PoE)) 8.5 W
Card reader integrated Yes
Package height 141 mm
Signal-to-Noise Ratio (SNR) 52 dB
Power source type DC, PoE
Alarm output channels 1
Placement supported Indoor & outdoor
Storage relative humidity (H-H) 0 - 95%
Housing material Aluminium
DC output current 0.6 A
Behavior analysis Line crossing detection
Audio codecs G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Languages support Multi
Night vision distance 30 m
Sensor type CMOS
LED type IR/White
Progressive scan Yes
DC output voltage 12
Pan range 0 - 355°
Number of languages 33
Type IP security camera
Operating relative humidity (H-H) 0 - 95%
Audio input channels 1.0 channels
Height 97.6 mm
Number of cameras 1
Infrared (IR) cut-off filter Yes
Noise reduction Yes
Detect distance 63 m
Noise reduction technology 3D noise reduction
Password protection Yes
Angle of rotation 355°
Form factor Dome
Security algorithms TLS
Infra-red wavelength 850 nm
Audio output channels 1.0 channels
Lens viewing angle, vertical 57°
Lens viewing angle, horizontal 104°
Digest authentication Yes
Sample rates 8 - 48 kHz
Password reset via email Yes
Lens viewing angle, diagonal 112°
Number of simultaneous live view channels 6 channels
Pixel counter Yes
User access level Administrator, Operator, User
Audit log Yes
Number of Privacy masking areas 8
Protection features Dust resistant
Certification CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 201
Video compression formats H.264+
Supported graphics resolutions 1280 x 720 (HD 720)
Compatible memory cards MicroSD (TransFlash)
Warnings Ensure that the product is properly installed and protected against falling.

Camera

Horizontal swivel
355°

Dimensions and weights

Package width
150 cm
Package height
140 cm
Package length
150 cm

Product codes

EAN
6942160459257
Manufacturer code
DS-2CD2143G2-LIS2U(2.8mm)(BLACK
