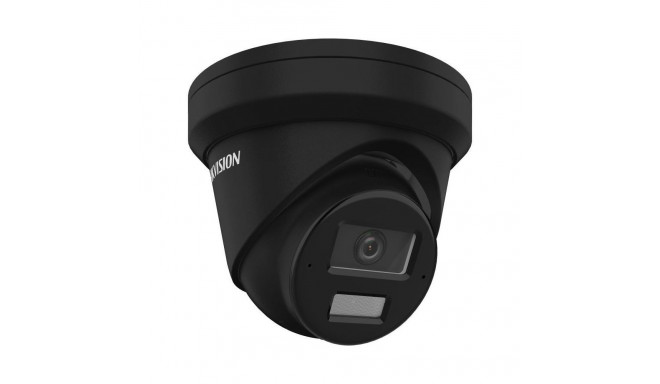

DS-2CD2383G2-LI2U(2.8mm)(BLACK) Camera

293,99 €

Monthly payment starting from 10,02 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online


Human and vehicle targets classification Yes
Digest authentication Yes
Pixel counter Yes
Lens viewing angle, vertical 59°
Sustainability compliance Yes
Bit rate range 8 - 320 Kbit/s
User access level Administrator, Operator, User
Number of simultaneous live view channels 6 channels
Minimum illumination 0 lx
Password reset via email Yes
Housing material Metal
Back Light Compensation (BLC) Yes
Wi-Fi No
Protection features Water resistant
Bit rate 32 Kbps - 16 Mbps
Height 96.3 mm
Frame rate 30 fps
Fixed focal length 2.8 mm
Sample rates 8 - 48 kHz
Ethernet LAN Yes
Angle of rotation 360°
Night vision distance 30 m
Video compression formats H.264
Maximum aperture number 1.6
LED type IR/White
Diameter 12.7 cm
Number of cameras 1
Optical sensor size 25.4 / 2.8 mm (1 / 2.8")
Bit rate control Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Supported video modes 1080p
Noise reduction technology 3D noise reduction
Ethernet interface type Fast Ethernet
Detect distance 84 m
Recognize distance 16 m
Wide Dynamic Range (WDR) Yes
Lens viewing angle, diagonal 127°
Total megapixels 6 MP
Progressive scan Yes
Region of Interest (ROI) encoding Yes
Voice codecs G.722.1
Camera shutter speed 1/3 - 1/100000 s
Client interoperability iVMS-4200, Hik-Connect, Hik-Central
Day/night mode Yes
Maximum memory card size 512 GB
HTTPS encryption Yes
Image quality adjustment Sharpness
IP address filtering Yes
Audio formats supported PCM
Sensor type CMOS
Built-in HDD No
Fixed focus Yes
Lens viewing angle, horizontal 108°
Observe distance 33 m
Highlight Compensation (HLC) Yes
Signal-to-Noise Ratio (SNR) 52 dB
Password protection Yes
Number of lenses 1
Video recording Yes
Heartbeat Yes
Noise reduction Yes
Infra-red wavelength 850 nm
DC output voltage 12
Intelligent Video Surveillance (IVS) system features Face detection
Pan range 0 - 360°
Number of microphones 2
Languages support Multi
Live view Yes
Dynamic range 120 dB
Number of sensors 1
Placement supported Outdoor
Active tampering alarm Yes
Number of users 32 user(s)
Video motion detection Yes
Privacy masking Yes
Mirror Yes
Behavior analysis Intrusion detection, Line crossing detection
Infrared (IR) cut-off filter Yes
DC output current 0.66 A
Number of languages 33
Identify distance 8 m
Video streaming Yes
Privacy protection Yes
Mounting type Ceiling/wall
Power consumption (Power over Ethernet (PoE)) 9.5 W
Night vision Yes
Automatic Network Replenishment (ANR) Yes
Warnings The product contains electronic components; do not dispose of with the normal household waste.
Audit log Yes
Number of Privacy masking areas 8
Flash log Yes
Compliance certificates CB
Network access storage (NAS) Yes
Networking standards IEEE 802.2x
Compatible memory cards MicroSD (TransFlash)
Package weight 755 g
Weight 515 g
Operating relative humidity (H-H) 0 - 95%
Web-based management Yes
Power consumption (max) 8 W
Type IP security camera
Storage relative humidity (H-H) 0 - 95%
Supported graphics resolutions 640 x 480 (VGA)
Quality of Service (QoS) support Yes
Package depth 150 mm
Product colour Black
Storage temperature (T-T) -30 - 60 °C
Card reader integrated Yes
International Protection (IP) code IP67
Built-in light Yes
Package height 141 mm
Maximum resolution 3840 x 2160 pixels
Reset button Yes
Package width 150 mm
Form factor Dome
Connectivity technology Wired
Tilt angle range 0 - 75°
Built-in microphone Yes
Bluetooth No
Power source type DC, PoE
Ethernet LAN (RJ-45) ports 1
Operating temperature (T-T) -30 - 60 °C
Warranty 24 (F)
