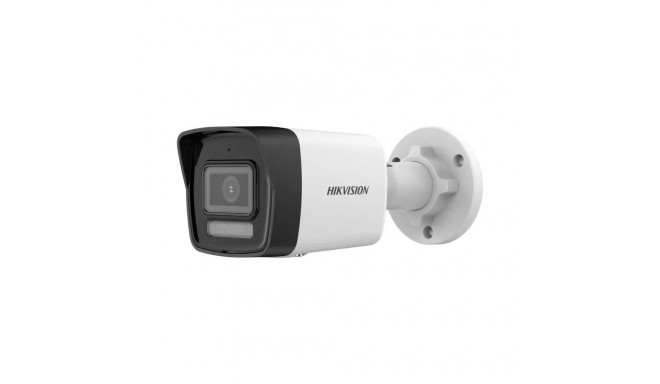

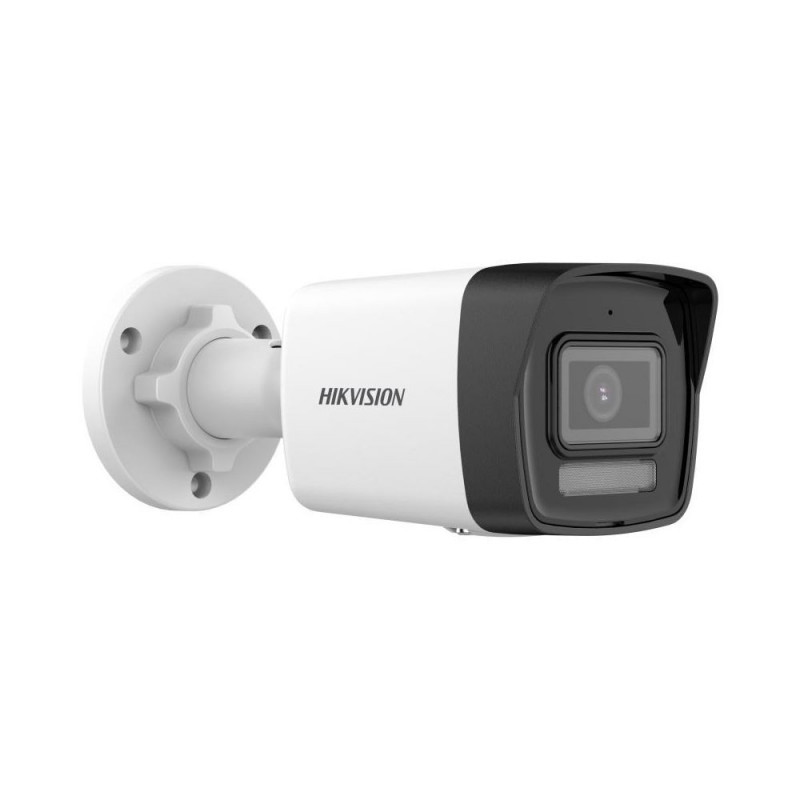

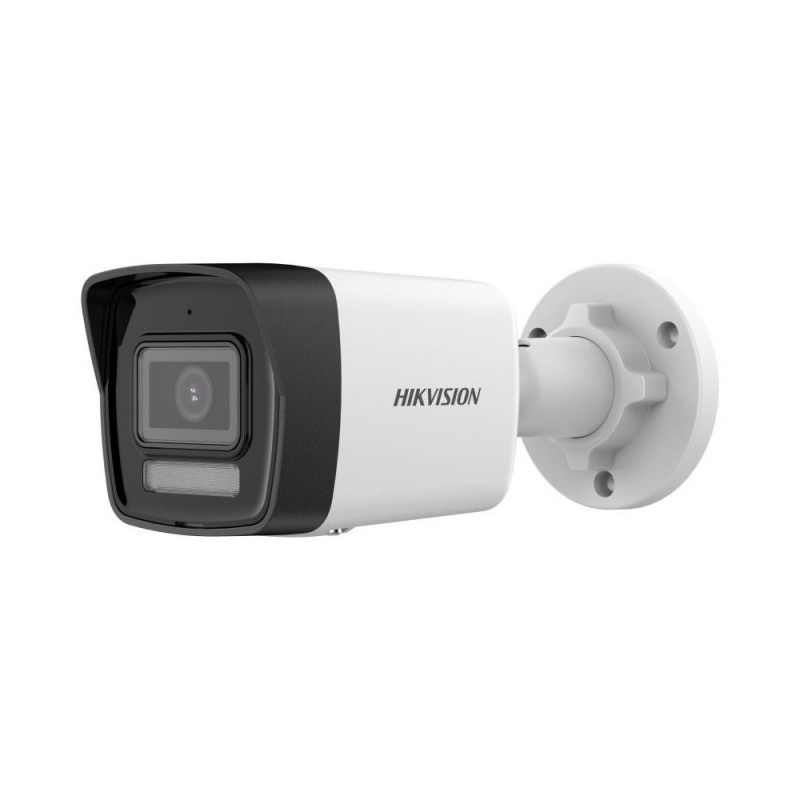

DS-2CD1063G2-LIU(2.8mm) IP Camera

Main info

Product has been archived


Operating relative humidity (H-H) 0 - 95%
Wi-Fi No
Ethernet LAN (RJ-45) ports 1
Back Light Compensation (BLC) Yes
Form factor Bullet
Protection features Waterproof
Minimum illumination 0 lx
Wide Dynamic Range (WDR) Yes
Package weight 481 g
Package depth 121 mm
Bluetooth No
Bit rate 32 Kbps - 16 Mbps
Length 170.8 mm
Number of cameras 1
Highlight Compensation (HLC) Yes
Storage relative humidity (H-H) 0 - 95%
Night vision distance 30 m
International Protection (IP) code IP67
Web-based management Yes
Connectivity technology Wired
Type IP security camera
Ethernet interface type Fast Ethernet
Ethernet LAN Yes
Angle of rotation 360°
Height 69.1 mm
Package height 118 mm
Power consumption (max) 5 W
Storage temperature (T-T) -30 - 60 °C
Built-in light Yes
Product colour White
Package width 216 mm
Maximum resolution 3200 x 1800 pixels
Operating temperature (T-T) -30 - 60 °C
Supported network protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
Built-in microphone Yes
Power source type DC, PoE
Weight 285 g
Tilt angle range 0 - 90°
Width 66 mm
Lens viewing angle, diagonal 127°
Lens viewing angle, horizontal 105°
Number of simultaneous live view channels 6 channels
Sample rates 8 - 16 kHz
Lens viewing angle, vertical 55°
User access level Administrator, Operator, User
Sustainability compliance Yes
Password reset via email Yes
Bit rate range 16 - 160 Kbit/s
Audit log Yes
Number of Privacy masking areas 4
Mounting type Ceiling/wall
Privacy protection Yes
DC output current 0.41 A
Fixed focal length 2.8 mm
Progressive scan Yes
Mirror Yes
Heartbeat Yes
DC output voltage 12
Region of Interest (ROI) encoding Yes
Recognize distance 15 m
Pan range 0 - 360°
Fixed focus Yes
Digital watermark Yes
Dynamic range 120 dB
Identify distance 7 m
Night vision Yes
Placement supported Indoor & outdoor
Sensor type CMOS
Infra-red wavelength 850 nm
Total megapixels 6 MP
Camera shutter speed 1 - 1/100000 s
Client interoperability iVMS-4200, Hik-Connect
Bit rate control Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Live view Yes
Video streaming Yes
Infrared (IR) cut-off filter Yes
Number of languages 2
Detect distance 76 m
Maximum aperture number 1.6
Signal-to-Noise Ratio (SNR) 52 dB
Built-in HDD No
Optical sensor size 25.4 / 2.4 mm (1 / 2.4")
Number of sensors 1
Observe distance 30 m
Power consumption (Power over Ethernet (PoE)) 6.5 W
Video motion detection Yes
Privacy masking Yes
Number of users 32 user(s)
Day/night mode Yes
Password protection Yes
Number of lenses 1
Digest authentication Yes
Warranty 24 (F)
Supported graphics resolutions 640 x 360
Housing material Plastic
Image quality adjustment Saturation
Compliance certificates CB
Languages support English
Audio formats supported PCM
Video compression formats H.264+
Warnings The product contains electronic components; do not dispose of with the normal household waste.

Camera

Horizontal swivel
360°

Dimensions and weights

Package width
215 cm
Package height
120 cm
Package length
121 cm

Product codes

EAN
6942160472867
Manufacturer code
311327363
