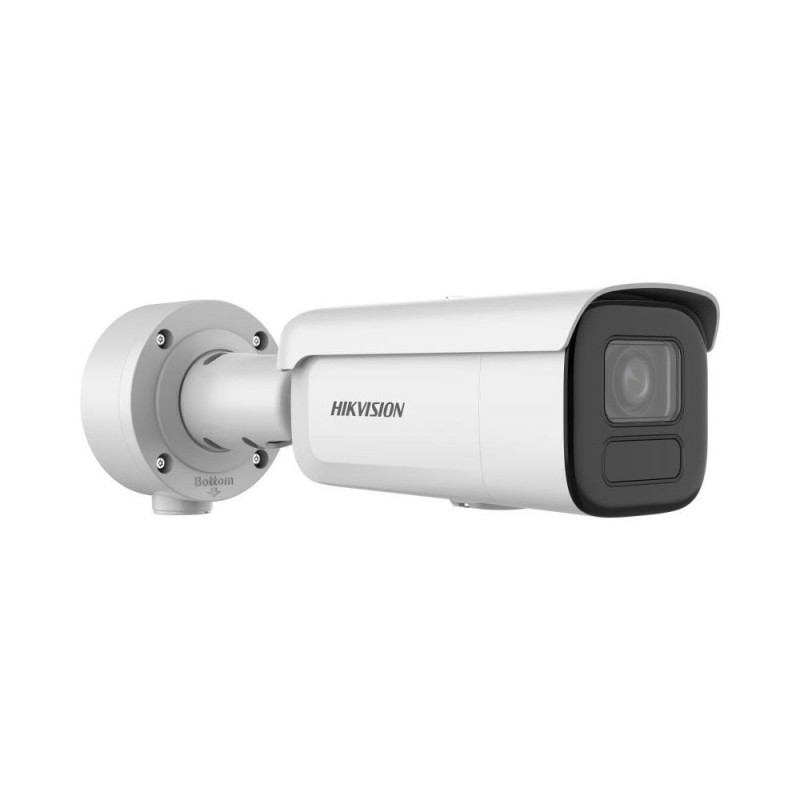

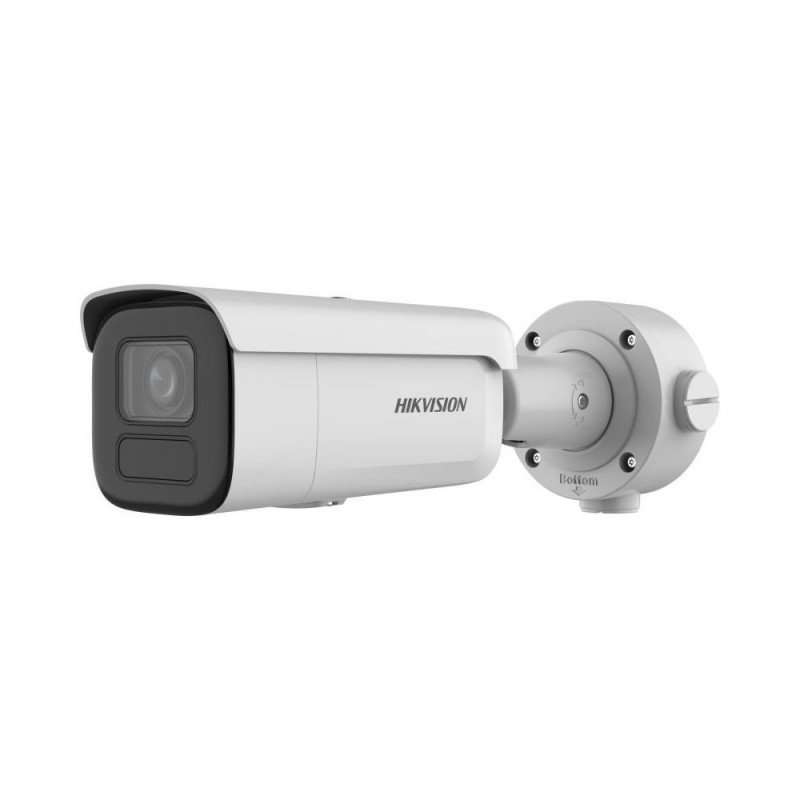

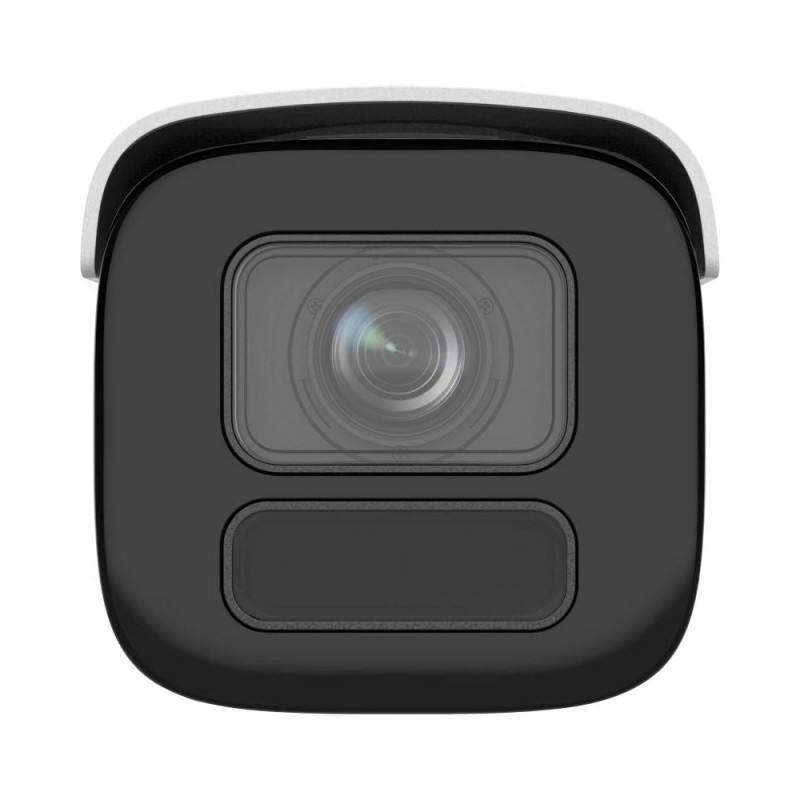

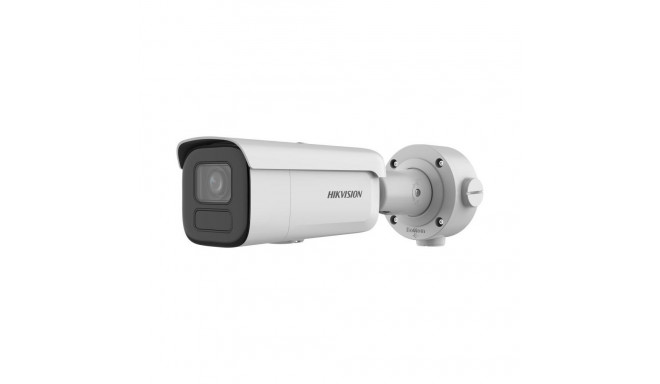

Hikvision Pro Series with AcuSense DS-2CD2686G2HT-IZS(2.8-12mm)(eF) Bullet IP security camera Outdoo

Main info

Product has been archived


Warranty 24 (G)
I/O ports 1x line in, 1x line out
Pan range 0 - 355°
DC output voltage 12
Form factor Bullet
Progressive scan Yes
Length 298 mm
Weight 1.48 kg
Built-in HDD No
Languages support Multi
Connectivity technology Wired
IK code IK10
Wi-Fi No
Detect distance (wide) 87 m
Width 97.9 mm
Type IP security camera
Reset button Yes
Day/night mode Yes
DC output current 1.21 A
Identify distance (tele) 22 m
Operating temperature (T-T) -30 - 60 °C
Minimum illumination 0 lx
Ethernet LAN (RJ-45) ports 1
Back Light Compensation (BLC) Yes
Storage relative humidity (H-H) 0 - 95%
Video streaming Yes
Operating relative humidity (H-H) 0 - 95%
Sample rates 8 - 48 kHz
Video motion detection Yes
Privacy masking Yes
International Protection (IP) code IP67
Package weight 2.32 kg
Package depth 190 mm
Highlight Compensation (HLC) Yes
Alert notification type E-mail
Alarm input channels 1
Observe distance (tele) 86 m
Sensor type CMOS
Mounting type Ceiling/wall
Alarm input/output Yes
LED type IR
Signal-to-Noise Ratio (SNR) 52 dB
Recognize distance (tele) 43 m
Number of lenses 1
Wide Dynamic Range (WDR) Yes
Power consumption (Power over Ethernet (PoE)) 18 W
Optical sensor size 25.4 / 1.8 mm (1 / 1.8")
Region of Interest (ROI) encoding Yes
Live view Yes
Digital watermark Yes
Storage temperature (T-T) -30 - 60 °C
Lens viewing angle, diagonal 137.4 - 47.3°
IP address filtering Yes
Client interoperability iVMS-4200, Hik-Connect, Hik-Central
HTTPS encryption Yes
Focal length range 2.8 - 12 mm
Package height 180 mm
Maximum memory card size 512 GB
Number of cameras 1
Web-based management Yes
Card reader integrated Yes
Infrared (IR) cut-off filter Yes
Video recording Yes
Heartbeat Yes
Height 95.7 mm
Privacy protection Yes
Total megapixels 8 MP
Bluetooth No
Recognize distance (wide) 17 m
Bit rate 32 Kbps - 16 Mbps
Password reset via email Yes
Camera shutter speed 1/3 - 1/100000 s
Bit rate range 8 - 320 Kbit/s
Automatic Network Replenishment (ANR) Yes
Ethernet interface type Fast Ethernet
Quality of Service (QoS) support Yes
Networking standards IEEE 802.3af
Number of languages 33
Active tampering alarm Yes
Behavior analysis Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection
Housing material Metal
Dynamic range 120 dB
Noise reduction Yes
Power consumption (max) 14.5 W
Identify distance (wide) 9 m
Observe distance (wide) 35 m
Number of simultaneous live view channels 6 channels
Package width 385 mm
Maximum aperture number 1.2
Number of users 32 user(s)
Mirror Yes
Product colour White
Night vision distance 60 m
Bit rate control Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Human and vehicle targets classification Yes
Digest authentication Yes
Frame rate 30 fps
Lens viewing angle, vertical 58.1 - 23.1°
Ethernet LAN Yes
Angle of rotation 360°
Maximum resolution 3840 x 2160 pixels
Number of sensors 1
Lens viewing angle, horizontal 112.3 - 41.2°
Audit log Yes
Placement supported Outdoor
Noise reduction technology 3D noise reduction
Pixel counter Yes
Power source type DC, PoE
Alarm output channels 1
Audio output channels 1.0 channels
Password protection Yes
Tilt angle range 0 - 90°
Network access storage (NAS) Yes
Night vision Yes
Terminal block port Yes
Detect distance (tele) 216 m
Number of Privacy masking areas 4
User access level Administrator, Operator, User
Infra-red wavelength 850 nm
Audio input channels 1.0 channels
Warnings Ensure that the product is properly installed and protected against falling.
Compatible memory cards MicroSD (TransFlash)
Audio formats supported PCM
Protection features Dust resistant
Intelligent Video Surveillance (IVS) system features Scene change
Supported graphics resolutions 1920 x 1080 (HD 1080)
Image quality adjustment Contrast
Security algorithms EAP-TLS
Video compression formats M-JPEG
Compliance certificates CE

Camera

Horizontal swivel
360°

Dimensions and weights

Package width
135 cm
Package height
440 cm
Package length
390 cm

Product codes

EAN
6942160432694
Manufacturer code
51171
