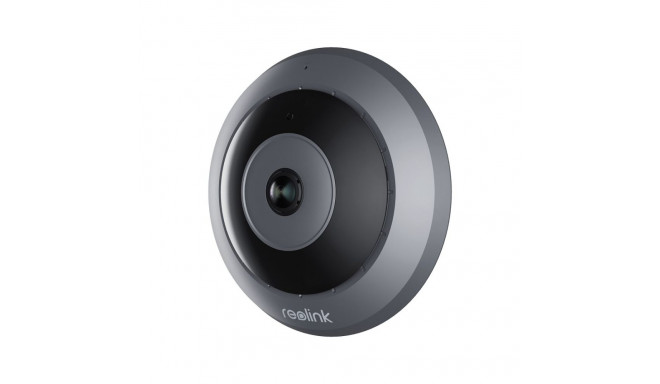

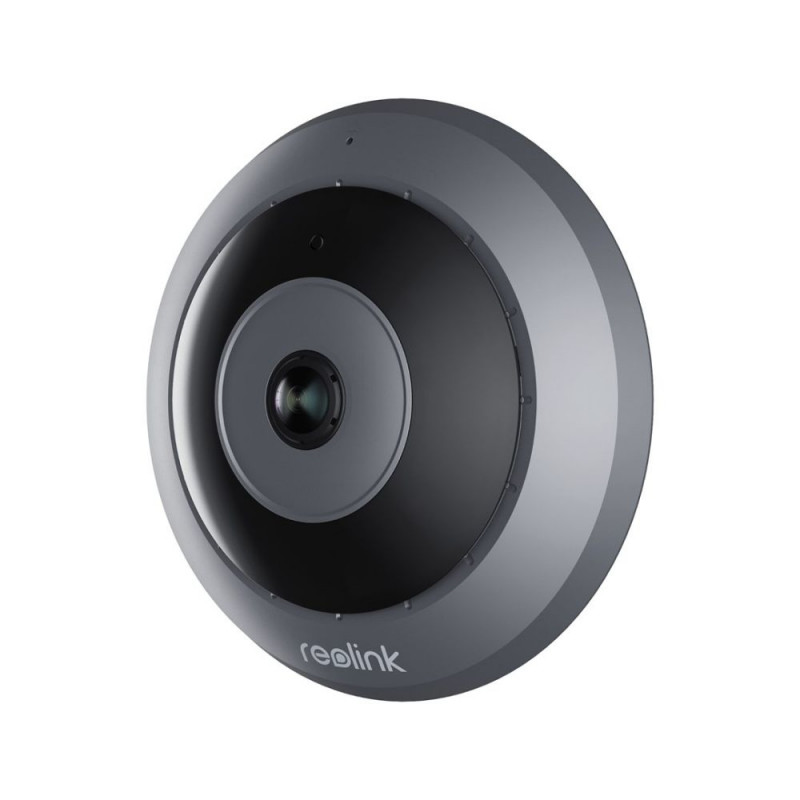

Wi-Fi Camera - Reolink W520, Black

Main info

The camera has a maximum resolution of 6.5 MP (2560 x 2560 pixels) and supports H.265 video compression at up to 8192 Kbps. It also features a 180° wide-angle lens with night vision capabilities via three IR LEDs, allowing for viewing distances of up to 8 meters.

Product has been archived

Wi-Fi Camera - Reolink W520, Black

The Reolink W520 is an IP camera with advanced features for security and surveillance purposes. It has a built-in microphone and speaker, allowing for 2-way audio communication. The camera supports H.265 video compression, with a maximum resolution of 6.5 MP (2560 x 2560 pixels) and a frame rate of 25 fps.

Key Features
  • Sensor type: CMOS, Optical sensor size: 25.4 / 2.5 mm (1 / 2.5")
  • Video compression format: H.265, Frame rate: 25 fps, Bit rate: 64 Kbps - 8192 Kbps
  • Night vision enabled: Yes, Night vision distance: 8 m, LED type: IR, Number of illumination LEDs: 3
  • Maximum memory card size: 256 GB, Card reader integrated: Yes (MicroSD/TransFlash compatible)

Design
Product colour Black, Grey

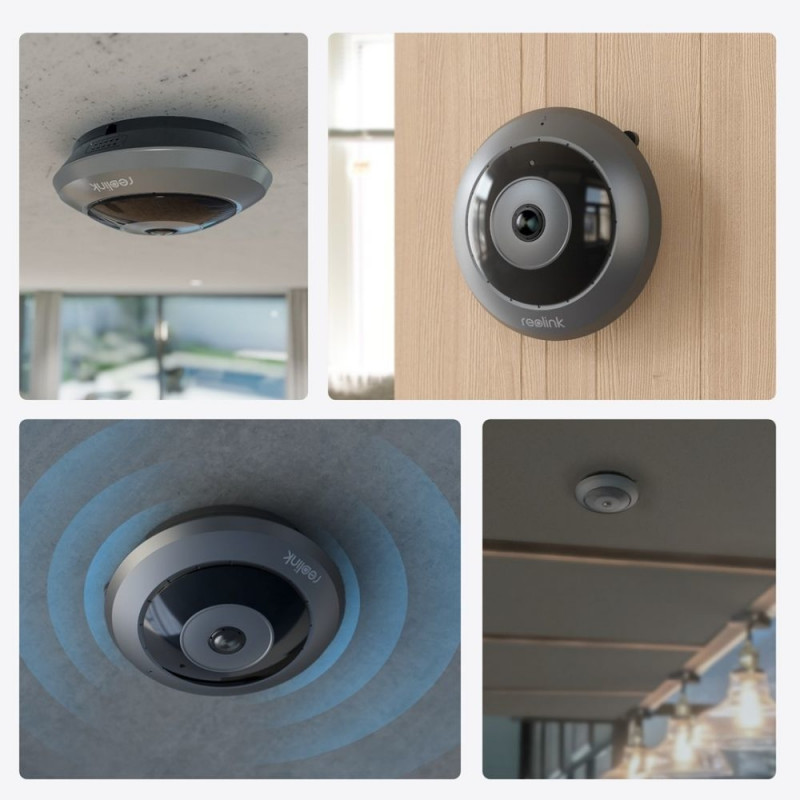

Mounting type Ceiling/wall
Power
DC output current 1 A
Power consumption (max) 12 W
DC output voltage 12
Power source type DC
Security
Security algorithms WPA, WPA2
Human and vehicle targets classification Yes
Video motion detection Yes
Operational conditions
Operating temperature (T-T) -10 - 55 °C
Operating relative humidity (H-H) 10 - 90%
Management features
Reset button Yes
Weight & dimensions
Weight 293 g
Height 49.2 mm
Diameter 12.6 cm
Network
Bluetooth No
Wi-Fi Yes
Wi-Fi standards 802.11g, 802.11b, 802.11a, Wi-Fi 4 (802.11n)
Supported network protocols HTTPS, SSL, TCP/IP, UDP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
Networking standards IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11b
Ethernet LAN Yes
Ethernet interface type Fast Ethernet
User access level Administrator, User
Number of users 20 user(s)
Live view Yes
System requirements
Mobile operating systems supported iOS, Android
Mac operating systems supported Yes
Windows operating systems supported Yes
Performance
Connectivity technology Wired & Wireless
Type IP security camera
Infrared (IR) cut-off filter Yes
Placement supported Indoor
Virtual assistant Google Assistant

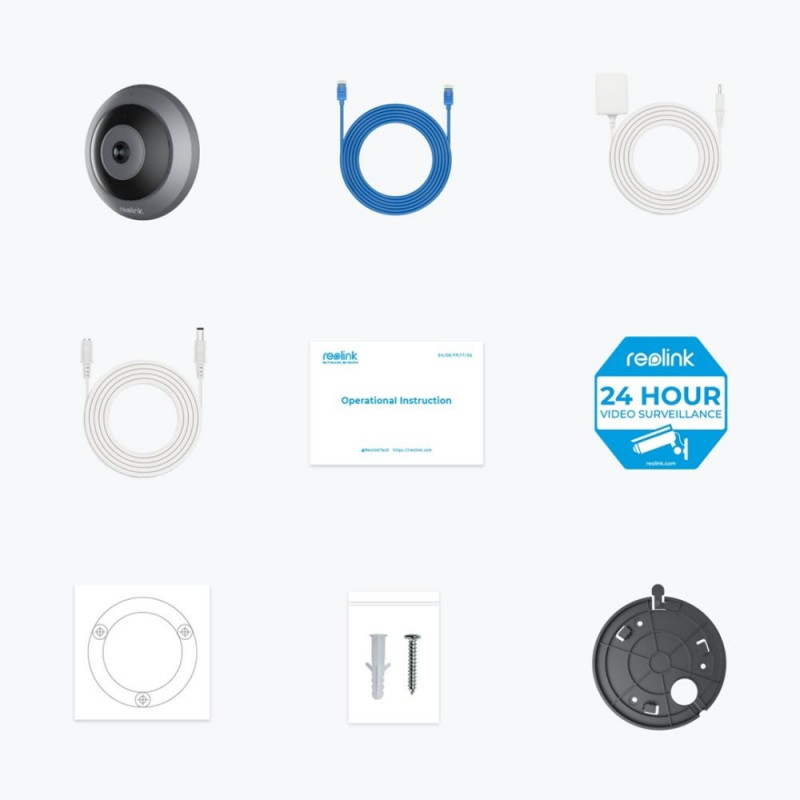

Packaging content
Mounting kit Yes
Manual Yes
Number of cameras 1
Screws included Yes
Audio
Built-in microphone Yes
Audio system 2-way
Built-in speaker(s) Yes
Storage
Built-in HDD No
Maximum memory card size 256 GB
Card reader integrated Yes
Compatible memory cards MicroSD (TransFlash)
Ports & interfaces
DC-in jack Yes
Ethernet LAN (RJ-45) ports 1
Camera
Lens viewing angle, vertical 180°
Lens viewing angle, horizontal 180°
Lens viewing angle, diagonal 180°
Image sensor
Sensor type CMOS
Optical sensor size 25.4 / 2.5 mm (1 / 2.5")
Number of sensors 1
Video
Video compression formats H.265
Frame rate 25 fps
Bit rate 64 Kbps - 8192 Kbps
Maximum resolution 2560 x 2560 pixels
Total megapixels 6.5 MP
Video formats supported H.265
Supported graphics resolutions 2560 x 2560
Video streaming Yes
Video recording Yes
Night vision
LED type IR
Number of illumination LEDs 3
Night vision distance 8 m
Infra-red wavelength 850 nm
Night vision Yes
Lens system
Maximum aperture number 2
Fixed focal length 1.98 mm
Number of lenses 1

Width 70 mm
Height 49.2 mm
Length 70 mm
Product Weight 293 g
Country CN

Dimensions and weights

Gross weight
0.86 kg
Package width
15 cm
Package height
16 cm
Package length
15 cm

Product codes

EAN
6975253983827
