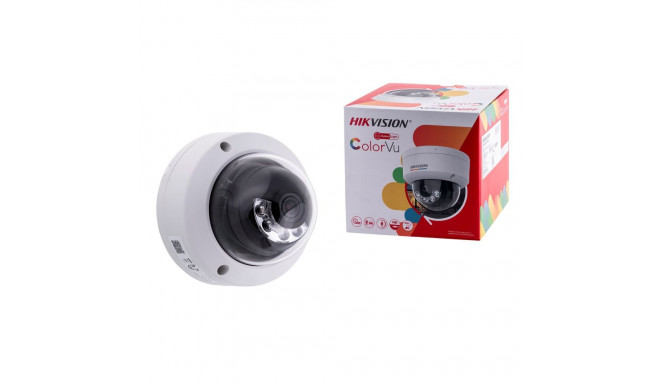

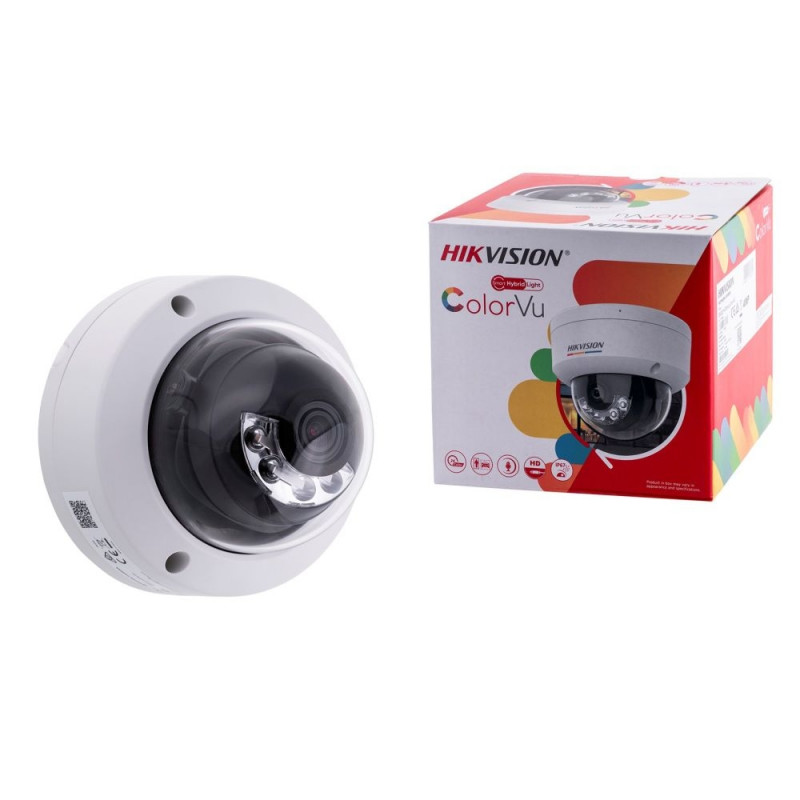

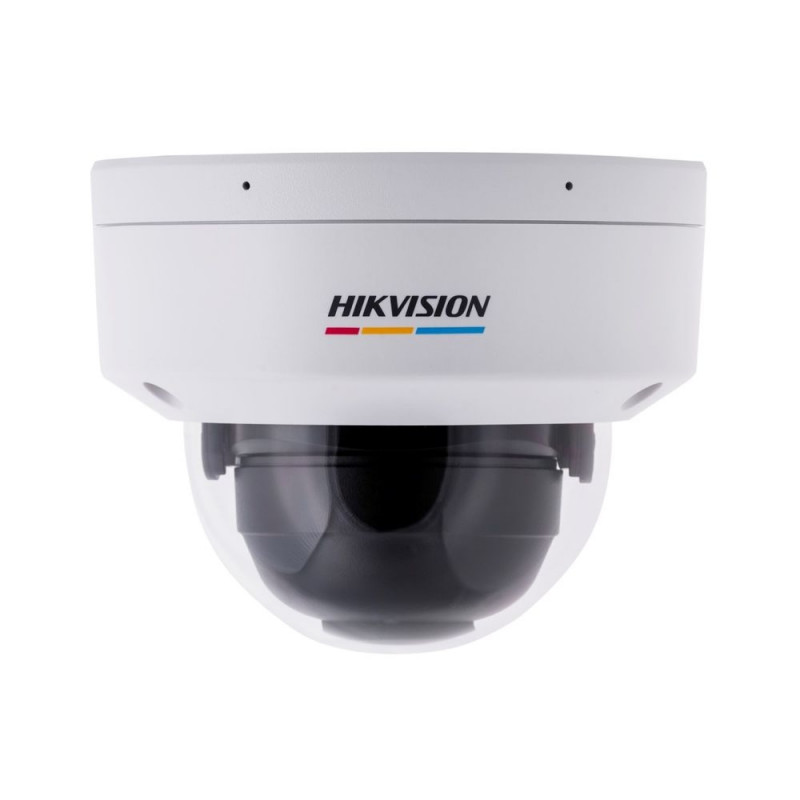

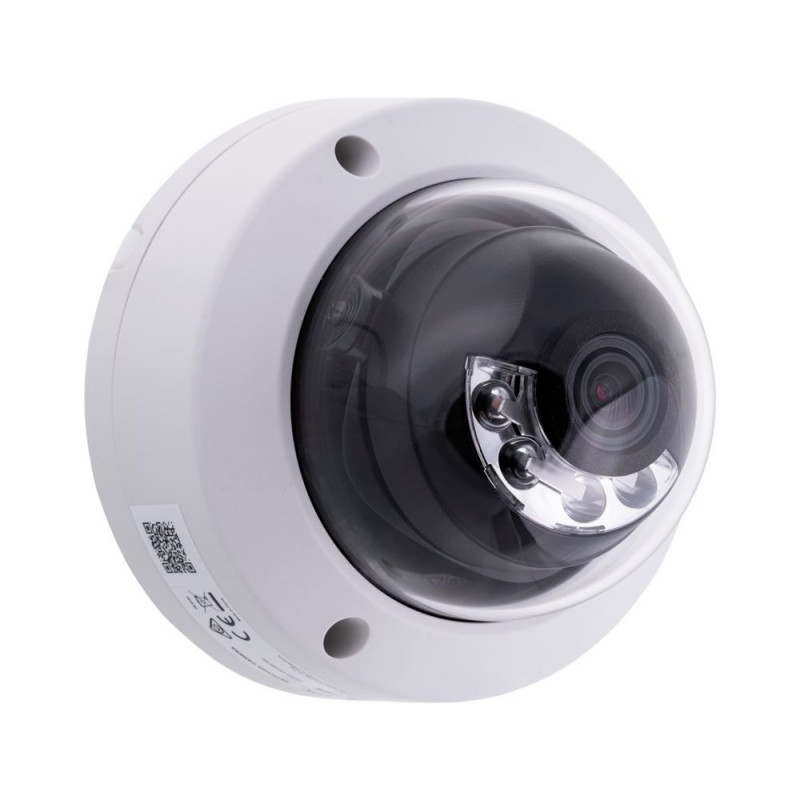

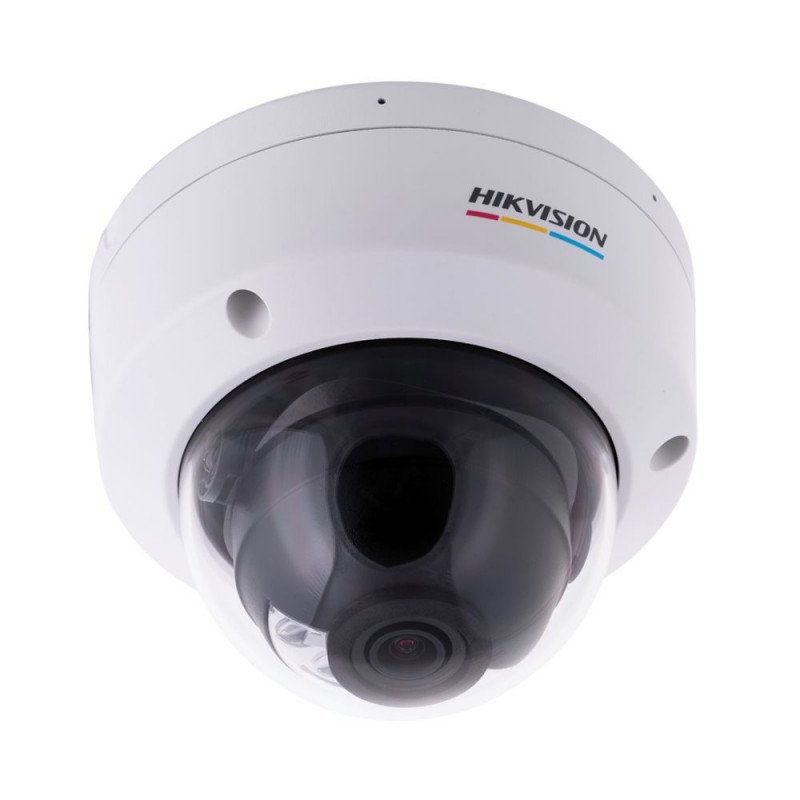

IP CAMERA Hikvision DS-2CD1147G2H-LIU(2.8mm)

Main info

Product has been archived


Warranty 36 (F)
Operating relative humidity (H-H) 0 - 95%
Tilt angle range 0 - 75°
Camera shutter speed 1/3 - 1/100000 s
Package weight 800 g
Ethernet LAN Yes
Built-in HDD No
Type IP security camera
Diameter 12.1 cm
Package width 150 mm
Wi-Fi No
Operating temperature (T-T) -30 - 60 °C
Number of cameras 1
Minimum illumination 0.0005 lx
Product colour White
Storage temperature (T-T) -30 - 60 °C
Wide Dynamic Range (WDR) Yes
Power consumption (max) 6 W
International Protection (IP) code IP67
Highlight Compensation (HLC) Yes
Weight 550 g
Pan range 0 - 355°
Connectivity technology Wired
Maximum resolution 2560 x 1440 pixels
Night vision distance 30 m
Storage relative humidity (H-H) 0 - 95%
Ethernet LAN (RJ-45) ports 1
Back Light Compensation (BLC) Yes
Optical sensor size 25.4 / 3 mm (1 / 3")
Total megapixels 4 MP
Package height 141 mm
Frame rate 20 fps
Package depth 150 mm
Form factor Dome
Bluetooth No
IK code IK08

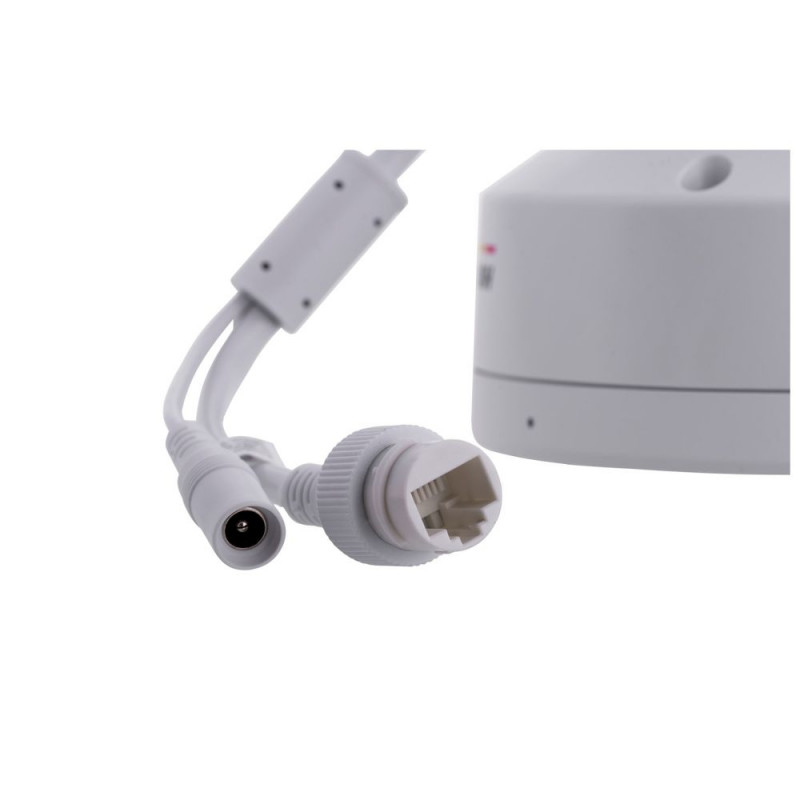

Power source type DC, PoE
Sensor type CMOS
Number of sensors 1
Web browser Yes
Number of lenses 1
Power consumption (Power over Ethernet (PoE)) 7.5 W
Dedicated application Hik-Connect (Android, iOS)
Maximum aperture number 1
Video streaming Yes
Lens viewing angle, horizontal 96°
DC output current 0.5 A
Number of simultaneous live view channels 6 channels
User access level Administrator, Operator, User
Number of users 32 user(s)
Password protection Yes
Lens viewing angle, vertical 52°
Noise reduction technology 3D noise reduction
Viewing angle, diagonal 114°
Region of Interest (ROI) encoding Yes
Live view Yes
Heartbeat Yes
DC output voltage 12
Number of languages 2
Day/night mode Yes
Video motion detection Yes
Privacy masking Yes
Mounting type Ceiling
Active tampering alarm Yes
Fixed focal length 2.8 mm
Mirror Yes
Digital watermark Yes
Night vision Yes
Height 97.6 mm
Video compression formats H.264
Languages support Ukrainian
Image quality adjustment Saturation
Housing material Plastic

Dimensions and weights

Package width
150 cm
Package height
145 cm
Package length
155 cm

Product codes

EAN
6942160472812
Manufacturer code
DS-2CD1147G2H-L
