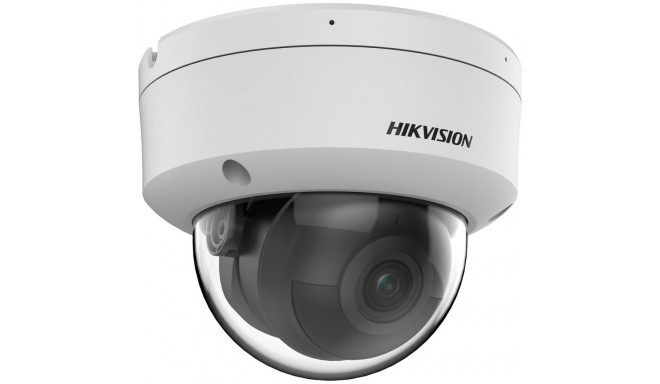

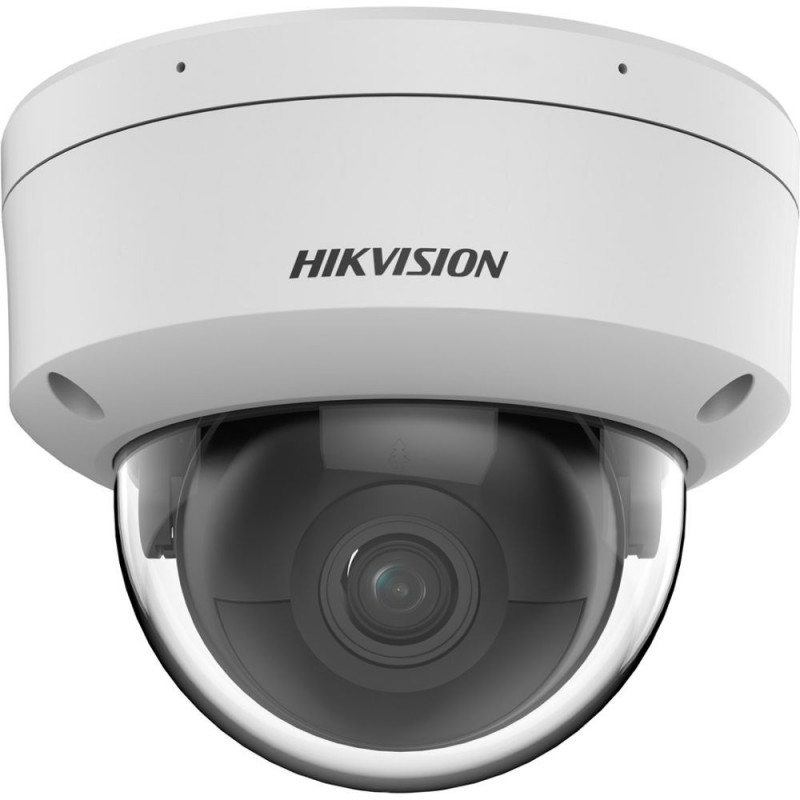

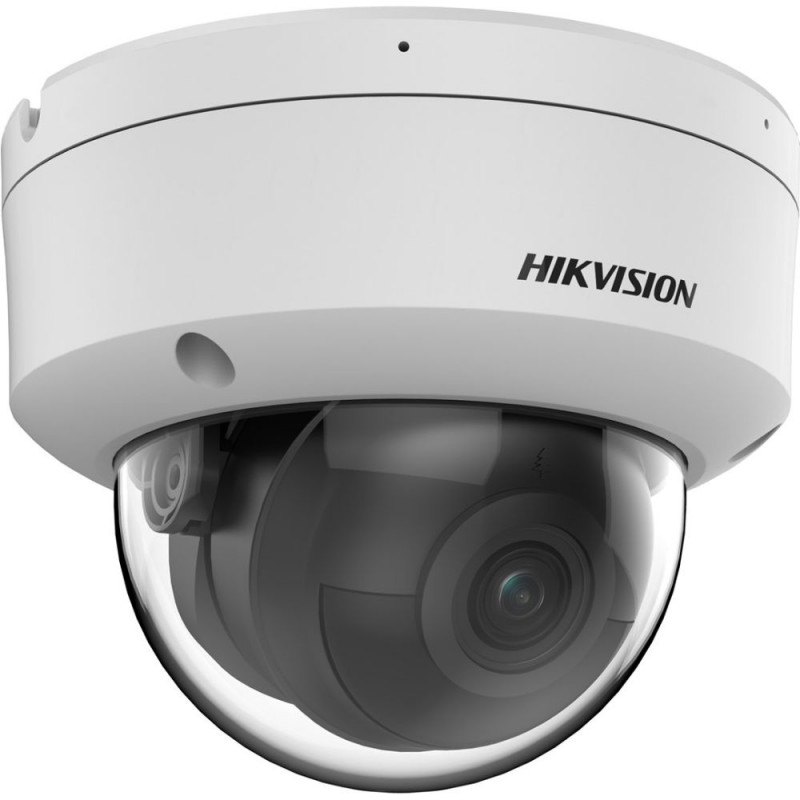

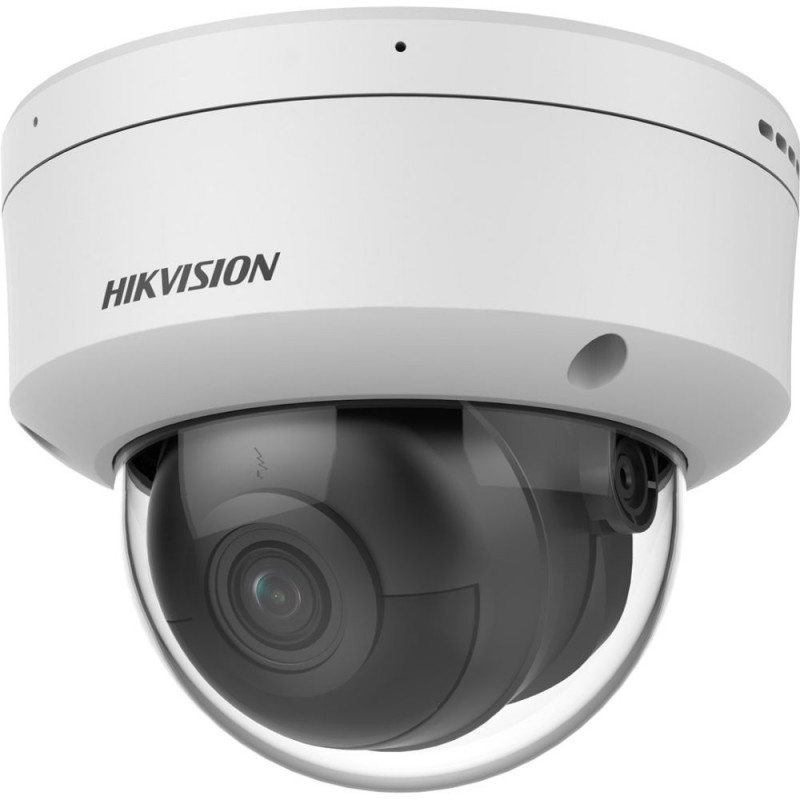

Hikvision Ultra Series DS-2CD3146G2-IS(2.8mm)(H) Dome IP security camera Outdoor 2688 x 1520 pixels

Main info

Product has been archived


Warranty 24 (G)
Type IP security camera
Digest authentication Yes
Number of simultaneous live view channels 6 channels
Pixel counter Yes
Lens viewing angle, diagonal 122°
Lens viewing angle, horizontal 101°
Audit log Yes
Sample rates 8 - 48 kHz
Flash log Yes
Lens viewing angle, vertical 54°
User access level Administrator, Operator, User
Bit rate range 8 - 320 Kbit/s
Automatic Network Replenishment (ANR) Yes
Open platform version HEOP 2.0
Human and vehicle targets classification Yes
Password reset via email Yes
Number of Privacy masking areas 4
Network access storage (NAS) Yes
Region of Interest (ROI) encoding Yes
Noise reduction technology 3D noise reduction
Sensor type CMOS
Progressive scan Yes
Bit rate control Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
ROM capacity 60 MB
Password protection Yes
Camera pan control Yes
Dynamic range 120 dB
Infrared (IR) cut-off filter Yes
Digital watermark Yes
Camera tilt control Yes
Video recording Yes
Heartbeat Yes
Infra-red wavelength 850 nm
Web browser Yes
Number of sensors 1
Fixed focal length 2.8 mm
Observe distance 25 m
Built-in HDD No
Mounting type Ceiling/wall
Power consumption (Power over Ethernet (PoE)) 9 W
Day/night mode Yes
Noise reduction Yes
Placement supported Outdoor
Detect distance 63 m
Recognize distance 12 m
DC output current 0.62 A
RAM capacity 400 MB
Maximum aperture number 1.4
Video motion detection Yes
Privacy masking Yes
Identify distance 6 m
eMMC capacity 2 GB
Gain control type Auto
Weatherproof Yes
Behavior analysis Intrusion detection, Line crossing detection
Audio codecs G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Languages support Multi
HTTPS encryption Yes
Privacy protection Yes
Number of users 32 user(s)
DC output voltage 12
IP address filtering Yes
Video streaming Yes
Number of languages 33
Live view Yes
Maximum memory card size 512 GB
Mirror Yes
Night vision Yes
Terminal block port Yes
Active tampering alarm Yes
Number of lenses 1
Audio input channels 1.0 channels
Power source type DC, PoE
Alarm output channels 1
Alarm input channels 1
Night vision distance 40 m
Wide Dynamic Range (WDR) Yes
Reset button Yes
Ethernet LAN Yes
Camera shutter speed 1/3 - 1/100000 s
PTZ control Yes
Tilt angle range 0 - 75°
Pan range 0 - 355°
International Protection (IP) code IP67
Optical sensor size 25.4 / 3 mm (1 / 3")
Length 121.5 mm
Number of cameras 1
Frame rate 30 fps
Fog proof Yes
Ethernet interface type Fast Ethernet
Storage temperature (T-T) -30 - 60 °C
Product colour White
Weight 500 g
Power consumption (max) 7.5 W
Angle of rotation 355°
Audio output channels 1.0 channels
Storage relative humidity (H-H) 0 - 95%
Connectivity technology Wired
IK code IK10
Ethernet LAN (RJ-45) ports 1
Back Light Compensation (BLC) Yes
Maximum resolution 2688 x 1520 pixels
Bit rate 32 Kbps - 8 Mbps
Bluetooth No
Operating temperature (T-T) -30 - 60 °C
Form factor Dome
Package width 150 mm
Minimum illumination 0 lx
Quality of Service (QoS) support Yes
Package depth 150 mm
Web-based management Yes
LED type IR
Package weight 700 g
Height 97.6 mm
Package height 141 mm
Signal-to-Noise Ratio (SNR) 52 dB
Operating relative humidity (H-H) 0 - 95%
Highlight Compensation (HLC) Yes
Wi-Fi No
Total megapixels 4 MP
Card reader integrated Yes
Supported programming languages C
Compliance certificates CB
Image quality adjustment Brightness
Warnings Ensure that the product is properly installed and protected against falling.
Video compression formats H.264
Intelligent Video Surveillance (IVS) system features Line crossing detection
AI software framework TensorFlow
Supported graphics resolutions 640 x 480 (VGA)
Compatible memory cards MicroSDXC
Video formats supported H.265
Protection features Vandal proof
Networking standards IEEE 802.1x
Security algorithms TLS

Camera

Horizontal swivel
355°

Dimensions and weights

Package width
330 cm
Package height
245 cm
Package length
145 cm

Product codes

EAN
6931847195083
Manufacturer code
311322504
