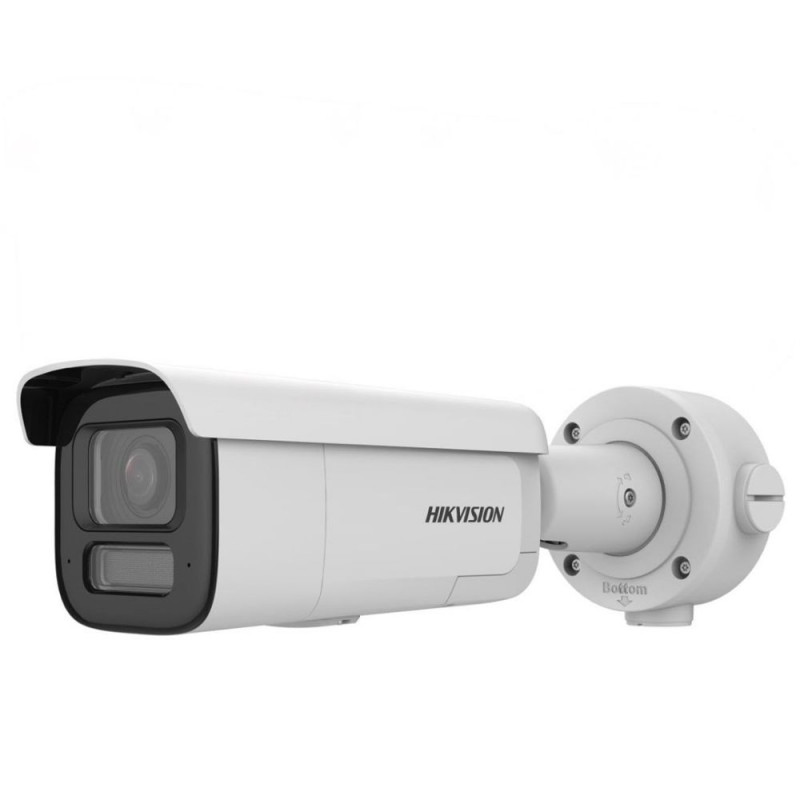

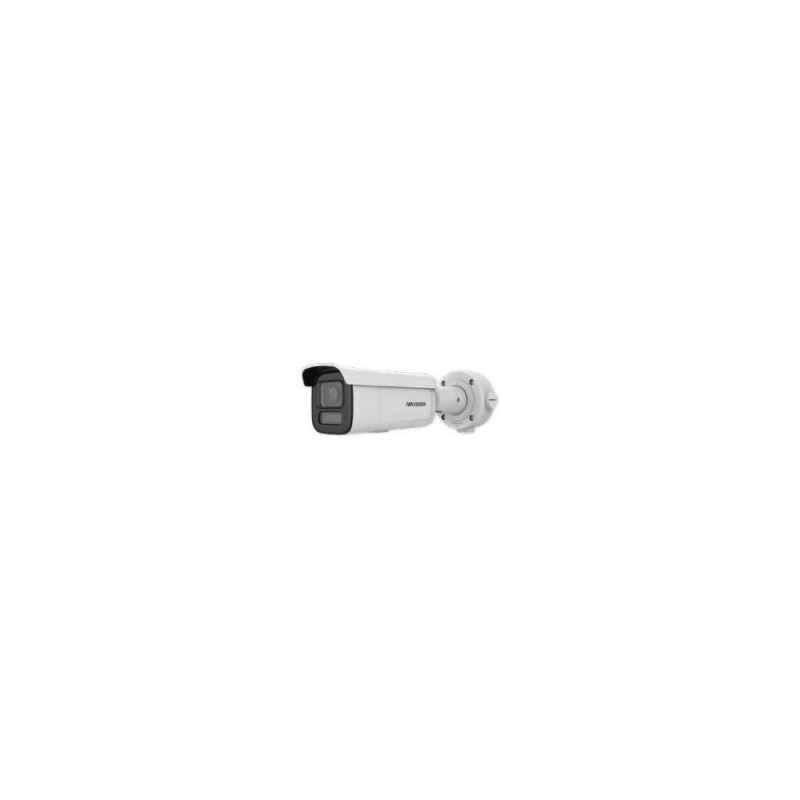

HIKVISION IP Camera DS-2CD2686G2HT-IZS2U/SL 2.8-12mm

Addional discount of 11%
will be applied in shopping cart
(min. 10€ purchase)
519 €

Monthly payment starting from 17,69 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online


Reset button Yes
Audio system 2-way
Tilt angle range 0 - 90°
Bluetooth No
Product colour White
Connectivity technology Wired
Built-in light Yes
Weight 1.52 kg
Package weight 2.52 kg
Built-in microphone Yes
Ethernet LAN (RJ-45) ports 1
Operating temperature (T-T) -30 - 60 °C
Type IP security camera
Maximum resolution 3840 x 2160 pixels
Power source type DC, PoE
Sample rates 8 - 48 kHz
Lens viewing angle, horizontal 41.2 - 112.3°
Number of simultaneous live view channels 6 channels
User access level Administrator, Operator, User
Bit rate range 8 - 320 Kbit/s
Pixel counter Yes
Lens viewing angle, diagonal 47.3 - 137.4°
Lens viewing angle, vertical 23.1 - 58.1°
Password reset via email Yes
Video motion detection Yes
Audio input 1
Mirror Yes
Heartbeat Yes
Number of languages 33
Password protection Yes
Infrared (IR) cut-off filter Yes
Digital watermark Yes
Number of lenses 1
Night vision Yes
Active tampering alarm Yes
Number of microphones 2
Power consumption (Power over Ethernet (PoE)) 18 W
Built-in speaker(s) Yes
Dynamic range 120 dB
Infra-red wavelength 850 nm
Languages support Multi
Audio output 1
Built-in HDD No
IP address filtering Yes
Progressive scan Yes
Day/night mode Yes
DC output current 1.21 A
Sensor type CMOS
Noise reduction technology 3D noise reduction
Optical sensor size 25.4 / 1.8 mm (1 / 1.8")
Region of Interest (ROI) encoding Yes
DC output voltage 12
Alarm output channels 1
Placement supported Indoor & outdoor
Maximum aperture number 1.2
Maximum memory card size 512 GB
Focal length range 2.8 - 12 mm
Mounting type Ceiling/Wall/Pole
Observe distance 35.4 m
HTTPS encryption Yes
Number of users 32 user(s)
Noise reduction Yes
Recognize distance 17.8 m
Signal-to-Noise Ratio (SNR) 52 dB
Identify distance 8.9 m
Bit rate control Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Detect distance 89.2 m
Depth 298 mm
Ethernet LAN Yes
Ethernet interface type Fast Ethernet
Storage temperature (T-T) -30 - 60 °C
Height 95.7 mm
Card reader integrated Yes
Package height 180 mm
Form factor Bullet
Package width 385 mm
Bit rate 32 Kbps - 16 Mbps
IK code IK10
Power consumption (max) 14.5 W
Width 97.9 mm
Wide Dynamic Range (WDR) Yes
Number of cameras 1
Storage relative humidity (H-H) 0 - 95%
Night vision distance 60 m
Wi-Fi No
International Protection (IP) code IP67
Package depth 190 mm
Operating relative humidity (H-H) 0 - 95%
Digest authentication Yes
Angle of rotation 360°
Frame rate 30 fps
Alarm input channels 1
LED type IR
Minimum illumination 0 lx
Camera shutter speed 1/3 - 1/100000 s
Housing material Metal
Pan range 0 - 355°
Highlight Compensation (HLC) Yes
Back Light Compensation (BLC) Yes
Audit log Yes
Number of Privacy masking areas 4
Warranty 24 (F)
Warnings The product contains electronic components; do not dispose of with the normal household waste.
Supported graphics resolutions 3840 x 2160
Networking standards IEEE 802.3at
Image quality adjustment Brightness
Protection features Vandal proof
Compliance certificates RCM
Security algorithms EAP-LEAP
Video compression formats H.265+
Intelligent Video Surveillance (IVS) system features Human detection
Audio formats supported MP3
Compatible memory cards MicroSDHC

Extended warranties and insurance:

  • Additional warranty + insurance (2 + 1 year) - 99,99 €
  • Additional warranty (2 years) - 69,99 €
  • Insurance (1 year) - 89,99 €
  • Insurance (2 years) - 159,99 €

Choose a suitable extended warranty and insurance in checkout..

Camera

Horizontal swivel
360°

Dimensions and weights

Package width
194 cm
Package height
389 cm
Package length
185 cm

Product codes

EAN
6942160484235
Manufacturer code
52946
