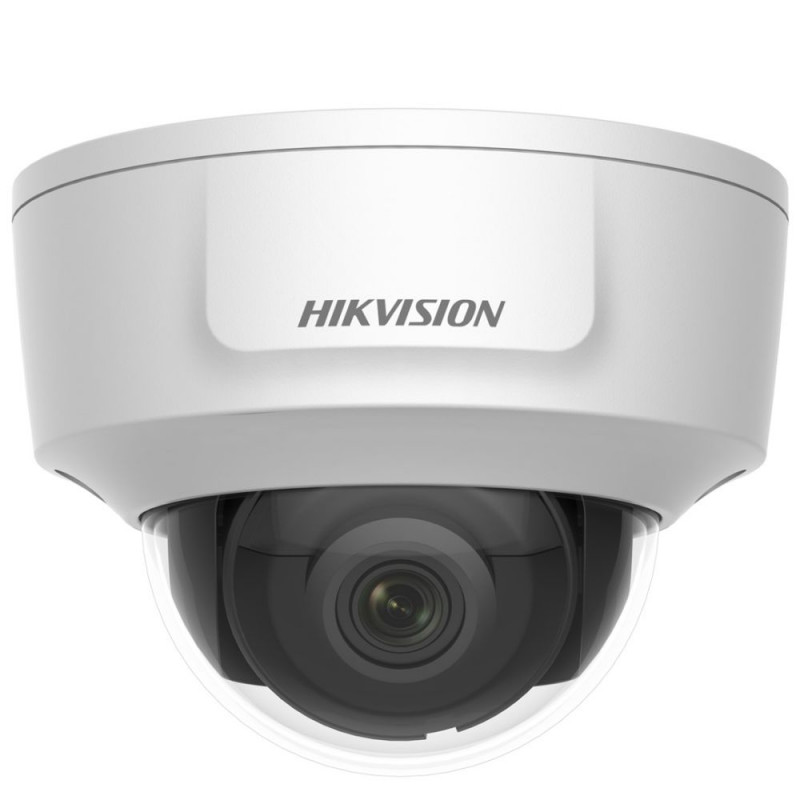

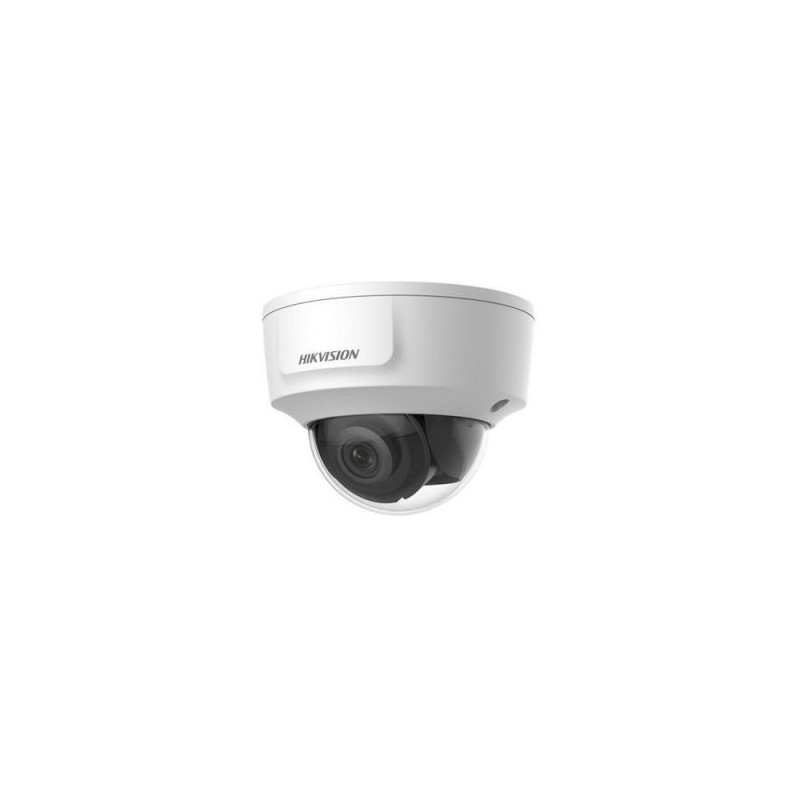

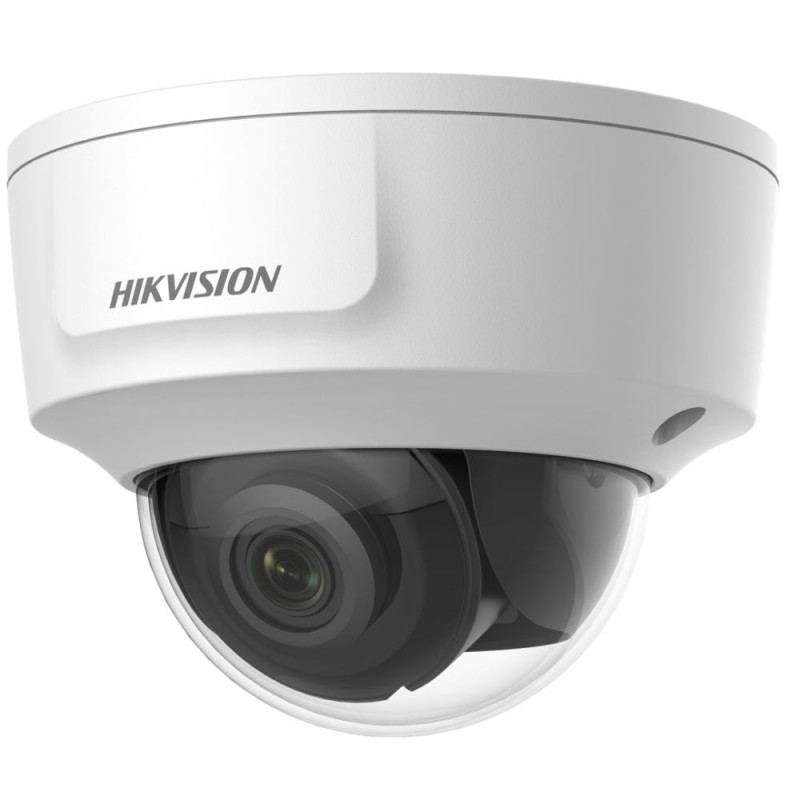

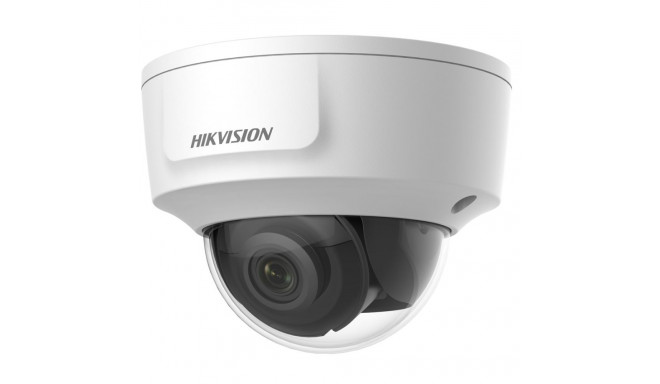

IP Camera HIKVISION DS-2CD2186G2-IMS 2.8mm

Main info

Warranty 24 (F) Built-in HDD No

Product has been archived


Warranty 24 (F)
Built-in HDD No
Audit log Yes
Password reset via email Yes
IP address filtering Yes
Progressive scan Yes
Bit rate control Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Digest authentication Yes
Bit rate range 8 - 320 Kbit/s
Alarm output channels 1
Optical sensor size 25.4 / 1.8 mm (1 / 1.8")
Region of Interest (ROI) encoding Yes
Sample rates 8 - 48 kHz
Detect distance 97 m
Maximum aperture number 1.6
Noise reduction technology 3D noise reduction
Lens viewing angle, vertical 58°
Number of Privacy masking areas 4
Number of simultaneous live view channels 6 channels
Fixed focal length 2.8 mm
User access level Administrator, Operator, User
Flash log Yes
Observe distance 38 m
HTTPS encryption Yes
Signal-to-Noise Ratio (SNR) 52 dB
Pixel counter Yes
Noise reduction Yes
Day/night mode Yes
Video motion detection Yes
Digital watermark Yes
Maximum memory card size 512 GB
Audio output 1
Languages support Multi
Placement supported Indoor & outdoor
Lens viewing angle, diagonal 133°
Lens viewing angle, horizontal 108°
Infra-red wavelength 850 nm
Infrared (IR) cut-off filter Yes
Sensor type CMOS
Recognize distance 19 m
Dynamic range 120 dB
Identify distance 9 m
Password protection Yes
Mirror Yes
Number of users 32 user(s)
Audio input 1
Number of lenses 1
Mounting type Ceiling
Night vision Yes
Heartbeat Yes
DC output voltage 12
Number of cameras 1
Package weight 720 g
Ethernet interface type Fast Ethernet
Ethernet LAN Yes
Height 90 mm
Product colour White
Storage temperature (T-T) -10 - 50 °C
Highlight Compensation (HLC) Yes
Wide Dynamic Range (WDR) Yes
Form factor Dome
Package depth 150 mm
Diameter 11.9 cm
Ethernet LAN (RJ-45) ports 1
Back Light Compensation (BLC) Yes
Angle of rotation 355°
Tilt angle range 0 - 75°
Camera shutter speed 1/3 - 1/100000 s
Night vision distance 30 m
HDMI ports quantity 1
Operating temperature (T-T) -10 - 40 °C
Housing material Metal
Type IP security camera
Pan range 0 - 355°
Bluetooth No
Lens mount interface M12
Package height 141 mm
Power source type DC, PoE
Card reader integrated Yes
LED type IR
Connectivity technology Wired
Power consumption (max) 10 W
Weight 440 g
Alarm input channels 1
Maximum resolution 3840 x 2160 pixels
Reset button Yes
Package width 150 mm
Bit rate 32Kbps - 16Mbps
Wi-Fi No
Warnings The product contains electronic components; do not dispose of with the normal household waste.
Supported graphics resolutions 1920 x 1080 (HD 1080)
Video compression formats H.265+
Intelligent Video Surveillance (IVS) system features Scene change
Image quality adjustment Sharpness
Compliance certificates Electromagnetic Compatibility (EMC)
Audio formats supported AAC-LC
Networking standards IEEE 802.3af
Security algorithms EAP-LEAP
Compatible memory cards MicroSD (TransFlash)

Camera

Horizontal swivel
355°

Dimensions and weights

Package width
150 cm
Package height
145 cm
Package length
150 cm

Product codes

EAN
6942160472256
Manufacturer code
52942
