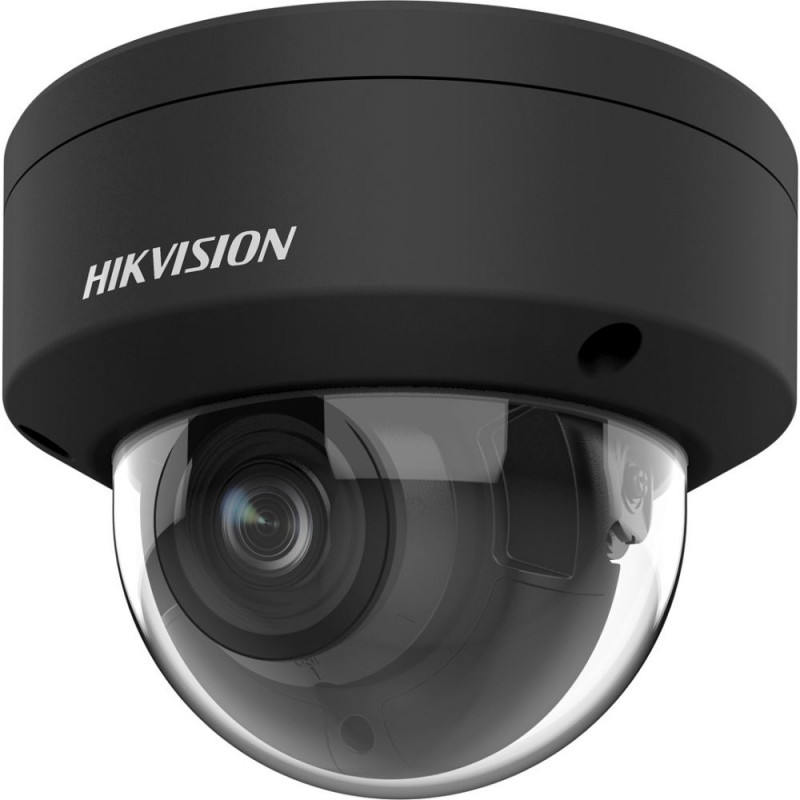

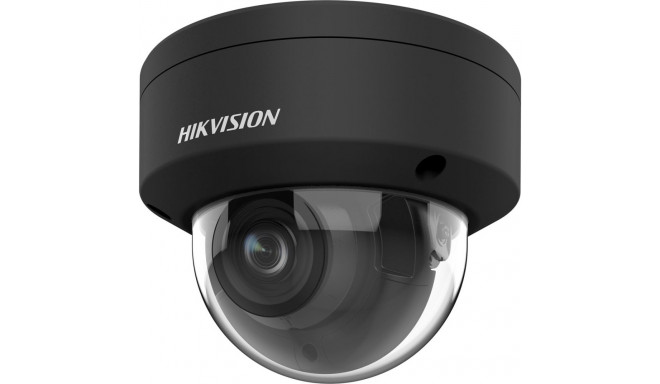

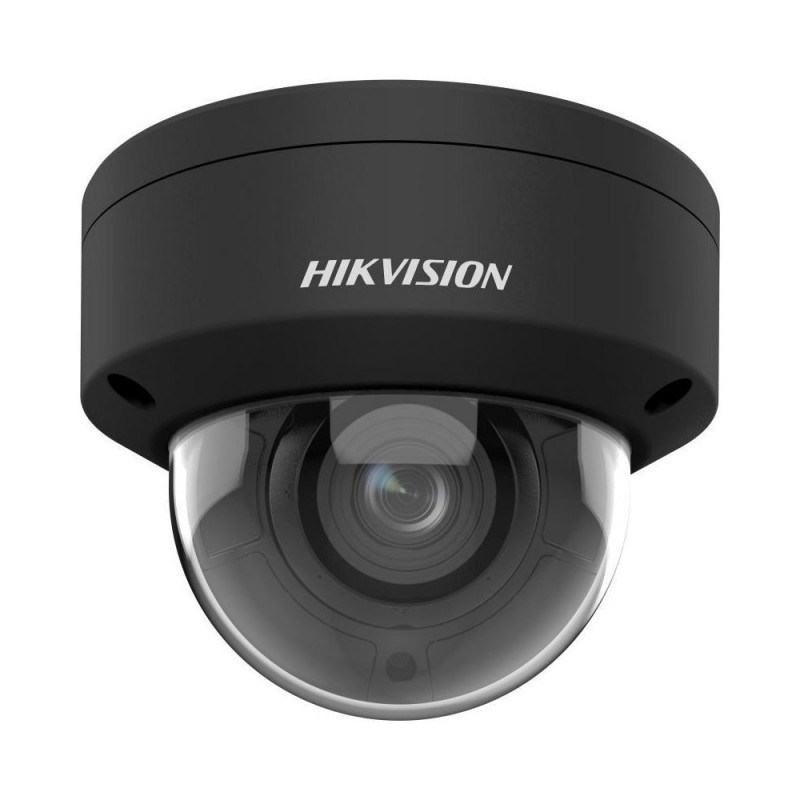

Hikvision Pro Series with AcuSense DS-2CD2766G2HT-IZS(2.8-12mm)(eF)(BLACK) Dome IP security camera O

Main info

Product has been archived


Warranty 24 (G)
Type IP security camera
Height 112 mm
Quality of Service (QoS) support Yes
Product colour Black
Ethernet LAN Yes
Storage relative humidity (H-H) 0 - 95%
Audio output channels 1.0 channels
Package weight 1.45 kg
Package depth 203 mm
Form factor Dome
Wide Dynamic Range (WDR) Yes
Weight 840 g
Bit rate 32 Kbps - 16 Mbps
Connectivity technology Wired
Number of cameras 1
IK code IK10
Package width 203 mm
Power consumption (max) 10.8 W
Tilt angle range 0 - 75°
Bluetooth No
Operating temperature (T-T) -30 - 60 °C
Web-based management Yes
International Protection (IP) code IP67
Ethernet LAN (RJ-45) ports 1
Night vision distance 40 m
Power source type DC, PoE
Ethernet interface type Fast Ethernet
Storage temperature (T-T) -30 - 60 °C
Reset button Yes
Card reader integrated Yes
Wi-Fi No
Operating relative humidity (H-H) 0 - 95%
Package height 230 mm
Networking standards IEEE 802.3af
Maximum resolution 3200 x 1800 pixels
Lens viewing angle, diagonal 137.4 - 47.3°
Pixel counter Yes
Human and vehicle targets classification Yes
Sample rates 8 - 48 kHz
Lens viewing angle, vertical 58.1 - 23.1°
Frame rate 30 fps
Digest authentication Yes
Sensor type CMOS
Detect distance (tele) 183.3 m
Pan range 0 - 355°
Number of languages 33
Progressive scan Yes
Languages support Multi
Built-in HDD No
DC output voltage 12
Audio input channels 1.0 channels
Privacy protection Yes
Client interoperability iVMS-4200, Hik-Connect, Hik-Central
Angle of rotation 355°
Infra-red wavelength 850 nm
Video motion detection Yes
Privacy masking Yes
Diameter 14.1 cm
Recognize distance (wide) 14.9 m
Mounting type Ceiling/wall
Number of simultaneous live view channels 6 channels
Video recording Yes
Heartbeat Yes
Maximum memory card size 512 GB
Password reset via email Yes
Infrared (IR) cut-off filter Yes
Detect distance (wide) 74.3 m
Observe distance (wide) 29.9 m
Mirror Yes
IP address filtering Yes
Night vision Yes
Terminal block port Yes
Gain control type Auto
Alarm output channels 1
Identify distance (tele) 18.3 m
Behavior analysis Intrusion detection, Line crossing detection
Active tampering alarm Yes
Maximum aperture number 1.2
Bit rate range 8 - 320 Kbit/s
Power consumption (Power over Ethernet (PoE)) 12.9 W
Camera shutter speed 1/3 - 1/100000 s
Placement supported Outdoor
Alarm input channels 1
Back Light Compensation (BLC) Yes
Number of users 32 user(s)
Smart IR Yes
LED type IR
Number of sensors 1
Focal length range 2.8 - 12 mm
Day/night mode Yes
Noise reduction Yes
HTTPS encryption Yes
Minimum illumination 0 lx
Password protection Yes
Recognize distance (tele) 36.7 m
Optical sensor size 25.4 / 1.8 mm (1 / 1.8")
Region of Interest (ROI) encoding Yes
Live view Yes
Signal-to-Noise Ratio (SNR) 52 dB
Number of lenses 1
Video streaming Yes
Total megapixels 6 MP
DC output current 0.9 A
User access level Administrator, Operator, User
Observe distance (tele) 72.8 m
Intelligent Video Surveillance (IVS) system features Face detection
Digital watermark Yes
Noise reduction technology 3D noise reduction
Identify distance (wide) 7.4 m
Housing material Metal
Dynamic range 120 dB
Bit rate control Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Lens viewing angle, horizontal 112.3 - 41.2°
Highlight Compensation (HLC) Yes
Browser supported IE 10, IE 11, Chrome 57.0+, Firefox 52.0+
Audit log Yes
Network access storage (NAS) Yes
Number of Privacy masking areas 4
Automatic Network Replenishment (ANR) Yes
Warnings The product contains electronic components; do not dispose of with the normal household waste.
Protection features Water resistant
Security algorithms EAP-LEAP
Supported graphics resolutions 3200 x 1800
Compatible memory cards MicroSD (TransFlash)
Audio formats supported PCM
Video compression formats M-JPEG
Image quality adjustment Contrast
Compliance certificates CE

Camera

Horizontal swivel
355°

Dimensions and weights

Package width
245 cm
Package height
330 cm
Package length
145 cm

Product codes

EAN
6942160480459
Manufacturer code
52600
