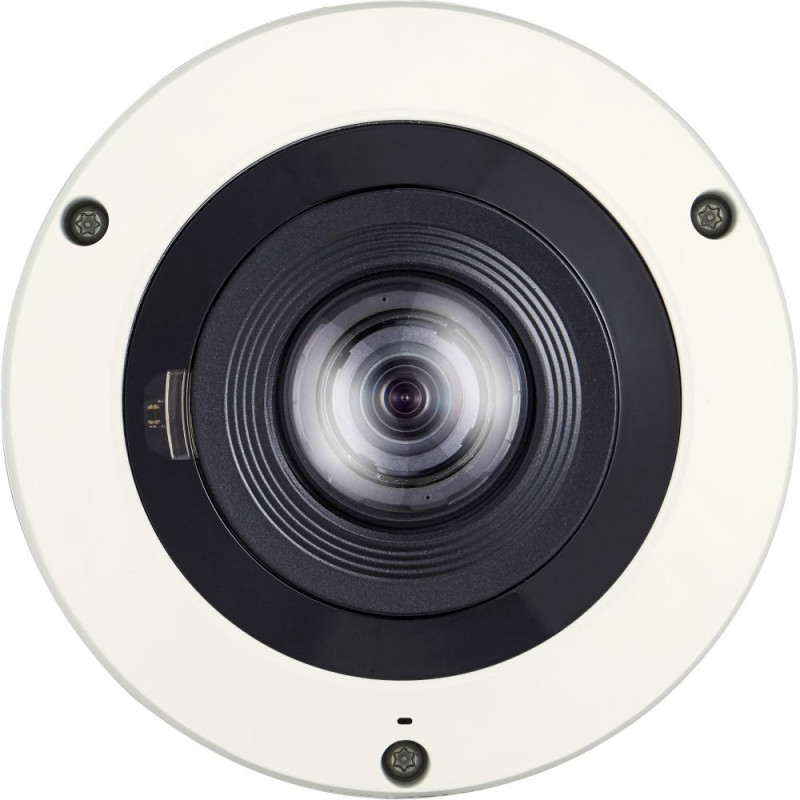

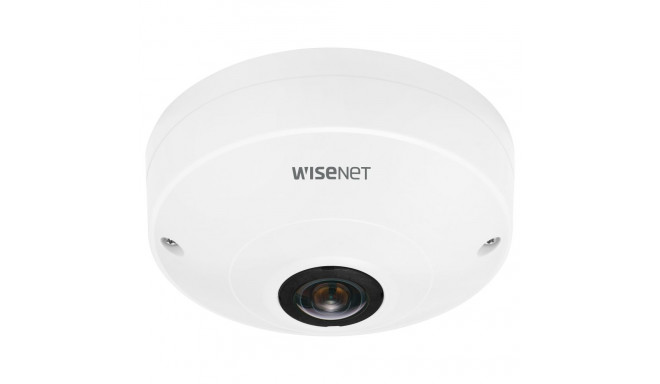

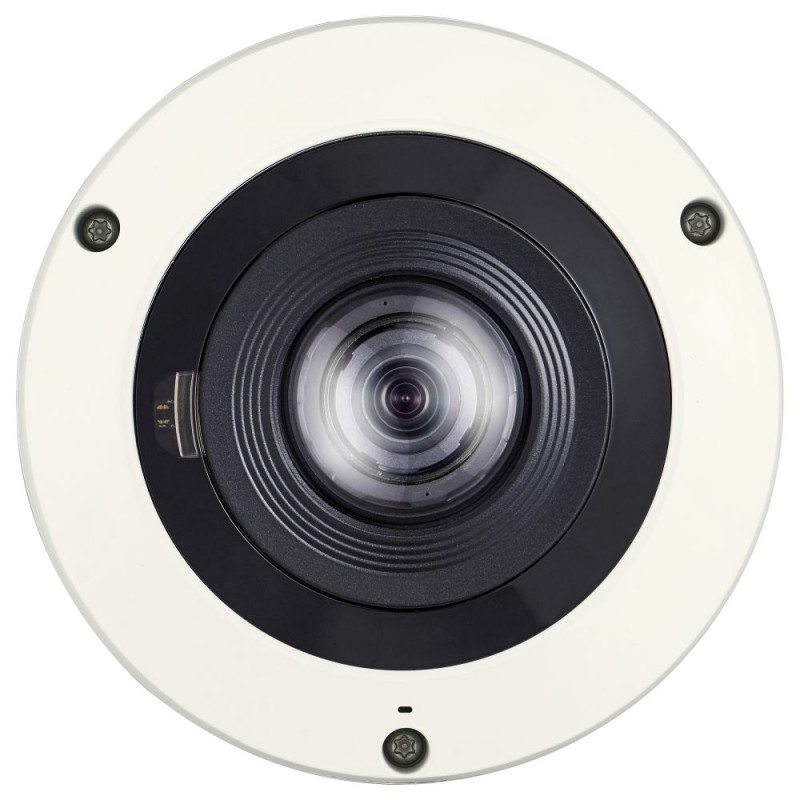

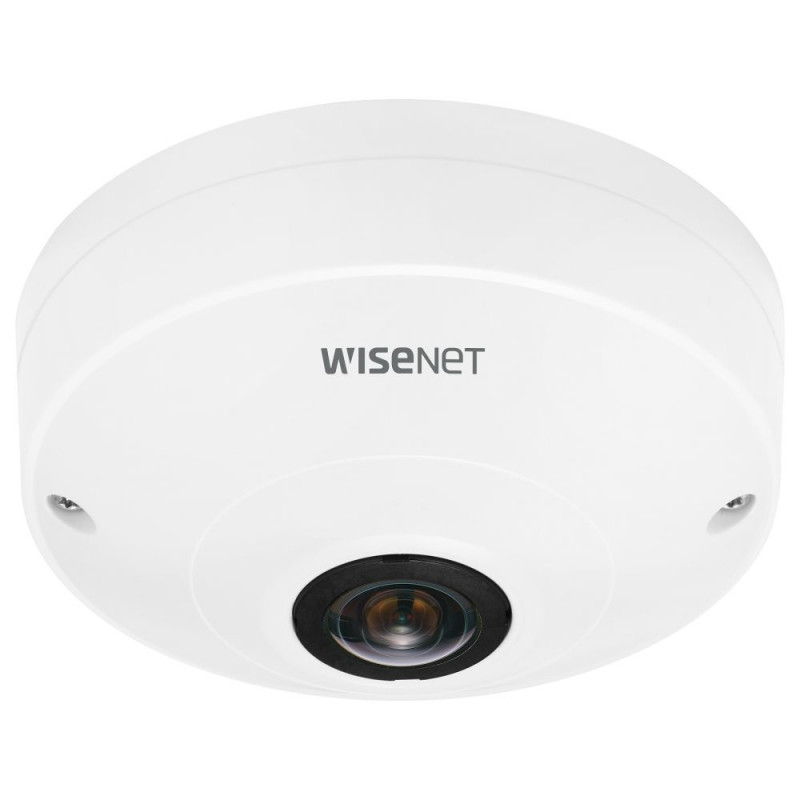

"Hanwha Techwin IP-Cam Fixed Dome 360° QNF-9010 Mini"

Main info

Product has been archived

"Hanwha XNF-8010RVM. Typ: IP-Sicherheitskamera, Unterstützte Positionierung: Innen & Außen, Übertragungstechnik: Kabelgebunden. Befestigungstyp: Zimmerdecke, Produktfarbe: Schwarz, Elfenbein, Formfaktor: Dome. Mindestbeleuchtung: 0,1 Lux, Betrachtungswinkel (horizontal): 192°, Betrachtungswinkel (vertikal): 192°. Sensor-Typ: CMOS, Größe des Bildsensors: 25,4 / 8 mm (1 / 8""), Anzahl der effektiven Pixel (H x V): 2048 x 2048 Pixel. Digitaler Zoom: 8x, Fokus: Manuell, Feste Brennweite: 1,6 mm"
Typ IP-Sicherheitskamera
Unterstützte Positionierung Innen & Außen
Übertragungstechnik Kabelgebunden
Feature Webbrowser
PTZ-Modi Digitale PTZ
Formfaktor Dome
Befestigungstyp Zimmerdecke
Produktfarbe Schwarz, Elfenbein
Gehäusematerial Aluminium
Schutzfunktion Vandalismussicher
Internationale Schutzart (IP-Code) IP66
IK-Kodex IK10
Mindestbeleuchtung 0,1 Lux
Betrachtungswinkel (horizontal) 192°
Betrachtungswinkel (vertikal) 192°
Betrachtungswinkel des Objektivs, diagonal 192°
Weißabgleich ATW, AWC, Drinnen, Manuell, Quecksilberlampe, Draußen, Sodium lamp
Verschlusstyp Elektronisch
Kamera Verschlusszeit 2 - 1/12000 s
Anzahl der Sensoren 1
Größe des Bildsensors 25,4 / 8 mm (1 / 8"")
Sensor-Typ CMOS
Anzahl der effektiven Pixel (H x V) 2048 x 2048 Pixel
Digitaler Zoom 8x
Anzahl der Linsen 1
Fokus Manuell
Maximale Blendenzahl 1,6
Feste Brennweite 1,6 mm
Naheinstellgrenze 0,3 m
Nachtsichtdistanz 15 m
Maximale Auflösung 2048 x 2048 Pixel
Megapixel insgesamt 6 MP
Unterstützte Videoformate H.264, H.265, M-JPEG
Bis zu 30 Frames pro Sekunde 30 fps
Geräuschunterdrückungstechnologie 3D-Rauschunterdrückung
Bitratenkontrolle Konstante Bitrate (CBR), Variable Bitrate (VBR)
Audio-System 2-Wege
Unterstützte Audioformate AAC-LC, ADPCM, G.711, G.726
Samplerate 48 kHz
Rauschverhältnis (SNR) 50 dB
Ethernet Schnittstellen Typ Schnelles Ethernet
Netzstandard IEEE 802.3af
Zahl der Benutzer 20 Benutzer
Streaming-Verfahren Multicasting, Unicast
Kompatible Speicherkarten SD, SDHC, SDXC
Max. Speicherkartengröße 512 GB
Anzahl Ethernet-LAN-Anschlüsse (RJ-45) 1
Composite Video-Ausgang 1
Unterstützte Sicherheitsalgorithmen 802.1x RADIUS, EAP-TLS
Warnbenachrichtigungstyp E-Mail
Intelligent Video Surveillance-(IVS)-System-Eigenschaften Kreuzungslinie, Fehlendes Objekt, Personenzählung
Energiequelle PoE
Stromverbrauch (Standardbetrieb) 12 W
Stromverbrauch (Power over Ethernet (PoE)) 12,95 W
Betriebstemperatur -40 - 55 °C
Temperaturbereich bei Lagerung -50 - 60 °C
Relative Luftfeuchtigkeit in Betrieb 0 - 90%
Luftfeuchtigkeit bei Lagerung 0 - 90%
Unterstützt Windows-Betriebssysteme Windows 10, Windows 7, Windows 8.1
Unterstützt Mac-Betriebssysteme Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra
Gewicht 790 g
Anzahl der Kameras 1

Video & audio

Digital zoom
8×

Dimensions and weights

Package width
14.6 cm
Package height
6.58 cm
Package length
14.6 cm

Product codes

EAN
8801089153852
