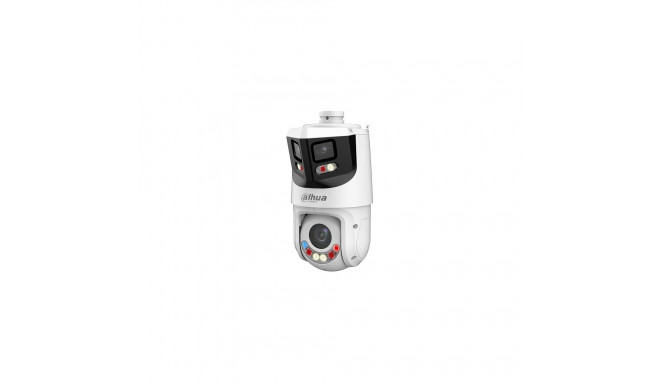

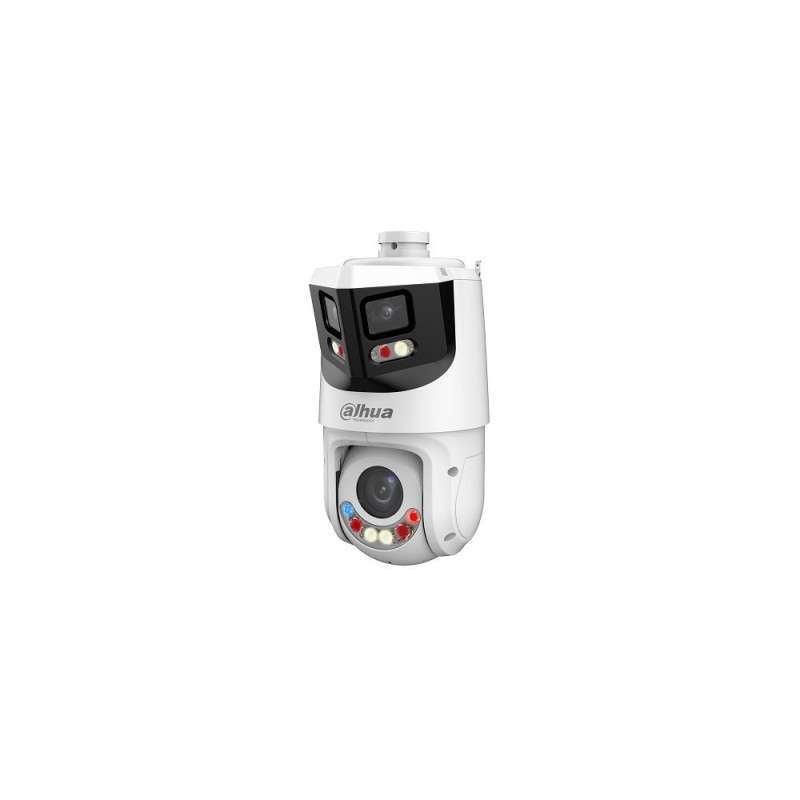

4 Megapixel PTZ cam SDT4E425-8P-GB-APV1

1 159 €

Monthly payment starting from 39,50 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Camera Image Sensor Overview channel: 1/2.7" CMOS; Detail channel: 1/2.8" CMOS Pixel Overview channel: 8 MP; Detail channel: 4 MP Max. Resolution Overview channel: 4096 (H) x 1860 (V); Detail channel: 2560 (H) x 1440 (V) ROM

Warning: Last items in stock!

Add to cart

Delivery in 4-7 working days

Free delivery

14 14 days return policy when purchasing online

Camera

Image Sensor

Overview channel: 1/2.7" CMOS; Detail channel: 1/2.8" CMOS

Pixel

Overview channel: 8 MP; Detail channel: 4 MP

Max. Resolution

Overview channel: 4096 (H) x 1860 (V); Detail channel: 2560 (H) x 1440 (V)

ROM

Overview channel: 4 GB; Detail channel: 4 GB

RAM

Overview channel: 2 GB; Detail channel: 1 GB

Electronic Shutter Speed

1 s–1/30,000 s

Scanning System

Progressive

Min. Illumination

Overview channel:
0.005 lux@F1.4 (Color, 30 IRE);
0.0005 lux@F1.4 (B/W, 30 IRE);
0 lux (illuminator on)
Detail channel:
0.005 lux@F1.6 (Color, 30 IRE);
0.0005 lux@F1.6 (B/W, 30 IRE);
0 lux (illuminator on)

Illumination Distance

Overview channel: 30 m (98.43 ft) (IR); 30 m (98.43 ft) (white light); Detail channel: 100 m (328.08 ft) (IR); 50 m (131.23 ft) (white light)

Illuminator On/Off Control

Overview channel:
Manual; Auto; Off
Detail channel:
Zoom Prio; Manual; Auto; Off

Illuminator Number

Overview channel: 2 (IR light); 2 (White light); Detail channel: 2 (IR light); 2 (Warm light)

Lens

Focal Length

Overview channel: 2.8 mm; Detail channel: 5 mm–125 mm

Max. Aperture

Overview channel: F1.4; Detail channel: F1.6-F3.6

Field of View

Overview channel: H: 180°; V: 86°; Detail channel: H: 51.9°–3.0°; V: 39.7°–2.2°; D: 63.1°–3.7°

Optical Zoom

Overview channel: NA; Detail channel: 25x

Focus Control

Auto; manual; semi-auto

Close Focus Distance

Overview channel: 0.6 m (1.97 ft); Detail channel: 0.1 m–0.5 m (0.33"–1.64")

Iris Control

Overview channel: NA; Detail channel: Auto; manual; iris prio

DORI Distance

Detect

Detect

Observe

Recognize

Identify

Overview channel:

2.8 mm

56.0 m (183.72 ft)

22.4 m (73.49 ft)

11.2 m

(36.74 ft)

5.6 m

(18.37 ft)

Detail channel:

W

100.0 m (328.08 ft)

40.0 m (131.23 ft)

20.0 m

(65.62 ft)

10.0 m

(32.81 ft)

Detail channel:

T

2500.0 m (8202.00 ft)

1000.0 m (3280.80 ft)

500.0 m

(1640.40 ft)

250.0 m

(820.20 ft)
DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

PTZ

Pan/Tilt Range

Pan: 0° to 360° endless
Tilt: –15° to +90°, auto flip 180°

Manual Control Speed

Pan: 0.1°/s–180°/s;
Tilt: 0.1°/s–90°/s

Preset Speed

Pan: 0.1°/s–180°/s;
Tilt: 0.1°/s–90°/s

Preset

300

Tour

8 (up to 32 presets per tour)

Pattern

5

Scan

5

Power-off Memory

Yes

Idle Motion

Preset; Pattern; Tour; Scan

Intelligence

IVS (Perimeter Protection)

Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; human alarm classification; linkage tracking

SMD

SMD 4.0

Active Deterrence

Light Warning

Red-Blue light warning;
Flash duration: 5 s–30 s;
Flash frequency: high, medium, low

Sound Warning

Offers 11 sound alarm and 10 custom sound alarms can be imported.
Sound can be set from 0%–100%.
Play times can be set from 1-10.

Video

Video Compression

Smart H.265+;H.265;Smart H.264+;H.264B;H.264M;H.264H;MJPEG(Sub Stream 1)

Streaming Capability

3 streams

Resolution

Overview channel: 8M (4096 x 1860); 2M (2048 x 928); 1080p (1920 x 1080); 720p (1280 x 720); 1024 x 448; D1 (704 x 576/704 x 480);VGA (640 x 480);CIF (352 x 288/352 x 240); Detail channel: 4M (2560 x 1440); 3M (2304 x 1296); 1080p (1920 x 1080); 1.3M (1280 x 960); 720p (1280 x 720); D1 (704 x 576/704 x 480);VGA (640 x 480); CIF (352 x 288/352 x 240)

Video Frame Rate

Overview channel:
Main stream: 4096 x 1860 @(1–25/30 fps)
Sub stream 1: 1024 x 448/D1/VGA/CIF @(1–25/30 fps)
Sub stream 2: 2048 x 928/1080p/1.3M/720p @(1–25/30 fps);
Detail channel:
Main stream: 4M/3M/1080p/1.3M/720p @(1–25/30 fps)
Sub stream 1: D1/VGA/CIF @(1–25/30 fps)
Sub stream 2: 1080p/1.3M/720p/ @(1–25/30 fps)

Bit Rate Control

CBR/VBR

Video Bit Rate

Overview channel:
H264: 128 kbps–16,384 kbps
H265: 51 kbps–13,312 kbps;
Detail channel:
H264: 96 kbps–16,384 kbps
H265: 38 kbps–10,240 kbps

Day/Night

Overview channel: Auto; Color; B/W; Electronic
Detail channel: Auto; Color; B/W; Electronic

BLC

Yes

WDR

Overview channel: DWDR; Detail channel: 120 dB

HLC

Yes

White Balance

Overview channel: Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp
Detail channel: Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp

Gain Control

Overview channel: Auto; manual; gain prio
Detail channel: Auto; manual; gain prio

Noise Reduction

Overview channel: 2D NR; 3D NR
Detail channel: Auto: 2D NR; 3D NR

Motion Detection

Yes

Region of Interest (RoI)

Yes

Image Stabilization

Overview channel: NA
Detail channel: Electronic Image Stabilization (EIS)

Defog

Overview channel: Electronic
Detail channel: Electronic

Digital Zoom

Overview channel: NA;
Detail channel: 16x

Image Rotation

Overview channel: NA
Detail channel: 180

S/N Ratio

Overview channel: ?55 dB
Detail channel: ?55 dB

Audio

Audio Compression

PCM, G.711A, G.711Mu, G.726, MPEG2-Layer2, G.722.1, G.729

Network

Network Port

RJ-45 (100/1,000 Base-T)

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; SSL; QoS; FTP; UPnP; ICMP; SNMP; IGMP; ARP; RTCP; RTP; PPPoE; RTMP; Bonjour; NFS

Interoperability

ONVIF (Profile S & Profile G & Profile T);CGI;SDK;P2P

Streaming Method

Unicast/Multicast

User/Host

20 (total bandwidth: 64 M)

Storage

Micro SD card (512 GB); FTP/SFTP; NAS

Browser

web5.0:
IE 9 and later versions;
Chrome 41 and later versions;
Firefox 52 and later versions;
Safari 10 and later versions

Management Software

DMSS; DSS Pro

Mobile Client

iOS; Android

Management Software

DMSS; DSS Pro

Mobile Client

iOS; Android

Certification

Certifications

CE: EN 50130-4
EN 55032
EN 55035
EN 61000-3-3
EN IEC 61000-3-2
EN 62368-1

Port

Audio Input

1 channel (LINE IN, bare wire)

Audio Output

1 channel (LINE OUT,bare wire;built-in speaker (mutually exclusive))

Alarm Input

2 (on-off value input: 0–5 VDC)

Alarm Output

1 channel

Alarm Linkage

Capture; recording; send email; preset; tour; pattern; alarm digital output; audio; warning light

Alarm Event

Motion/tampering detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection

Alarm Event

Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection

Power

Power Supply

12 VDC, 3 A ± 10%;PoE (802.3at)

Power Consumption

Basic: 14 W;
Max: 25 W (illuminator + heating glass + Siren and Light Active Deterrence + ICR + PTZ)

Power Adapter

Optional

Environment

Operating Temperature

–40 °C to +65 °C (–40 °F to +149 °F)

Operating Humidity

?95%

Protection

IP66; TVS 6000 V lightning proof; surge protection; voltage transient protection

Structure

Product Dimensions

194.2 mm x 160 mm x 311 mm (7.65" x 6.30" x 12.24") (L x W x H)

Net Weight

3.1 kg (6.83 lb)

Gross Weight

4.6 kg (10.14 lb)

Extended warranties and insurance:

  • Additional warranty + insurance (2 + 1 year) - 219,99 €
  • Additional warranty (2 years) - 129,99 €
  • Insurance (1 year) - 229,99 €
  • Insurance (2 years) - 349,99 €

Choose a suitable extended warranty and insurance in checkout..

Product codes

EAN
6939554910708
