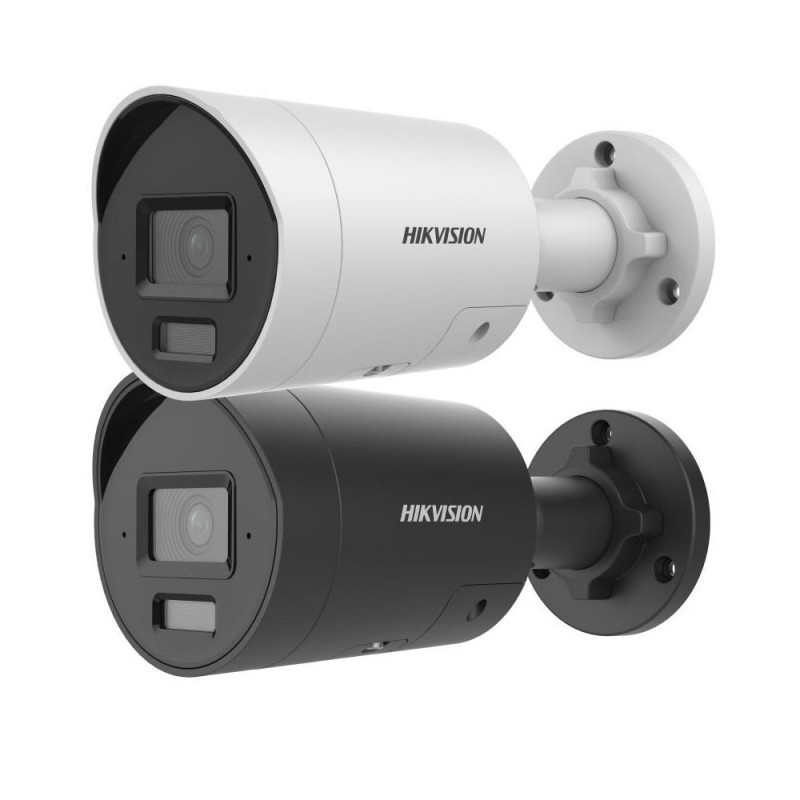

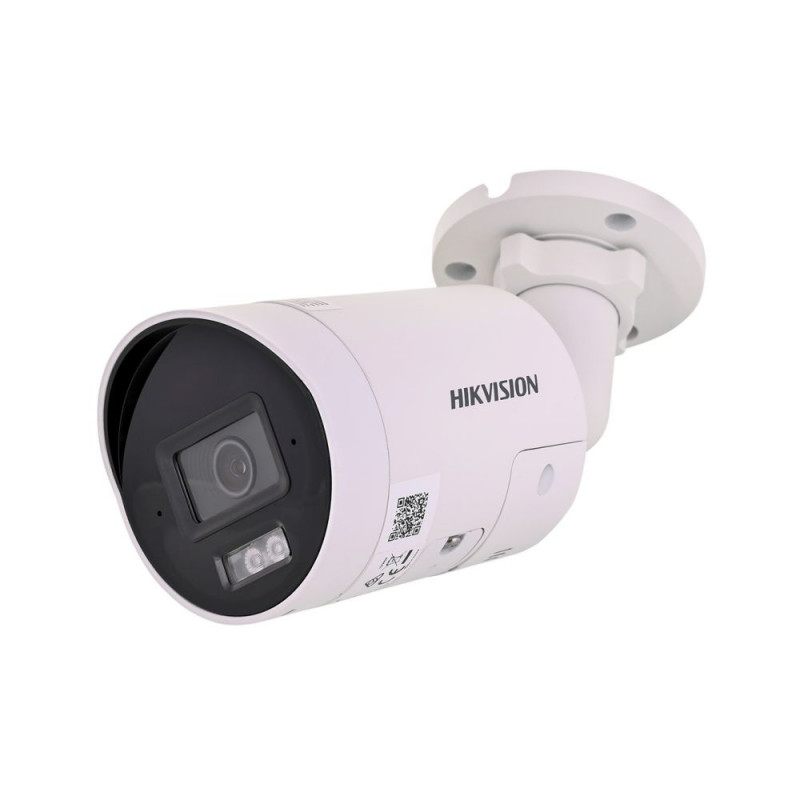

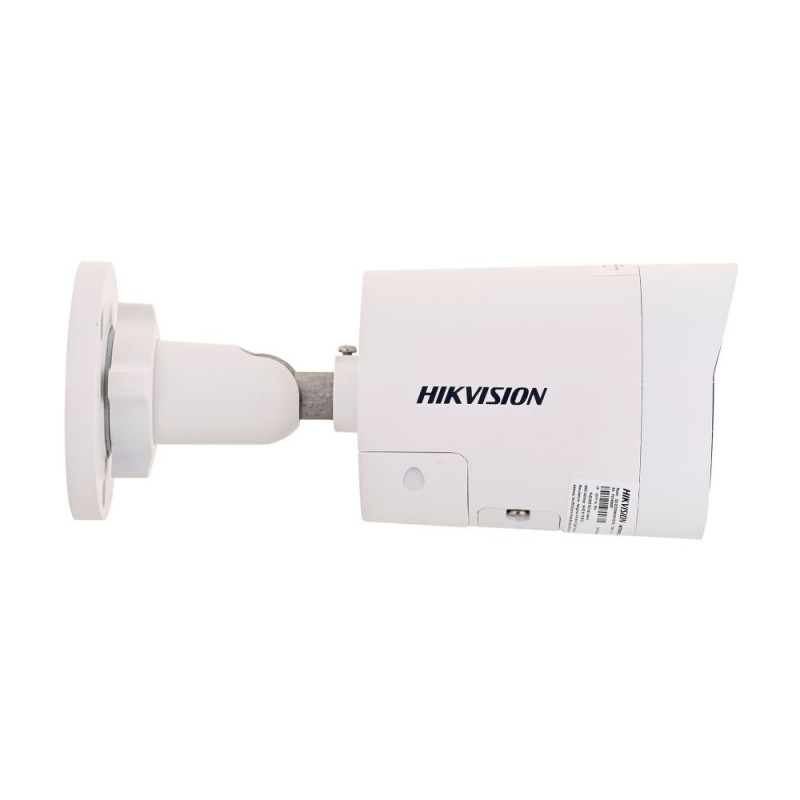

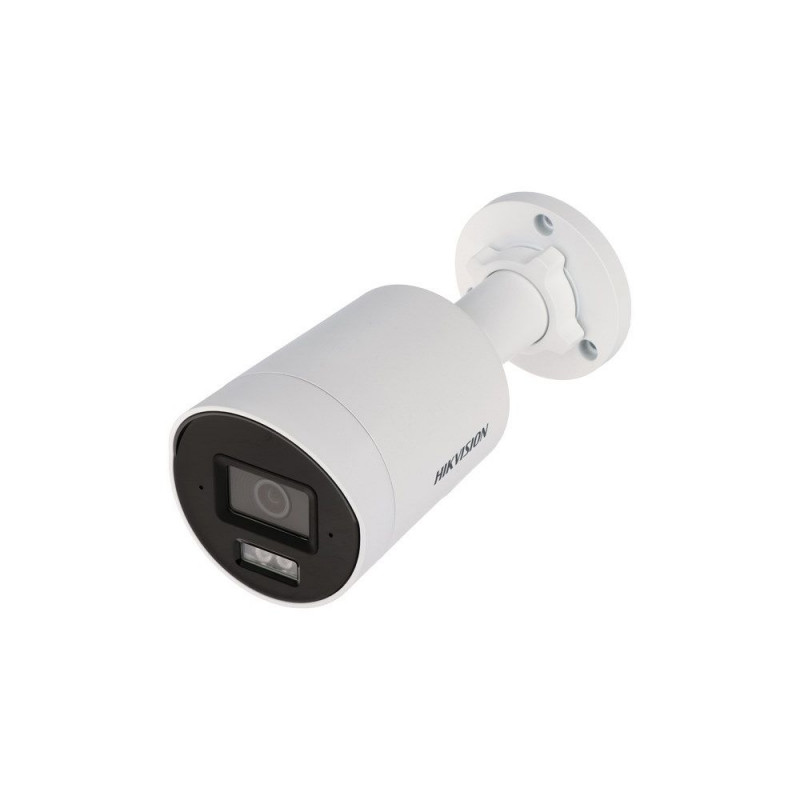

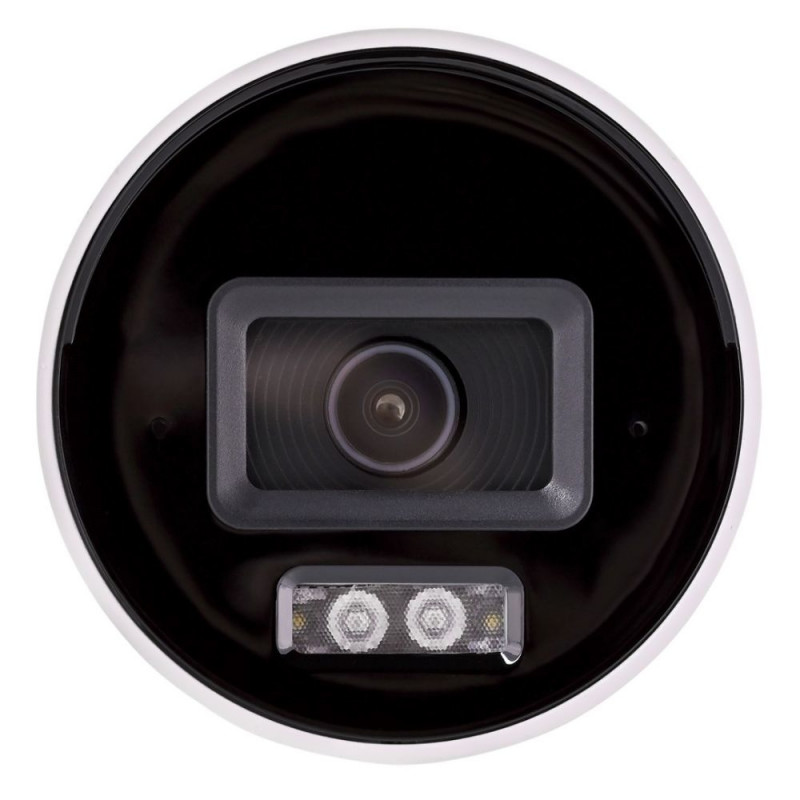

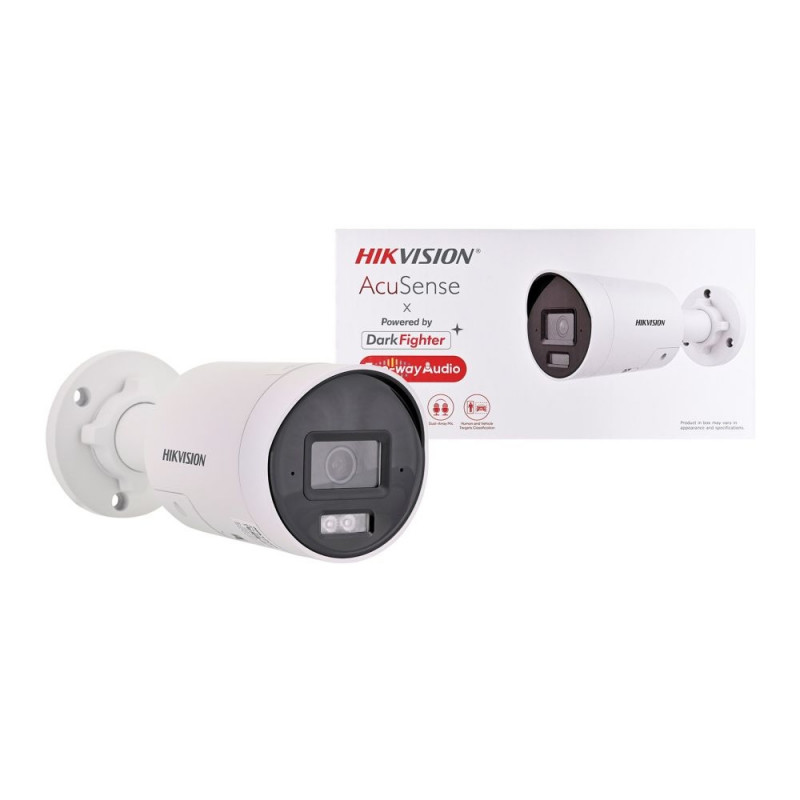

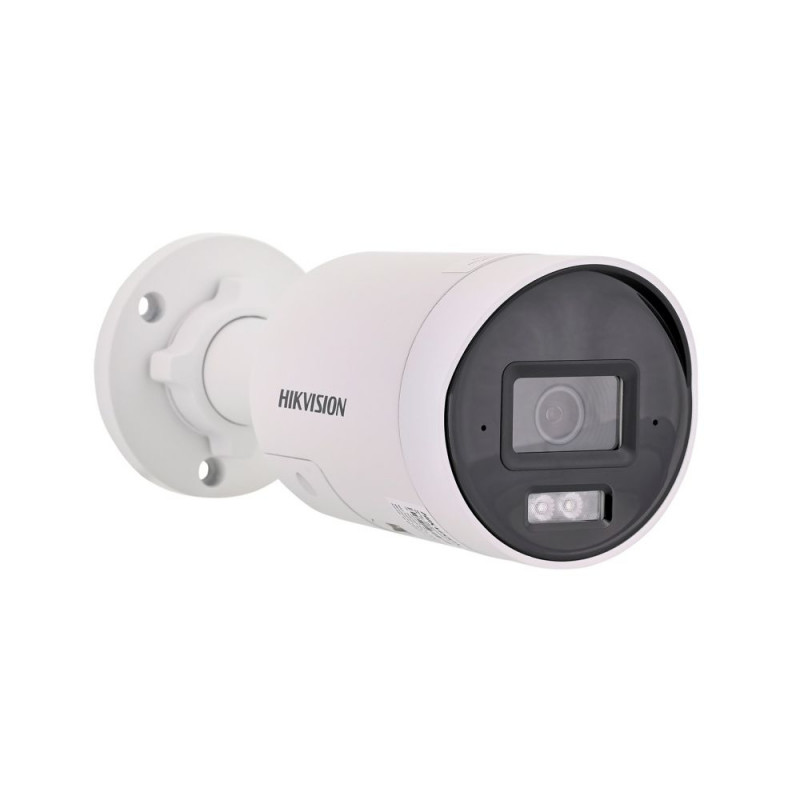

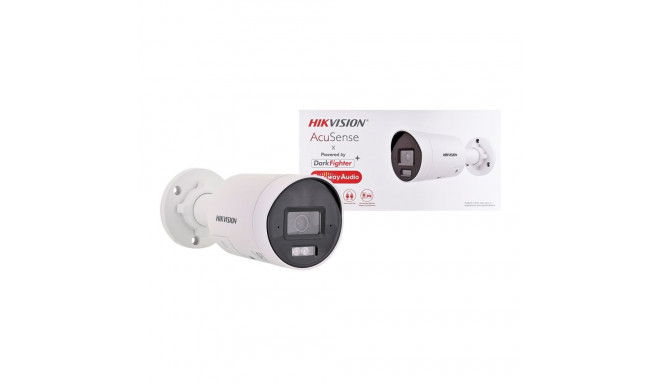

Camera DS-2CD2046G2H-I2U/SL(2.8mm)

188,99 €

Monthly payment starting from 6,44 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online


Number of simultaneous live view channels 6 channels
Lens viewing angle, horizontal 100°
Lens viewing angle, diagonal 120°
Pixel counter Yes
User access level Administrator, Operator, User
Password reset via email Yes
Human and vehicle targets classification Yes
Lens viewing angle, vertical 55°
Digest authentication Yes
Sample rates 8 - 48 kHz
Bit rate range 8 - 320 Kbit/s
Web-based management Yes
Ethernet LAN Yes
Angle of rotation 360°
Length 176.3 mm
Ethernet interface type Fast Ethernet
Reset button Yes
Minimum illumination 0 lx
Power source type DC, PoE
Storage temperature (T-T) -30 - 60 °C
Browser supported IE 10, IE 11, Chrome 57.0+, Firefox 52.0+
Form factor Bullet
Package width 234 mm
Type IP security camera
Bluetooth No
Frame rate 30 fps
Fixed focal length 2.8 mm
Connectivity technology Wired
Identify distance 6 m
Diameter 7.44 cm
Night vision distance 40 m
Card reader integrated Yes
Power consumption (max) 12 W
Video motion detection Yes
Privacy masking Yes
Intelligent Video Surveillance (IVS) system features Face detection
Mounting type Ceiling/wall
Heartbeat Yes
Audio codecs G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Languages support Multi
Built-in HDD No
Package depth 120 mm
Housing material Metal
Dynamic range 120 dB
Progressive scan Yes
Video streaming Yes
Detect distance 63 m
Maximum resolution 2688 x 1520 pixels
Weight 515 g
Number of users 32 user(s)
Highlight Compensation (HLC) Yes
Power consumption (Power over Ethernet (PoE)) 16 W
Infra-red wavelength 850 nm
Tilt angle range 0 - 90°
Bit rate control Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Smart IR Yes
Ethernet LAN (RJ-45) ports 1
Back Light Compensation (BLC) Yes
Operating relative humidity (H-H) 0 - 95%
Bit rate 32 Kbps - 8192 Kbps
Observe distance 25 m
Behavior analysis Intrusion detection, Line crossing detection
Wide Dynamic Range (WDR) Yes
Quality of Service (QoS) support Yes
Storage relative humidity (H-H) 0 - 95%
Recognize distance 12 m
HTTPS encryption Yes
DC output current 1 A
Maximum aperture number 1
Region of Interest (ROI) encoding Yes
Live view Yes
Sensor type CMOS
Built-in speaker(s) Yes
DC output voltage 12
Operating temperature (T-T) -30 - 60 °C
Wi-Fi No
IP address filtering Yes
Camera shutter speed 1/3 - 1/100000 s
Package weight 840 g
Number of cameras 1
Optical sensor size 25.4 / 3 mm (1 / 3")
Password protection Yes
Noise reduction Yes
LED type IR
Placement supported Outdoor
Noise reduction technology 3D noise reduction
Infrared (IR) cut-off filter Yes
Privacy protection Yes
Client interoperability iVMS-4200, Hik-Connect, Hik-Central
Number of languages 33
International Protection (IP) code IP67
Number of lenses 1
Package height 117 mm
Number of sensors 1
Day/night mode Yes
Lens mount interface M12
Maximum memory card size 512 GB
Signal-to-Noise Ratio (SNR) 52 dB
Mirror Yes
Total megapixels 4 MP
Active tampering alarm Yes
Built-in microphone Yes
Night vision Yes
Pan range 0 - 360°
Network access storage (NAS) Yes
Automatic Network Replenishment (ANR) Yes
Number of Privacy masking areas 4
Flash log Yes
Audit log Yes
Warranty 24 (F)
Networking standards IEEE 802.1x
Video compression formats H.264
Certification CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN
Supported graphics resolutions 640 x 360
Protection features Dust resistant
Product colour White
Compatible memory cards MicroSDHC
Security algorithms TLS
Compliance certificates CE
Image quality adjustment Contrast

Extended warranties and insurance:

  • Additional warranty (2 years) - 29,99 €
  • Additional warranty + insurance (2 + 1 year) - 39,99 €
  • Insurance (1 year) - 29,99 €
  • Insurance (2 years) - 49,99 €

Choose a suitable extended warranty and insurance in checkout..

Camera

Horizontal swivel
360°

Dimensions and weights

Package width
235 cm
Package height
125 cm
Package length
120 cm

Product codes

EAN
6942160490359
Manufacturer code
311327168
