Home page » Electronics»Security systems»Security cameras»Hikvision DS-2CD2543G2-IS(2.8MM)(Black) Dome IP security camera Outdoor 2688 x 1520 pixels Ceiling/w

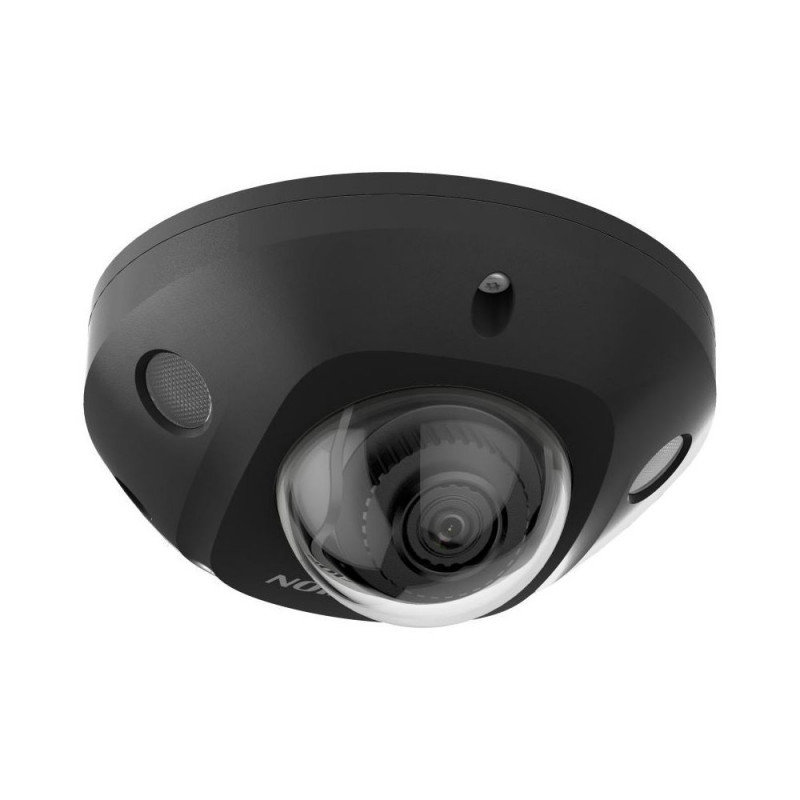

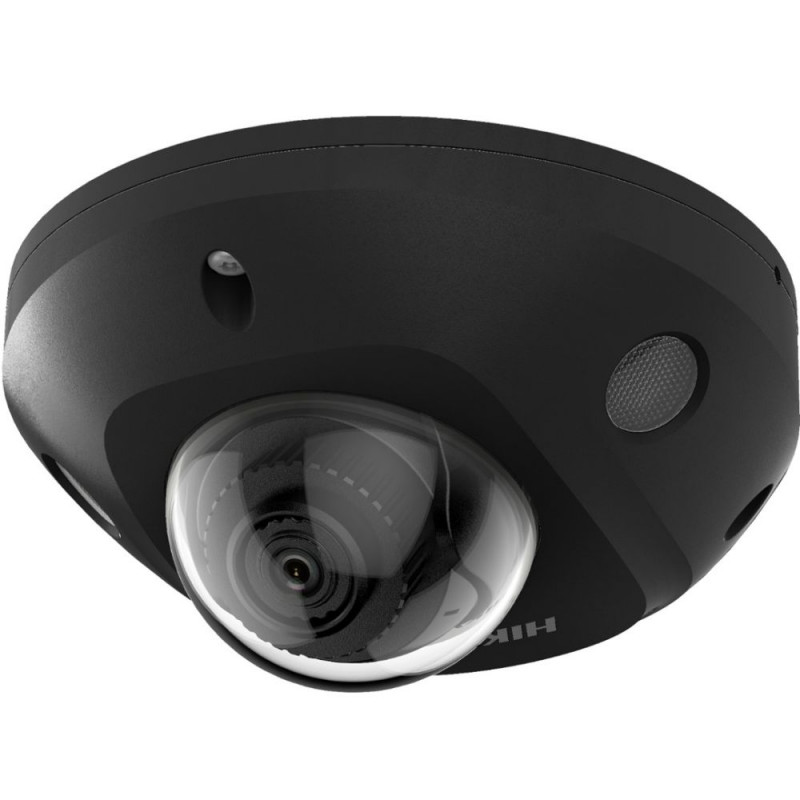

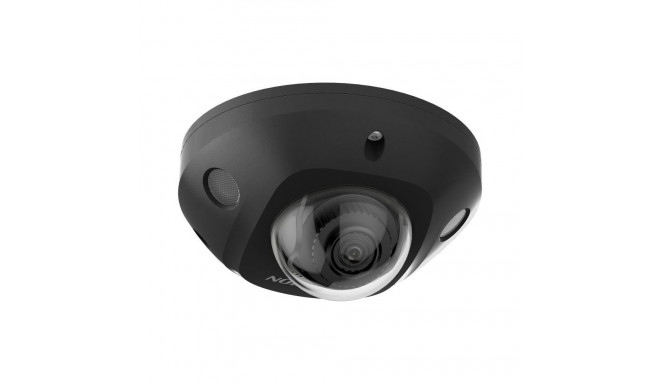

Hikvision DS-2CD2543G2-IS(2.8MM)(Black) Dome IP security camera Outdoor 2688 x 1520 pixels Ceiling/w

Main info

Product has been archived


Number of cameras 1
Web-based management Yes
Package weight 615 g
Package width 134 mm
Progressive scan Yes
Camera pan control Yes
Intelligent Video Surveillance (IVS) system features Face detection
Noise reduction Yes
Tilt angle range 0 - 75°
Product colour Black
LED type IR
Infrared (IR) cut-off filter Yes
Number of lenses 1
Region of Interest (ROI) encoding Yes
Diameter 11 cm
Quality of Service (QoS) support Yes
Frame rate 30 fps
Fixed focal length 2.8 mm
IK code IK08
Optical sensor size 25.4 / 3 mm (1 / 3")
Placement supported Outdoor
Maximum resolution 2688 x 1520 pixels
Bit rate 32 Kbps - 8 Mbps
Card reader integrated Yes
Number of users 32 user(s)
Height 57.4 mm
Type IP security camera
Operating temperature (T-T) -30 - 60 °C
Number of sensors 1
Day/night mode Yes
Video streaming Yes
Wi-Fi No
Reset button Yes
Camera shutter speed 1/3 - 1/100000 s
Alarm input/output Yes
Ethernet interface type Fast Ethernet
Behavior analysis Intrusion detection, Line crossing detection
Video motion detection Yes
Bluetooth No
Night vision distance 30 m
Detect distance 64 m
Maximum aperture number 1.6
Weight 380 g
Operating relative humidity (H-H) 0 - 95%
International Protection (IP) code IP67
Mounting type Ceiling/wall
Bit rate control Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Sensor type CMOS
Ethernet LAN Yes
Angle of rotation 360°
Noise reduction technology 3D noise reduction
Ethernet LAN (RJ-45) ports 1
Back Light Compensation (BLC) Yes
Number of languages 33
Wide Dynamic Range (WDR) Yes
DC output voltage 12
Storage temperature (T-T) -30 - 60 °C
Package depth 134 mm
Highlight Compensation (HLC) Yes
Power consumption (Power over Ethernet (PoE)) 7 W
Built-in HDD No
Camera tilt control Yes
Infra-red wavelength 850 nm
Form factor Dome
Storage relative humidity (H-H) 0 - 95%
Gain control type Auto
Identify distance 6 m
Connectivity technology Wired
Pan range -30 - 30°
Power source type DC, PoE
Package height 108 mm
Total megapixels 4 MP
Night vision Yes
Maximum memory card size 256 GB
Warranty 24 (G)
Certification WEEE, Reach, CE-RoHS
I/O ports line in, line out
Audit log Yes
Automatic Network Replenishment (ANR) Yes
Password protection Yes
Audio input channels 1.0 channels
Power consumption (max) 5.5 W
Languages support Multi
Lens mount interface M12
DC output current 0.45 A
Live view Yes
Dynamic range 120 dB
Minimum illumination 0 lx
Anti-flicker Yes
Compatible memory cards MicroSD (TransFlash)
IP address filtering Yes
Alarm output channels 1
Signal-to-Noise Ratio (SNR) 52 dB
Iris Yes
Client interoperability iVMS-4200, Hik-Connect, Hik-Central
Alarm input channels 1
HTTPS encryption Yes
Lens viewing angle, horizontal 104.3°
Active tampering alarm Yes
Sample rates 8 - 48 kHz
Bit rate range 8 - 320 Kbit/s
Heartbeat Yes
Lens viewing angle, vertical 55.9°
Lens viewing angle, diagonal 123.8°
Number of simultaneous live view channels 6 channels
Audio output channels 1.0 channels
Built-in microphone Yes
Password reset via email Yes
User access level Administrator, Operator, User
Pixel counter Yes
Audio formats supported MP3
Supported graphics resolutions 1920 x 1080 (HD 1080)
Video compression formats H.264
Voice codecs MP2L2
Image quality adjustment Brightness

Camera

Horizontal swivel
360°

Dimensions and weights

Package width
145 cm
Package height
260 cm
Package length
90 cm

Product codes

EAN
6931847136086
Manufacturer code
DS-2CD2543G2-IS(2.8mm)(
