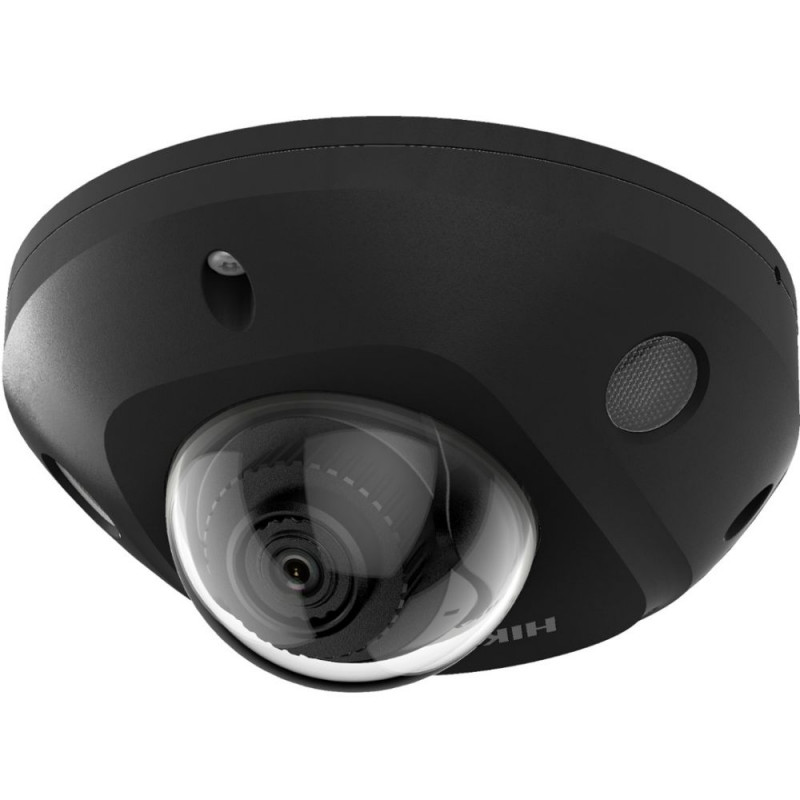

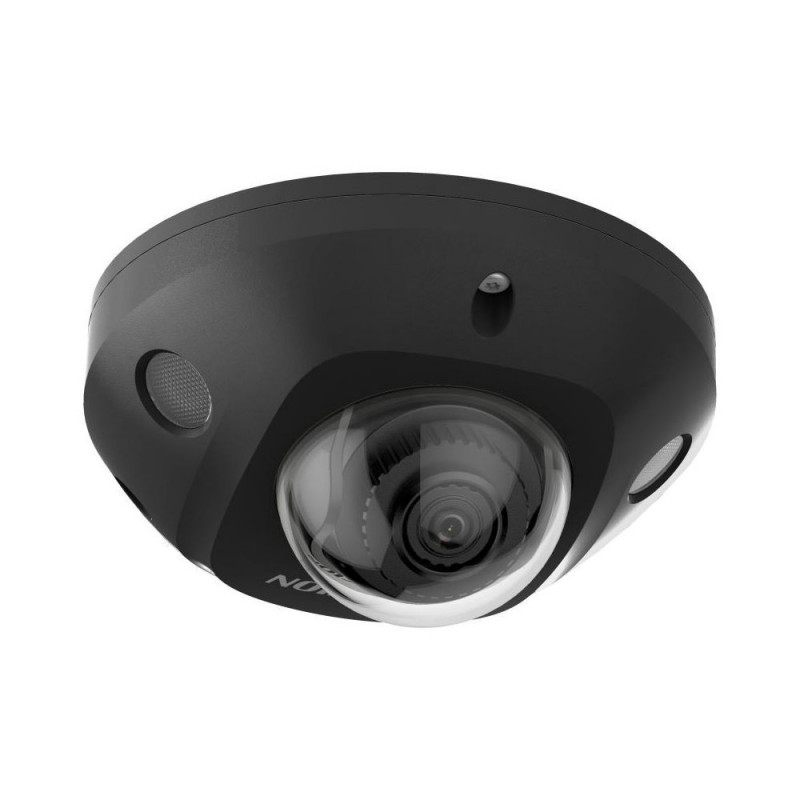

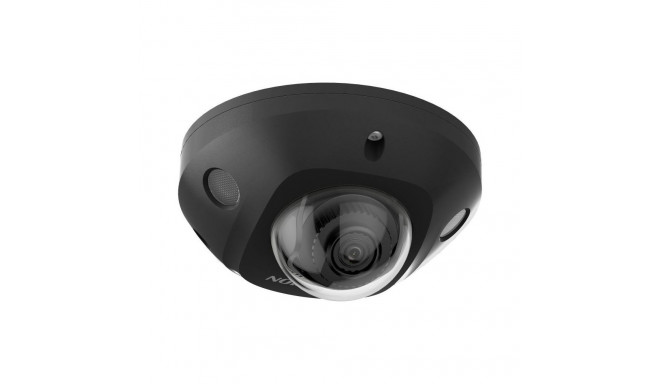

HIKVISION IP CAMERA DS-2CD2543G2-IS (2.8MM)

Main info

Warranty 36 (F) Certification WEEE, Reach, CE-RoHS

Product has been archived


Warranty 36 (F)
Certification WEEE, Reach, CE-RoHS
I/O ports line in, line out
Quality of Service (QoS) support Yes
Active tampering alarm Yes
Package depth 134 mm
Audio output channels 1.0 channels
Number of sensors 1
Ethernet LAN (RJ-45) ports 1
Storage temperature (T-T) -30 - 60 °C
Bluetooth No
Web-based management Yes
Behavior analysis Intrusion detection, Line crossing detection
Weight 380 g
Tilt angle range 0 - 75°
Password protection Yes
Reset button Yes
Form factor Dome
Infra-red wavelength 850 nm
Iris Yes
Anti-flicker Yes
Power consumption (max) 5.5 W
Power consumption (Power over Ethernet (PoE)) 7 W
Camera pan control Yes
Dynamic range 120 dB
Number of languages 33
Operating relative humidity (H-H) 0 - 95%
Package width 134 mm
Number of lenses 1
Operating temperature (T-T) -30 - 60 °C
Product colour Black
Camera tilt control Yes
Languages support Multi
Power source type DC, PoE
Type IP security camera
Live view Yes
Connectivity technology Wired
Storage relative humidity (H-H) 0 - 95%
Infrared (IR) cut-off filter Yes
Maximum resolution 2688 x 1520 pixels
Heartbeat Yes
Package weight 615 g
Built-in microphone Yes
Intelligent Video Surveillance (IVS) system features Face detection
Total megapixels 4 MP
Bit rate control Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Maximum aperture number 1.6
Sample rates 8 - 48 kHz
IP address filtering Yes
IK code IK08
Sensor type CMOS
Day/night mode Yes
Minimum illumination 0 lx
Identify distance 6 m
Video motion detection Yes
Number of cameras 1
LED type IR
Height 57.4 mm
Signal-to-Noise Ratio (SNR) 52 dB
Package height 108 mm
Pixel counter Yes
Noise reduction Yes
Video streaming Yes
Optical sensor size 25.4 / 3 mm (1 / 3")
Number of simultaneous live view channels 6 channels
Night vision distance 30 m
Diameter 11 cm
HTTPS encryption Yes
Wi-Fi No
International Protection (IP) code IP67
Back Light Compensation (BLC) Yes
Maximum memory card size 256 GB
Lens mount interface M12
Pan range -30 - 30°
Ethernet LAN Yes
Angle of rotation 360°
Mounting type Ceiling/wall
Progressive scan Yes
Gain control type Auto
Alarm input channels 1
Ethernet interface type Fast Ethernet
Password reset via email Yes
Lens viewing angle, vertical 55.9°
Placement supported Outdoor
Highlight Compensation (HLC) Yes
Lens viewing angle, horizontal 104.3°
Client interoperability iVMS-4200, Hik-Connect, Hik-Central
User access level Administrator, Operator, User
DC output voltage 12
Alarm input/output Yes
Alarm output channels 1
Compatible memory cards MicroSD (TransFlash)
Camera shutter speed 1/3 - 1/100000 s
Bit rate range 8 - 320 Kbit/s
Built-in HDD No
Frame rate 30 fps
Fixed focal length 2.8 mm
Wide Dynamic Range (WDR) Yes
Audio input channels 1.0 channels
Detect distance 64 m
Region of Interest (ROI) encoding Yes
Card reader integrated Yes
Noise reduction technology 3D noise reduction
Night vision Yes
DC output current 0.45 A
Number of users 32 user(s)
Lens viewing angle, diagonal 123.8°
Bit rate 32 Kbps - 8 Mbps
Automatic Network Replenishment (ANR) Yes
Audit log Yes
Supported graphics resolutions 1280 x 720 (HD 720)
Image quality adjustment Saturation
Voice codecs G.726
Audio formats supported MP3
Video compression formats H.265

Camera

Horizontal swivel
360°

Dimensions and weights

Package width
140 cm
Package height
116 cm
Package length
140 cm

Product codes

EAN
6931847136086
Manufacturer code
DS-2CD2543G2-IS(2.8mm)(
