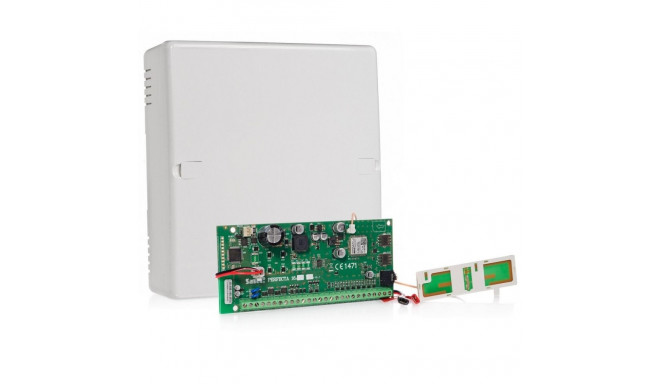

SATEL PERFECTA 16 SET-A

Main info

Product has been archived


Product type Relay module
Certification CE
Housing dimensions 266 x 286 x 100 mm
Relative humidity 0 - 93%
Charging current 0.5 A

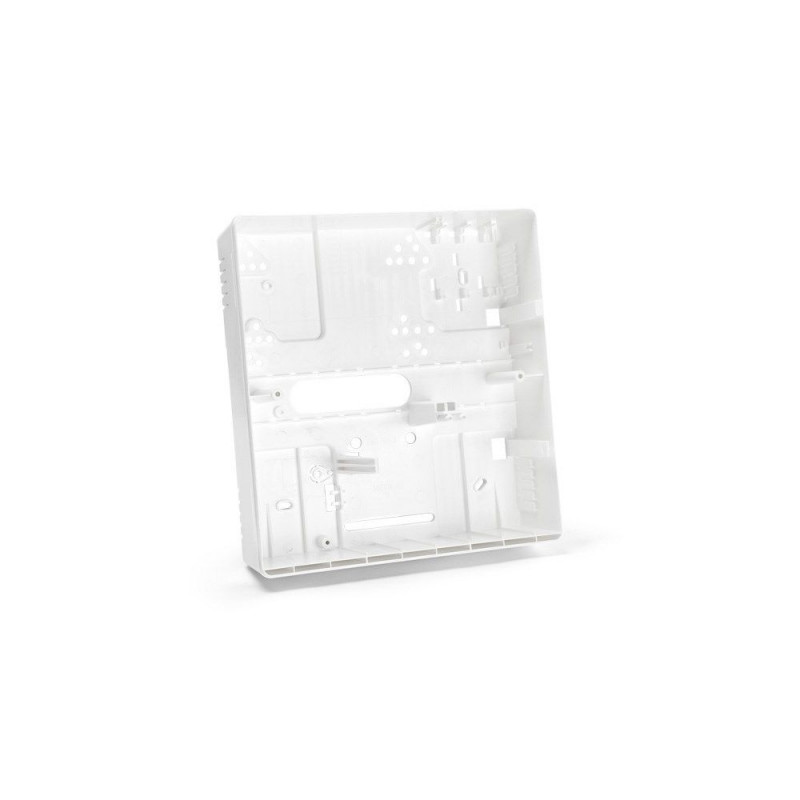

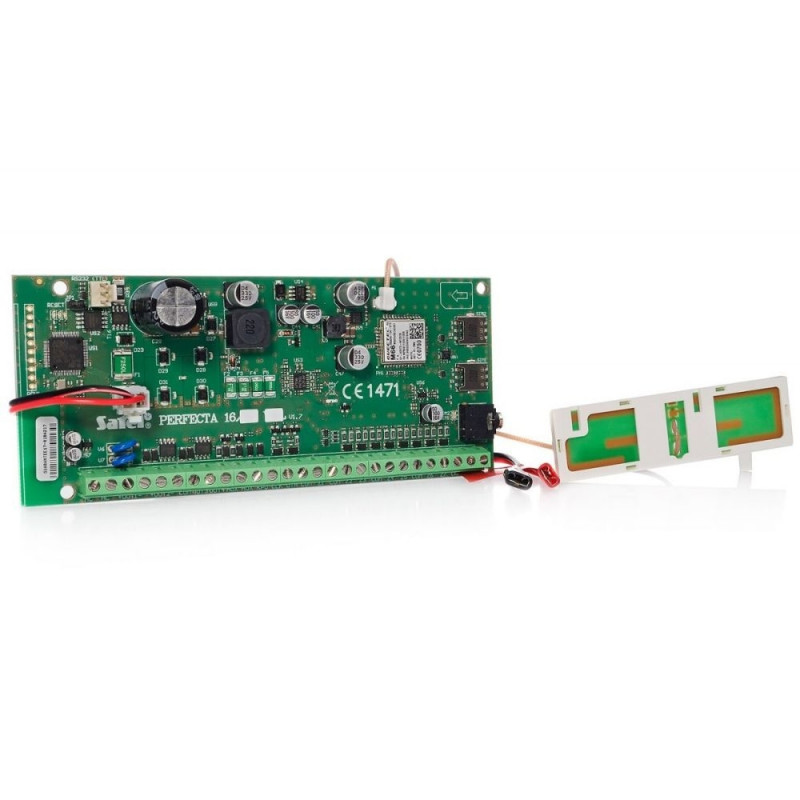

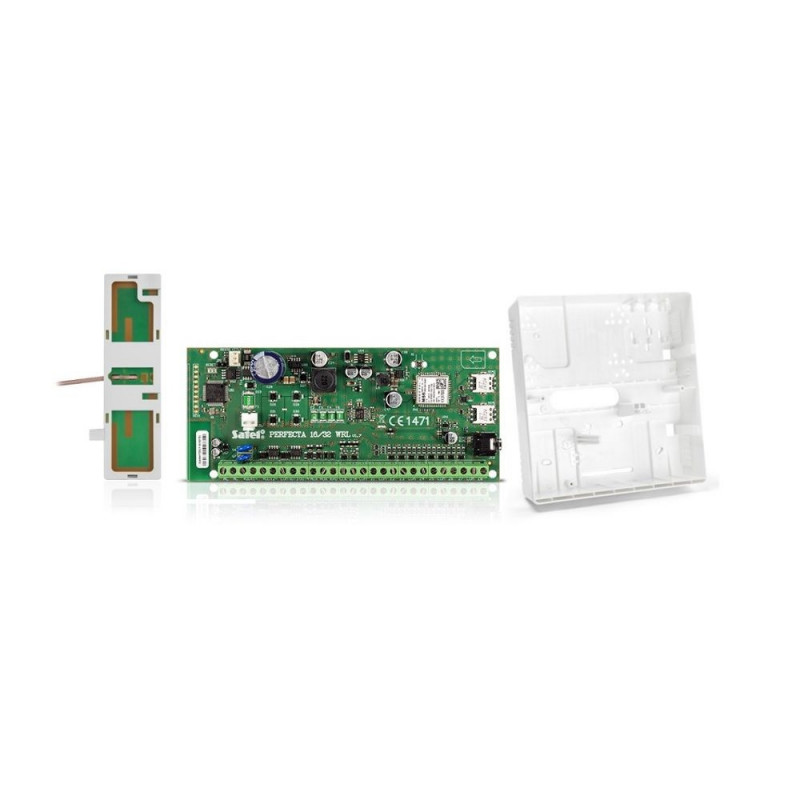

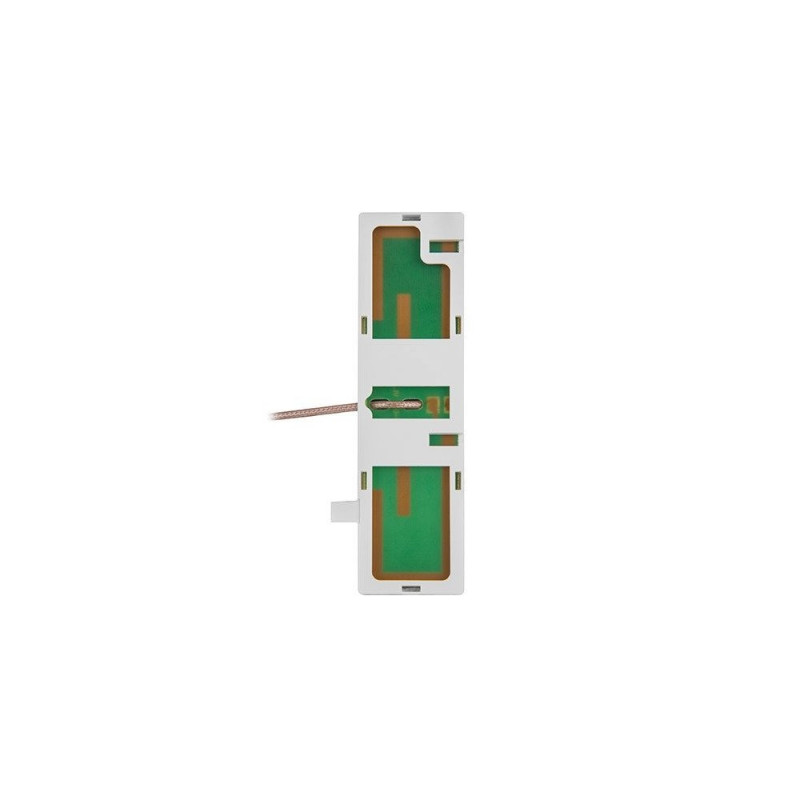

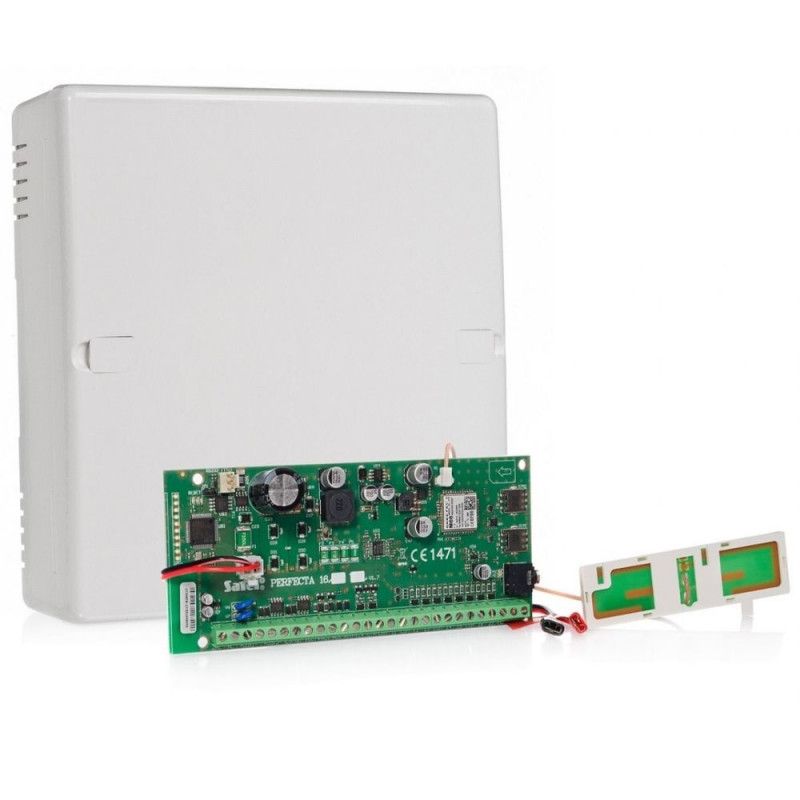

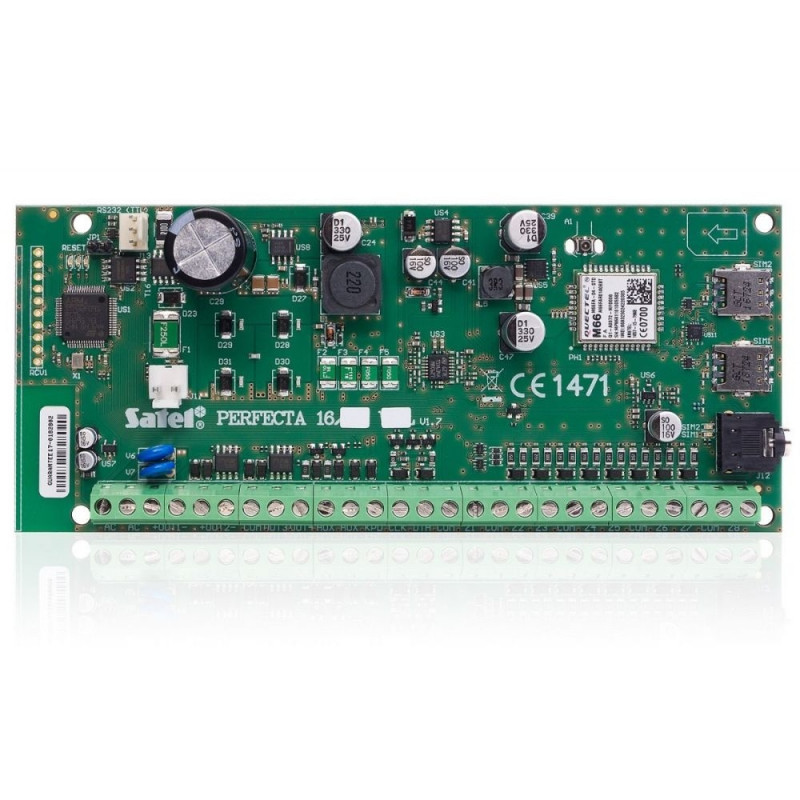

Set contents PERFECTA 16 Intrusion Control Panel, OPU-4 P enclosure, ANT-GSM-I antenna
Supply outputs 2
Output current 2 A
Programmable wire inputs 8
Depth 68 mm
Width 160 mm
Product colour Green
Number of users 15 user(s)
Recommended transformer 40 VA
Voice prompts Yes
Operating temperature (T-T) -10 - 55 °C
Number of alarm zones 2
Countdown timer Yes
Maximum number of programmable inputs 16
Environmental class II
AUX out 500 mA / 12 V DC
Maximum current consumption 180 mA
Weight 105 g
Programmable wire outputs 4
KPD output 500 mA / 12 V DC
High-current programmable outputs 1000 mA / 12 V DC
Telephone numbers for notification 8
Event memory 3584
Low-current programmable outputs 25 mA / 12 V DC
Power consumption (standby) 150 mA
Power supply voltage 18 V
Output voltage 10.5 V
Maximum battery current draw 160 mA
Maximum number of programmable outputs 12
Warranty 24 (G)

Dimensions and weights

Package width
300 cm
Package height
277 cm
Package length
120 cm

Product codes

EAN
5905033332942
Manufacturer code
PERFECTA 16 SET-A
