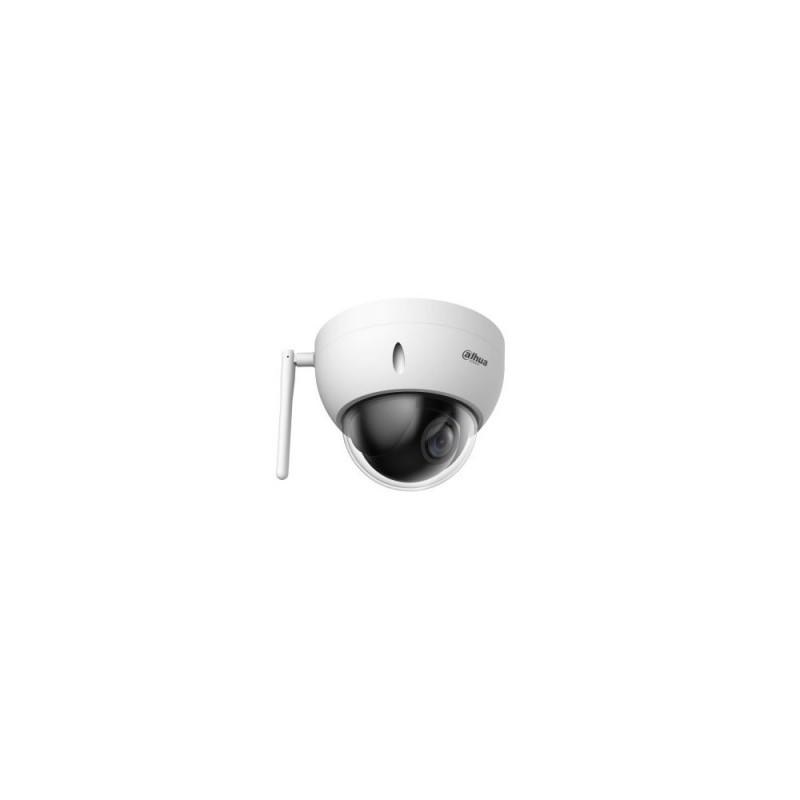

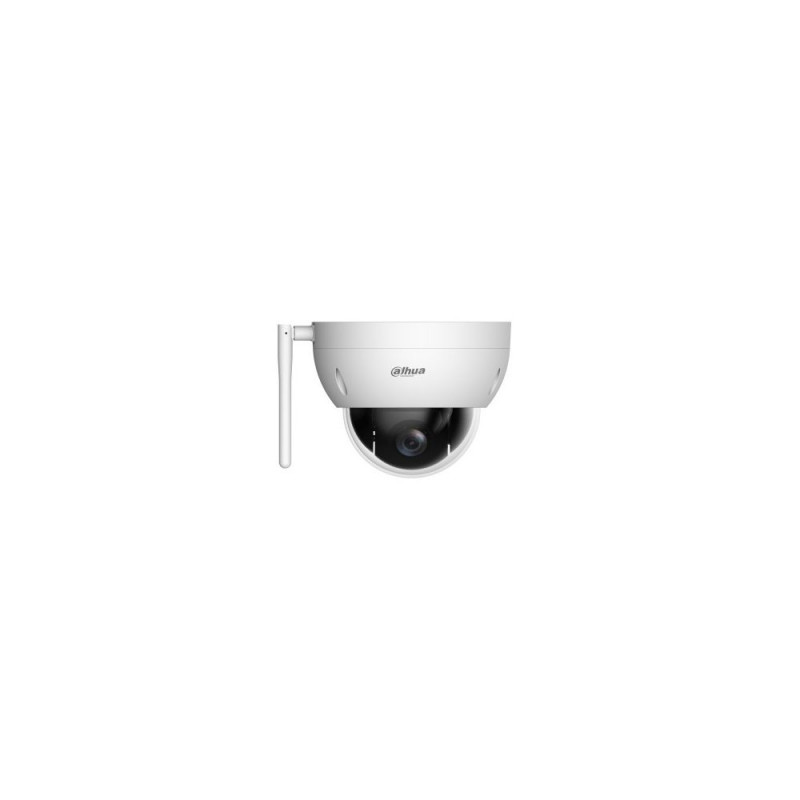

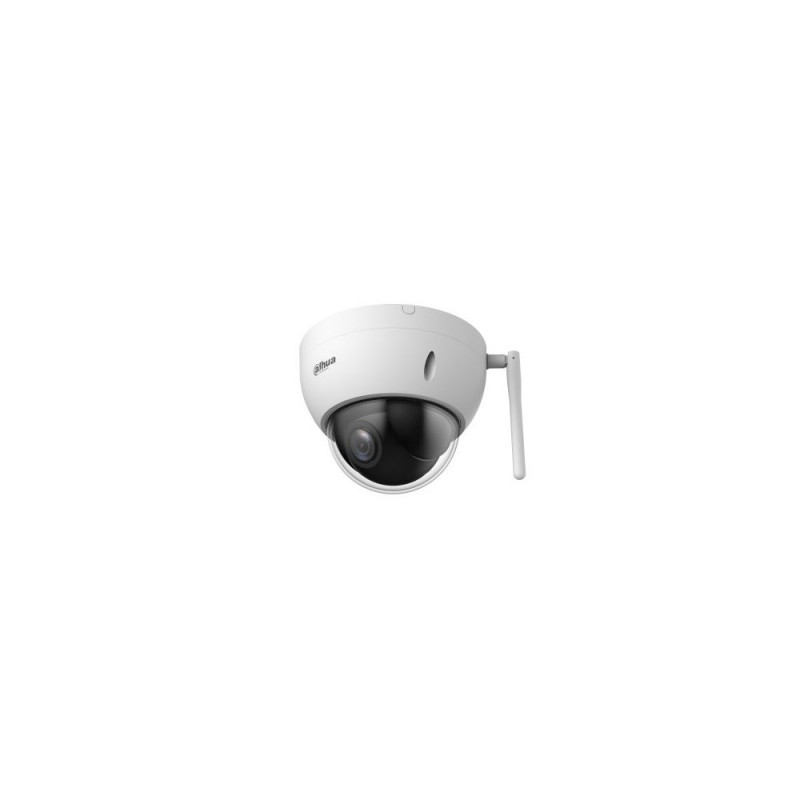

IP Camera DAHUA SD22404DB-GNY

257,99 €

Monthly payment starting from 8,79 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Minimum aperture number 1.6 Back Light Compensation (BLC) Yes
Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online


Minimum aperture number 1.6
Back Light Compensation (BLC) Yes
Ethernet interface type Fast Ethernet
Built-in HDD No
Minimum illumination 0.0005 lx
Progressive scan Yes
IK code IK10
Noise reduction technology 2D noise reduction, 3D noise reduction
Zoom capability Yes
Lens viewing angle, diagonal 105.7 - 33.6°
Lens viewing angle, horizontal 90.3 - 29.4°
Noise reduction Yes
Focal length range 2.8 - 12 mm
Tilt preset speed 60 °/sec
LED type IR
Bit rate H.264: 2816Kbps – 13056Kbps; H.265: 1024Kbps – 7936Kbps
Highlight Compensation (HLC) Yes
PTZ control Yes
Camera shutter speed 1 - 1/30000 s
Total megapixels 4 MP
Fog proof Yes
Optical sensor size 25.4 / 2.8 mm (1 / 2.8")
Bit rate control Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Pan range 0 - 355°
Recognize distance 48 m
Ethernet LAN Yes
Optical zoom 4x
PTZ protocols Pelco-P/D
Signal-to-Noise Ratio (SNR) 55 dB
Maximum memory card size 512 GB
Digital zoom 16x
Pan preset speed 100 °/sec
Card reader integrated Yes
Digital Wide Dynamic Range (DWDR) Yes
Detect distance 240 m
Maximum aperture number 3
Number of cameras 1
Lens viewing angle, vertical 48.5 - 16.6°
Region of Interest (ROI) encoding Yes
Height 89 mm
International Protection (IP) code IP66
Diameter 12.2 cm
Observe distance 94.8 m
Wi-Fi Yes
Compatible memory cards MicroSD (TransFlash)
Tilt manual speed 0.1 - 60 °/sec
Pan manual speed 0.1 - 100 °/sec
Power consumption (typical) 2.7 W
Form factor Dome
Product colour White
Maximum resolution 2560 x 1440 pixels
Weight 500 g
Power consumption (max) 4.8 W
Quality of Service (QoS) support Yes
Tilt angle range 0 - 90°
Bluetooth No
Package weight 700 g
Wi-Fi data rate (max) 150 Mbit/s
Operating temperature (T-T) -30 - 60 °C
Web-based management Yes
Storage temperature (T-T) -30 - 60 °C
Operating relative humidity (H-H) 0 - 95%
Type IP security camera
Storage relative humidity (H-H) 0 - 95%
Power source type DC, PoE
Ethernet LAN (RJ-45) ports 1
Connectivity technology Wired & Wireless
Camera tilt control Yes
Camera pan control Yes
Placement supported Outdoor
ROM capacity 128 MB
Mounting type Ceiling/Wall/Pole
Day/night mode Yes
Auto focus Yes
Image stabilizer Yes
Tour recording Yes
Number of users 20 user(s)
Active tampering alarm Yes
Identify distance 24 m
DC output current 1 A
Video motion detection Yes
Night vision Yes
Video streaming Yes
Closest focusing distance 1.5 m
Sensor type CMOS
Preset points Yes
RAM capacity 512 MB
DC output voltage 12
Web browser Yes
Number of lenses 1
Gain control type Auto/Manual
Warranty 24 (F)
Streaming method Unicast
Wi-Fi standards 802.11b
Supported graphics resolutions 1280 x 960
PTZ modes 5 Pattern
White balance ATW
Intelligent Video Surveillance (IVS) system features Intrusion
Video compression formats M-JPEG

Extended warranties and insurance:

  • Additional warranty + insurance (2 + 1 year) - 59,99 €
  • Additional warranty (2 years) - 39,99 €
  • Insurance (1 year) - 39,99 €
  • Insurance (2 years) - 69,99 €

Choose a suitable extended warranty and insurance in checkout..

Dimensions and weights

Package width
160 cm
Package height
140 cm
Package length
160 cm

Product codes

EAN
6923172536402
Manufacturer code
40175
