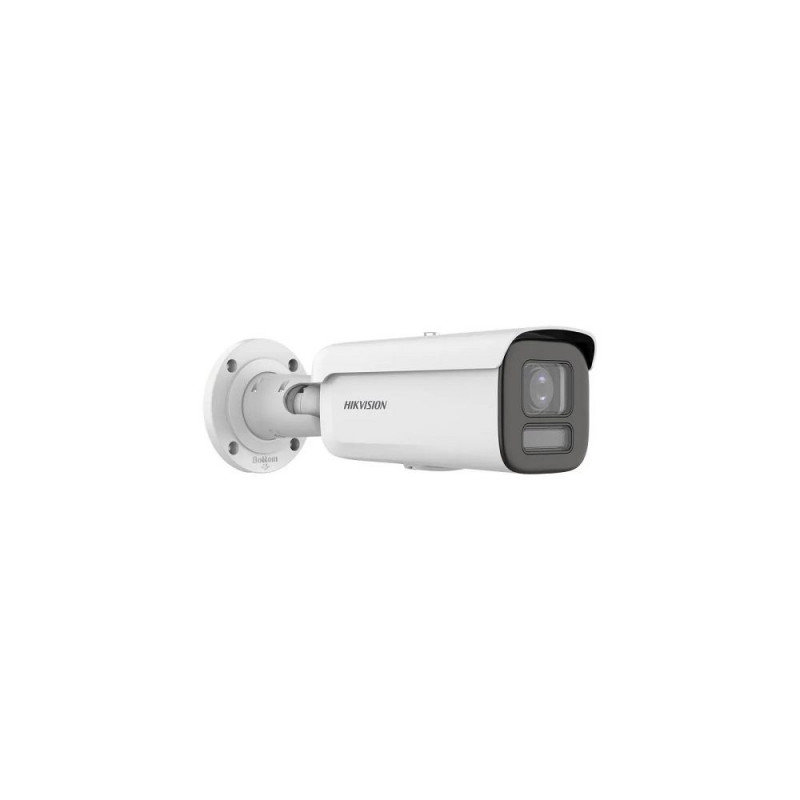

Hikvision DS-2CD2687G2HT-LIZS

8 MP Smart Hybrid Light with ColorVu Motorized Varifocal Bullet Network CameraFeaturesModel: DS-2CD2687G2HT-LIZS, whiteHigh quality imaging with 8 MP resolutionSmart Hybrid Light: advanced technology with long rangeClear imaging against strong back light due to 130 dB WDR technologyEfficient H.265+ compression technologyFocus on human and vehicle targets classification based on deep learningMotorized varifocal lens for easy installation and monitoringWater and dust resistant (IP67)SpecificationsCamera• Image Sensor: 1/1.8" Progressive Scan CMOS• Max. Resolution: 3840 × 2160• Min. Illumination: Color: 0.0028 Lux @ (F1.2, AGC ON),0 Lux with light• Shutter Time: 1/3 s to 1/100,000 s• Day & Night: IR cut filter• Angle Adjustment Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°Lens• Lens Type: Varifocal lens, motorized lens, 2.8 to 12 mm• Focal Length & FOV: 2.8 to 12 mm, horizontal FOV 112.3° to 41.2°, vertical FOV 58.1° to 23.1°, diagonal FOV 137.4° to 47.3°• Lens Mount: Integrated• Iris Type: Fixed• Aperture: F1.2• Depth of Field: 1 m to infinite• DORI Wide: D: 87 m, O: 35 m, R: 17 m, I: 9 mTele: D: 216 m, O: 86 m, R: 43 m, I: 22 mIlluminator• Supplement Light Type : IR, White Light• Supplement Light Range: Up to 60 m• Smart Supplement Light: Yes• IR Wavelength: 850 nmVideo• Main Stream:50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)60 Hz: 24 fps(3840 × 2160), 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)• Sub-Stream:50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)• Third Stream:50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)*Third stream is supported under certain settings.• Video Compression:Main stream: H.265+/H.265/H.264+/H.264Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264 *Third stream is supported under certain settings.• Video Bit Rate 32 Kbps to 16 Mbps• H.264 Type Baseline Profile, Main Profile, High Profile• H.265 Type Main Profile• Bit Rate Control CBR, VBR• Scalable Video Coding (SVC) H.264 and H.265 encoding• Region of Interest (ROI) 1 fixed region for main stream and sub-streamAudio• Environment Noise Filtering: Yes• Audio Compression: G.711ulaw/ G.711alaw/ G.722.1/ G.726/ MP2L2/ PCM/MP3/ AAC-LC• Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)• Audio Sampling Rate: 8 kHz/ 16 kHz/ 32 kHz/ 44.1 kHz/ 48 kHzNetwork• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP• Simultaneous Live View: Up to 6 channels• API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP• User/Host: Up to 32 users; 3 user levels: administrator, operator, and user• Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)• Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)• Client: iVMS-4200, Hik-Connect, Hik-Central• Web Browser: Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+Image• Image Parameters Switch: yes• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser• Day/Night Switch: Day,Night, Auto, Schedule• Image Enhancement: BLC, HLC, 3D DNR• Wide Dynamic Range (WDR) 130 dB• SNR > /= 52 dB• Privacy Mask: 4 programmable polygon privacy masksInterface• Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port• On-Board Storage: Built-in memory card slot, support microSD card, up to 512 GB• Audio: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KOhm, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100Ohm, interface type: non-equilibrium• Alarm: 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)• Reset Key: YesEvent• Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception• Linkage: Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email,audible warning, trigger alarm output• Smart Event: Scene change detectionDeep Learning Function• Face Capture: Yes• Perimeter Protection: Line crossing, intrusion, region entrance, region exiting; Support alarm triggering by specified target types (human and vehicle)General• Power: 12 VDC ± 25%, 1.21 A, max. 14.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3at, Class 4, max. 18 W• Material: Front cover: Metal, body: Metal, bracket: Metal• Dimension: 298 mm × 97.9 mm × 95.7 mm (11.8" × 3.9" × 3.8")• Package Dimension: 386 mm × 190 mm × 180 mm (15.2" × 7.5" × 7.1")• Weight Approx. 1085 g (2.4 lb.)• With Package Weight Approx. 1639 g (3.6 lb.)• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)• General Function: Heartbeat, mirror, password reset via email, pixel counter, anti-banding• Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), UkrainianApproval• EMC: CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014• Safety:UL: UL 62368-1,CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017• Environment: CE-RoHS: 2011/65/EU• Protection IP67: IEC 60529-2013
