Home page » Electronics»Security systems»Security cameras»IP Camera Hikvision DS-2CD2346G3D-IZ2UY/SL

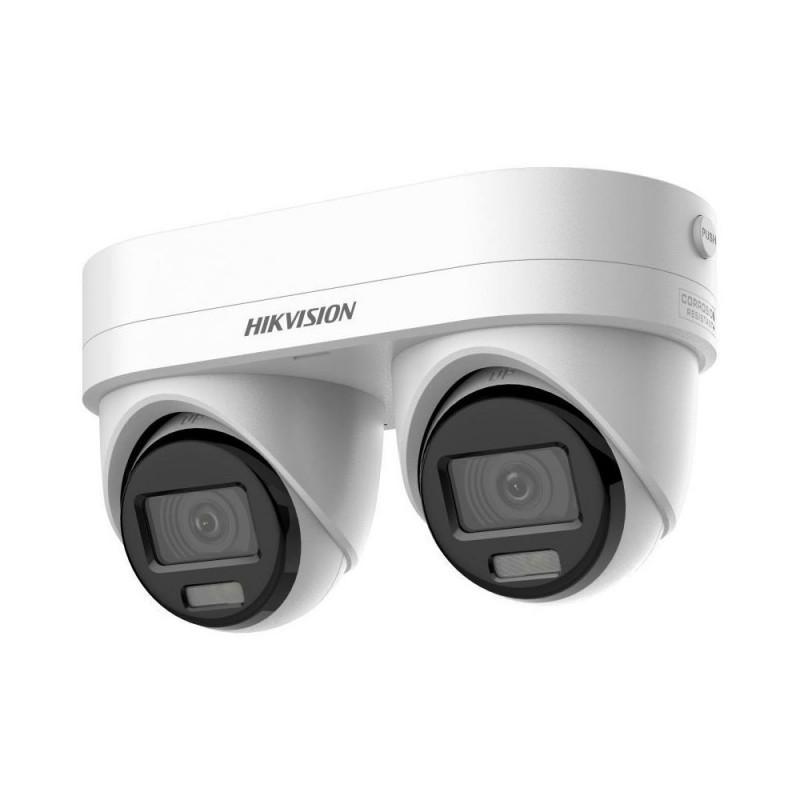

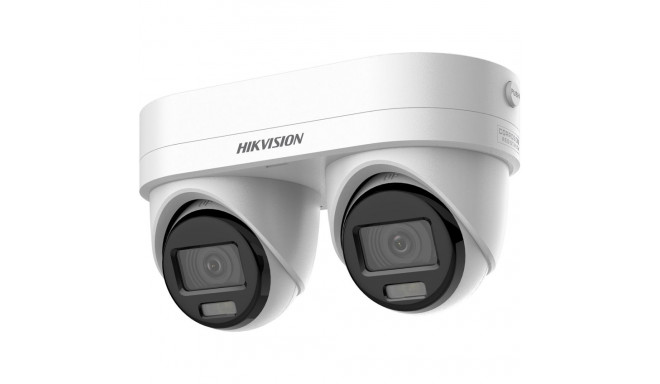

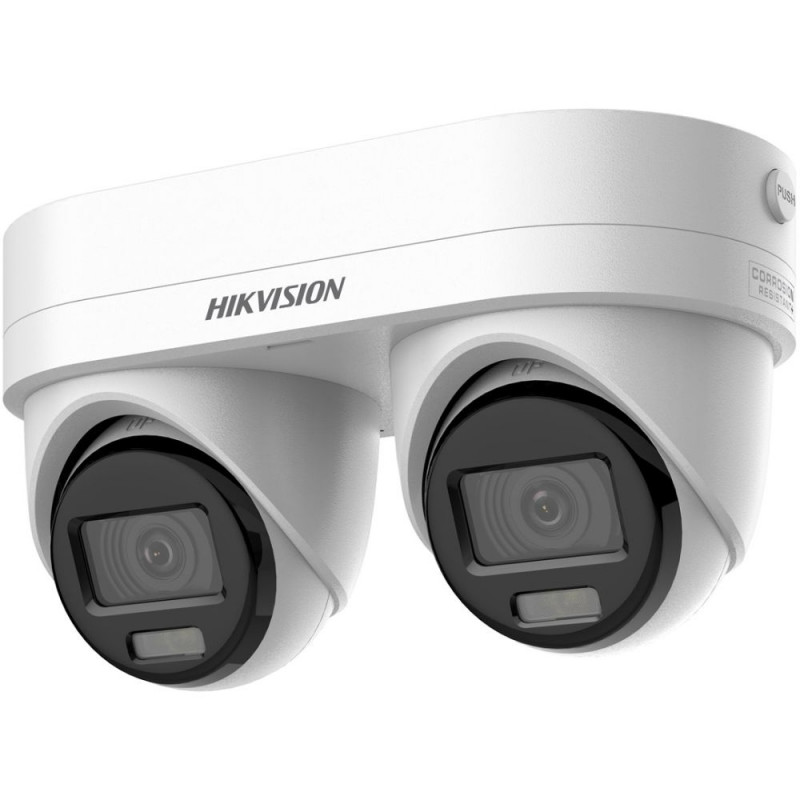

IP Camera Hikvision DS-2CD2346G3D-IZ2UY/SL

Main info

Product colour White Maximum aperture number 1.6

Product has been archived


Product colour White
Maximum aperture number 1.6
Maximum resolution 2688 x 1520 pixels
Operating temperature (T-T) -30 - 60 °C
HTTPS encryption Yes
Width 199.9 mm
Tilt angle range 0 - 75°
IP address filtering Yes
Wide Dynamic Range (WDR) Yes
Frame rate 30 fps
Depth 120.1 mm
Bit rate 32 Kbps - 16 Mbps
Camera shutter speed 1/3 - 1/100000 s
Form factor Turret
Height 97.2 mm
Connectivity technology Wired
Number of cameras 2
Package depth 162 mm
Audio codecs G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Optical sensor size 25.4 / 3 mm (1 / 3")
Night vision distance 30 m
Noise reduction Yes
Maximum memory card size 512 GB
Power consumption (max) 17 W
Built-in microphone Yes
Power source type DC
Pan range 0 - 360°
LED type IR
Card reader integrated Yes
Housing material Metal
Weight 1.2 kg
Focal length range 2.8, 4.8 mm
Ethernet LAN Yes
Mounting type Ceiling/wall
Progressive scan Yes
Ethernet interface type Fast Ethernet
Networking standards IEEE 802.3at
Storage relative humidity (H-H) 0 - 95%
Total megapixels 4 MP
Security algorithms TLS
Region of Interest (ROI) encoding Yes
Noise reduction technology 3D noise reduction
Storage temperature (T-T) -30 - 60 °C
Infra-red wavelength 850 nm
Minimum illumination 0 lx
Operating relative humidity (H-H) 0 - 95%
Highlight Compensation (HLC) Yes
Type IP security camera
Angle of rotation 360°
Heartbeat Yes
Sensor type CMOS
Number of users 32 user(s)
Digest authentication Yes
Built-in speaker(s) Yes
Pixel counter Yes
DC output current 1.42 A
Number of languages 33
Infrared (IR) cut-off filter Yes
Number of simultaneous live view channels 6 channels
Gain control type Auto
Number of sensors 1
Reset button Yes
Web browser Yes
Day/night mode Yes
Live view Yes
Signal-to-Noise Ratio (SNR) 52 dB
Password protection Yes
Password reset via email Yes
User access level Administrator, Operator, User
Power consumption (Power over Ethernet (PoE)) 18 W
Mirror Yes
Video streaming Yes
Night vision Yes
Number of lenses 2
Package height 165 mm
Package weight 1.57 kg
Languages support Multi
Placement supported Indoor
DC output voltage 12
Package width 305 mm
Ethernet LAN (RJ-45) ports 1
Back Light Compensation (BLC) Yes
Bit rate control Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Flash log Yes
Audit log Yes
Lens viewing angle, horizontal 99.3, 80°
Lens viewing angle, vertical 52.9, 44.1°
Sample rates 8 - 48 kHz
Lens viewing angle, diagonal 120.2, 94°
Number of Privacy masking areas 8
Motion sensor Yes
Alert notification type E-mail
Warranty 24 (F)
Certification CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017 CE-RoHS: 2011/65
Intelligent Video Surveillance (IVS) system features Human detection
Compatible memory cards MicroSDHC
Supported graphics resolutions 640 x 360
Video compression formats H.264

Camera

Horizontal swivel
360°

Dimensions and weights

Package width
280 cm
Package height
145 cm
Package length
150 cm

Product codes

EAN
6936422160272
Manufacturer code
21056798000
