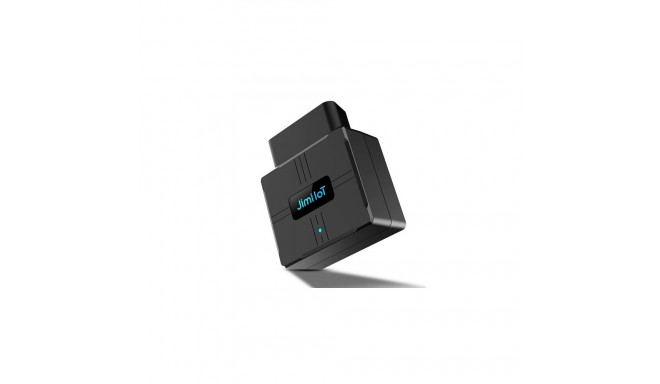

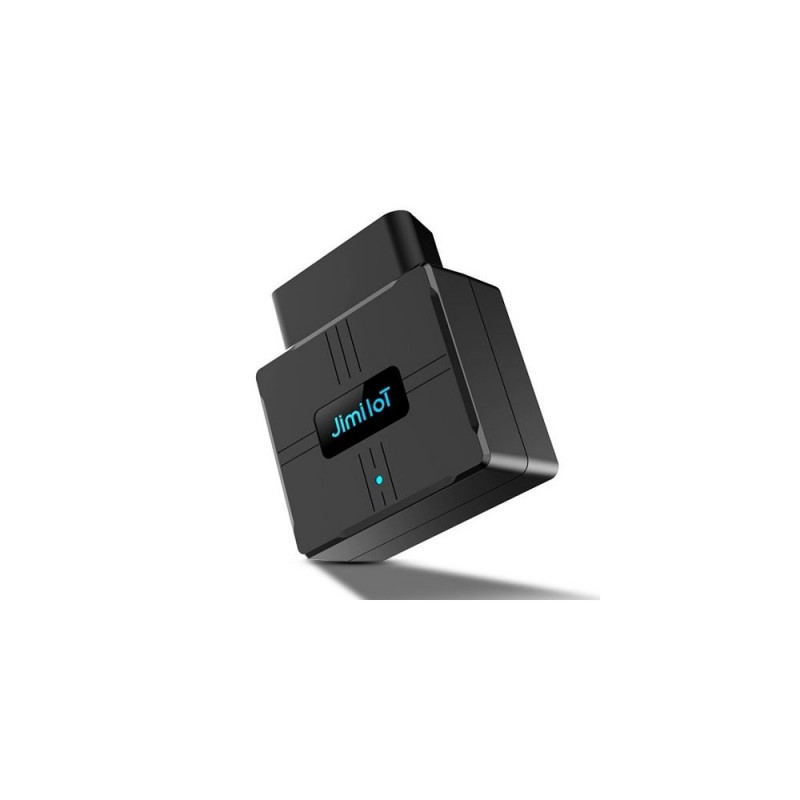

Vehicle GPS Tracker OBDII with Diagnostics

70,99 €

Monthly payment starting from 2,12 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Warning: Last items in stock!

Add to cart

Delivery in 4-7 working days

Delivery starting at 0 €

14 14 days return policy when purchasing online

Compact and reliable vehicle GPS tracker for OBD II port. Simple and easy to install, requiring no additional wiring or installation work. The device supports GPS and BDS satellite positioning, reads vehicle diagnostic data via the OBD interface, and can analyze driving behavior.  Features: VG502 is a compact and easy-to-install OBD II GPS tracker designed for company vehicles, private cars, and usage-based insurance (UBI) solutions. The tracker uses GNSS positioning (GPS and BeiDou) to accurately determine the vehicle’s location and monitor its movement in real time. Through the OBD interface, it can read essential vehicle diagnostic data and monitor the vehicle’s status, while built-in alerts help respond quickly to important events such as overspeeding, power disconnection, or leaving a predefined area. One of the key features of the VG502 is Driving Behavior Analysis (DBA) based on a UBI algorithm, which can detect four types of risky driving behavior, including harsh acceleration, harsh braking, sharp turns, and potential collisions. The integrated Bluetooth BLE 4.0 module allows extended functionality through additional sensors or accessories. The device does not require any additional installation work, making it a reliable and versatile solution for both private use and professional fleet monitoring. The tracker requires a SIM card with mobile data. SIM card is not included.
 Functions: Accurate positioning via GPS + BDS + LBS. Device removal alert. Ignition (ACC) detection via power voltage. Overspeed alert. Virtual fence (geo-fence). OBD vehicle diagnostic data reading. Driving behavior analysis (harsh acceleration, braking, cornering). Bluetooth BLE 4.0 support. SIM card not included.  Technical specifications: GSM frequency: 850/900/1800/1900 MHz. Frequency bands: B2 / B3 / B5 / B8. GPRS: TCP/IP. Memory: 4+4Mb. GNSS positioning system: GPS / BDS. Frequency: L1. Positioning accuracy: <2.5m CEP. Tracking sensitivity: -162dBm. Acquisition sensitivity: -148dBm. Time to First Coordinate (TTFF): Coordinate time of receipt when the time and the last coordinate of the location are known (hot start) <5 sec. Coordinate acquisition time when initial coordinate and time are not known (cold start) <32 sec. Integrated GNSS antenna. Battery: 50mAh / 3.7V lithium-polymer battery. Operating voltage: 9–36VDC. Connector: standard OBD II vehicle diagnostic port (available in most vehicles). OBD protocols: ISO9141-2, ISO14230-4 (KWP), ISO15765-4 (CAN). Interfaces: CAN Bus, K-Line. Supported SIM card: nano-SIM. LED indicator: status (blue). Sensor: accelerometer. Operating temperature: -20°C ~ +70°C. Humidity: 5–95% RH (non-condensing). Dimensions: 61 x 52 x 26 mm. Weight: 55 g.
 Compatible and tested with the Tracksolidpro.com operating platform on Windows, Android, iOS systems. The app allows you to configure the device and monitor all collected information - location, time, status, etc.
 Importer: Eurodigital.
 Warranty: 24 months.
