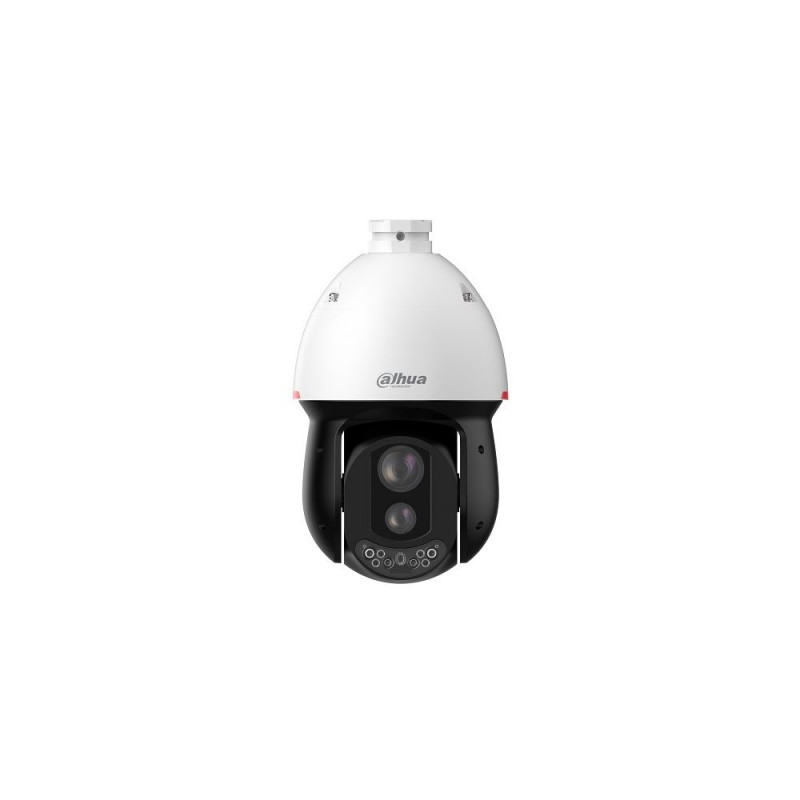

Network PTZ Dome Camera, 20x SD4F420DA-HNY

Addional discount of 5%
will be applied in shopping cart
(min. 10€ purchase)
879 €

Monthly payment starting from 29,96 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Technical Speci?cation Camera Image Sensor 1/1.8" CMOS Max. Resolution 2688 (H) x 1520 (V) Scanning System Progressive Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s Min. Illumination 0.0005 lux@F1.0 (Col
Add to cart

Delivery in 4-7 working days

Free delivery

14 14 days return policy when purchasing online

Technical Speci?cation

Camera

Image Sensor

1/1.8" CMOS

Max. Resolution

2688 (H) x 1520 (V)

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.0005 lux@F1.0 (Color, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

Up to 80 m (262.47 ft) (Warm light)

Illuminator On/Off Control

Auto; Manual; Zoomprio

Illuminator Number

5 (Warm light)

Lens

Hybrid Zoom

20x (Optical+Digital)

Hybrid Zoom Focal Length

2.8mm-56mm (Optical+Digital)

Max. Aperture

F1.0–F1.1

Field of View

H: 7°–105°; V: 4°–57°; D: 8°–125°

Iris Control

Auto;Manual

Close Focus Distance

1 m (3.28 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

W

38.6 m

(126.64 ft)

15.2 m

(49.87 ft)

7.7 m

(25.26 ft)

3.8 m

(12.47 ft)

T

441.3 m

(1447.83 ft)

174.3 m

(571.85 ft)

88.2 m

(289.37 ft)

44.1 m

(144.69 ft)
DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

Intelligence

Intelligence Notes

Face detection and perimeter protection cannot be enabled simultaneously.

IVS (Perimeter Protection)

Tripwire, intrusion, crossing fence, loitering, abandoned object, missing object, fast moving, parking detection, and crowd gathering. Supports the classification alarm of vehicle and human.

SMD

SMD 3.0

Face Detection (Full Image)

Face detection; snapshot; face snapshot set as face, one-inch photo, or custom; snapshot strategies (real-time snapshot and quality priority).

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream)

AI Coding

AI H.265; AI H.264

Video Frame Rate

Main stream: 2560 x 1440@(1–25fps)
Sub stream: 704 x 576@(1–25 fps)/704 x 480@(1–25 fps)
Third stream: 352 x 288@1 fps/352 x 240@1 fps
*The values above are the max frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Streaming Capability

3 streams

Resolution

4M (2688 x 1520/2560 x 1440); 3M (2304x1296); 1080p (1920 x 1080); 1.3M (1280 x 960); 720p (1280 x 720); D1 (704 x 576/704 x 480); VGA (640 x 480); CIF (352 x 288/352 x 240)

Bit Rate Control

VBR; CBR

Video Bit Rate

H.264: 32 kbps–6144 kbps
H.265: 12 kbps–6144 kbps

Day/Night

Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto/Manual

Noise Reduction

3D NR

Motion Detection

Yes

Region of Interest (RoI)

Yes (4 areas)

Image Stabilization

Electronic Image Stabilization (EIS)

Smart Illumination

Yes

Defog

Electronic

Image Rotation

0°/180°

Audio

Audio Compression

PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G.722.1

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; crowd gathering; parking detection; scene changing; abnormal audio; voltage detection; external alarm; face detection; SMD; security exception

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P; Bonjour; Auto Registration

Security

Session security;Digest; WSSE; Account lockout; Trusted execution; Generation and importing of X.509 certification; 802.1x; Security logs; Security warning; IP/MAC filtering; HTTPS; Trusted upgrade; syslog; Trusted boot

Interoperability

ONVIF (Profile G & Profile T & Profile M); CGI

User/Host

20 (Total bandwidth: 48 M)

Storage

FTP; SFTP; Micro SD card (supports max 512 GB); NAS

Browser

IE; Google; Firefox

Management Software

NVR; DMSS

Mobile Client

Android;iOS

Function

Sound Warning

Offers 3 sound alarms and supports importing custom sound alarms. Sound: 0–100. Play times can be set from 1 to 10. (An external speaker is required.)

Heater (Window Heating)

Quickly removes water, ice, snow, and mist from the glass to keep images clear.

PTZ

Pan/Tilt Range

Pan: 0° to 360° endless
Tilt: –15° to 90°, auto flip 180°

Manual Control Speed

Pan: 0.1°/s–80°/s; Tilt: 0.1°/s–42°/s

Preset

300

Preset Speed

Pan: 72°/s; Tilt: 62.5°/s

Tour

8 (up to 32 presets per tour)

Pattern

5

Scan

5

Power-off Memory

Yes

Idle Motion

Tour;Preset; Pattern; Scan

PTZ Protocol

DH-SD

Certification

Certifications

CE: EN55032/EN62368-1

Port

Audio Input

1 channel (terminal)

Audio Output

1 channel (terminal)

Alarm Input

2 channels in: supports wet contact connection (max load 5 mA 3–5 VDC); supports dry contact connection

Alarm Output

1 channel out: dry contact, max load 1,000 mA 30 VDC/500 mA 50 VAC

Power

Power Supply

12 VDC (±10%), 2.5 A; PoE+ (802.3at)

Power Consumption

Basic: 8.1 W (12 VDC); 12 W (PoE);
Max.: 19 W (12 VDC); 21.5 W (PoE) (motor + all lights + heating on);
Heating: 1.68 W (12 VDC); 1.7 W (PoE)

Environment

Operating Temperature

–40 °C to +65 °C (–40 °F to +149 °F)

Operating Humidity

?95% (RH), non-condensing

Storage Temperature

–40 °C to +65 °C (–40 °F to +149 °F)

Storage Humidity

?95% (RH), non-condensing

Protection

IP66; TVS 6000 V lightning proof; surge protection; voltage transient protection

Anti-corrosion Level

Basic Protection
*The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection.

Structure

Casing Material

Metal + Plastic

Product Dimensions

270.4 mm x ?160 mm (10.64" x ?6.30")

Net Weight

2.2 kg (4.85 lb)

Gross Weight

3.5 kg (7.72 lb)
