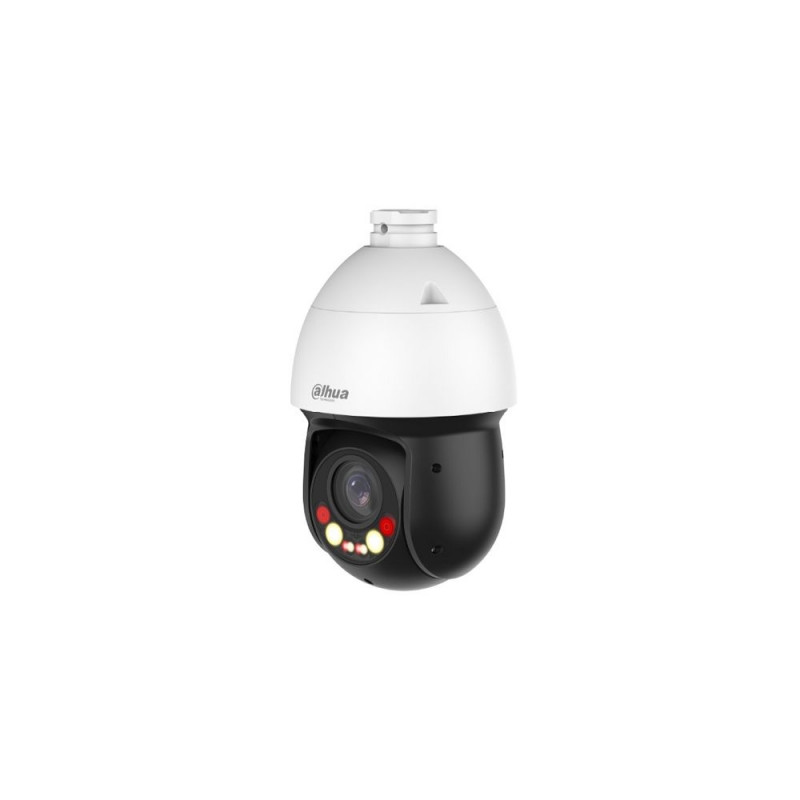

Network PTZ Dome Camera, 25x SD4D425MB-HNR

Addional discount of 5%
will be applied in shopping cart
(min. 10€ purchase)
819 €

Monthly payment starting from 27,91 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Camera Image Sensor 1/2.8" CMOS Pixel 4 MP Max. Resolution 2560 (H) x 1440 (V) ROM 4 GB RAM 1 GB Electronic Shutter Speed 1 s–1/30,000 s Scanning System Progressive Min. Illumination 0.005 lux@F1.6 (Color, 30 IRE); 0.0005 lux@F1.6 (B

Warning: Last items in stock!

Add to cart

Delivery in 4-7 working days

Free delivery

14 14 days return policy when purchasing online

Camera
Image Sensor 1/2.8" CMOS
Pixel 4 MP
Max. Resolution 2560 (H) x 1440 (V)
ROM 4 GB
RAM 1 GB
Electronic Shutter Speed 1 s–1/30,000 s
Scanning System Progressive
Min. Illumination 0.005 lux@F1.6 (Color, 30 IRE);
0.0005 lux@F1.6 (B/W, 30 IRE);
0 lux (illuminator on)
Illumination Distance 100 m (328.08 ft) (IR);
100 m (328.08 ft) (Warm light)
Illuminator On/Off Control Zoom Prio; Manual; Auto; Off
Illuminator Number 2 (IR); 2 (Warm light); 2 (Dual-core light)
Lens
Focal Length 5 mm–125 mm
Max. Aperture F1.6–F3.6
Field of View H:54.1°–3.4°; V: 31.4°–1.9°; D: 61.1°–3.9°
Optical Zoom 25x
Focus Control Auto; semi-auto; manual
Close Focus Distance 0.1 m–0.5 m (0.33 ft–1.64 ft)
Iris Control Auto
DORI Distance
Lens Detect Observe Recognize Identify
W 100.0 m
( 328.08 ft)		 40.0 m
( 131.23 ft)		 20.0 m
( 65.62 ft)		 10.0 m
( 32.81 ft)
T 2,500.0 m
( 8,202.00 ft)		 1,000.0 m
( 3,280.80 ft)		 500.0 m
( 1,640.40 ft)		 250.0 m
( 820.20 ft)
*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
PTZ
Pan/Tilt Range Pan: 0° to 360° endless;
Tilt: –15° to +90°, auto flip 180°
Manual Control Speed Pan: 0.1°–200°/s;
Tilt: 0.1°–120°/s
Preset Speed Pan: 0.1°–240°/s;
Tilt: 0.1°–200°/s
Preset 300
Tour 8
Pattern 5
Scan 5
Power-off Memory Yes
Idle Motion Preset;Pattern;Tour;Scan
Intelligence
IVS (Perimeter Protection) Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; human alarm classification; linkage tracking
Face Detection Supports face detection, optimization, capturing pictures, uploading high-quality face snapshots and enhancing face images. Attribute Extraction is also supported, where 6 attributes and 8 expressions can be detected. Face cutout is also offered, where you can cutout one face at a time and customize the size to be a one-inch photo. The supported methods for capturing snapshots are real-time capturing, quality first, and selecting a preferred image among a group of snapshots.
Smart Tracking WizTracking
SMD SMD 4.0
AcuPick Uses deep learning algorithms and works with backend devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets
Auto Patrol It triggers the IVS rule when a target is detected and makes the camera link with the PTZ to rotate to the position of the target and patrol based on its presets
Video
Video Compression Smart H.265+;H.265;Smart H.264+;H.264B;H.264M;H.264H;MJPEG(Sub Stream 1)
Streaming Capability 3 streams
Resolution 4M (2560 x 1440); 3M (2304 x 1296); 1080p (1920 x 1080); 960p (1280 x 960); 720p (1280 x 720); D1 (704 x 576/704 x 480); VGA(640 x 480);CIF (352 x 288/352 x 240)
Video Frame Rate Main stream: 4M/3M/1080p/1.3M/720p@(1–25/30 fps)
Sub stream 1: D1/VGA/CIF@(1–25/30 fps)
Sub stream 2: 1080p/1.3M/720p@(1–25/30 fps)
Bit Rate Control CBR/VBR
Video Bit Rate H264: 96 kbps–11,776 kbps
H265: 38 kbps–7,168 kbps
Day/Night Auto (ICR)/Color/B/W
BLC Yes
WDR 120 dB
HLC Yes
White Balance Auto; indoor; outdoor; ATW; manual; sodium lamp; natural light; street lamp
Gain Control Auto; manual; Gain priority
Noise Reduction 2D NR; 3D NR
Motion Detection Yes
Region of Interest (RoI) Yes
Image Stabilization Electronic Image Stabilization (EIS)
Defog Electronic
Digital Zoom 16x
Image Rotation 180°
Privacy Masking Up to 32 areas can be set, with up to 8 areas in the same view
S/N Ratio ?55 dB
Audio
Audio Compression PCM, G.711A, G.711Mu, G.726, MPEG2-Layer2, G.722.1, G.729, G.723
Network
Network Port 1 x RJ-45 (10/100 Base-T)
Network Protocol HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;IPv6;802.1x;SSL;QoS;FTP;UPnP;ICMP;SNMP;IGMP;ARP;RTCP;RTP;PPPoE;RTMP;Bonjour;SMB;NFS
Interoperability ONVIF (Profile S & Profile G & Profile T);CGI;SDK
Streaming Method Unicast/Multicast
User/Host 20 (total bandwidth: 64 M)
Storage Micro SD card (512 GB); FTP/SFTP; NAS
Browser web5.0:
IE 9 and later versions
Chrome 41 and later versions
Firefox 50 and later versions
iOS 10 and later versions
Management Software DMSS;DSS Pro
Mobile Client iOS;Android
Certification
Certifications CE: EN55032/EN55024/EN50130-4
Port
Audio Input 1 channel (LINE IN, bare wire)
Audio Output 1 channel (LINE OUT,bare wire)
Alarm Input 2
Alarm Output 1 channel
Alarm Linkage Capture; recording; send email; preset; tour; pattern; alarm digital output
Alarm Event Motion/Tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection
Alarm I/O 2/1
Audio I/O 1/1
Power
Power Supply 12 VDC, 3 A ± 10%
PoE (802.3at)
Power Consumption DC:
Basic: 8 W;
Max: 20 W (illuminator + PTZ)
PoE:
Basic: 11 W;
Max: 23 W (Illuminator+PTZ)
Power Adapter Optional
Environment
Operating Temperature –40 °C to +70 °C (–40 °F to +158 °F)
Operating Humidity ?95%
Protection IP67;TVS 6000 V lightning proof; surge protection; voltage transient protection
Structure
Product Dimensions 270.4 mm x ?160 mm (10.65" x ?6.30")
Net Weight 2.4 kg (5.29 lb)
Gross Weight 3.9 kg (8.60 lb)
