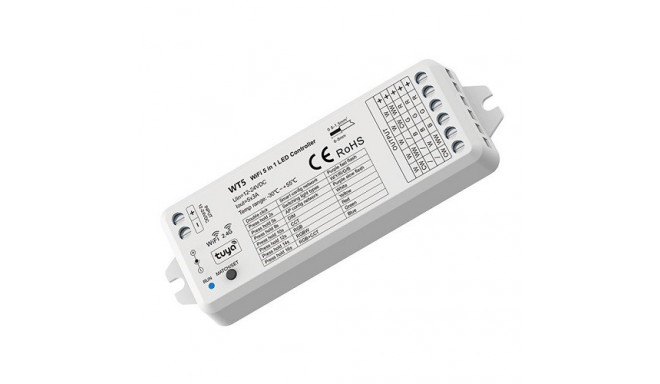

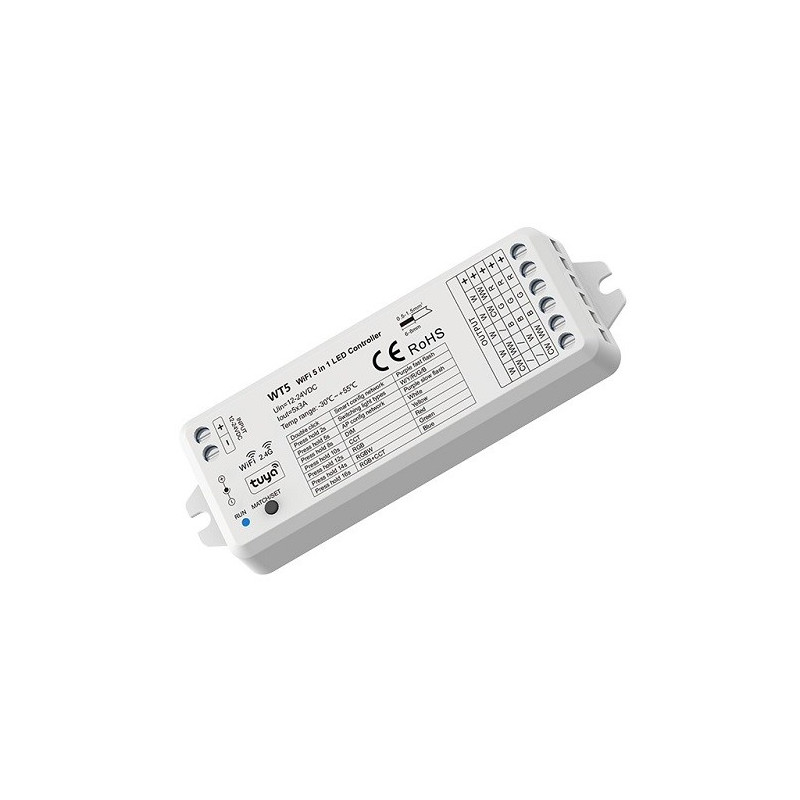

WT5 LED Controller 5in1, CCT, RGB/RGBW/RGB+CCT

30,99 €

Main info

W5 constant voltage controller 12-24V DC 5x 3A, for RGB/RGBW/CCT LED strips, 5 channels, 4 scenarios, Wi-Fi, Tuya Features: Supports lighting systems: single-color, two-color, color RGB, RGBW (color RGB+white W), changeable shade CCT.Allows you t
Add to cart

Delivery in 4-7 working days

Delivery starting at 0 €

14 14 days return policy when purchasing online

W5 constant voltage controller 12-24V DC 5x 3A, for RGB/RGBW/CCT LED strips, 5 channels, 4 scenarios, Wi-Fi, Tuya
Features: Supports lighting systems: single-color, two-color, color RGB, RGBW (color RGB+white W), changeable shade CCT.Allows you to smoothly dim or brighten the lighting up to 4096 levels 0-100%. Compatible with dimmable LED strips/bulbs.Allows you to control the color temperature (warm/neutral/cool white light).It can be controlled with the smart app "Tuya APP" or "Smartlife".Supports timer and schedule functions. Supports scripts and music players through the app.Supports voice control: Amazon Alexa, Google Home, etc., and Amazon Echo, Xiaodu, TmallGenie smart speakers.Supports dynamic RGB color management.Allows you to select the light on/off duration.Simultaneous automatic transmission: automatically transmits the signal to another controller within 30m, synchronizes the operation with other controllers (recommended not to exceed 25 controllers).It has a matching button (MATCH) for connecting remote controls.Can be controlled by 2.4 GHz RF remote controls, wireless wall switches, sensor switches.The controller can also act as a Wi-Fi to RF converter, then use the Tuya app to control one or more RF LED controllers or RF LED dimmers synchronously.The controller uses the most advanced PWM (Pulse Width Modulation) digital control technology to control constant voltage LED lamps.Protection against overload, overheating, reverse polarity and short circuit.Certificates: CE (EMC/LVD), RoHS.
Technical data:Product model: WT5.Compatibility: Skydance R15, R16, R8-1, R9, RT4, R8, RT9, RS3, RS4, RS8, R21, R22; T3, T3-1, T3-K.Number of channels: 5.Controlled lighting systems: single color / WW/CW / RGB / RGBW / RGB+CCT.Operating frequency: RF 2.4GHz.Supply voltage: 12V-24V DC / 15.5A.Output voltage: 12V-24V DC.Output current: 3A per channel.Power: (36-72)W per channel.PWM frequency: 1000 Hz.Grayscale: 4096 levels.Dimming range: 0-100%.Operating distance: up to 30m.Safety class: IP20 (not waterproof).Certificates: CE, EMC, LVD, RED, RoHS.Operating temperature: -30~+55°C.Dimensions: 114 x 38 x 20 mm.Color: white.Weight: 54g.
Warranty: 24 months.

Product codes

EAN
9990001083113
