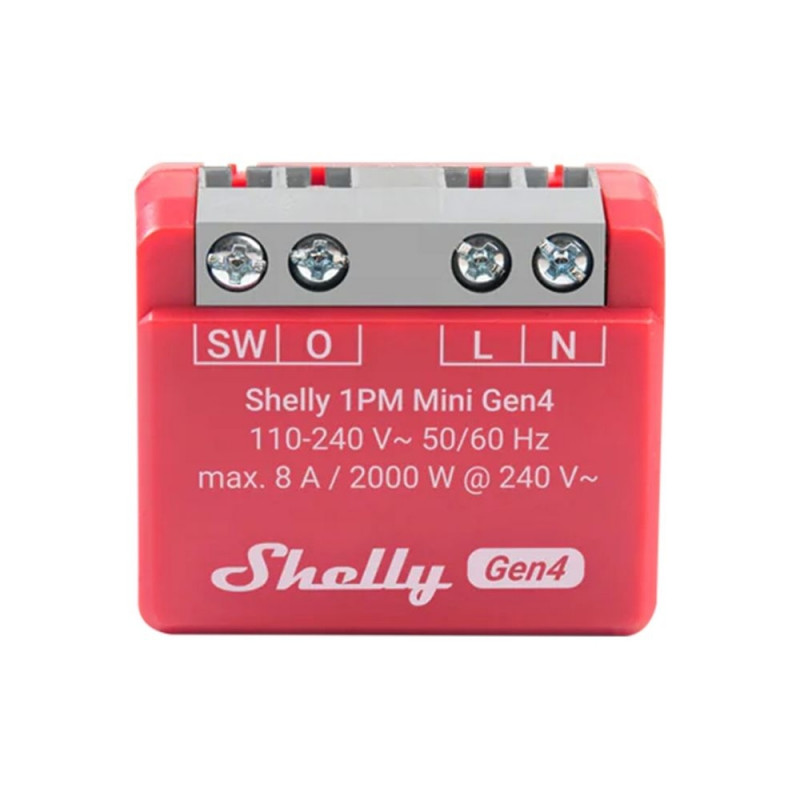

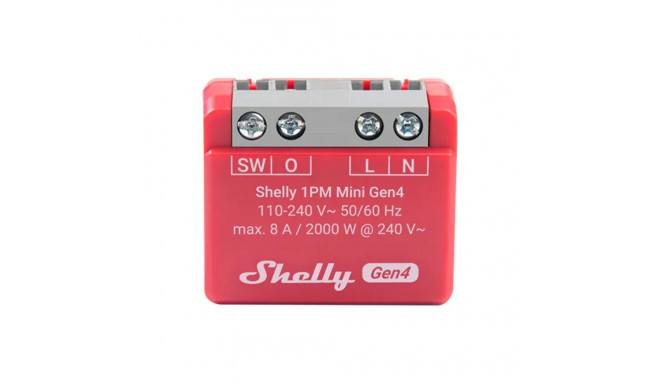

Shelly 1PM Mini Gen4 Controller Zigbee/Matter

22,99 €

Main info

Add to cart

Delivery in 4-7 working days

Delivery starting at 0 €

14 14 days return policy when purchasing online

Shelly 1PM Mini Gen4 Controller Zigbee/Matter

The Shelly 1PM Mini Gen4 controller allows you to remotely control electrical devices and accurately measure their energy consumption. It supports Wi-Fi, Zigbee, Bluetooth and Matter, so it can be easily integrated into various home automation systems. It works on the local network and via the cloud. The built-in web interface allows you to configure and monitor operation without the need for additional software. Thanks to its small size, it fits into typical installation boxes and can be mounted behind outlets or switches in areas with limited space.

Control and monitoring in one

The Shelly 1PM Mini Gen4 works as both a relay and an energy consumption meter. This gives you not only the ability to remotely turn devices on and off, but also insight into actual power consumption. The power measurement function allows you to accurately analyze the operation of connected equipment and helps optimize energy costs. The device sends data to the cloud or stores it locally depending on user preference.

Compatibility and ecosystem integrations

The device supports Zigbee, Wi-Fi, Bluetooth and Matter protocols. It can be integrated into systems such as Google Home, Amazon Alexa, SmartThings and KNX. The controller also supports MQTT, HTTPS, Web Hooks, UDP and local APIs, enabling advanced scenarios and collaboration with other smart home components.

Programming, schedules and responses

The product allows the creation of complex schedules and scenarios with the ability to set up to 20 schedules and webhooks - each with up to 5 URLs. It also supports scripts written in Shelly Script language, which allows automating actions depending on time conditions, device status or input data. You can also use so-called virtual components, which increase the flexibility of system configuration.

Stability and operational security

The Shelly 1PM Mini Gen4 is equipped with a number of protections, including overheating, overvoltage, overload and power overload. Thanks to the ESP-Shelly-C68F microprocessor and 8 MB of flash memory used, the device provides fast data processing and stable operation. In addition, it can act as a repeater, amplifying Zigbee or Wi-Fi signals in hard-to-reach areas.

General
Manufacturer Shelly
Model 1PMMiniGen4
Physical parameters
Dimensions 29 x 34 x 16 ± 0.5 mm / 1.34 × 1.11 × 0.63 ±0.02 inches
Weight 18 ±1 g / 0.63 ±0.04 ounces
Maximum tightening torque of screw terminals 0.4 Nm / 3.5 lbf.in
Wire cross section 0.2 to 2.5 mm² / 24 to 14 AWG (wire, wire and crimp sleeves)
Wire stripping length 6 to 7 mm / 0.24 to 0.28 in.
Mounting Wall box
Housing material Plastic
Housing color Red
Connector color Gray
Environmental conditions
Operating temperature -20°C to 40°C / -5°F to 105°F
Operating humidity 30% to 70% RH
Maximum altitude. 2000 m / 6562 ft
Electrical parameters
Power supply 110-240 V AC
Relay NO contact, 1 pole, µ contact
External protection Tripping characteristic B or C, max. rated current 10 A, min. breaking capacity 6 kA, energy limiting class 3
Output circuit parameters
Maximum switching voltage 240 V AC
Maximum switching current 8 A / 240 V AC
Power measurement Yes
Overvoltage / cut-off protection Yes
Overload / cutout protection Yes
Over-power protection / cut-off Yes
Sensors, meters
Built-in internal temperature sensor Yes
Wi-Fi
Protocol 802.11 b/g/n
RF bandwidth 2412 - 2472 MHz
Maximum RF power < 20 dBm
Range Up to 30 m / 100 feet indoors and 50 m / 160 feet outdoors (depends on local conditions)
Bluetooth
Protocol 5.0
RF band 2402 - 2480 MHz
Maximum RF power < 4 dBm
Range Up to 10 m / 33 feet indoors and 30 m / 100 feet outdoors (depends on local conditions)
Zigbee
Protocol 802.15.4
RF bands 2400 - 2483.5 MHz
Maximum RF power < 20 dBm
Range Up to 100 m / 328 feet indoors and 300 m / 984 feet outdoors (depends on local conditions)
Microcontroller unit
CPU ESP-Shelly-C68F
Flash memory 8 MB
Firmware capabilities
Schedules 20
Webhooks (URL shares) 20, each with up to 5 URLs
Scripts Yes
MQTT Yes

Dimensions and weights

Gross weight
0.05 kg
Package width
5.1 cm
Package height
3.4 cm
Package length
6.2 cm

Product codes

EAN
3800238070809
Manufacturer code
1PMMiniGen4
