Shelly 1 Mini Gen4 Controller Zigbee/Matter

FREE SHIPPING
WITHIN ESTONIA!

20,99 €

Main info

Add to cart

Delivery in 4-7 working days

Delivery starting at 0 €

14 14 days return policy when purchasing online

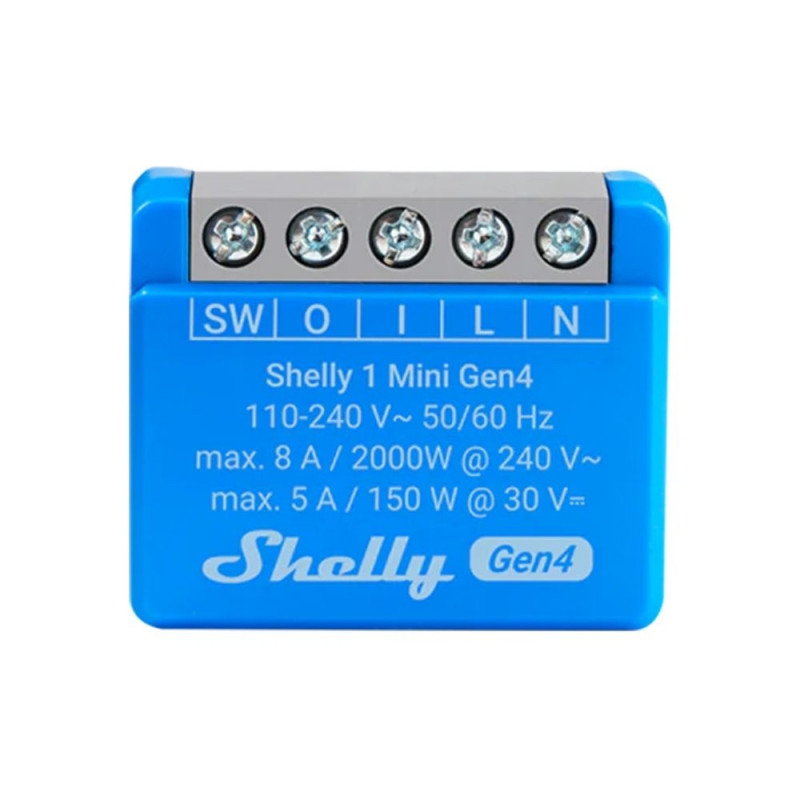

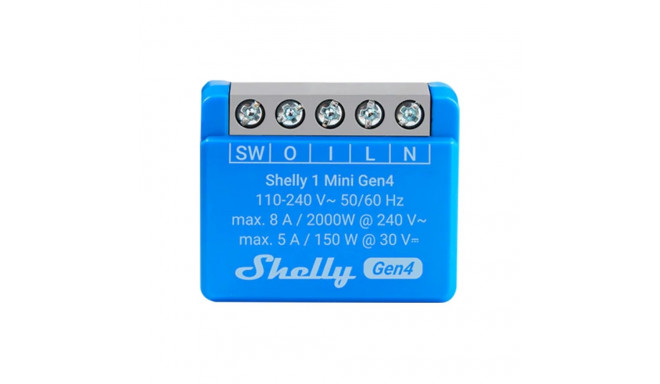

Shelly 1 Mini Gen4 Controller Zigbee/Matter

The Shelly 1 Mini Gen4 is a powerful relay controller that, despite its small size (29 x 34 x 16 mm), offers support for multiple communication standards, including Wi-Fi, Zigbee, Bluetooth and Matter. It can be mounted in junction boxes, behind outlets and in areas where mounting space is limited. Thanks to its potential-free contacts, the device can be used in applications that require galvanic separation of circuits, such as for controlling a gate, relay, bell or automation system regardless of their operating voltage. It also supports schedules, scenes, scripts and integrates with home automation systems such as Google Home, Alexa, and Samsung SmartThings.

Extensive connectivity and Matter protocol compatibility

The Shelly 1 Mini Gen4 controller offers communication via Wi-Fi (802.11 b/g/n), Zigbee (802.15.4) and Bluetooth 5.0. The device also acts as a BLE gateway and Wi-Fi and Zigbee signal booster for other IoT devices. Thanks to its compatibility with the Matter protocol, it can be integrated into any ecosystem that supports the standard, which increases its versatility and simplifies configuration in a variety of home environments.

Potential-free contacts and operation with different voltages

The Shelly 1 Mini Gen4 has the advantage of being able to control both low-voltage (30 VDC) and mains-powered (up to 240 VAC) devices. Thanks to the presence of a potential-free contact (dry contact), it can also be used in situations requiring an isolated relay, such as controlling gates, bells or lighting.

Advanced scheduling and scene functions

The Shelly 1 Mini Gen model allows you to set as many as 20 schedules, so you can schedule equipment to automatically turn on or off at specific times on selected days of the week. In addition, it supports the creation of scenes, i.e. sets of actions triggered simultaneously or sequentially in response to an event, such as turning on several devices when motion is detected. Schedules and scenes are configured using the Shelly Smart Control app, available free of charge for mobile devices and computers.

Integrations and full local or remote control

The device can be integrated not only with systems from major voice assistant manufacturers, but also with local systems via HTTP/HTTPS, MQTT, WebHooks or KNX net/IP APIs. Shelly 1 Mini Gen4 works both locally (without access to the cloud) and over the Internet, allowing full control regardless of where the user is. A built-in web interface allows direct configuration from a browser.

High installation flexibility

The controller's housing is made of plastic and allows installation in installation boxes. Despite its compact size, the device houses an advanced ESP-Shelly-C68F microcontroller with 8 MB of flash memory, allowing it to handle scripting and real-time functions.

General
Manufacturer Shelly
Model 1MiniGen4
Physical parameters
Dimensions 29 x 34 x 16 ±0.5 mm / 1.34 x 1.11 x 0.63 ±0.02 inches
Weight 19 ±1 g / 0.65 ±0.04 oz
Maximum tightening torque of screw terminals 0.4 Nm / 3.5 lbin
Cable cross section 0.2 to 2.5 mm² / 24 to 14 AWG (solid wire, multi-stranded wire, bushings)
Wire stripping length 6 to 7 mm / 0.24 to 0.28 in.
Mounting Wall box
Housing material Plastic
Housing color Blue
Connector color Gray
Environmental conditions
Operating temperature -20°C to 40°C / -5°F to 105°F
Operating humidity 30% to 70% RH
Maximum altitude. 2000 m / 6562 ft
Electrical parameters
Power supply 110 - 240 VAC
Relay Potential-free, NO contact, 1-pole, µ contact
Power consumption < 1.2 W
External protection Tripping characteristic B or C, rated current max. 10 A, breaking capacity min. 6 kA, energy limitation class 3
Output circuit parameters
Maximum switching voltage 240 VAC / 30 VDC
Maximum switching current 8 A / 240 VAC, 5 A / 30 VDC
Maximum output power 2000 W / 240 VAC, 150 W / 30 VDC
Overvoltage protection None
Current protection None
Over-power protection None
Sensors and measurements
Internal temperature sensor Yes
Wi-Fi
Protocol 802.11 b/g/n/ax
RF band 2412 - 2472 MHz
RF power < 20 dBm
Range Up to 30 m indoors / 50 m outdoors (depending on local conditions)
Bluetooth
Protocol 5.0
RF band 2402 - 2480 MHz
RF power < 4 dBm
Range Up to 10 m indoors / 30 m outdoors (depending on local conditions)
Zigbee
Protocol 802.15.4
RF bandwidth 2400 to 2483.5 MHz
RF power < 20 dBm
Range Up to 100 m indoors / 300 m outdoors (depending on local conditions)
Microprocessor unit
CPU ESP-Shelly-C68F
Flash memory 8 MB
Firmware features
Schedules 20
WebhookS (URL shares) 20 with 5 URLs per webhook
Scripts Yes
MQTT Yes

Dimensions and weights

Gross weight
0.05 kg
Package width
5 cm
Package height
3.4 cm
Package length
6 cm

Product codes

EAN
3800238070786
Manufacturer code
1MiniGen4
