Shelly 1L Gen3 WiFi 1-channel non-neutral lighting controller

Addional discount of 2%
will be applied in shopping cart
(min. 10€ purchase)
33,99 €

Main info

Add to cart

Delivery in 4-7 working days

Delivery starting at 0 €

14 14 days return policy when purchasing online

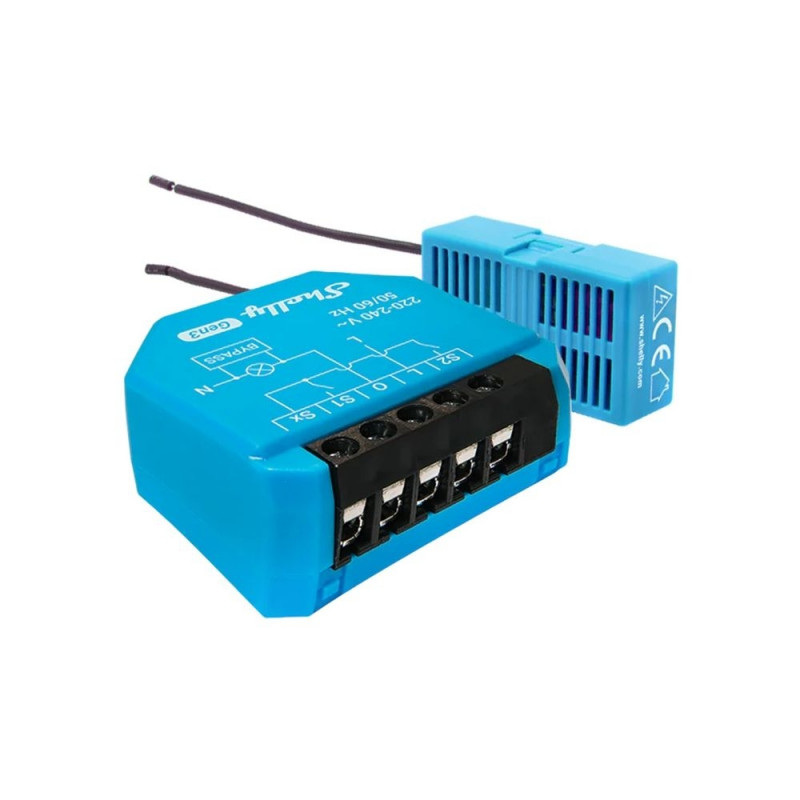

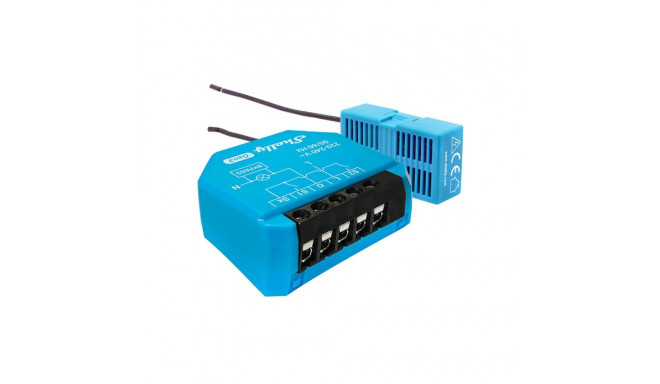

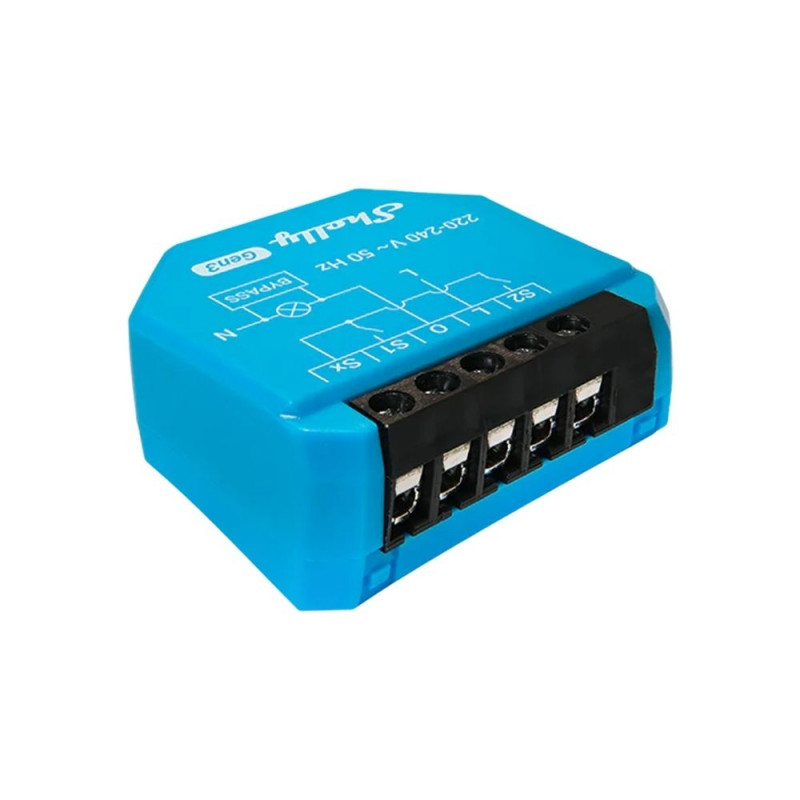

Shelly 1L Gen3 WiFi 1-channel lighting controller without neutral

The Shelly 1L Gen3 is an advanced 1-channel lighting controller that works without a neutral wire, so it fits almost any electrical installation - even older ones. With Wi-Fi and Bluetooth connectivity, scheduling features, support for automation and overheating protection, it's the perfect solution for remote lighting control. The Shelly 1L Gen3 is an ideal choice for those upgrading their installation, owners of older homes, as well as for those who want to intelligently manage their lighting without costly modifications. With Shelly 1L Gen3, you gain full control of your light - conveniently, securely and wirelessly.

Full compatibility with any installation

Shelly 1L Gen3 is the perfect solution for upgrading older electrical systems. The device works without the need to connect a neutral wire, allowing it to be installed in almost any flush-mounted box, including those with limited space. This is especially useful when upgrading an existing installation without costly renovation.

No hub, no restrictions

Connect the Shelly 1L Gen3 to your home Wi-Fi network and gain instant access to lighting control from the Shelly Smart Control app, all without the need for an additional hub. Bluetooth makes it possible to pair the device quickly, and the controller itself can also act as a Bluetooth gateway, extending the range for other devices. It's a convenience that any user will appreciate. You'll also find a dedicated Bypass Shelly included, which eliminates blinking LED flashes.

Create schedules and scenes

Schedule the lights to turn on and off according to your daily routine or day and night rhythm - the device allows you to create schedules based on sunrise and sunset times. You can also configure your own scenarios and local actions, such as turning on lights when you open the door or come home.

Support for automation and security

The Shelly 1L Gen3 supports advanced automation protocols, including HTTPS, MQTTS, Web Sockets and the ability to write custom scripts. A built-in temperature sensor protects the device from overheating, ensuring safe use. All this without investing in additional control panels.

Multiple ways to integrate

The device integrates with many home automation systems, including Alexa, Home Assistant and others. This allows you to control the light by voice or from your favorite app, regardless of the platform you choose. No matter which method you prefer - Shelly will adapt to you and your preferences.

Wi-Fi controller and amplifier in one

The 1L Gen3 also acts as a Wi-Fi repeater, boosting the signal in your home, as well as a Bluetooth gateway, improving connectivity with other smart devices. It's more than just a controller - it's a hub for smart lighting management.

Additional solutions and free app

Shelly Smart Control is a free app available on Android, iOS and in your browser that allows you to manage your space, monitor energy consumption and create schedules. You can also upgrade to the premium version and get even more features.

Included
  • 1-channel controller
  • Bypass Shelly
  • user manual
Manufacturer Shelly
Model 1LGen3
Dimensions 37 x 42 x 16 ± 0.5 mm
Weight 24 g
Maximum tightening torque of screw terminals 0.4 Nm
Cable cross section 0.2 to 2.5 mm²
Length of stripped wire 6 to 7 mm
Mounting method In the wall
Housing material Plastic
Housing color Cyan
Clamp color Black
Operating temperature -20 °C to 40 °C
Storage temperature 10 °C to 40 °C
Humidity 30 % to 70 % RH
Maximum altitude 2000 m
Power supply 220-240 V~ 50 Hz (Shelly Bypass required)
Shelly bypass Included
Power consumption < 1.2 W
Min. load without neutral wire and without Shelly Bypass No (Shelly Bypass is required for load at O), for all LED lights. Bypass not required for incandescent lamps
External protection 10 A, trip characteristics B or C, rated interrupting value 6 kA, energy limit class 3
Max. switching voltage 240 V~ 50 Hz
Max. switching power 200 W
Temperature sensor Built-in
Wi-Fi protocol 802.11 b/g/n
Wi-Fi frequency 2401 - 2495 МHz
Maximum Wi-Fi RF power < 20 dBm
Wi-Fi range Up to 30 meters indoors, up to 50 meters outdoors
Bluetooth version 4.2
Bluetooth frequency 2400 - 2483.5 MHz
Maximum Bluetooth RF power < 4 dBm
Bluetooth range Up to 10 meters indoors, up to 30 meters outdoors
CPU ESP-Shelly-C38F
Clocking 160 Mhz
RAM 512 KB
Flash memory 8 MB
Number of schedules 20
Number of webhooks 20 (5 URLs per hook)
Scripting Yes
MQTT Yes

Dimensions and weights

Gross weight
0.05 kg
Package width
4.8 cm
Package height
3 cm
Package length
7 cm

Product codes

EAN
3800235261637
Manufacturer code
1LGen3
