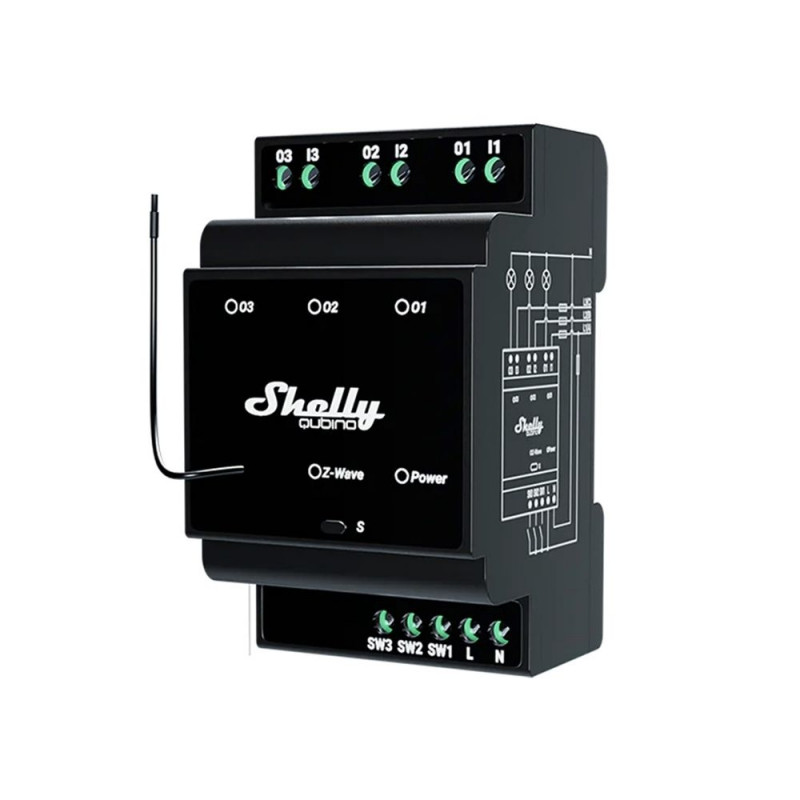

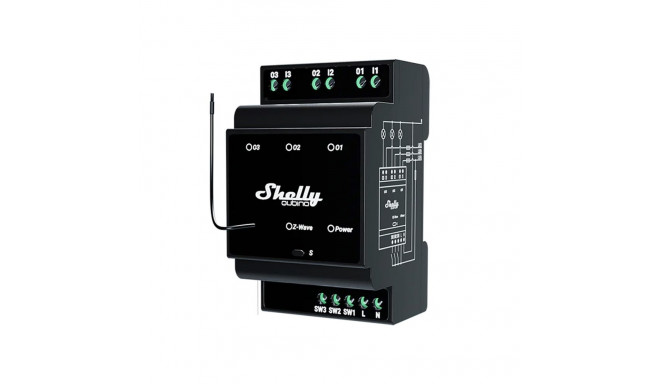

Shelly Qubino Wave Pro 3 Z-Wave 3-Channel DIN Rail Relay

Shelly Qubino Wave Pro 3 is an advanced 3-channel DIN-rail-mounted Z-Wave relay that provides reliable control of lighting and electrical devices in homes and commercial buildings. It supports a load of up to 48 amps (16 amps per channel), features potential-free contacts and offers the highest level of security with S2 encryption. The device works with more than 4,000 certified Z-Wave devices, allows remote control via smartphone and automatic addition to the network thanks to SmartStart technology. Low power consumption (< 0.3 watts), support for Z-Wave 800 Series, and overheat and surge protection make it an indispensable part of any installation.

Ideal for new installations

Shelly Wave Pro 3 is a professional relay designed for newly built homes and commercial buildings. With three independent channels of 16 amps each (48 amps total), it will easily handle lighting, household appliances or HVAC systems. Equipped with potential-free contacts, it provides full flexibility for a variety of applications - both low and high voltage. It's precision that transforms energy management.

Advanced Z-Wave 800 technology

The device operates on the Z-Wave protocol in the 908.4 MHz band and uses the innovative Z-Wave 800 Series chipset, which offers improved range and communication stability. The Shelly Qubino Wave Pro 3 can be easily integrated into an existing Z-Wave network thanks to the SmartStart function, and its compatibility with more than 4,000 certified devices guarantees extensive integration possibilities regardless of brand or manufacturer.

Maximum security and energy savings

With Security 2 support, the device communicates on the network with full AES128 encryption, ensuring the highest level of security. In addition, it features extremely low power consumption (less than 0.3 watts), resulting in lower operating costs and greater energy efficiency.

Reliable installation and wide range

Shelly Wave Pro 3 mounts on a DIN rail inside an electrical switchboard in accordance with international standards. With its Z-Wave repeater function, the device extends the network range up to 40 meters inside the building. It can be controlled remotely via a smartphone app, and automatic scenarios and schedules can be created to fit your daily routine or business needs. It's a convenient solution that adapts to your preferences.

Versatility of applications and local communication

The device allows direct links between other Z-Wave products, even without a hub. It will be perfect for controlling lighting, valves, heating and cooling, offering dynamic management of the home or office environment. Built-in protection against overheating, overload and overvoltage, as well as an enclosure made of fireproof material (V-0), increase the level of reliability and safety of the entire installation.

Manufacturer Shelly
Model QubinoWavePro3
Power supply 110 - 240 V AC, 50/60 Hz
Power consumption < 0.3W
Power measurement [W]. None
Max. switching voltage AC 240 V
Max. switching current AC 16 A per channel, 48 A total
Max. DC switching voltage 30 V
Max. DC switching current 16 A per channel, 48 A total
Protection against overheating Yes
Range Up to 40 meters in open space
Z-Wave® repeater Yes
CPU Z-Wave® S800
Z-Wave frequency bands 908.4 MHz
Dimensions 96 x 53 x 59 ± 0.5 mm
Weight 150 g
Mounting DIN rail
Maximum tightening torque of screw terminals 0.4 Nm
Cable cross section 0.5 to 2.5 mm² / 20 to 14 AWG (green connector)
Length of stripped wire 6 to 7 mm (green connector)
Housing material Plastic
Color Black
Ambient temperature -20°C to 40°C
Humidity 30% to 70% RH
Maximum altitude 2000 m
Compatible devices Z-Wave enabled devices, Z-Wave gateway, routers, smartphones

Dimensions and weights

Gross weight
0.18 kg
Package width
6 cm
Package height
7 cm
Package length
9.4 cm

Product codes

EAN
3800235269336
Manufacturer code
QubinoWavePro3
